SWITCHCRAFT®
- SWITCHCRAFT®, founded in 1946, is headquartered in Chicago, IL USA and still manufactures product in Chicago today. In 1999, SWITCHCRAFT® acquired Conxall®, located in Villa Park, IL, a leading manufacturer of harsh environment connectors and custom cable assemblies, adding to the already extensive line of SWITCHCRAFT® connector products.
SWITCHCRAFT®, Inc. is a leading US based manufacturer of connectors, jacks, plugs, switches, molded cable assemblies and patchbays. SWITCHCRAFT® products are used in a variety of applications from broadcast and pro audio to medical, lighting, security, transportation and other industrial applications. Experience and attention to detail make Switchcraft a leader in Harsh Environment Connectivity Solutions.
Conxall manufactures a wide range of circular sealed plastic connectors and molded cable assemblies. In addition to their line of standard product they also specialize in custom cable assemblies and connector options. Conxall products are used in a wide variety of applications, especially those requiring protection from harsh environmental conditions. Experience and attention to detail make Conxall a leader in Harsh Environment Connectivity Solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock

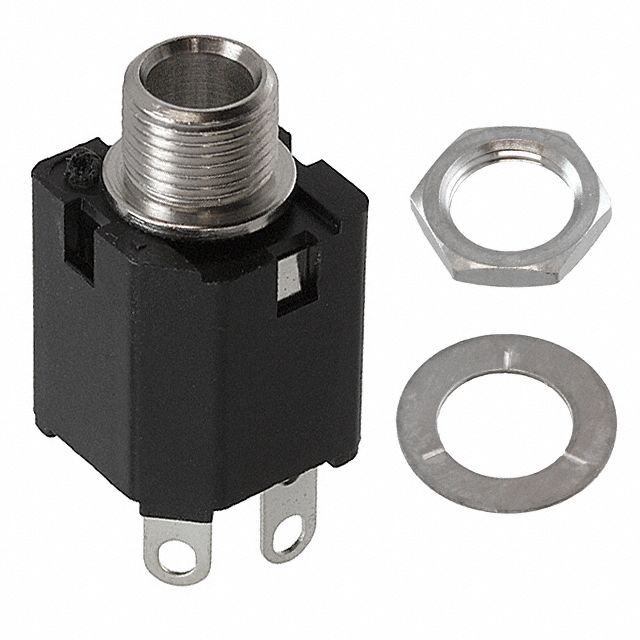

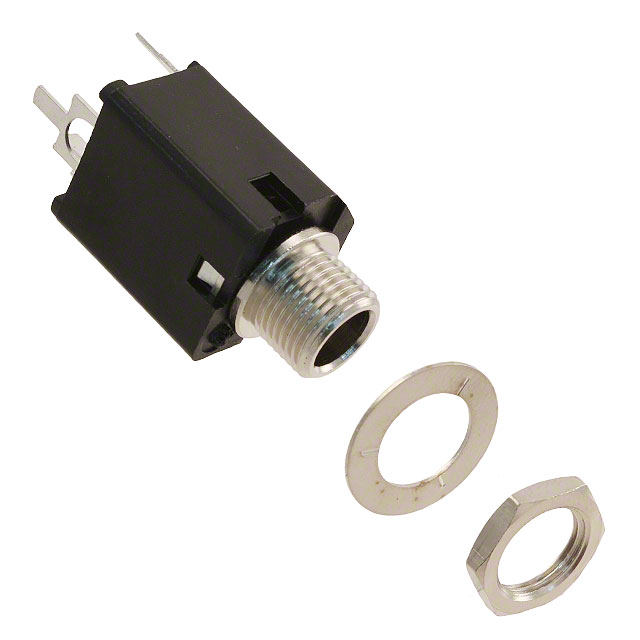

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 4 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 4 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 4 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
32 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 4 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
22 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 4 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
164 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 5 Contacts
Internal Switch(s) : Two Switches
Mounting Type : Panel Mount, Through Hole
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
94 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Hi-D® 11*
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 3 Conductors, 5 Contacts
Internal Switch(s) : Two Switches
Mounting Type : Panel Mount, Through Hole
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : LITTEL-JAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.250" (6.35mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock

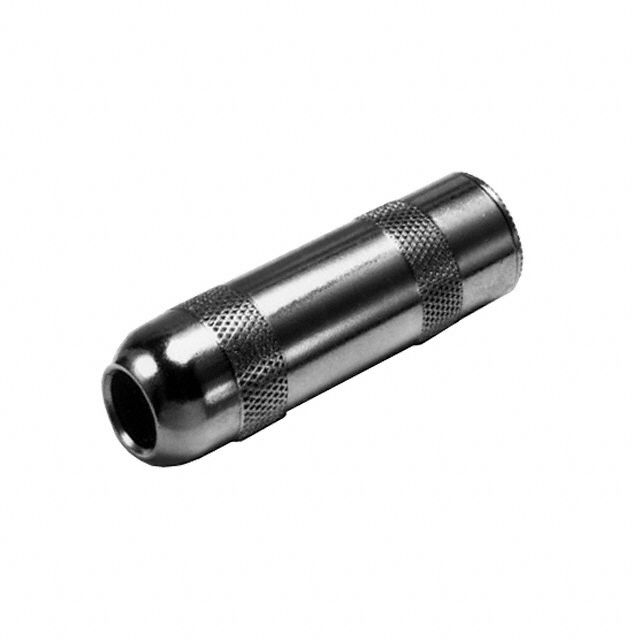

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : Extension Jax®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 6.35mm (0.250", 1/4") - Headphone
Actual Diameter : 0.253" (6.43mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Free Hanging (In-Line)
Termination : Screw
Shielding : Shielded
Features : -
Insulation Color : -
0
20 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : 1200
Part Status : Active
Type : Telephone Jack Panel
Connector Type : 1/4" Phone Jack (Not Provided)
Number of Positions : 24
Number of Rows : 1
Termination Style : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : 1200
Part Status : Active
Type : Telephone Jack Panel
Connector Type : 1/4" Phone Jack (Not Provided)
Number of Positions : 24
Number of Rows : 1
Termination Style : -
0
24 in stock

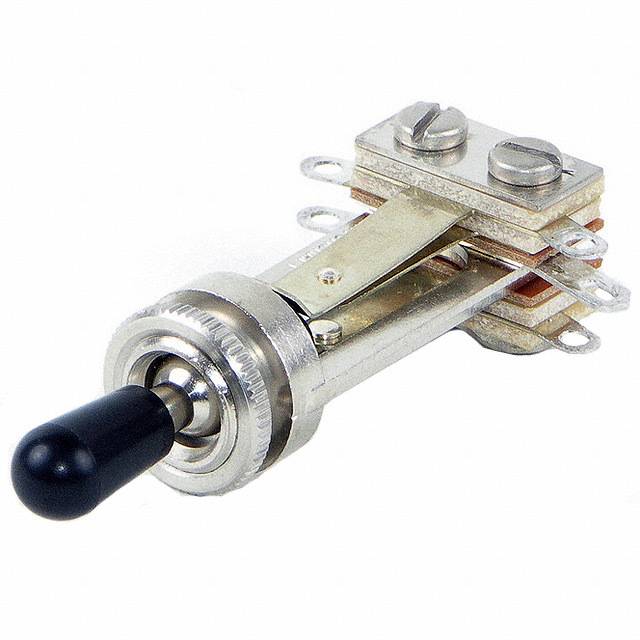

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : 12000
Part Status : Active
Circuit : -
Switch Function : -
Current Rating : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Actuator Type : Standard Round
Actuator Length : 22.22mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : -
Bushing Thread : 15/32-32
Ingress Protection : -
Features : -
Operating Temperature : -
0
5 in stock
