Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

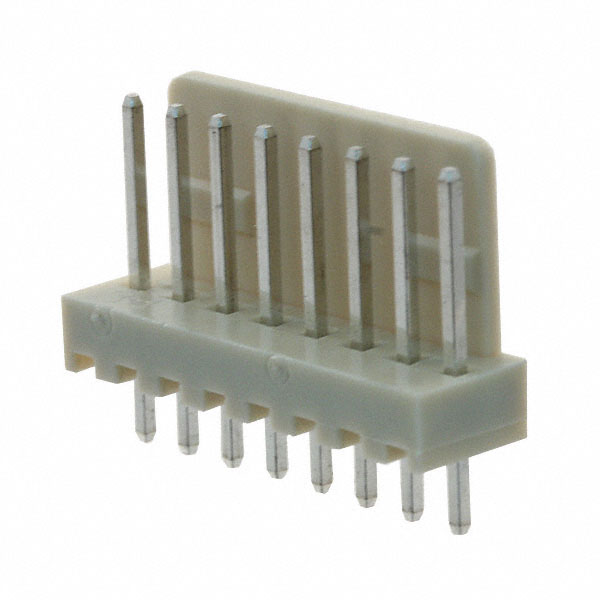

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
1536 in stock

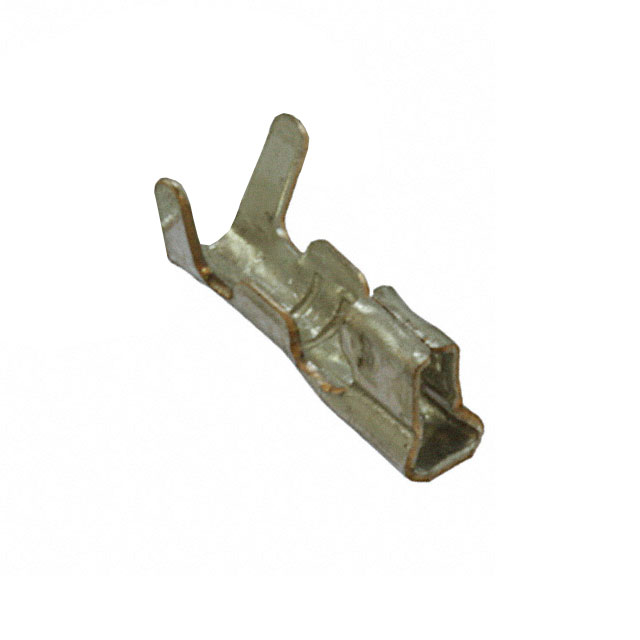

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWT
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 24-28 AWG
Contact Finish : Tin
Contact Finish Thickness : 40.0µin (1.02µm)
0
18672 in stock

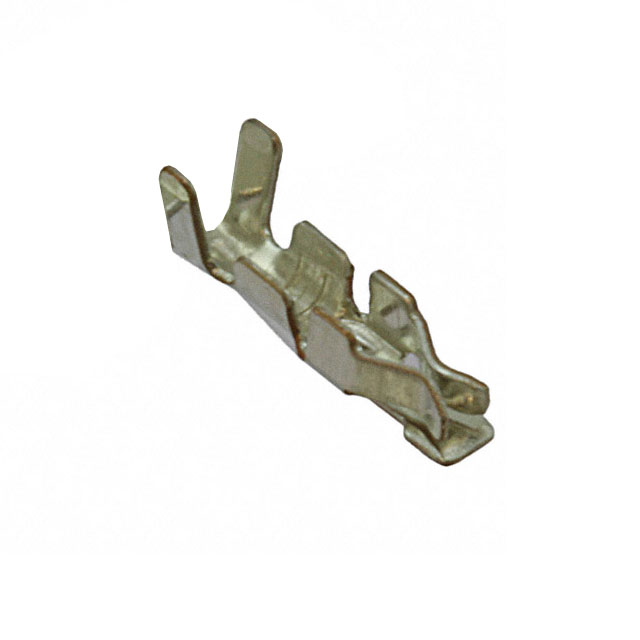

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWT
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 22-26 AWG
Contact Finish : Tin
Contact Finish Thickness : 40.0µin (1.02µm)
0
42583 in stock

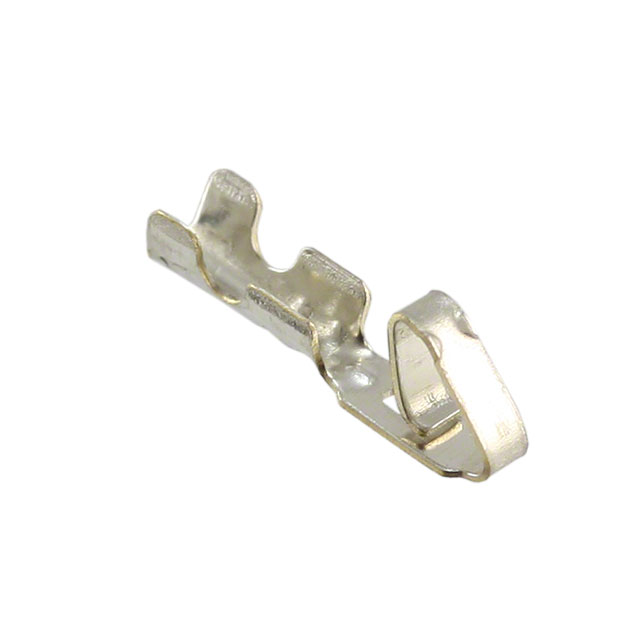

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWT
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 20-26 AWG
Contact Finish : Tin
Contact Finish Thickness : 40.0µin (1.02µm)
0
150226 in stock

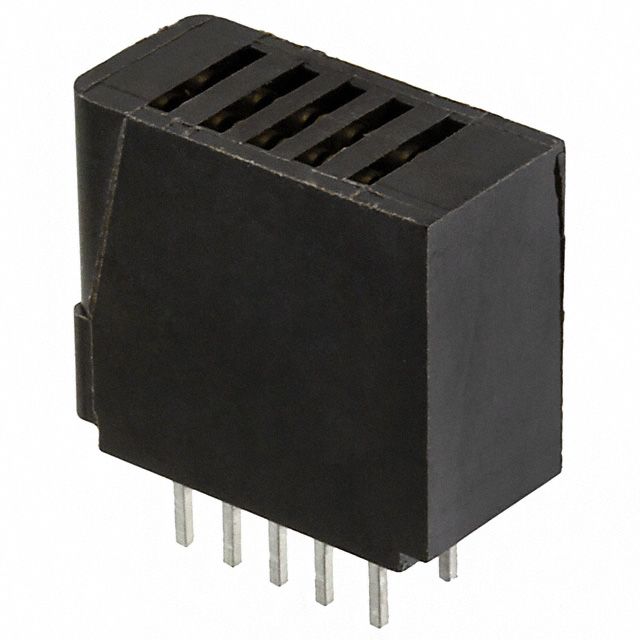

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Transistor, TO-262
Number of Positions or Pins (Grid) : 3 (Rectangular)
Pitch - Mating : 0.150" (3.81mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : -
Termination : Solder
Pitch - Post : 0.150" (3.81mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 30.0µin (0.76µm)
Contact Material - Post : Beryllium Copper
Housing Material : Polyphenylene Sulfide (PPS)
Operating Temperature : -50°C ~ 175°C
0
30 in stock

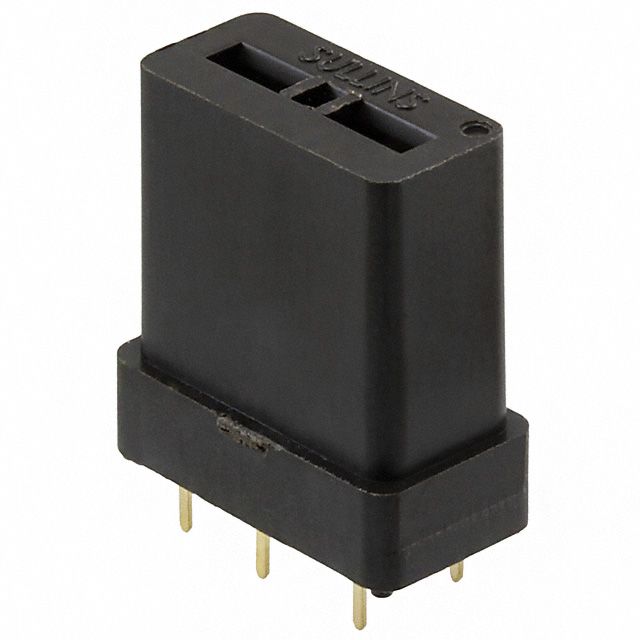

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Transistor, TO-220 and TO-247
Number of Positions or Pins (Grid) : 5 (Rectangular)
Pitch - Mating : -
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : -
Termination : Solder
Pitch - Post : -
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 30.0µin (0.76µm)
Contact Material - Post : Beryllium Copper
Housing Material : Polyphenylene Sulfide (PPS)
Operating Temperature : -65°C ~ 175°C
0
47 in stock

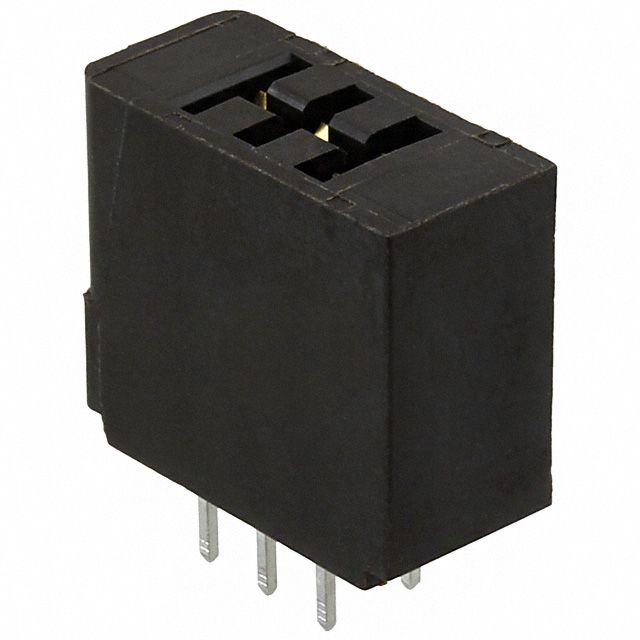

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Transistor
Number of Positions or Pins (Grid) : 3 (Rectangular)
Pitch - Mating : -
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Board Guide, Flange
Termination : Solder
Pitch - Post : -
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 30.0µin (0.76µm)
Contact Material - Post : Beryllium Copper
Housing Material : Polyphenylene Sulfide (PPS)
Operating Temperature : -55°C ~ 175°C
0
105 in stock

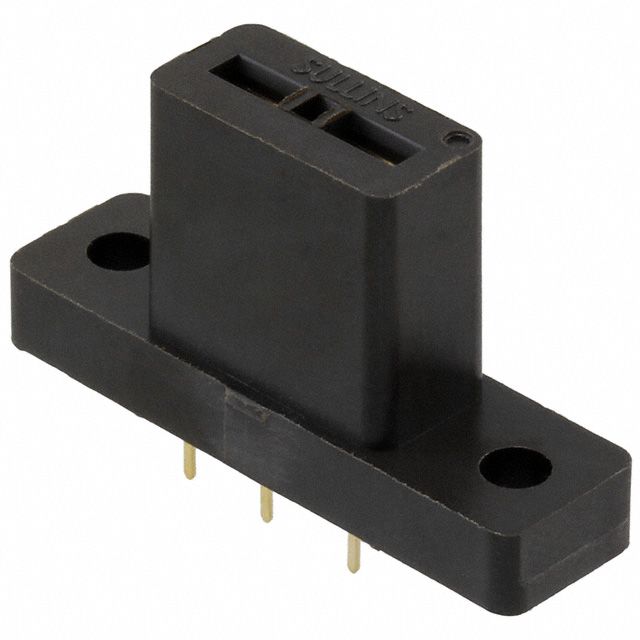

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Transistor
Number of Positions or Pins (Grid) : 3 (Rectangular)
Pitch - Mating : -
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Board Guide
Termination : Solder
Pitch - Post : -
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 30.0µin (0.76µm)
Contact Material - Post : Beryllium Copper
Housing Material : Polyphenylene Sulfide (PPS)
Operating Temperature : -55°C ~ 175°C
0
62 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Series : SWT
Part Status : Active
Tool Type : Hand Crimper
For Use With/Related Products : Rectangular Contacts, 20-28 AWG
Features : Side Entry
0
12 in stock
