- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

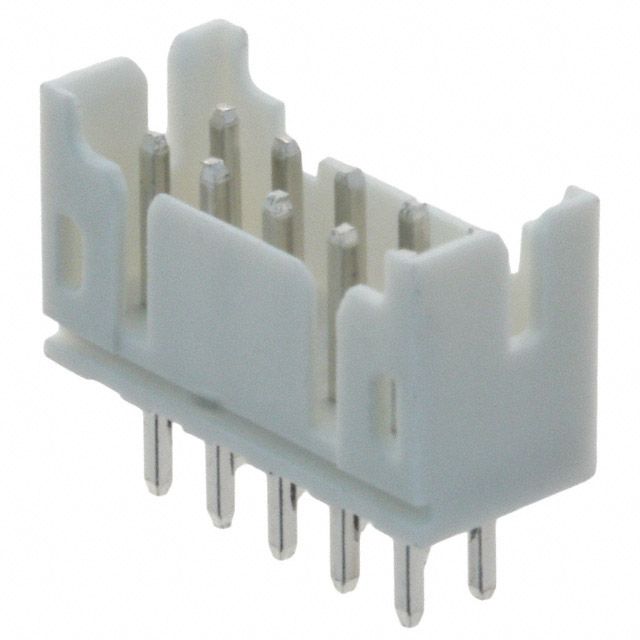

SWR204-NRTN-D05-ST-GA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR204
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.256" (6.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Gray
Current Rating : 3A per Contact
Voltage Rating : 50V
Packaging : Bulk
Series : SWR204
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.256" (6.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Gray
Current Rating : 3A per Contact
Voltage Rating : 50V
0
2094 in stock
SWR25X-NRTC-S02-RB-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
3394 in stock

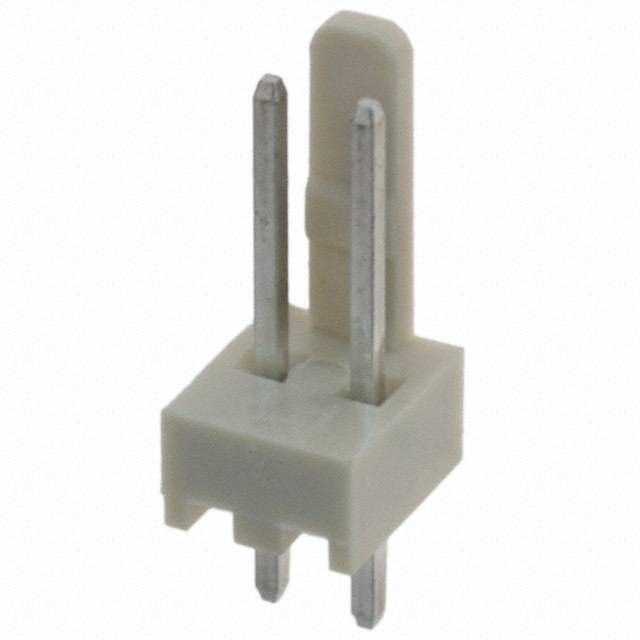

SWR25X-NRTC-S02-ST-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
3983 in stock

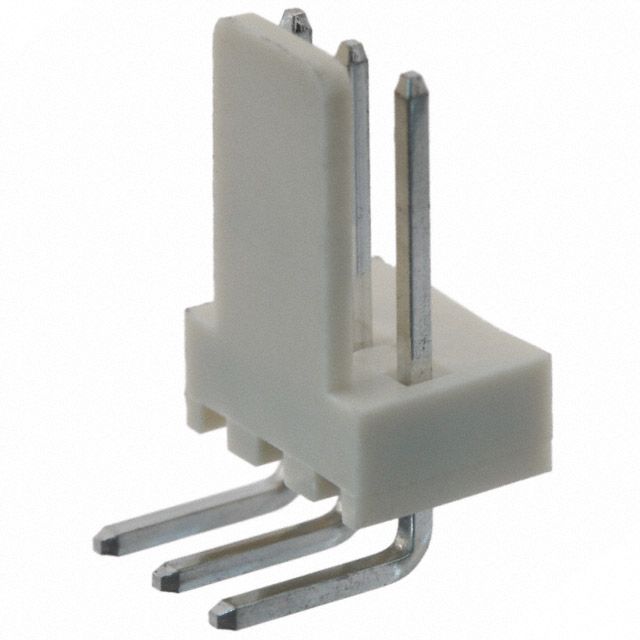

SWR25X-NRTC-S03-RB-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
8551 in stock

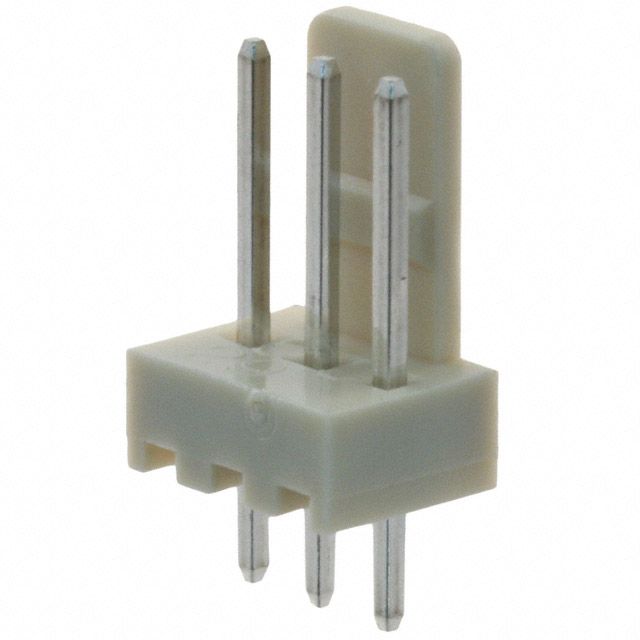

SWR25X-NRTC-S03-ST-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
2703 in stock

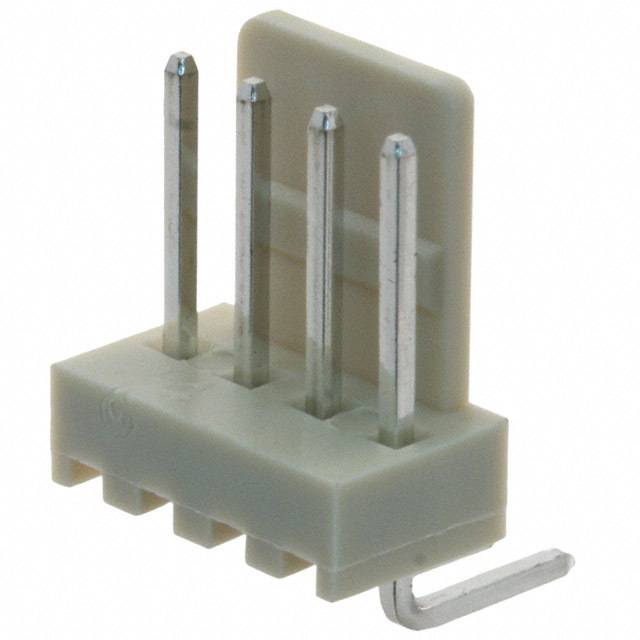

SWR25X-NRTC-S04-RB-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
4262 in stock
SWR25X-NRTC-S04-ST-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
26083 in stock
SWR25X-NRTC-S05-RB-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
2597 in stock
SWR25X-NRTC-S05-ST-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
2988 in stock
SWR25X-NRTC-S06-RB-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
1880 in stock
SWR25X-NRTC-S06-ST-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
1936 in stock
SWR25X-NRTC-S08-RB-BA
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.303" (7.70mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
0
1228 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
