Soberton - In today's business, the availability of high quality components at a competitive cost is essential to your success. Soberton, Inc. has assembled a team of hard working professionals, both in the United States and Asia.
The goal of every member of this team is to provide exceptional value to every customer. By keeping our team independent of any manufacturer, we are free to source the best provider for every need. This assures Flexibility, Availability, and Affordability for every product and every customer. This commitment to Quality and Value are the keystones to Soberton's success.
Part Number
Manufacturer
Description
Unit Price
In Stock

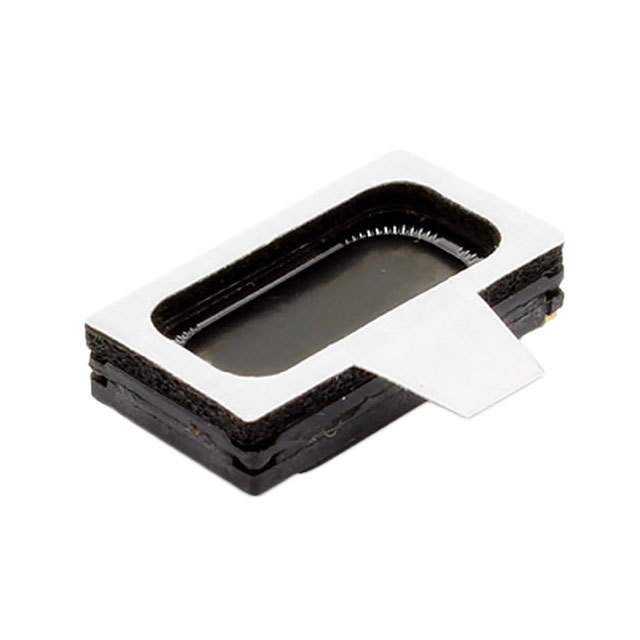

SP-1609S-1
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 200Hz ~ 3.4kHz
Frequency Range : 200Hz ~ 3.4kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 82.00
Efficiency - Testing : 100mW
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 500mW
Power - Max : 700mW
Port Location : Top
Shape : Rectangular
Material - Cone : -
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Spring Type
Size / Dimension : 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 200Hz ~ 3.4kHz
Frequency Range : 200Hz ~ 3.4kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 82.00
Efficiency - Testing : 100mW
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 500mW
Power - Max : 700mW
Port Location : Top
Shape : Rectangular
Material - Cone : -
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Spring Type
Size / Dimension : 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
3341 in stock

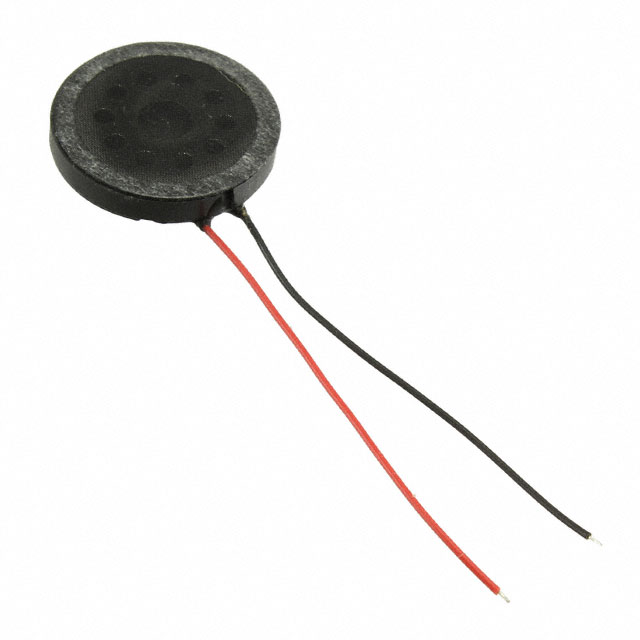

SP-1704
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 5kHz
Frequency Range : 300Hz ~ 5kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 800mW
Power - Max : 1W
Port Location : Top
Shape : Round
Material - Cone : Polyethylene Naphthalate (PEN)
Material - Magnet : -
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 5kHz
Frequency Range : 300Hz ~ 5kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 800mW
Power - Max : 1W
Port Location : Top
Shape : Round
Material - Cone : Polyethylene Naphthalate (PEN)
Material - Magnet : -
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1051 in stock

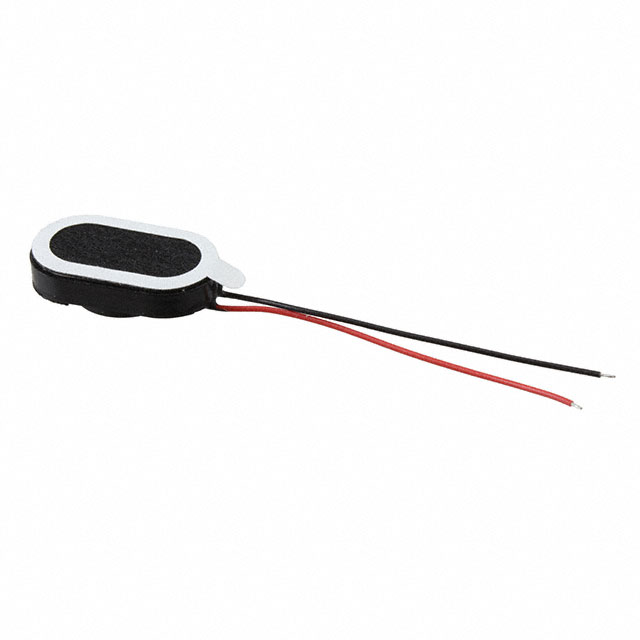

SP-1810
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 1000Hz
Impedance : 8 Ohms
Efficiency - dBA : 82.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 500mW
Power - Max : 1W
Port Location : Top
Shape : Oval
Material - Cone : Polyethylene Naphthalate (PEN)
Material - Magnet : Nd-Fe-B-N38
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height - Seated (Max) : 0.181" (4.60mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 1000Hz
Impedance : 8 Ohms
Efficiency - dBA : 82.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 500mW
Power - Max : 1W
Port Location : Top
Shape : Oval
Material - Cone : Polyethylene Naphthalate (PEN)
Material - Magnet : Nd-Fe-B-N38
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height - Seated (Max) : 0.181" (4.60mm)
0
2540 in stock

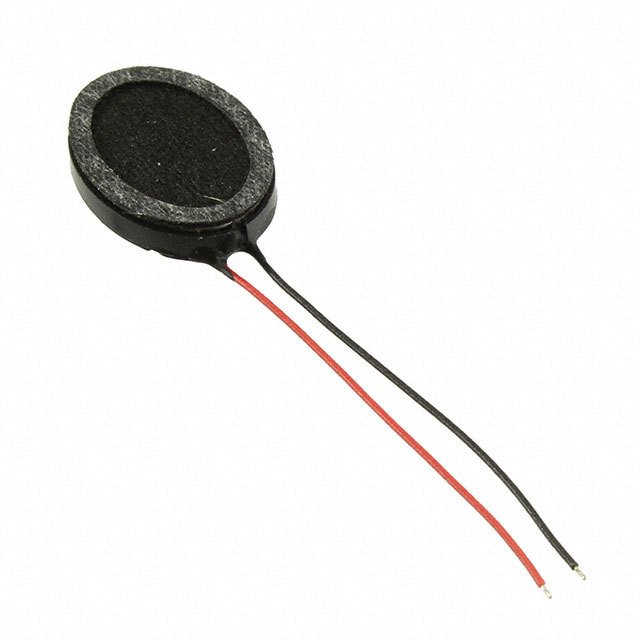

SP-1813-2
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 4kHz
Frequency Range : 300Hz ~ 4kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 800mW
Power - Max : 1.1W
Port Location : Top
Shape : Oval
Material - Cone : Polyethylene Naphthalate (PEN)
Material - Magnet : -
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 4kHz
Frequency Range : 300Hz ~ 4kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 800mW
Power - Max : 1.1W
Port Location : Top
Shape : Oval
Material - Cone : Polyethylene Naphthalate (PEN)
Material - Magnet : -
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1029 in stock

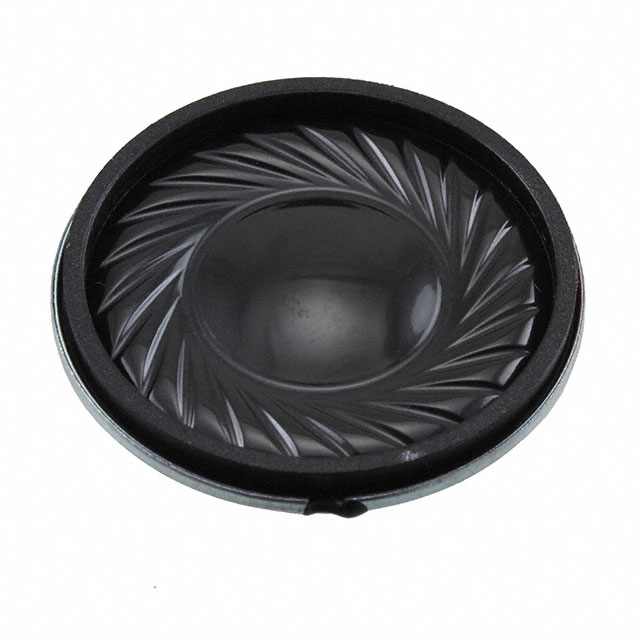

SP-2805
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 600Hz
Impedance : 8 Ohms
Efficiency - dBA : 91.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : N38
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 1.102" Dia (28.00mm)
Height - Seated (Max) : 0.209" (5.30mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 600Hz
Impedance : 8 Ohms
Efficiency - dBA : 91.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : N38
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 1.102" Dia (28.00mm)
Height - Seated (Max) : 0.209" (5.30mm)
0
1449 in stock

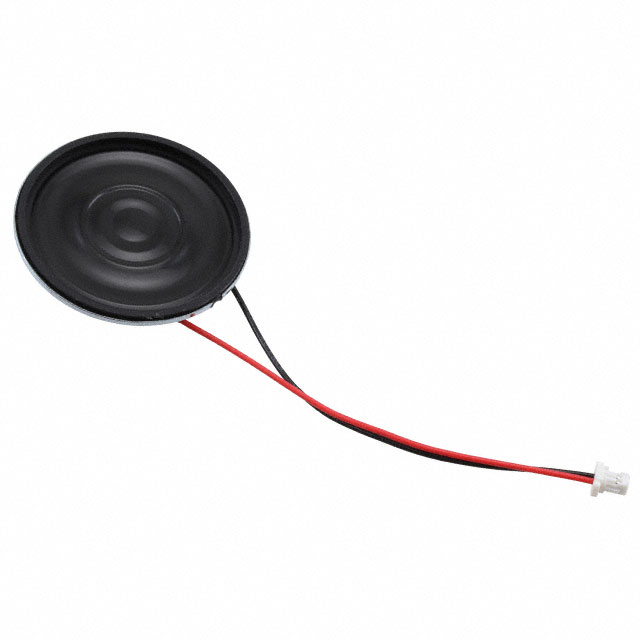

SP-3605
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 5kHz
Frequency Range : 300Hz ~ 5kHz
Frequency - Self Resonant : 550Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 1.5W
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B-N38
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 1.417" Dia (36.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 5kHz
Frequency Range : 300Hz ~ 5kHz
Frequency - Self Resonant : 550Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 1.5W
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B-N38
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 1.417" Dia (36.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1507 in stock

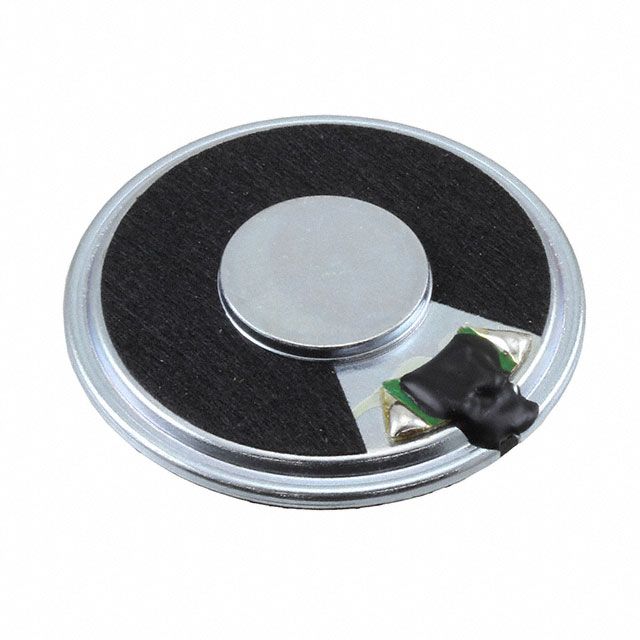

SP-4005
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 550Hz
Impedance : 8 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 2W
Power - Max : 2.5W
Port Location : Top
Shape : Round
Material - Cone : Polyethylenimine (PEI)
Material - Magnet : Nd-Fe-B-N38
Ingress Protection : -
Ratings : -
Termination : Solder Eyelet(s)
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 550Hz
Impedance : 8 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 100mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 2W
Power - Max : 2.5W
Port Location : Top
Shape : Round
Material - Cone : Polyethylenimine (PEI)
Material - Magnet : Nd-Fe-B-N38
Ingress Protection : -
Ratings : -
Termination : Solder Eyelet(s)
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
291 in stock

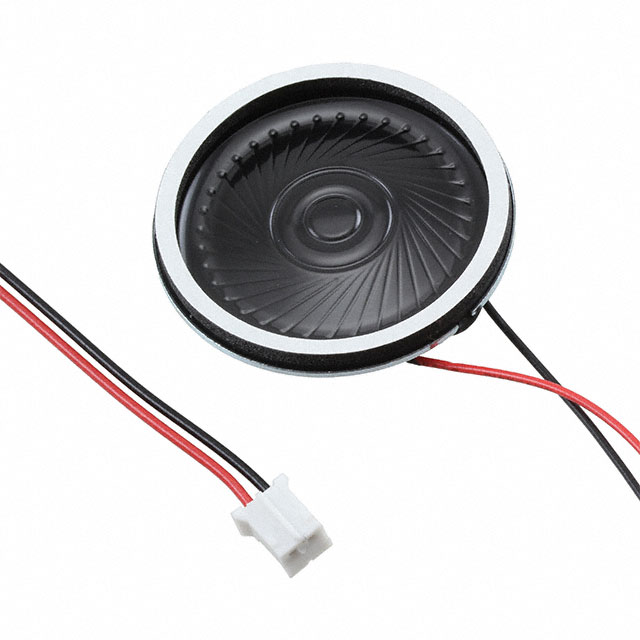

SP-4005-1
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 430Hz
Impedance : 8 Ohms
Efficiency - dBA : 93.00
Efficiency - Testing : 100mW/50mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 2W
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : N38
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 0.335" (8.50mm)
Packaging : Tray
Series : SP Micro Speaker
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 300Hz ~ 8kHz
Frequency Range : 300Hz ~ 8kHz
Frequency - Self Resonant : 430Hz
Impedance : 8 Ohms
Efficiency - dBA : 93.00
Efficiency - Testing : 100mW/50mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 2W
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : N38
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 0.335" (8.50mm)
0
450 in stock
ST-01AH
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 1 ~ 2V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 80mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 1 ~ 2V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 80mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
ST-01BH
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock

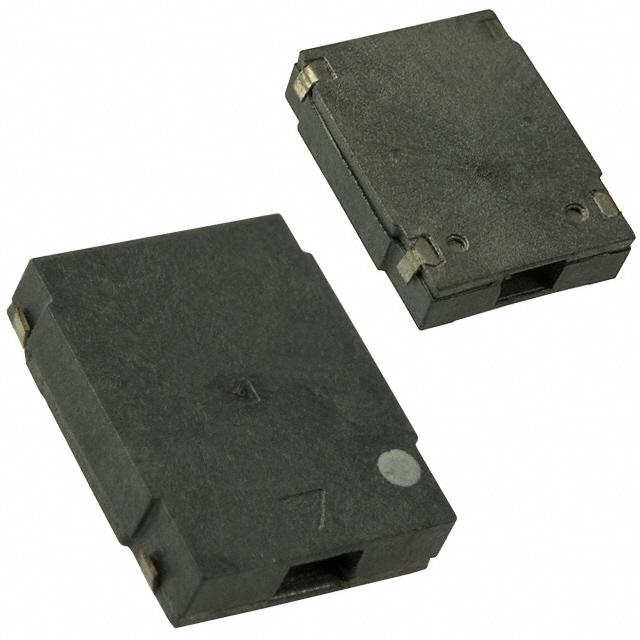

ST-01CH
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 4 ~ 6V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 4 ~ 6V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
ST-01CL
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 4 ~ 6V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
Packaging : Tape & Reel (TR)
Series : ST
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : 4 ~ 6V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : IP65 - Dust Tight, Water Resistant
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.551" W (11.00mm x 14.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
