Soberton - In today's business, the availability of high quality components at a competitive cost is essential to your success. Soberton, Inc. has assembled a team of hard working professionals, both in the United States and Asia.
The goal of every member of this team is to provide exceptional value to every customer. By keeping our team independent of any manufacturer, we are free to source the best provider for every need. This assures Flexibility, Availability, and Affordability for every product and every customer. This commitment to Quality and Value are the keystones to Soberton's success.
Part Number
Manufacturer
Description
Unit Price
In Stock

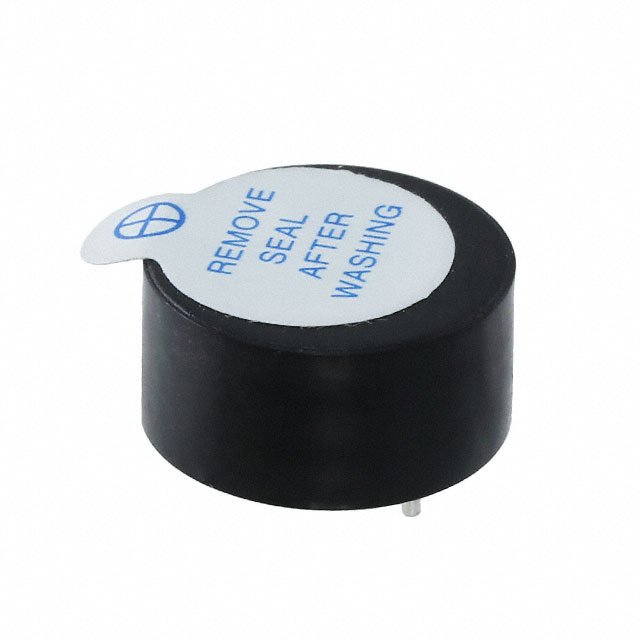

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 5V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.276" (7.00mm)
0
419 in stock

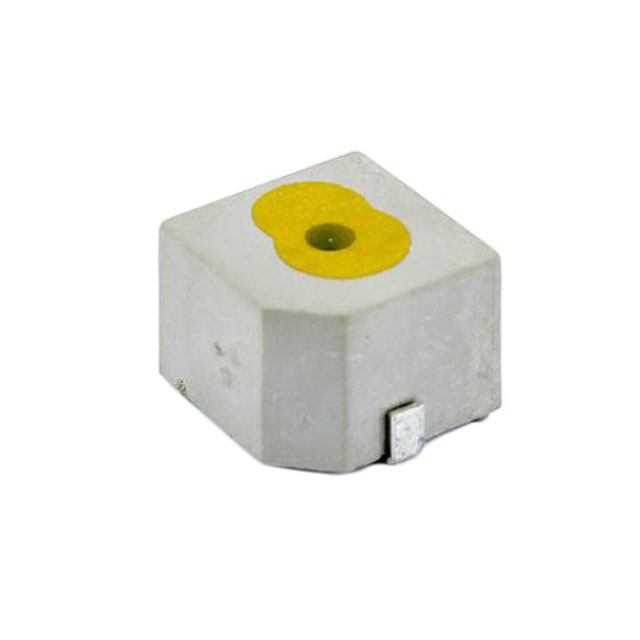

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 1 ~ 20V
Frequency : 5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 31mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.583" L x 0.583" W (14.80mm x 14.80mm)
Height - Seated (Max) : 0.280" (7.10mm)
0
127 in stock

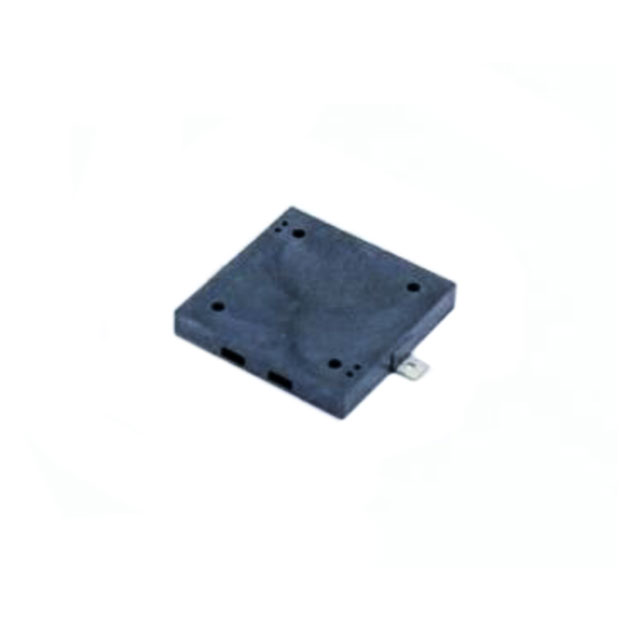

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Alternate Packaging
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 25V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 1mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
236 in stock

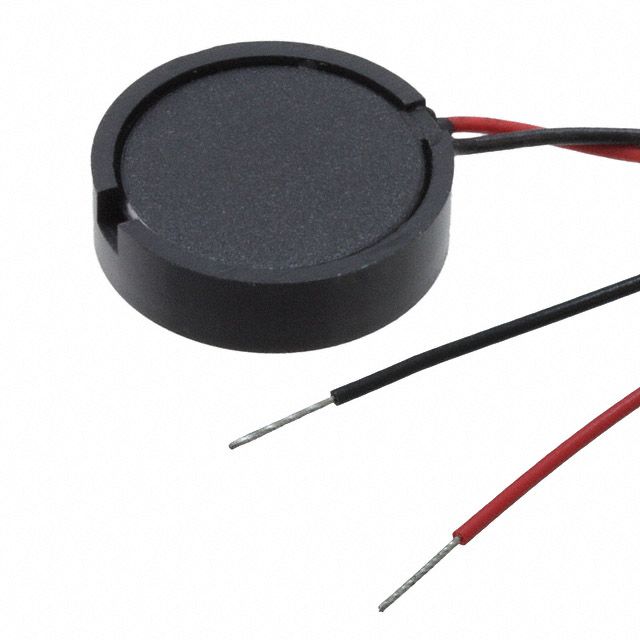

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 30V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 3V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Custom
Termination : Wire Leads
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3340 in stock
Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 5V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.650" Dia (16.50mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
6138 in stock

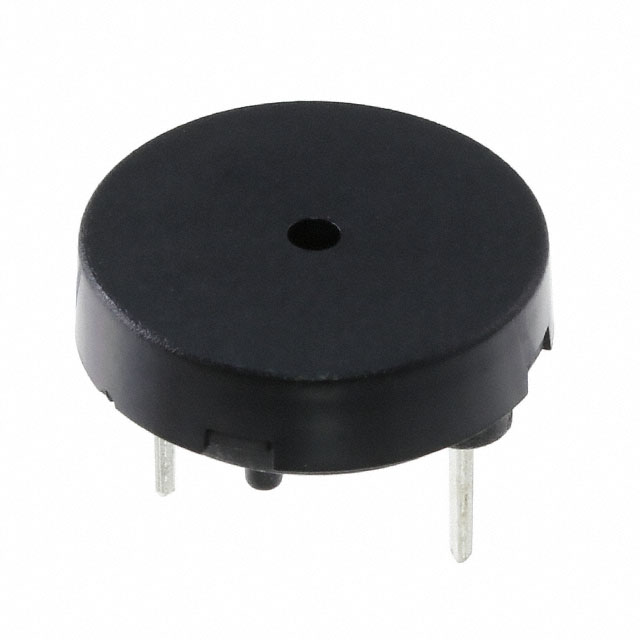

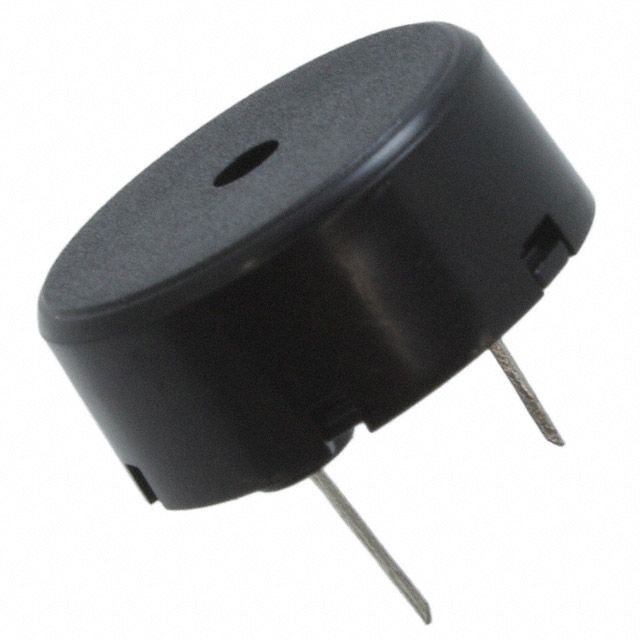

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 20V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 5V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.331" (8.40mm)
0
724 in stock

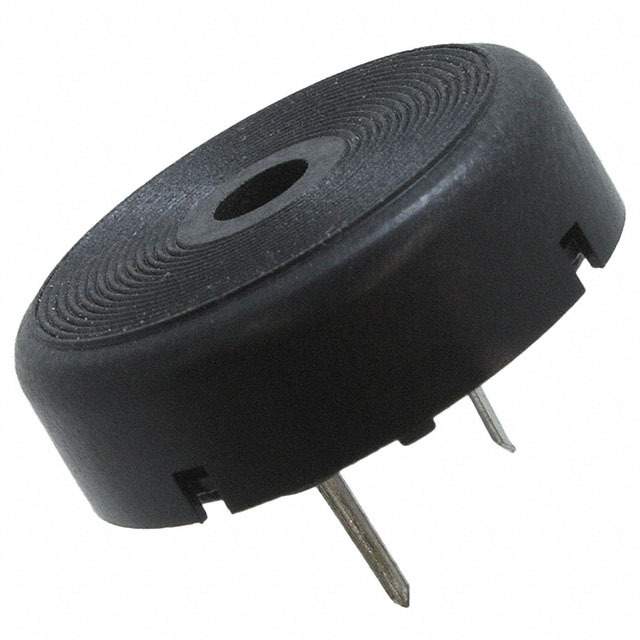

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 1 ~ 30V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 10V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
100 in stock

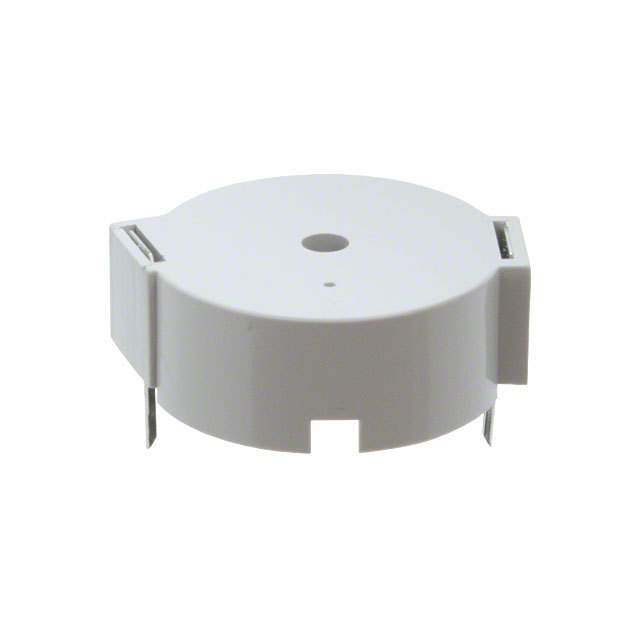

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 1 ~ 30V
Frequency : 2.048kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 10V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.886" Dia (22.50mm)
Height - Seated (Max) : 0.354" (9.00mm)
0
150 in stock

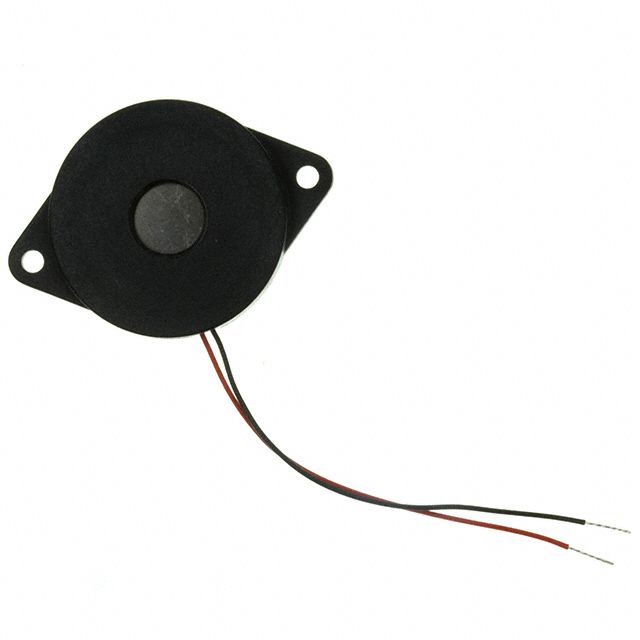

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Bulk
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 15V
Voltage Range : 1 ~ 12V
Frequency : 4.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 4.8V, 10cm
Current - Supply : 8mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 9.44" Dia (240mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
100 in stock

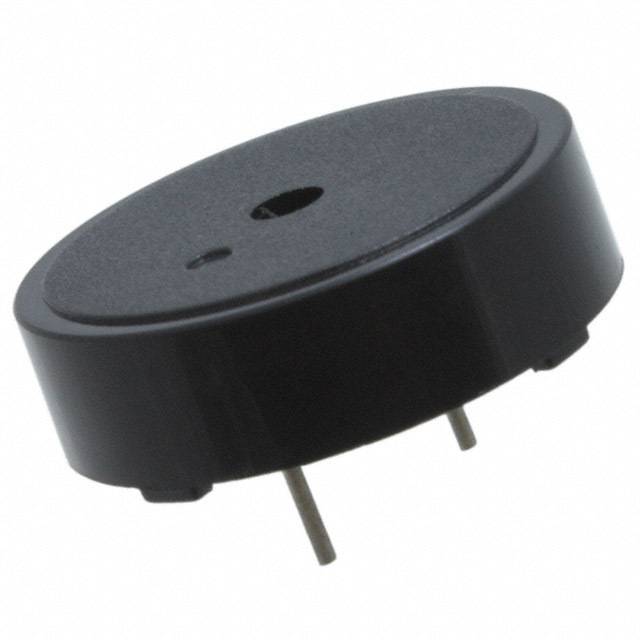

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 30V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 5V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.945" Dia (24.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
239 in stock

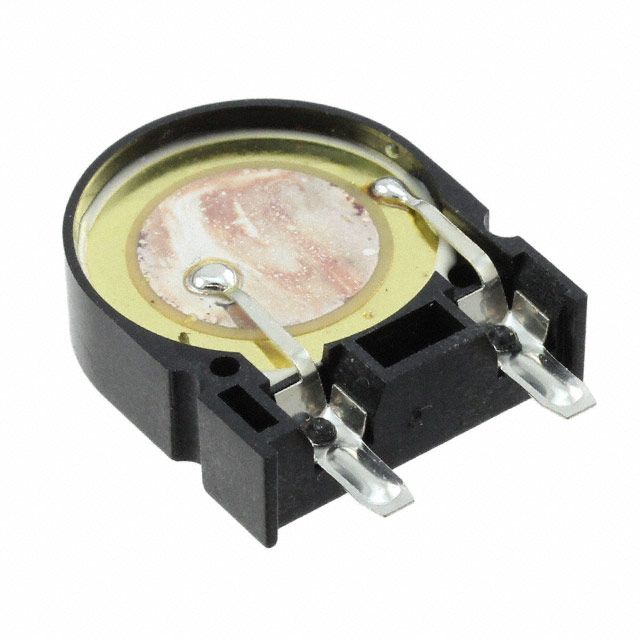

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : PT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 30V
Frequency : 2kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 1mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.866" L x 0.276" W (22.00mm x 7.00mm)
Height - Seated (Max) : 1.055" (26.80mm)
0
80 in stock

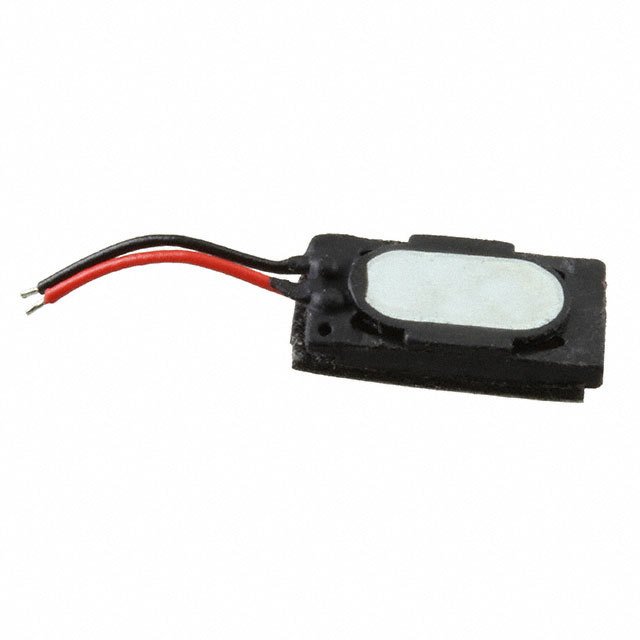

Soberton, Inc.
Manufacturer : Soberton Inc.
Packaging : Tray
Series : RC
Part Status : Active
Technology : Magnetic
Type : Receiver
Frequency Range : 200Hz ~ 3.4kHz
Frequency Range : 200Hz ~ 3.4kHz
Frequency - Self Resonant : -
Impedance : 32 Ohms
Efficiency - dBA : 110.00
Efficiency - Testing : -
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 10mW
Power - Max : 20mW
Port Location : Top
Shape : Rectangular
Material - Cone : Polyethylenimine (PEI)
Material - Magnet : Nd-Fe-B N42
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
0
2867 in stock
