QT Brightek
- QT Brightek is headquartered in the San Francisco bay area with sales, marketing and field application support throughout the Americas, Europe and Asia. The product families offered are SMT LED, thru-hole LEDs, LED displayss, optocoupler, IR devices, and custom modules.
Part Number
Manufacturer
Description
Unit Price
In Stock
6N135
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 350ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 350ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
100 in stock
6N136
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 19% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 350ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 19% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 350ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
100 in stock
6N137
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 37ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 7V
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 37ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 7V
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
100 in stock
6N138
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 300% @ 1.6mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 1.35µs, 7.6µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington with Base
Voltage - Output (Max) : 7V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 300% @ 1.6mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 1.35µs, 7.6µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington with Base
Voltage - Output (Max) : 7V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
100 in stock
6N139
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 500% @ 1.6mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4.8µs, 15µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington with Base
Voltage - Output (Max) : 18V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 500% @ 1.6mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4.8µs, 15µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington with Base
Voltage - Output (Max) : 18V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
100 in stock
FLP-6060-030-CW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
0
100 in stock
FLP-6060-030-WW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
0
100 in stock

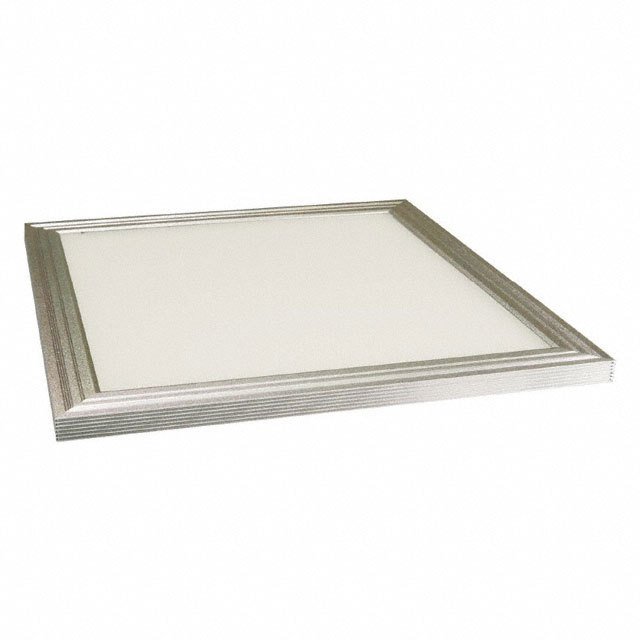

FLP-6060-040-CW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
0
100 in stock
FLP-6060-040-WW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
Packaging : Box
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70
Viewing Angle : 111°
Features : -
Size / Dimension : 598.00mm L x 598.00mm W
Height : 18.50mm
Light Emitting Surface (LES) : 550.00mm L x 550.00mm W
Lens Type : Flat
0
100 in stock
QBASS40YG0
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Characters : 1
Size / Dimension : 0.748" H x 0.366" W x 0.148" D (19.00mm x 9.30mm x 3.75mm)
Digit/Alpha Size : 0.40" (10.16mm)
Display Type : 14-Segment, Alphanumeric
Common Pin : Common Anode
Color : Green
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Millicandela Rating : 3mcd
Wavelength - Peak : 570nm
Power Dissipation (Max) : 70mW
Package / Case : 16-SMD, No Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Characters : 1
Size / Dimension : 0.748" H x 0.366" W x 0.148" D (19.00mm x 9.30mm x 3.75mm)
Digit/Alpha Size : 0.40" (10.16mm)
Display Type : 14-Segment, Alphanumeric
Common Pin : Common Anode
Color : Green
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Millicandela Rating : 3mcd
Wavelength - Peak : 570nm
Power Dissipation (Max) : 70mW
Package / Case : 16-SMD, No Lead
0
100 in stock
QBASS40YG1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Characters : 1
Size / Dimension : 0.748" H x 0.366" W x 0.148" D (19.00mm x 9.30mm x 3.75mm)
Digit/Alpha Size : 0.40" (10.16mm)
Display Type : 14-Segment, Alphanumeric
Common Pin : Common Cathode
Color : Green
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Millicandela Rating : 3mcd
Wavelength - Peak : 570nm
Power Dissipation (Max) : 70mW
Package / Case : 16-SMD, No Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Characters : 1
Size / Dimension : 0.748" H x 0.366" W x 0.148" D (19.00mm x 9.30mm x 3.75mm)
Digit/Alpha Size : 0.40" (10.16mm)
Display Type : 14-Segment, Alphanumeric
Common Pin : Common Cathode
Color : Green
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Millicandela Rating : 3mcd
Wavelength - Peak : 570nm
Power Dissipation (Max) : 70mW
Package / Case : 16-SMD, No Lead
0
83 in stock
QBDS200AG
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Characters : 2
Size / Dimension : 0.394" H x 0.567" W x 0.118" D (10.00mm x 14.40mm x 3.00mm)
Digit/Alpha Size : 0.20" (5.08mm)
Display Type : 7-Segment
Common Pin : Common Anode
Color : Yellow-Green
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Millicandela Rating : 7mcd
Wavelength - Peak : 570nm
Power Dissipation (Max) : 70mW
Package / Case : 20-SMD, No Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Characters : 2
Size / Dimension : 0.394" H x 0.567" W x 0.118" D (10.00mm x 14.40mm x 3.00mm)
Digit/Alpha Size : 0.20" (5.08mm)
Display Type : 7-Segment
Common Pin : Common Anode
Color : Yellow-Green
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Millicandela Rating : 7mcd
Wavelength - Peak : 570nm
Power Dissipation (Max) : 70mW
Package / Case : 20-SMD, No Lead
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
