Portescap
- Portescap is a motion control business group. Portescap specializes in advanced servo and step drive technologies to develop the highest performance and most cost-effective motion control solutions available. Portescap products include: Electromagnetic Brakes and Clutches, High Performance Servo and Step Motors, Encoders and Resolvers, Miniature Servo and Step Motors, and High Precision Gearboxes.
Portescap is unique among miniature motor manufacturers with their escap® brand precision ironless DC and brushless DC motors, and DMM disc magnet step motors. Our products are used successfully around the world in thousands of applications from medical devices to scientific instruments to factory automation equipment.
We also provide motion control solutions to a broad spectrum of industrial and commercial markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
Portescap
Manufacturer : Portescap
Series : 08G61
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 6VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.123 / 0.85
Power - Rated : 0.7W
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.197" (5.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
7 in stock
Portescap
Manufacturer : Portescap
Series : 08G61
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 9VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.123 / 0.85
Power - Rated : 0.7W
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.197" (5.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
1 in stock
Portescap
Manufacturer : Portescap
Series : 08GS61
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 6VDC
RPM : 11000 RPM
Torque - Rated (oz-in / mNm) : 0.089 / 0.63
Power - Rated : 0.5W
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.197" (5.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
100 in stock
Portescap
Manufacturer : Portescap
Series : 08GS61
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 2VDC
RPM : 9500 RPM
Torque - Rated (oz-in / mNm) : 0.065 / 0.46
Power - Rated : 0.5W
Encoder Type : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.197" (5.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
100 in stock

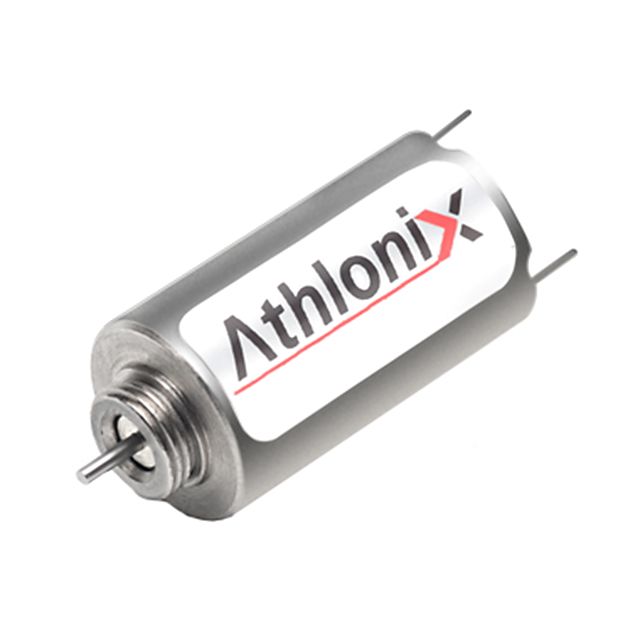

Portescap
Manufacturer : Portescap
Series : 10NS61 Athlonix
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 6VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.13 / 0.9
Power - Rated : 0.7W
Encoder Type : -
Size / Dimension : Round - 0.394" Dia (10.00mm)
Diameter - Shaft : 0.031" (0.80mm)
Length - Shaft and Bearing : 0.220" (5.60mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
100 in stock
Portescap
Manufacturer : Portescap
Series : 10NS61 Athlonix
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 3VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.13 / 0.9
Power - Rated : 0.7W
Encoder Type : -
Size / Dimension : Round - 0.394" Dia (10.00mm)
Diameter - Shaft : 0.031" (0.80mm)
Length - Shaft and Bearing : 0.220" (5.60mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
73 in stock

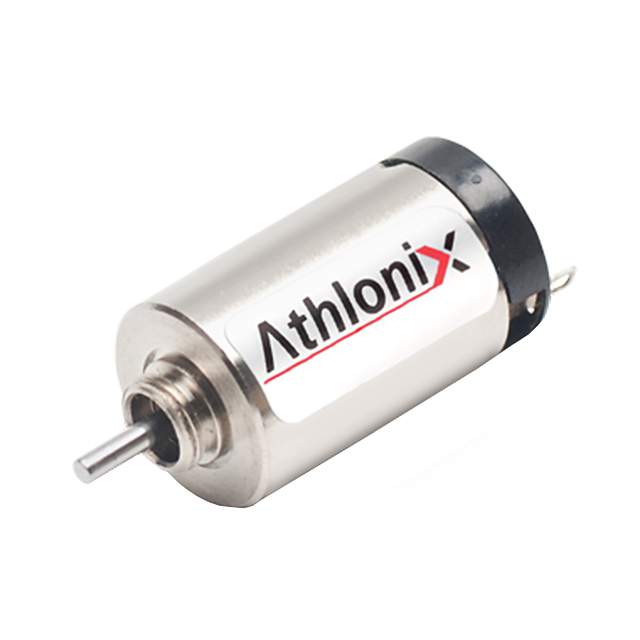

Portescap
Manufacturer : Portescap
Series : 12G88 Athlonix
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 4.5VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.9 / 6.3
Power - Rated : 2.5W
Encoder Type : -
Size / Dimension : Round - 0.472" Dia (12.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.276" (7.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
9 in stock

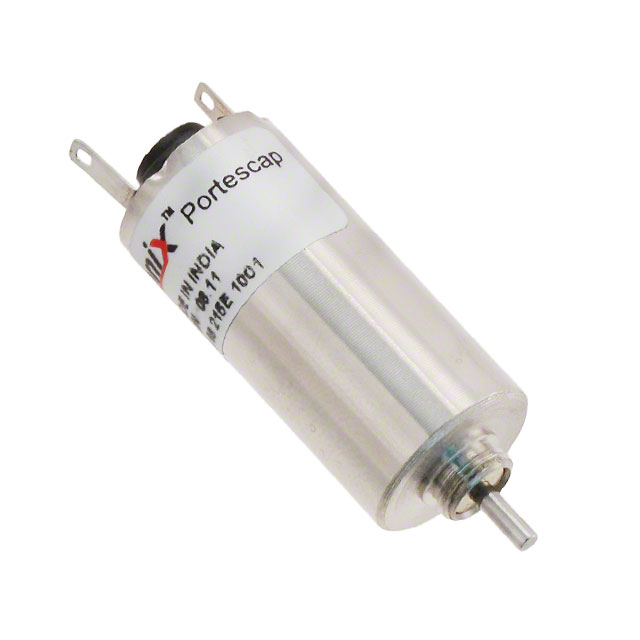

Portescap
Manufacturer : Portescap
Series : 12G88 Athlonix
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 4.5VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.97 / 6.8
Power - Rated : 2.7W
Encoder Type : -
Size / Dimension : Round - 0.472" Dia (12.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.276" (7.00mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
43 in stock

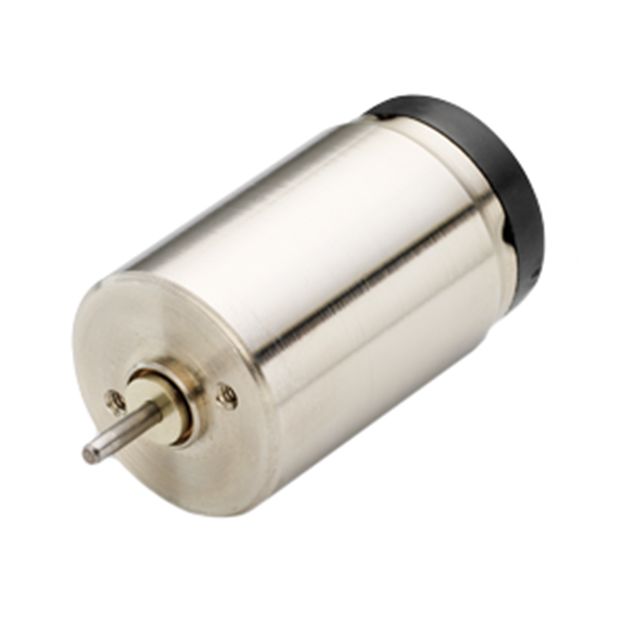

Portescap
Manufacturer : Portescap
Series : 13N88
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 12400 RPM
Torque - Rated (oz-in / mNm) : 0.47 / 3.33
Power - Rated : 2.5W
Encoder Type : -
Size / Dimension : Round - 0.511" Dia (13.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.244" (6.20mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
42 in stock
Portescap
Manufacturer : Portescap
Series : 13N88
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 6VDC
RPM : 12300 RPM
Torque - Rated (oz-in / mNm) : 0.43 / 3.03
Power - Rated : 2.5W
Encoder Type : -
Size / Dimension : Round - 0.511" Dia (13.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.244" (6.20mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
87 in stock
Portescap
Manufacturer : Portescap
Series : 13N88
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 4.5VDC
RPM : 10800 RPM
Torque - Rated (oz-in / mNm) : 0.48 / 3.42
Power - Rated : 2.5W
Encoder Type : -
Size / Dimension : Round - 0.511" Dia (13.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.244" (6.20mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
103 in stock

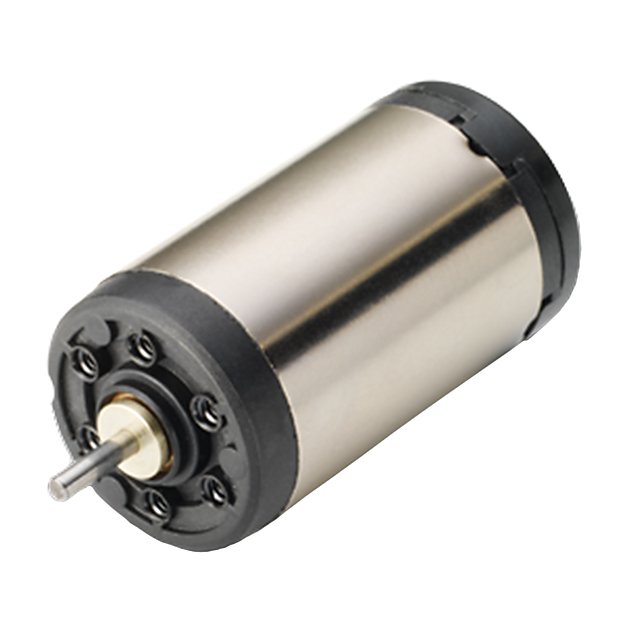

Portescap
Manufacturer : Portescap
Series : 16G88
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 11300 RPM
Torque - Rated (oz-in / mNm) : 0.64 / 4.5
Power - Rated : 4.5W
Encoder Type : -
Size / Dimension : Round - 0.629" Dia (16.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
9 in stock
