Portescap
- Portescap is a motion control business group. Portescap specializes in advanced servo and step drive technologies to develop the highest performance and most cost-effective motion control solutions available. Portescap products include: Electromagnetic Brakes and Clutches, High Performance Servo and Step Motors, Encoders and Resolvers, Miniature Servo and Step Motors, and High Precision Gearboxes.
Portescap is unique among miniature motor manufacturers with their escap® brand precision ironless DC and brushless DC motors, and DMM disc magnet step motors. Our products are used successfully around the world in thousands of applications from medical devices to scientific instruments to factory automation equipment.
We also provide motion control solutions to a broad spectrum of industrial and commercial markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
Portescap
Manufacturer : Portescap
Series : 16N78 Athlonix
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.94 / 6.6
Power - Rated : 5.2W
Encoder Type : -
Size / Dimension : Round - 0.629" Dia (16.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.354" (9.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
95 in stock
Portescap
Manufacturer : Portescap
Series : 16N78 Athlonix
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 6VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.98 / 6.9
Power - Rated : 5.4W
Encoder Type : -
Size / Dimension : Round - 0.629" Dia (16.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.354" (9.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
50 in stock
Portescap
Manufacturer : Portescap
Series : 16N78 Athlonix
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 9VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.94 / 6.6
Power - Rated : 5.2W
Encoder Type : -
Size / Dimension : Round - 0.629" Dia (16.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.354" (9.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
9 in stock

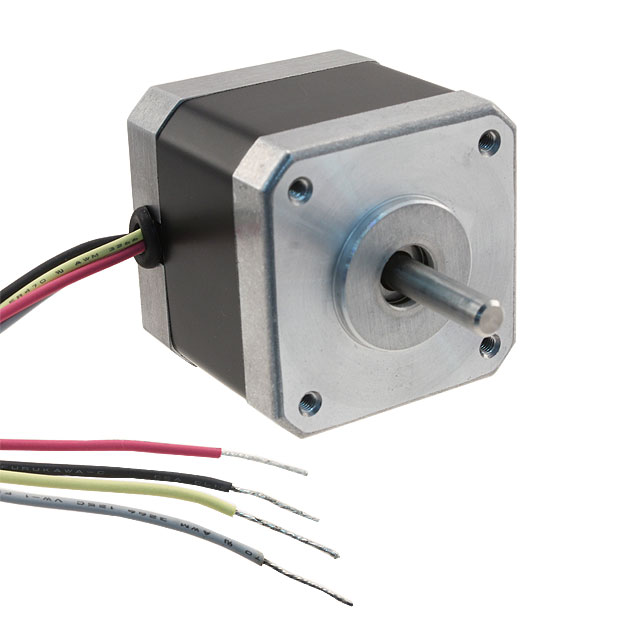

Portescap
Manufacturer : Portescap
Series : H3
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.3VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 30 / 212
Size / Dimension : Square - 1.680" x 1.680" (42.67mm x 42.67mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.790" (20.07mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 40°C
Coil Resistance : 3.32 Ohms
Features : Round Shaft
0
8 in stock
Portescap
Manufacturer : Portescap
Series : H3
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.1VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.680" x 1.680" (42.67mm x 42.67mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.790" (20.07mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 40°C
Coil Resistance : 4.12 Ohms
Features : Round Shaft
0
100 in stock
Portescap
Manufacturer : Portescap
Series : 17N78
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 7.5VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.75 / 5.33
Power - Rated : 3.2W
Encoder Type : -
Size / Dimension : Round - 0.669" Dia (17.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
11 in stock
Portescap
Manufacturer : Portescap
Series : 17N78
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 18VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.69 / 4.89
Power - Rated : 3.2W
Encoder Type : -
Size / Dimension : Round - 0.669" Dia (17.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
8 in stock
Portescap
Manufacturer : Portescap
Series : 17N78
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.69 / 4.89
Power - Rated : 3.1W
Encoder Type : -
Size / Dimension : Round - 0.669" Dia (17.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
110 in stock
Portescap
Manufacturer : Portescap
Series : 17N78
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 7.5VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.75 / 5.33
Power - Rated : 3.2W
Encoder Type : -
Size / Dimension : Round - 0.669" Dia (17.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
7 in stock
Portescap
Manufacturer : Portescap
Series : 17S78
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 6VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.34 / 2.6
Power - Rated : 2.4W
Encoder Type : -
Size / Dimension : Round - 0.669" Dia (17.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
9 in stock
Portescap
Manufacturer : Portescap
Series : 17S78
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 10000 RPM
Torque - Rated (oz-in / mNm) : 0.4 / 2.9
Power - Rated : 2.4W
Encoder Type : -
Size / Dimension : Round - 0.669" Dia (17.00mm)
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.295" (7.50mm)
Mounting Hole Spacing : 0.394" (10.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
10 in stock

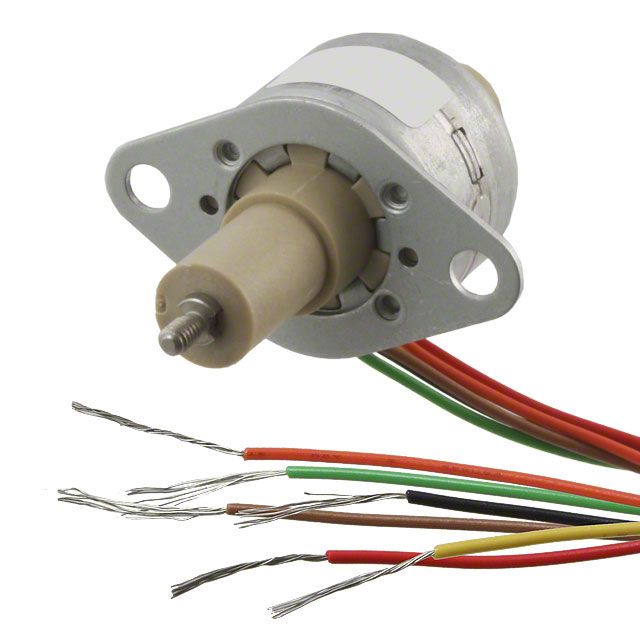

Portescap
Manufacturer : Portescap
Series : 20DAM-K
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 100mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.400" (35.60mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Round Shaft
0
98 in stock
