Pontiac Coil, Inc.

- For more than 45 years, Pontiac Coil has been an integral part of our customers' success, delivering smart, time-saving manufacturing solutions - always one step ahead of our competitors. By focusing on the specific needs of each customer and then designing for both effectiveness and manufacturing efficiency, Pontiac Coil delivers innovative products that are more reliable, more efficient and less costly.

With facilities located throughout North America and Europe, we have become a key player in the electrical coil, solenoid and electrical/mechanical manufacturing field.

Part Number
Manufacturer
Description
Unit Price
In Stock

55-28012-00 55-28012-00

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : -
Part Status : Active
Technology : Electromechanical
Type : -
Duty Cycle : -
Voltage - Rated : -
Stroke Length : -
Power (Watts) : -
DC Resistance (DCR) : -
Bushing Thread : -
Mounting Type : -
Termination Style : -
Size / Dimension : -
Diameter - Shaft : -
Shaft Detail : -
0
100 in stock

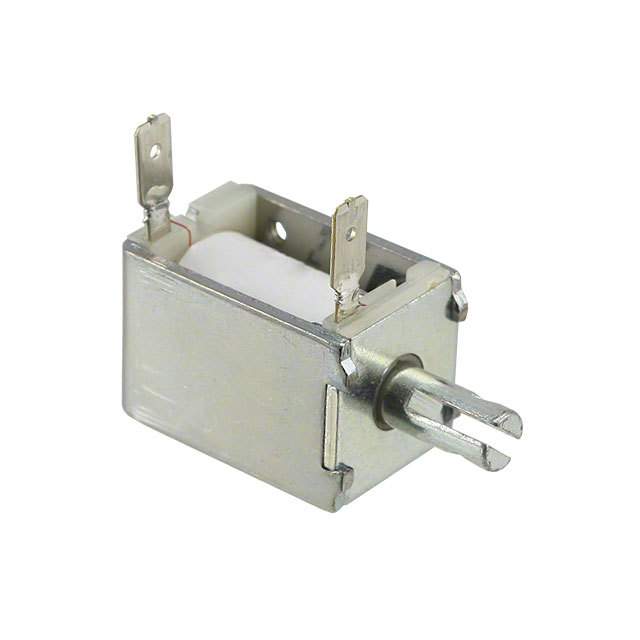

F0411A F0411A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 4W
DC Resistance (DCR) : 36 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
79 in stock

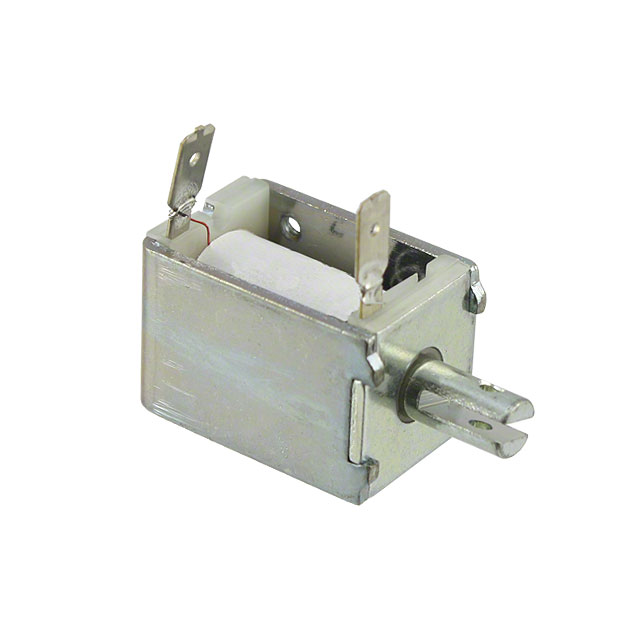

F0412A F0412A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 8.5W
DC Resistance (DCR) : 16.9 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
720 in stock

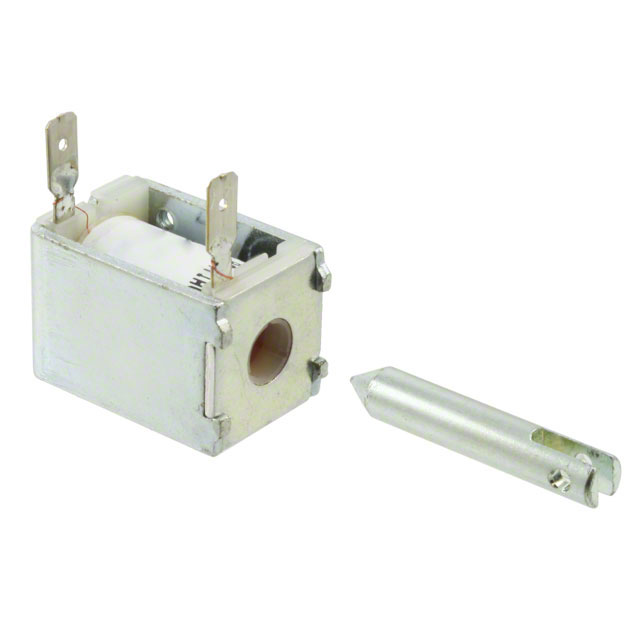

F0413A F0413A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 4W
DC Resistance (DCR) : 144 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
79 in stock

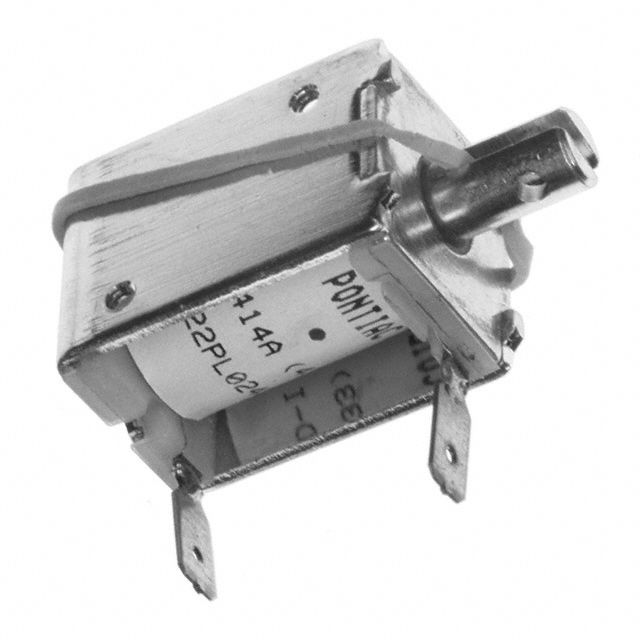

F0414A F0414A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 8.5W
DC Resistance (DCR) : 68 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
100 in stock

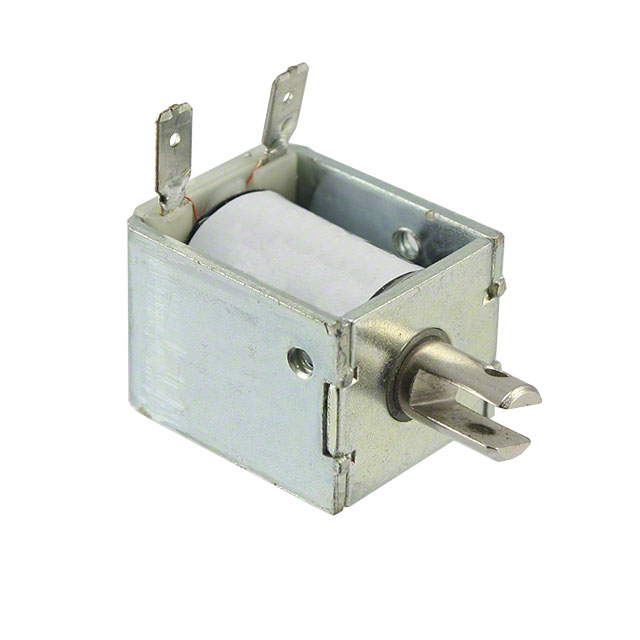

F0421A F0421A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-20
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 6.4W
DC Resistance (DCR) : 22.5 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.810" W x 0.940" H (29.46mm x 20.57mm x 23.88mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
192 in stock

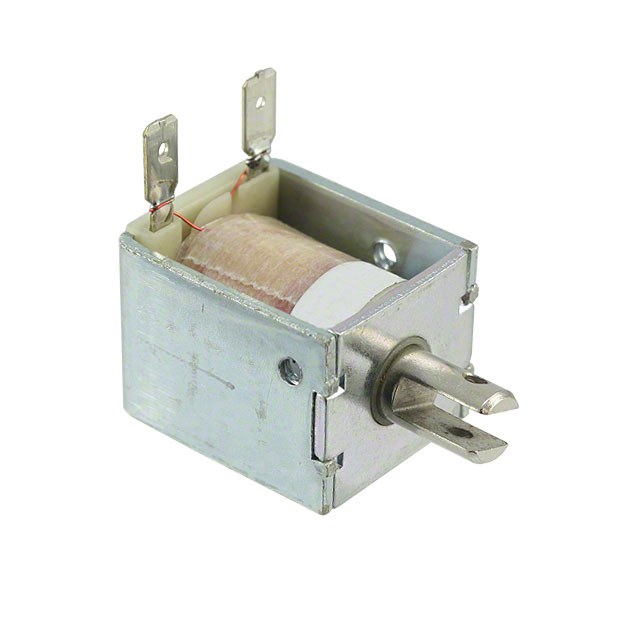

F0422A F0422A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-20
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 12.5W
DC Resistance (DCR) : 11.5 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.810" W x 0.940" H (29.46mm x 20.57mm x 23.88mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
25 in stock

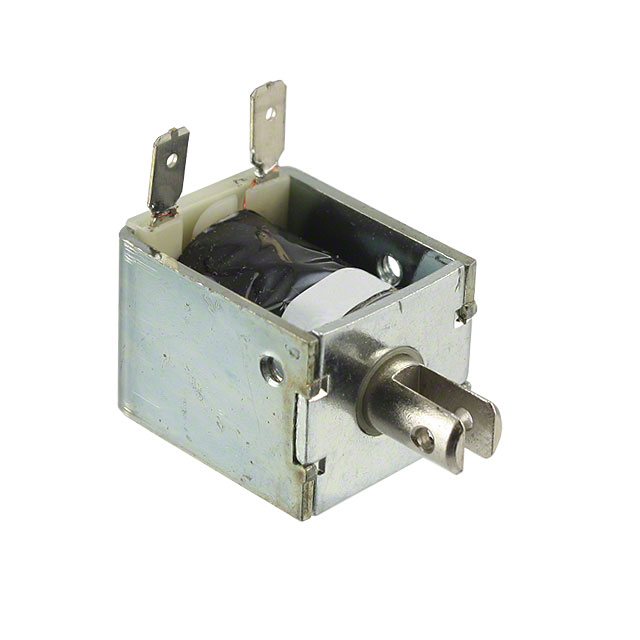

F0423A F0423A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-20
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 6.4W
DC Resistance (DCR) : 90 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.160" L x 0.810" W x 0.940" H (29.46mm x 20.57mm x 23.88mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
100 in stock

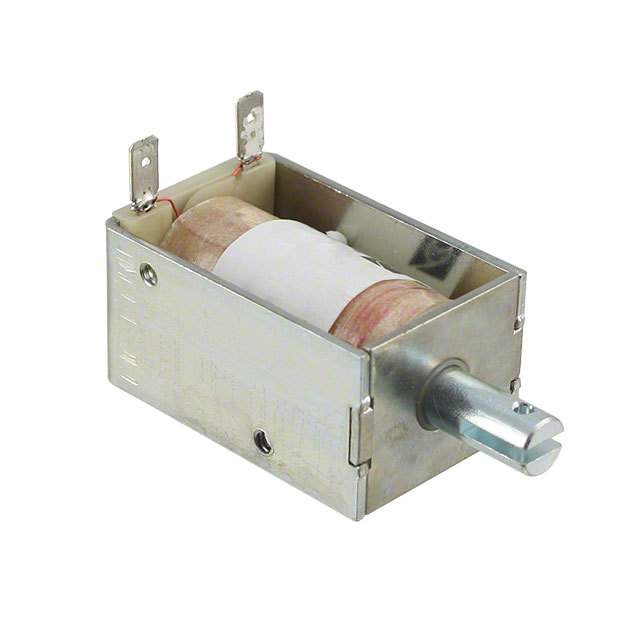

F0431A F0431A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-11
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 8W
DC Resistance (DCR) : 18 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
108 in stock

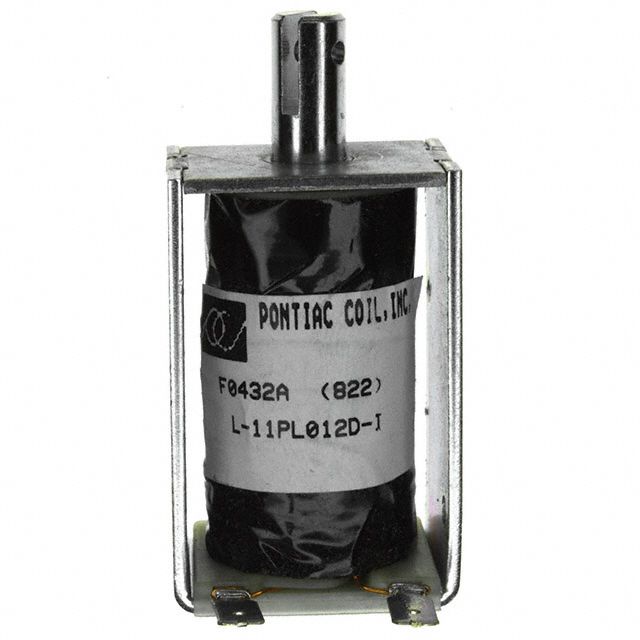

F0432A F0432A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-11
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 19W
DC Resistance (DCR) : 7.6 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
100 in stock

F0433A F0433A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-11
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 8W
DC Resistance (DCR) : 72 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
100 in stock

F0434A F0434A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-11
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 19W
DC Resistance (DCR) : 30.3 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
100 in stock
