Pontiac Coil, Inc.

- For more than 45 years, Pontiac Coil has been an integral part of our customers' success, delivering smart, time-saving manufacturing solutions - always one step ahead of our competitors. By focusing on the specific needs of each customer and then designing for both effectiveness and manufacturing efficiency, Pontiac Coil delivers innovative products that are more reliable, more efficient and less costly.

With facilities located throughout North America and Europe, we have become a key player in the electrical coil, solenoid and electrical/mechanical manufacturing field.

Part Number
Manufacturer
Description
Unit Price
In Stock

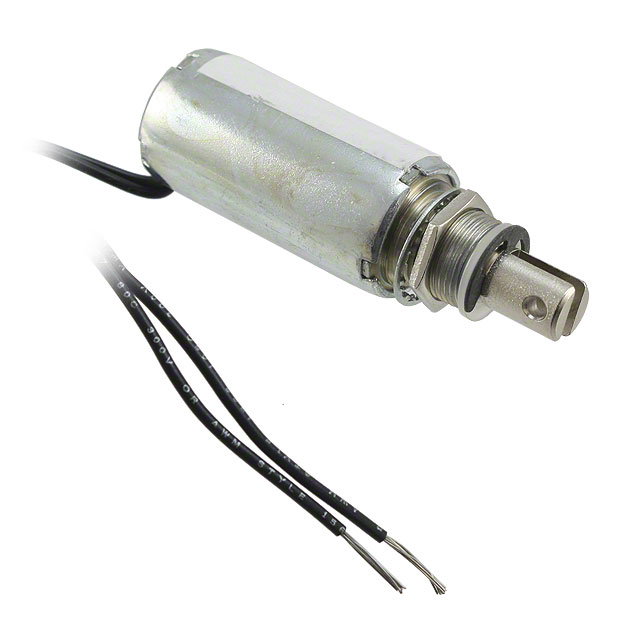

F0473A F0473A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-75-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.500" (12.70mm)
Power (Watts) : 6W
DC Resistance (DCR) : 88.3 Ohm
Bushing Thread : 15/32-32 UNF-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 0.737" Dia x 1.490" L (18.72mm x 37.85mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
361 in stock

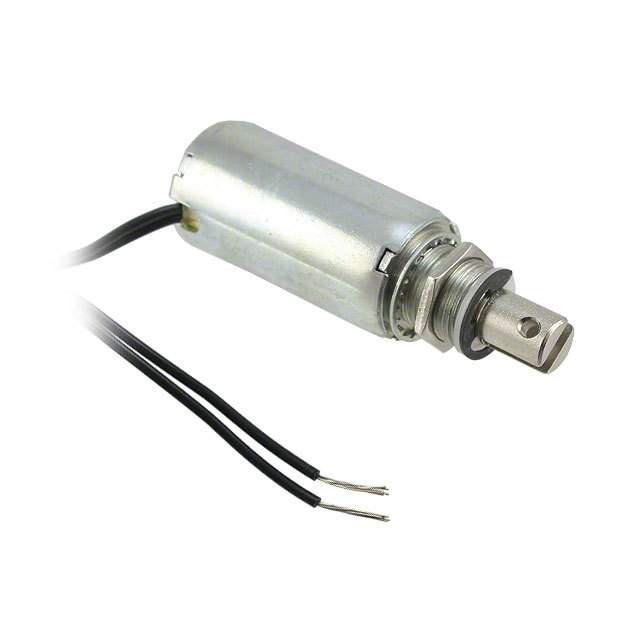

F0474A F0474A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-75-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 0.875" (22.20mm)
Power (Watts) : 40W
DC Resistance (DCR) : 14.4 Ohm
Bushing Thread : 15/32-32 UNF-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 0.737" Dia x 1.490" L (18.72mm x 37.85mm)
Diameter - Shaft : 0.312" (7.93mm)
Shaft Detail : Clevis
0
89 in stock

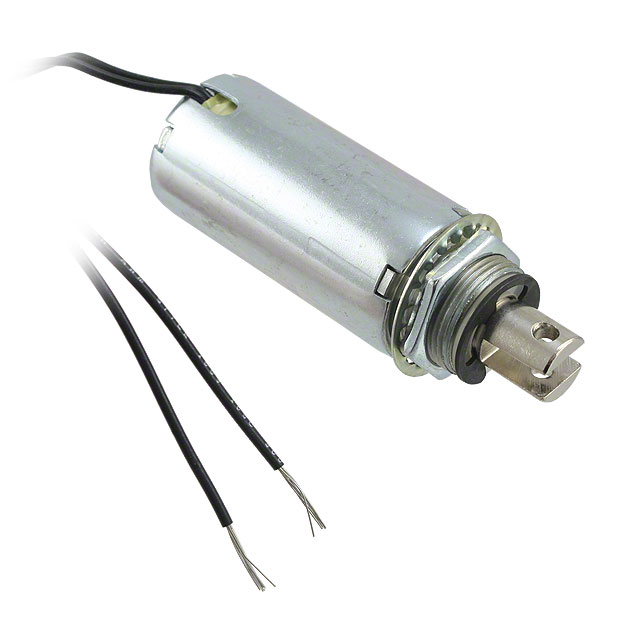

F0481A F0481A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-10-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 8W
DC Resistance (DCR) : 18 Ohm
Bushing Thread : 3/4-24 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 2.010" Dia x 0.990" L (51.05mm x 25.15mm)
Diameter - Shaft : 0.437" (11.10mm)
Shaft Detail : Clevis
0
307 in stock

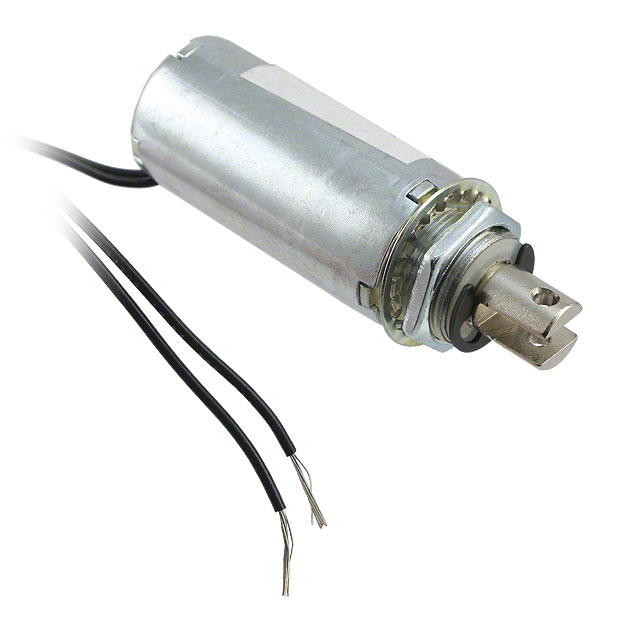

F0482A F0482A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-10-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 0.875" (22.20mm)
Power (Watts) : 40W
DC Resistance (DCR) : 3.6 Ohm
Bushing Thread : 3/4-24 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 2.010" Dia x 0.990" L (51.05mm x 25.15mm)
Diameter - Shaft : 0.437" (11.10mm)
Shaft Detail : Clevis
0
138 in stock

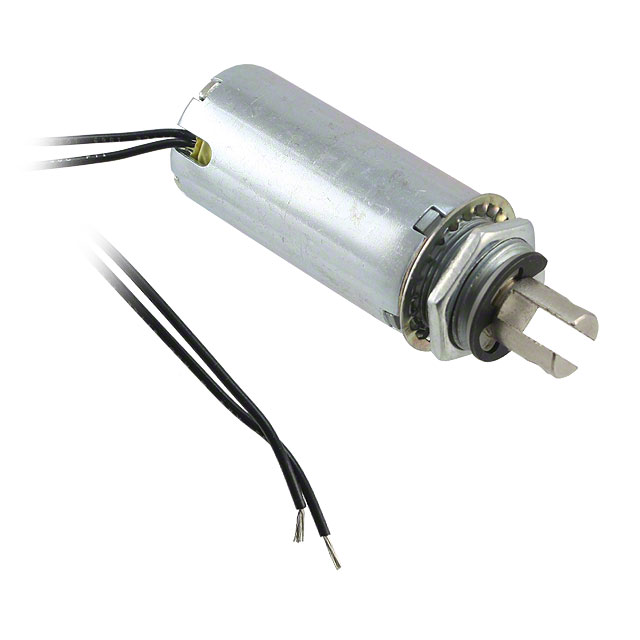

F0483A F0483A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-10-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 8W
DC Resistance (DCR) : 72 Ohm
Bushing Thread : 3/4-24 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 0.990" Dia x 2.010" L (25.15mm x 51.05mm)
Diameter - Shaft : 0.437" (11.10mm)
Shaft Detail : Clevis
0
583 in stock

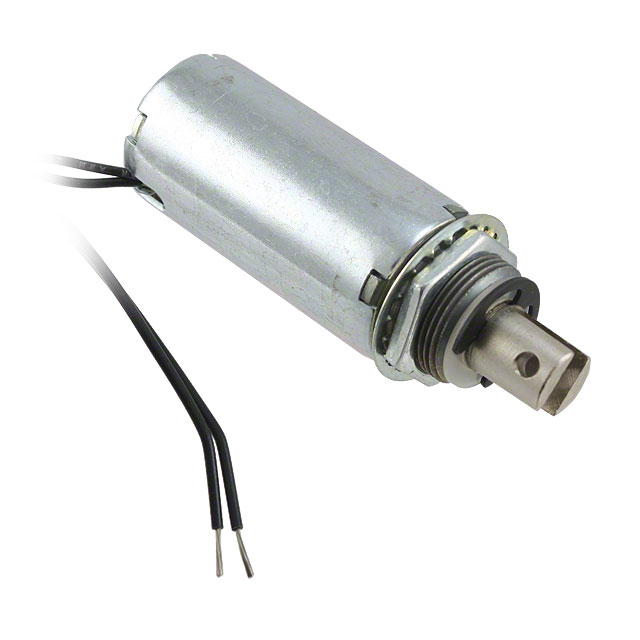

F0484A F0484A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-10-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 0.875" (22.20mm)
Power (Watts) : 40W
DC Resistance (DCR) : 14.4 Ohm
Bushing Thread : 3/4-24 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 2.010" Dia x 0.990" L (51.05mm x 25.15mm)
Diameter - Shaft : 0.437" (11.10mm)
Shaft Detail : Clevis
0
128 in stock

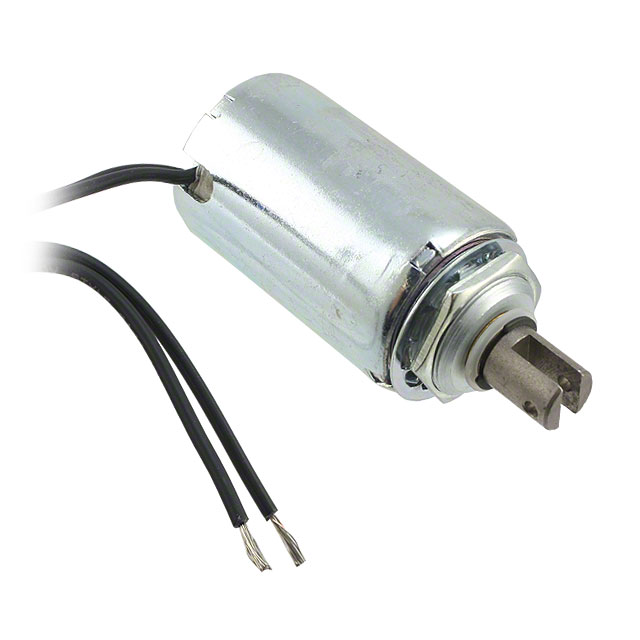

F0491A F0491A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-15-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 1.250" (31.75mm)
Power (Watts) : 14W
DC Resistance (DCR) : 10 Ohm
Bushing Thread : 1-27 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 1.490" Dia x 2.380" L (37.85mm x 60.45mm)
Diameter - Shaft : 0.500" (12.70mm)
Shaft Detail : Clevis
0
22 in stock

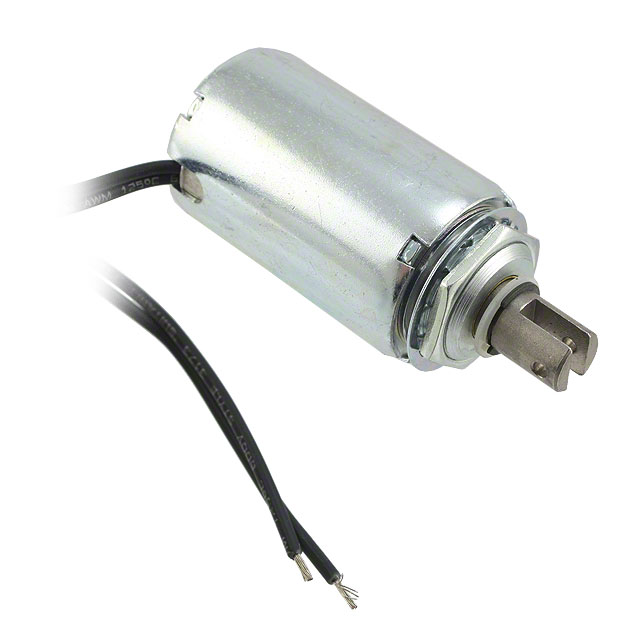

F0492A F0492A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-15-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 1.250" (31.75mm)
Power (Watts) : 60W
DC Resistance (DCR) : 2.2 Ohm
Bushing Thread : 1-27 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 1.490" Dia x 2.380" L (37.85mm x 60.45mm)
Diameter - Shaft : 0.500" (12.70mm)
Shaft Detail : Clevis
0
100 in stock

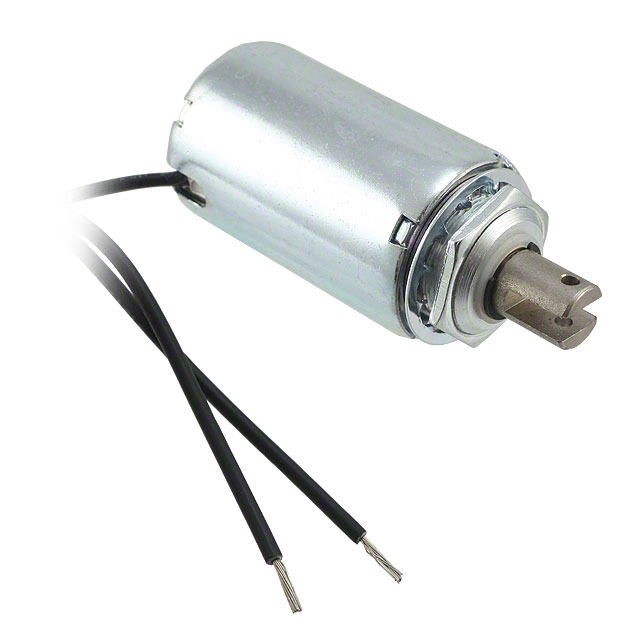

F0493A F0493A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-15-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 1.250" (31.75mm)
Power (Watts) : 14W
DC Resistance (DCR) : 41 Ohm
Bushing Thread : 1-27 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 1.490" Dia x 2.380" L (37.85mm x 60.45mm)
Diameter - Shaft : 0.500" (12.70mm)
Shaft Detail : Clevis
0
55 in stock

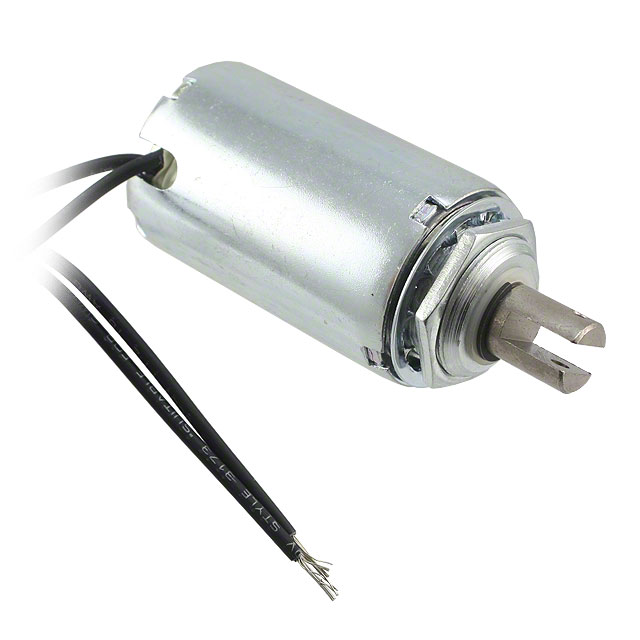

F0494A F0494A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : L-15-2
Part Status : Active
Technology : Electromechanical
Type : Closed Frame (Pull), Tubular
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 1.250" (31.75mm)
Power (Watts) : 60W
DC Resistance (DCR) : 10 Ohm
Bushing Thread : 1-27 UNS-2A
Mounting Type : Panel Mount
Termination Style : Wire Leads
Size / Dimension : 1.490" Dia x 2.380" L (37.85mm x 60.45mm)
Diameter - Shaft : 0.500" (12.70mm)
Shaft Detail : Clevis
0
101 in stock

F9401A F9401A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : -
Part Status : Active
Technology : Electromechanical
Type : -
Duty Cycle : -
Voltage - Rated : -
Stroke Length : -
Power (Watts) : -
DC Resistance (DCR) : -
Bushing Thread : -
Mounting Type : -
Termination Style : -
Size / Dimension : -
Diameter - Shaft : -
Shaft Detail : -
0
100 in stock

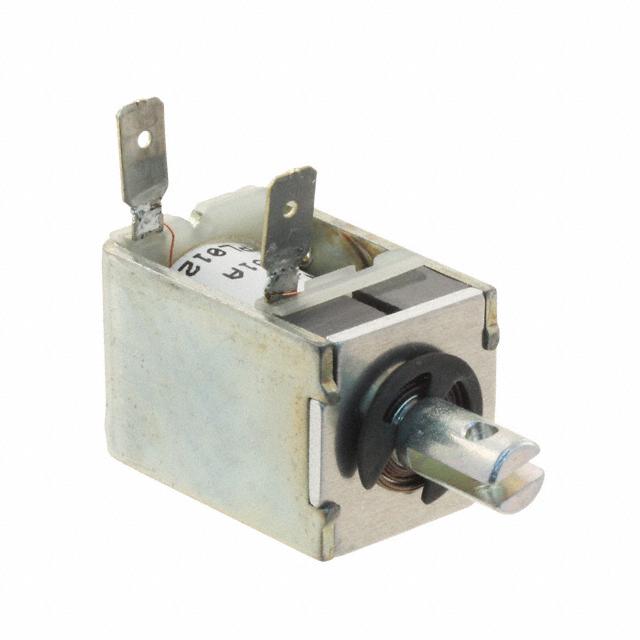

G0401A G0401A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 0.250" (6.35mm)
Power (Watts) : 4W
DC Resistance (DCR) : 38 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
89 in stock
