Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

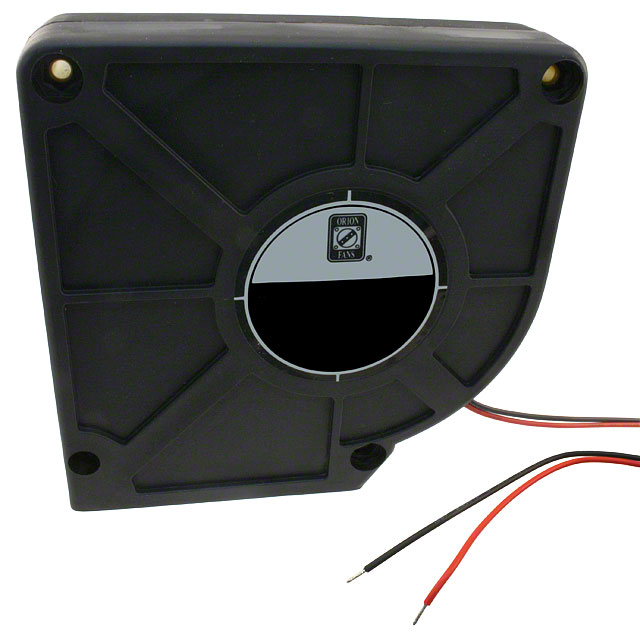

Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.590 in H2O (147.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
53 in stock

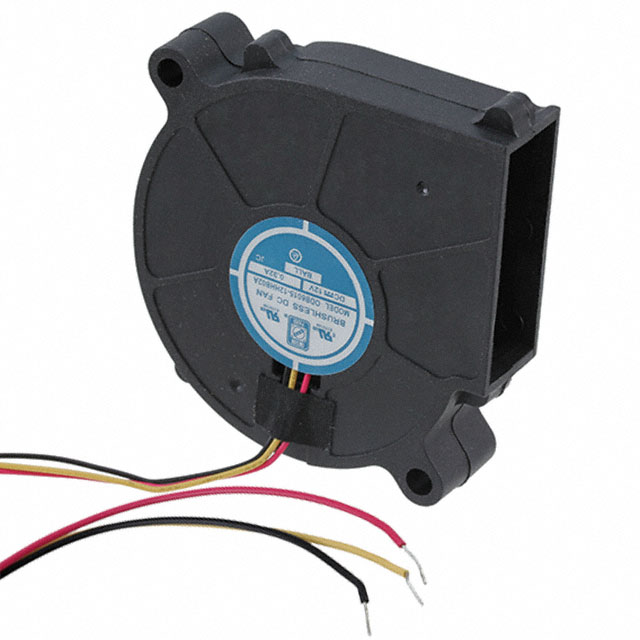

Orion Fans
Manufacturer : Orion Fans
Series : ODB6015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 57.25mm L x 50.37mm H
Width : 15.20mm
Air Flow : 7.4 CFM (0.207m鲁/min)
Static Pressure : 0.800 in H2O (199.3 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 3.84W
RPM : 5000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.077 lb (34.93g)
0
622 in stock

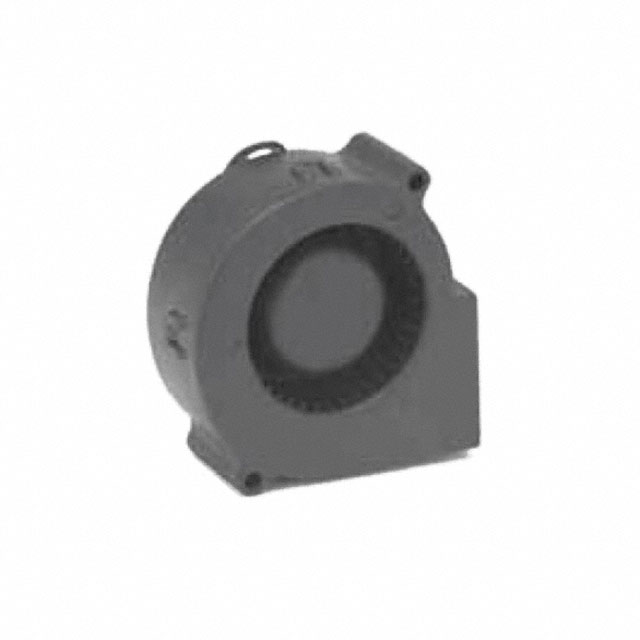

Orion Fans
Manufacturer : Orion Fans
Series : ODB7530
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 75mm L x 75mm H
Width : 30.00mm
Air Flow : 13.8 CFM (0.386m鲁/min)
Static Pressure : 0.560 in H2O (139.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 41.7 dB(A)
Power (Watts) : 4.32W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus
Weight : -
0
42 in stock

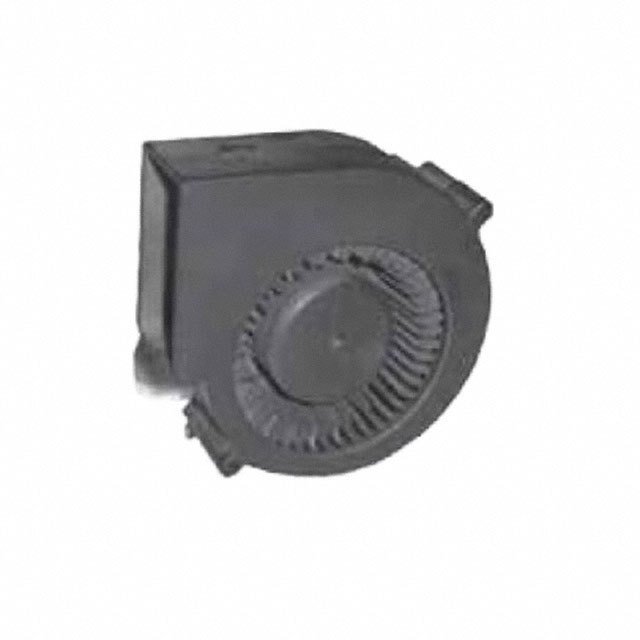

Orion Fans
Manufacturer : Orion Fans
Series : ODB9733
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 96mm L x 96mm H
Width : 33.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 1.100 in H2O (274.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 56.0 dB
Power (Watts) : 9.40W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus
Weight : -
0
53 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OMB5200
Part Status : Active
Type : Fan Tray
Voltage - Input : 115VAC
Specifications : Fan Tray, AC, 2 Fans, 340 CFM
Size / Dimension : 17.00" L x 13.70" W x 5.22" H (431.8mm x 348.0mm x 132.6mm)
0
4 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OMB5200
Part Status : Active
Type : Fan Tray
Voltage - Input : 230VAC
Specifications : Fan Tray, AC, 2 Fans, 340 CFM
Size / Dimension : 17.00" L x 13.70" W x 5.22" H (431.8mm x 348.0mm x 132.6mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Type : PDU (Power Distribution Unit)
Mounting Type : Rack, Horizontal
Current - Max : 15A
Region Utilized : North America
Overload Protection : Circuit Breaker(s)
Connector - AC Input : NEMA 5-15P
Connector - AC Output : NEMA 5-20R
Voltage - Input : 120V
Housing Material : -
Media Lines Protected : -
AC Outlets : 8
Energy : -
Cord Length : 9.84' (3m)
Approvals : CE, CSA, cUL, EN, FCC, ICES, UL
Features : Ethernet Control and Monitor Interface for Individual Outlets, Programmable Alerts, Load Meter
0
9 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Type : PDU (Power Distribution Unit)
Mounting Type : Rack, Horizontal
Current - Max : 16A
Region Utilized : International
Overload Protection : Circuit Breaker(s)
Connector - AC Input : IEC 320-C20
Connector - AC Output : IEC 320-C13
Voltage - Input : 230V
Housing Material : -
Media Lines Protected : -
AC Outlets : 8
Energy : -
Cord Length : 9.84' (3m)
Approvals : CE, CSA, c-Tick, cUL, EN, UL
Features : Ethernet Control and Monitor Interface for Individual Outlets, Programmable Alerts, Load Meter
0
4 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Type : PDU (Power Distribution Unit)
Mounting Type : Rack, Vertical
Current - Max : 16A
Region Utilized : International
Overload Protection : Circuit Breaker(s)
Connector - AC Input : IEC 320-C20
Connector - AC Output : IEC 320-C13 (14), C19 (2)
Voltage - Input : 230V
Housing Material : -
Media Lines Protected : -
AC Outlets : 16
Energy : -
Cord Length : 9.84' (3m)
Approvals : CE, CSA, c-Tick, cUL, EN, FCC, ICES, UL
Features : Ethernet Control and Monitor Interface for Individual Outlets, Programmable Alerts, Load Meter
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Type : PDU (Power Distribution Unit)
Mounting Type : Rack, Vertical
Current - Max : 20A
Region Utilized : North America
Overload Protection : Circuit Breaker(s)
Connector - AC Input : NEMA 5-20P
Connector - AC Output : NEMA 5-20R
Voltage - Input : 120V
Housing Material : -
Media Lines Protected : -
AC Outlets : 16
Energy : -
Cord Length : 9.84' (3m)
Approvals : CE, CSA, c-Tick, cUL, EN, FCC, ICES, UL
Features : Ethernet Control and Monitor Interface for Individual Outlets, Programmable Alerts, Load Meter
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Type : Thermal Control Unit
Voltage - Input : 120 ~ 230 VAC
Specifications : -
Size / Dimension : 19.00" L x 5.58" W x 1.75" H (482.6mm x 65.5mm x 44.4mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Fan Accessory Type : Filter/Screen
Fits Fan Size : 120mm Sq
For Use With/Related Products : OD1225, OD1238, OA125, OA109, OA4715 Series
Features : Black Anodized
Material : Aluminum
0
1747 in stock
