- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

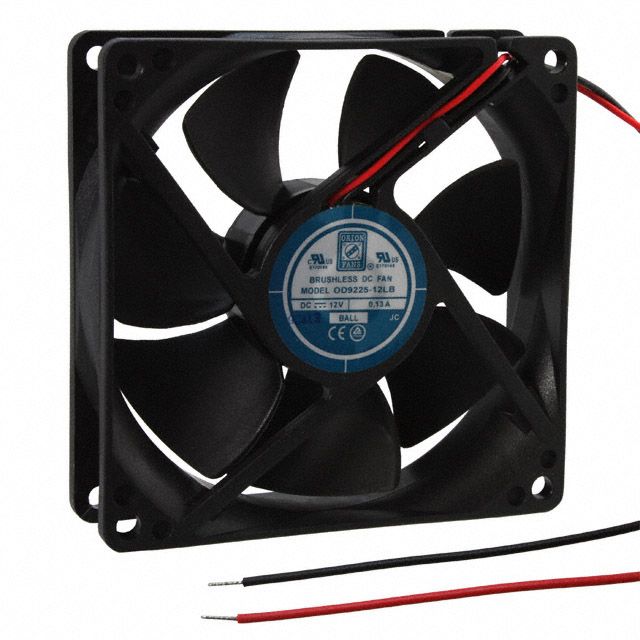

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 39.0 CFM (1.09m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : -
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
893 in stock

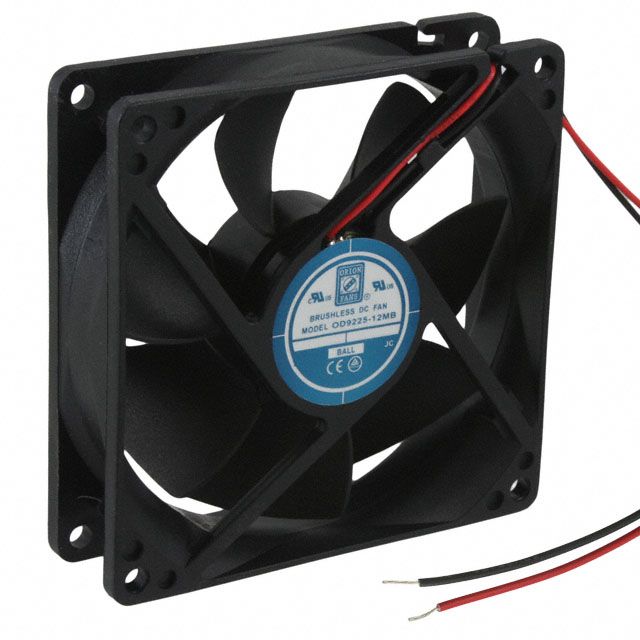

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 44.0 CFM (1.23m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : -
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
15 in stock

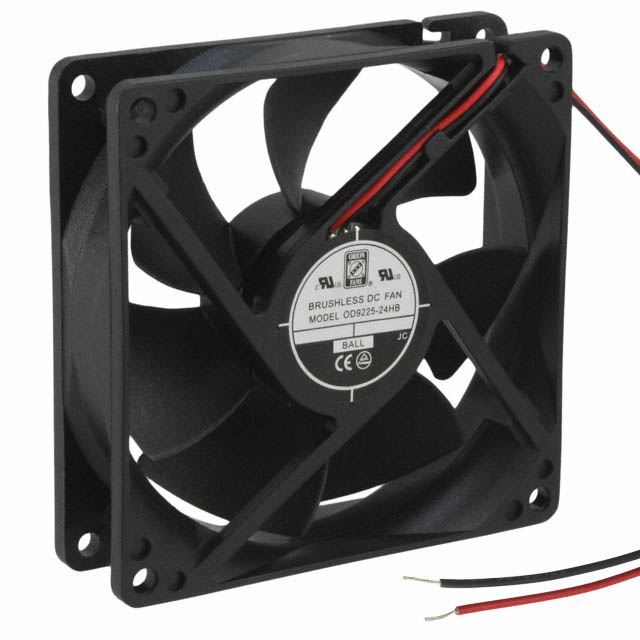

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : -
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
111 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : -
RPM : 2900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
169 in stock

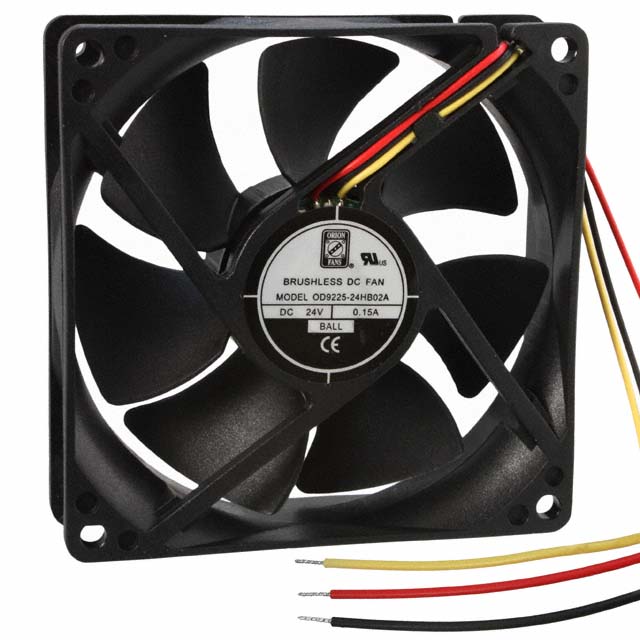

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : -
RPM : 2900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
55 in stock

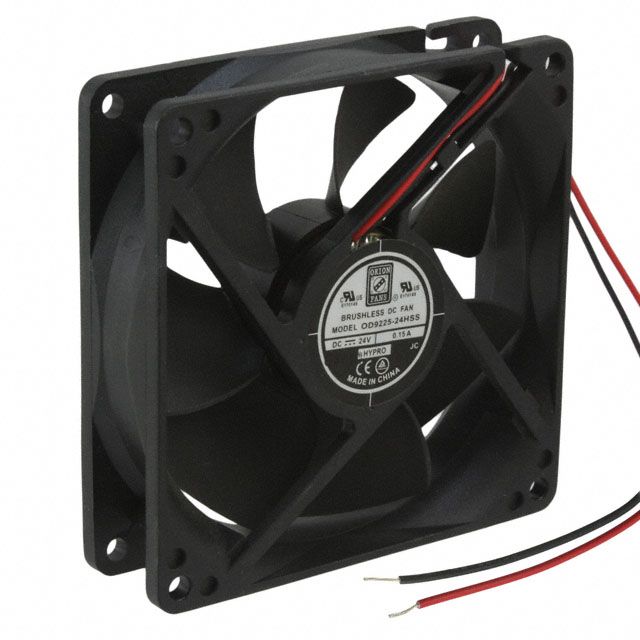

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 52.0 CFM (1.46m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 3.40W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
183 in stock

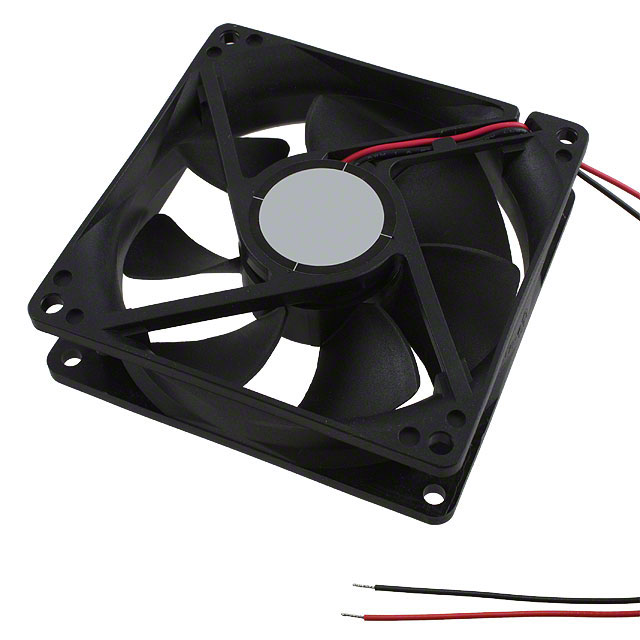

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 44.0 CFM (1.23m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : -
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
36 in stock

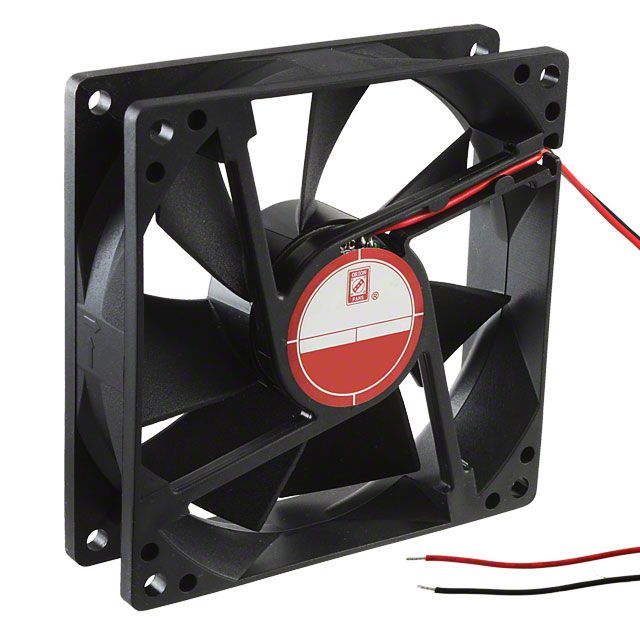

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : -
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
662 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 60VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 25.00mm
Air Flow : 69.0 CFM (1.93m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 12.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
54 in stock

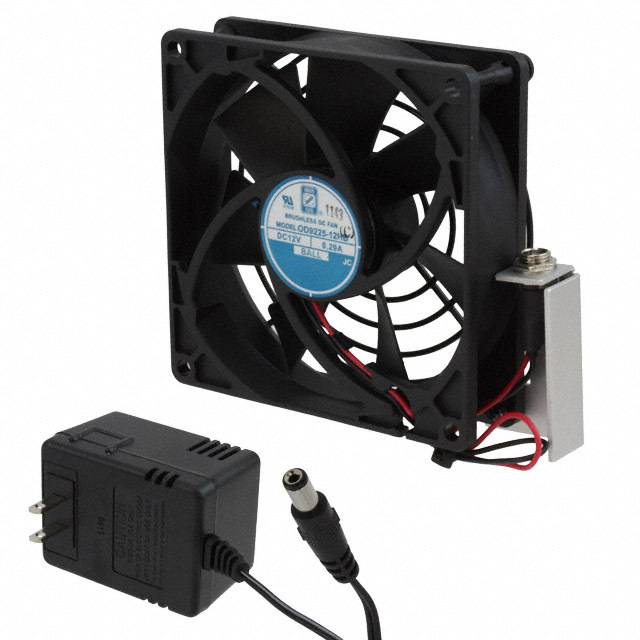

Orion Fans
Manufacturer : Orion Fans
Series : OD9225
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 35.0 dB
Power (Watts) : 3.00W
RPM : 3100 RPM
Termination : Cord and Plug
Ingress Protection : -
Operating Temperature : -4 ~ 149°F (-20 ~ 65°C)
Approvals : cURus, TUV
Weight : -
0
22 in stock

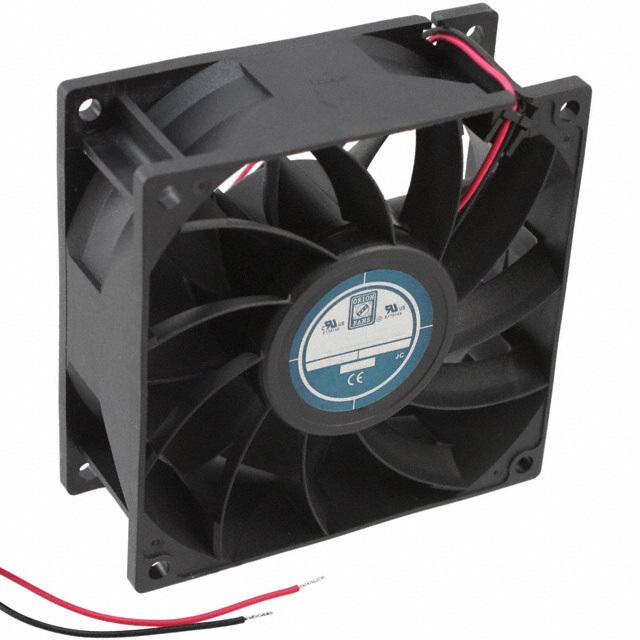

Orion Fans
Manufacturer : Orion Fans
Series : OD9238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 38.00mm
Air Flow : 135.0 CFM (3.78m鲁/min)
Static Pressure : 0.740 in H2O (184.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 16.00W
RPM : 5400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
32 in stock

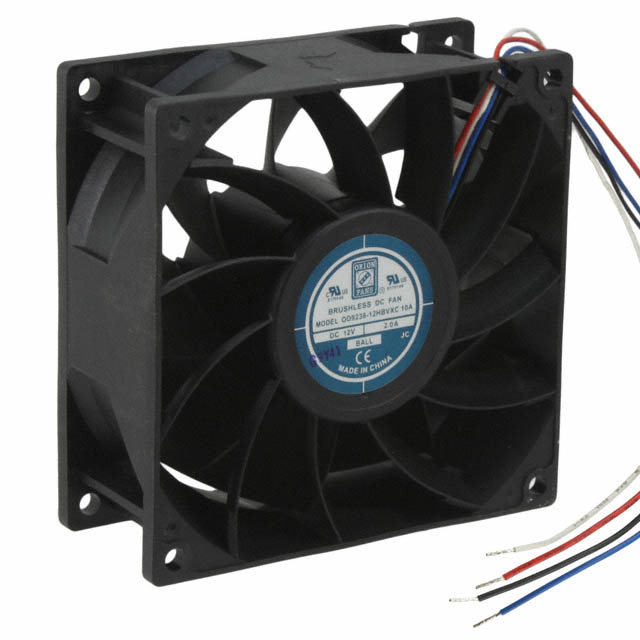

Orion Fans
Manufacturer : Orion Fans
Series : OD9238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92.5mm L x 92.5mm H
Width : 38.00mm
Air Flow : 135.0 CFM (3.78m鲁/min)
Static Pressure : 0.740 in H2O (184.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB
Power (Watts) : 16.00W
RPM : 5400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
97 in stock
