Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

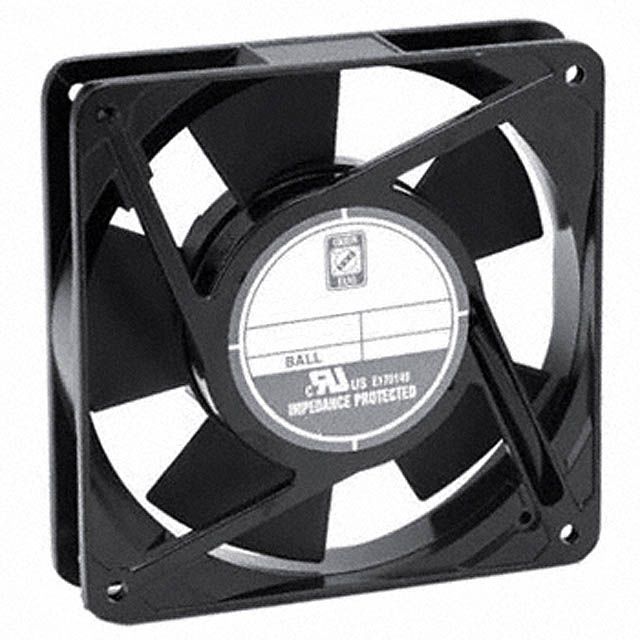

Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
687 in stock

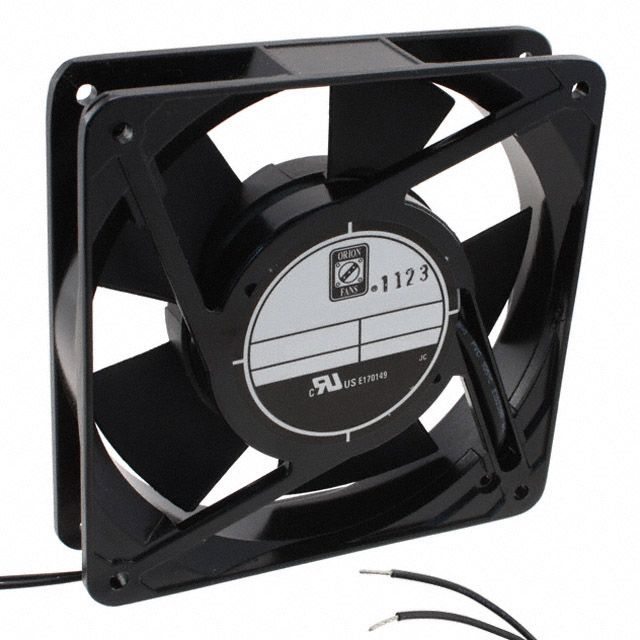

Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 10.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
217 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 10.00W
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
50 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 42.0 CFM (1.18m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 11.00W
RPM : 2000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : 0.73 lb (331.12g)
0
325 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
179 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 241.0 CFM (6.75m鲁/min)
Static Pressure : 0.730 in H2O (181.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
152 in stock

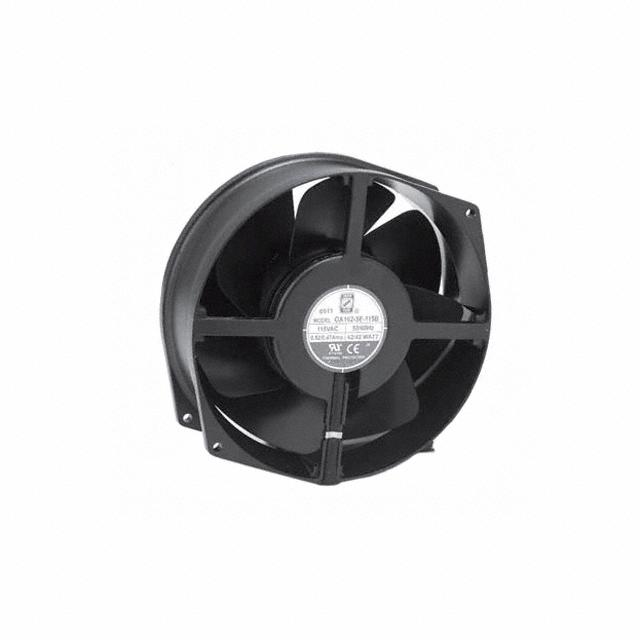

Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 241.0 CFM (6.75m鲁/min)
Static Pressure : 0.730 in H2O (181.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
40 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
100 in stock

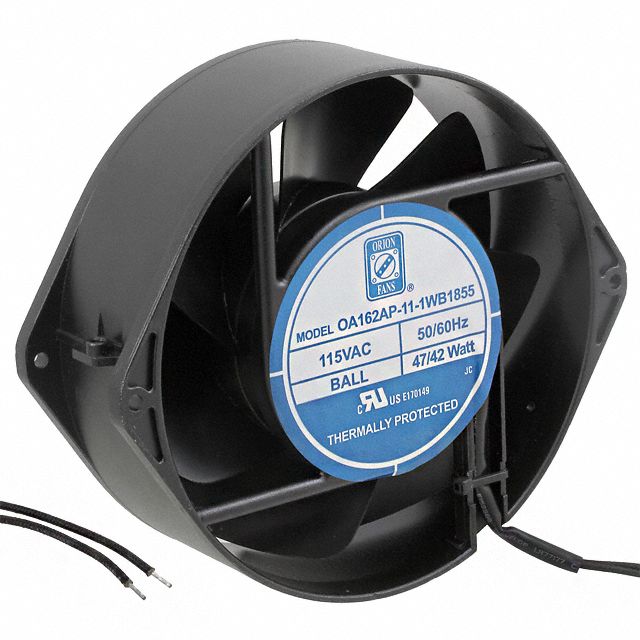

Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
20 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
100 in stock
