Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

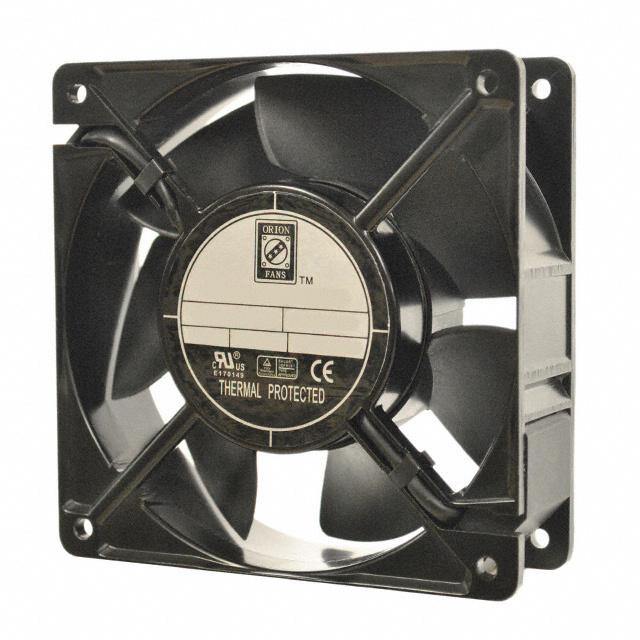

Orion Fans
Manufacturer : Orion Fans
Series : OA109XC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 131.0 CFM (3.67m鲁/min)
Static Pressure : 0.490 in H2O (122.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 22.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : cURus, TUV
Weight : -
0
2106 in stock

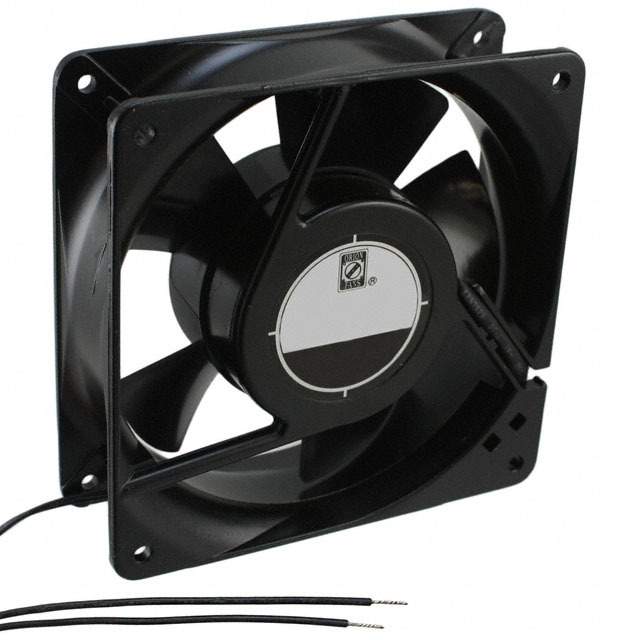

Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
734 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 71.0 CFM (1.99m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 11.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
19 in stock

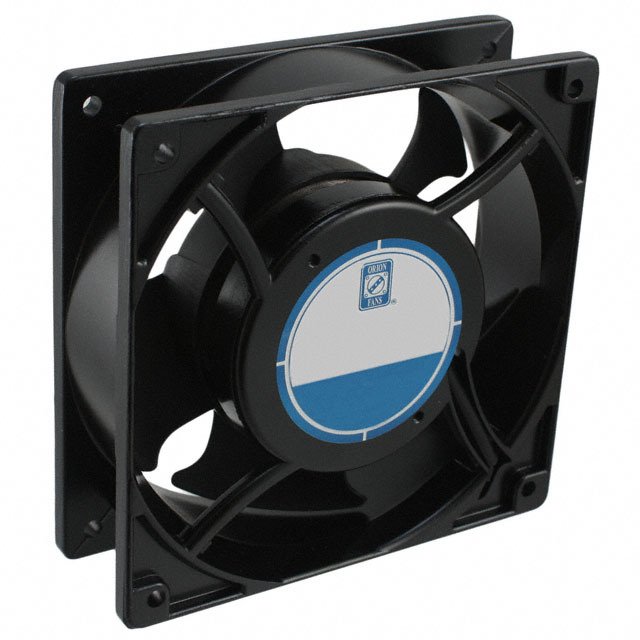

Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 85.0 CFM (2.38m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 45.0 dB
Power (Watts) : 13.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 8.00W
RPM : 1600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
108 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109EC
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.340 in H2O (84.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
Noise : 43.0 dB(A)
Power (Watts) : 4.90/5.20W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, UR
Weight : 0.64 lb (290.3g)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109EC
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.340 in H2O (84.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
Noise : 43.0 dB(A)
Power (Watts) : 4.90/5.20W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : ATEX, CE, cURus, UR
Weight : 0.64 lb (290.3g)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109EC
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.340 in H2O (84.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
Noise : 43.0 dB(A)
Power (Watts) : 4.90/5.20W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, UR
Weight : 0.64 lb (290.3g)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109EC
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.340 in H2O (84.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
Noise : 43.0 dB(A)
Power (Watts) : 4.90/5.20W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : ATEX, CE, cURus, UR
Weight : 0.64 lb (290.3g)
0
100 in stock

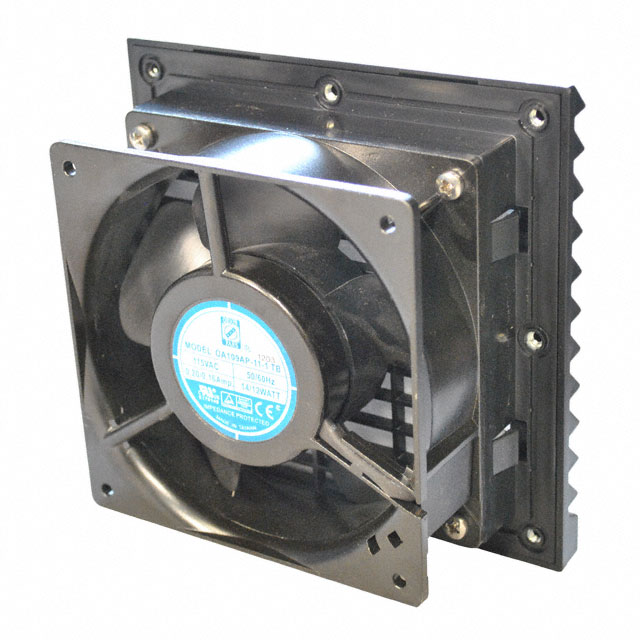

Orion Fans
Manufacturer : Orion Fans
Series : OA109LFG
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 148.5mm L x 148.5mm H
Width : 76.50mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 46.0 dB
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
56 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA109LFG
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 148.5mm L x 148.5mm H
Width : 76.50mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 46.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
13 in stock

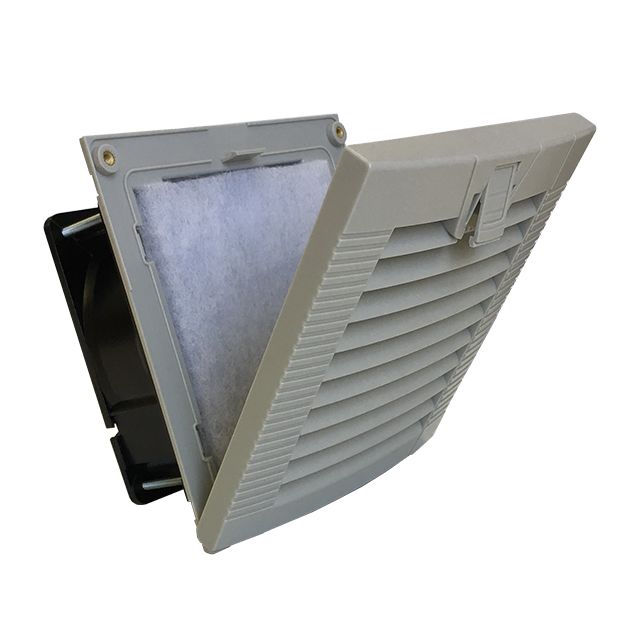

Orion Fans
Manufacturer : Orion Fans
Series : OA109LFGH
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 156mm L x 156mm H
Width : 74.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 46.0 dB
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
9 in stock
