Nichicon

- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

PCF1A561MCL9GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5.23A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.504" (12.80mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

800 in stock

PCF1A6R8MCL1GB

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 6.8µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 240 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 670mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

3954 in stock

PCF1C101MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 27 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

250 in stock

PCF1C151MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

2629 in stock

PCF1C181MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

550 in stock

PCF1C181MCL4GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 4.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

588 in stock

PCF1C220MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.21A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

3284 in stock

PCF1C221MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.9A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

727 in stock

PCF1C221MCL9GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5.05A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

881 in stock

PCF1C330MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 31 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

346 in stock

PCF1C331MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

875 in stock

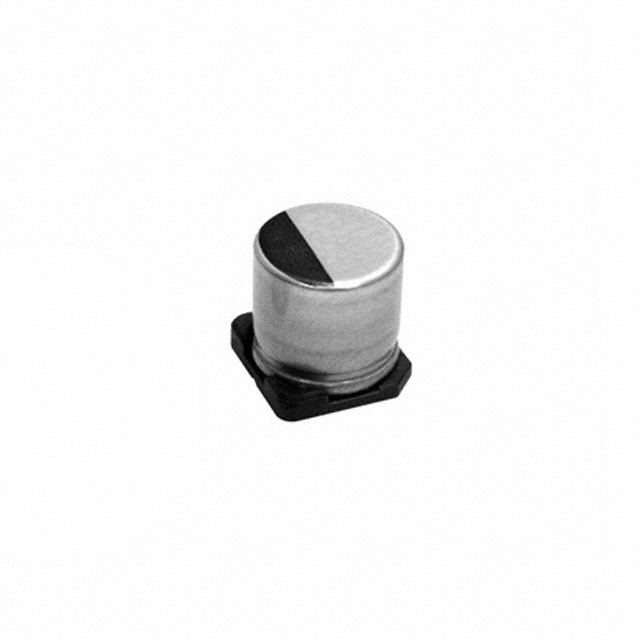

PCF1C390MCL4GB

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 31 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

2000 in stock
