- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

PCF0J471MCL4GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

55 in stock

PCF0J471MCL6GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 4.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

850 in stock

PCF0J681MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

3048 in stock

PCF0J681MCL9GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.504" (12.80mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

1497 in stock

PCF0J820MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

1510 in stock

PCF0J820MCL4GB

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

2725 in stock

PCF0J821MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 5.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

2400 in stock

PCF1A100MCL1GB

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 220 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 700mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

5752 in stock

PCF1A121MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

6207 in stock

PCF1A150MCL1GB

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 200 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 700mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

2000 in stock

PCF1A151MCL6GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

2000 in stock

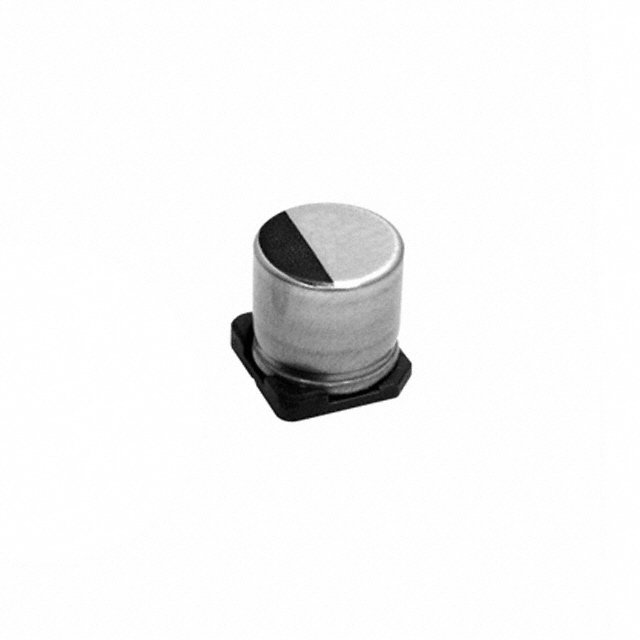

PCF1A271MCL1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

828 in stock
