Newhaven Display, Intl.

- Newhaven Display provides the North American marketplace with cost effective high quality display devices ranging from LCD to VFD. In addition to our vast standard part offerings, we develop custom designs for all industries. We pride ourselves on first-rate customer support and development assistance.

All products are stocked at our Elgin, Illinois USA warehouse. Marketing is done through a nationwide network of independent sales representatives and stocking distributors. All displays are manufactured at our partner factories located in Mainland China and Taiwan locations. These are state-of-the-art facilities with over 12 years of experience with QS-9000, ISO-9001 and ISO-14001 certifications.


Part Number

Manufacturer

Description

Unit Price

In Stock

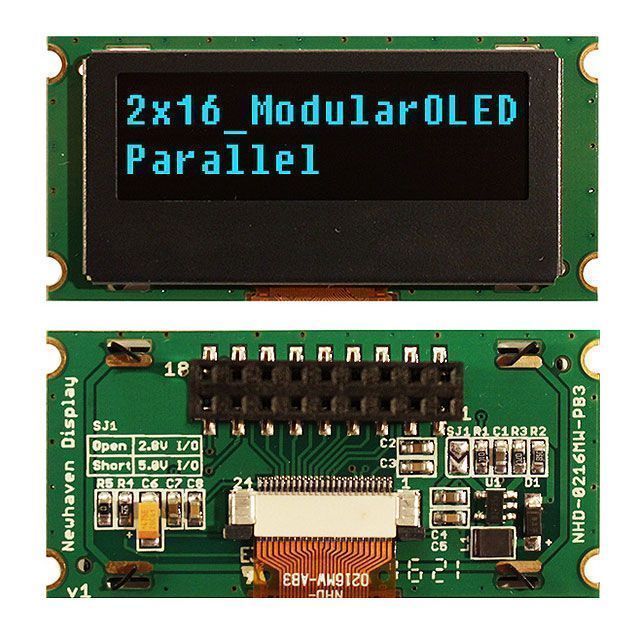

NHD-0216MW-PB3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 4.45mm H x 1.82mm W
Outline L x W x H : 49.20mm x 24.40mm x 4.50mm
Viewing Area : 36.22mm L x 11.40mm W
Backlight : Without Backlight
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.34mm W x 0.53mm H
Interface : Parallel
Operating Temperature : -40°C ~ 85°C
Text Color : Blue
Background Color : Black

34 in stock

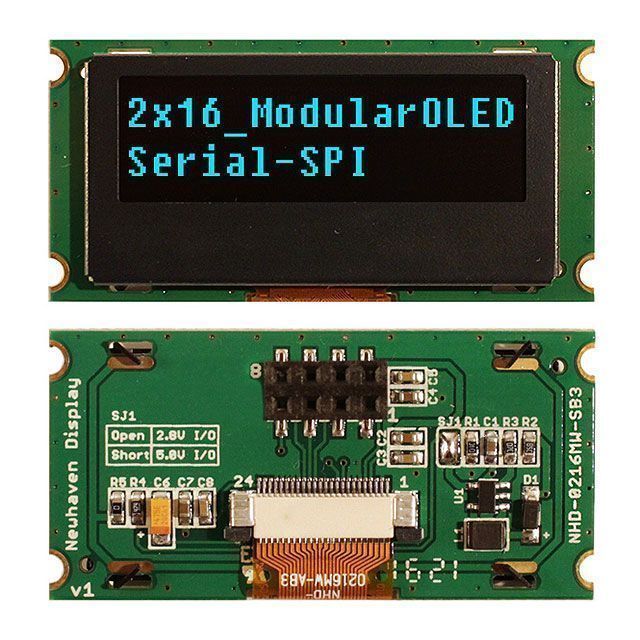

NHD-0216MW-SB3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 4.45mm H x 1.82mm W
Outline L x W x H : 49.20mm x 24.40mm x 4.50mm
Viewing Area : 36.22mm L x 11.40mm W
Backlight : Without Backlight
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.34mm W x 0.53mm H
Interface : SPI
Operating Temperature : -40°C ~ 85°C
Text Color : Blue
Background Color : Black

86 in stock

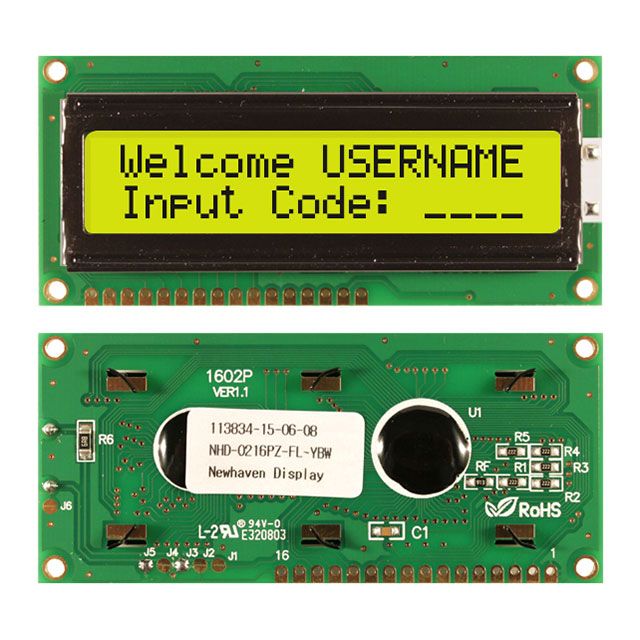

NHD-0216PZ-FL-YBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.35mm H x 2.95mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 13.80mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.50mm W x 0.55mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

26 in stock

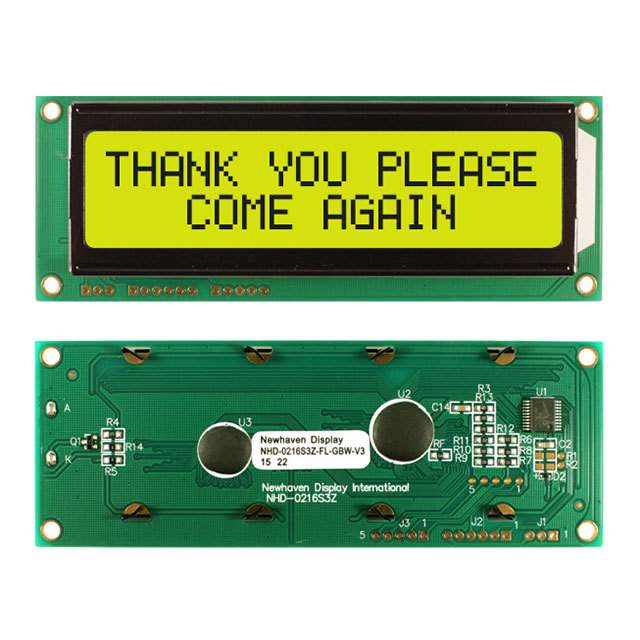

NHD-0216S3Z-FL-GBW-V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 9.55mm H x 5.20mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.50mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 1.00mm W x 1.15mm H
Interface : I²C, RS-232, SPI
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

100 in stock

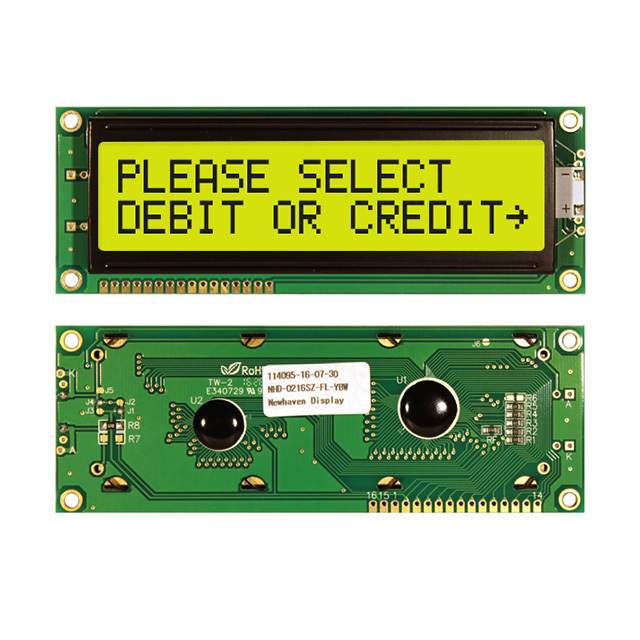

NHD-0216SZ-FL-YBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 9.55mm H x 5.20mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.50mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 1.00mm W x 1.15mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

451 in stock

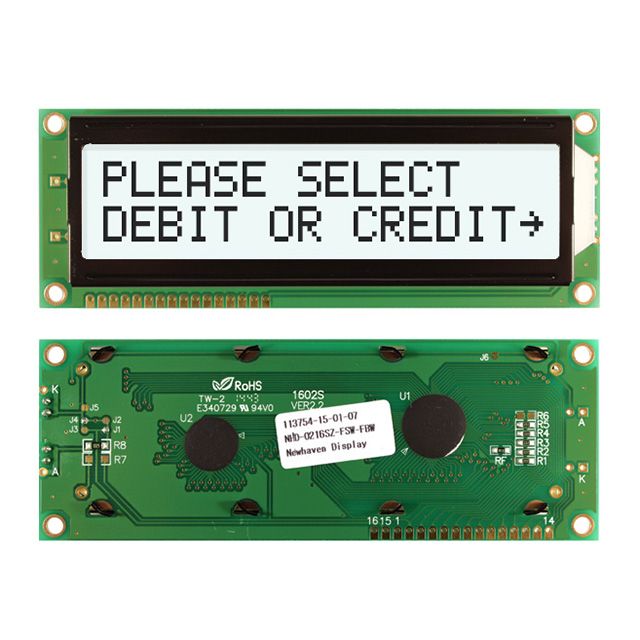

NHD-0216SZ-FSW-FBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 9.55mm H x 5.20mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.50mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 1.00mm W x 1.15mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : White

87 in stock

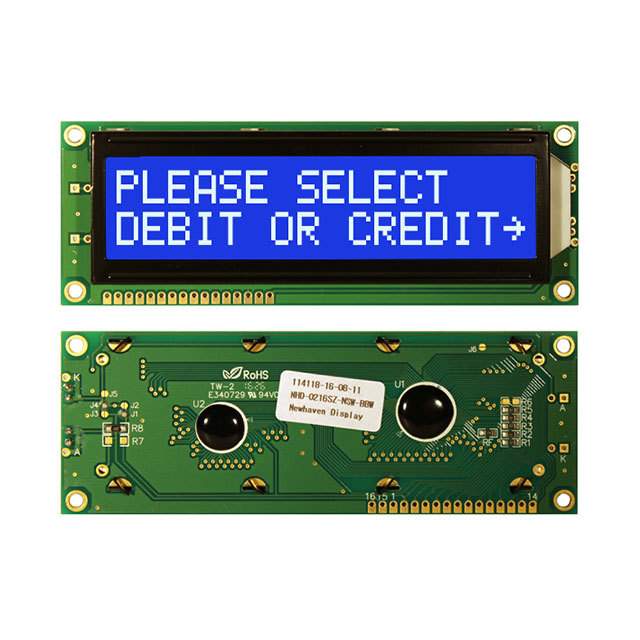

NHD-0216SZ-NSW-BBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 9.55mm H x 5.20mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.50mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 1.00mm W x 1.15mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : White
Background Color : Blue

141 in stock

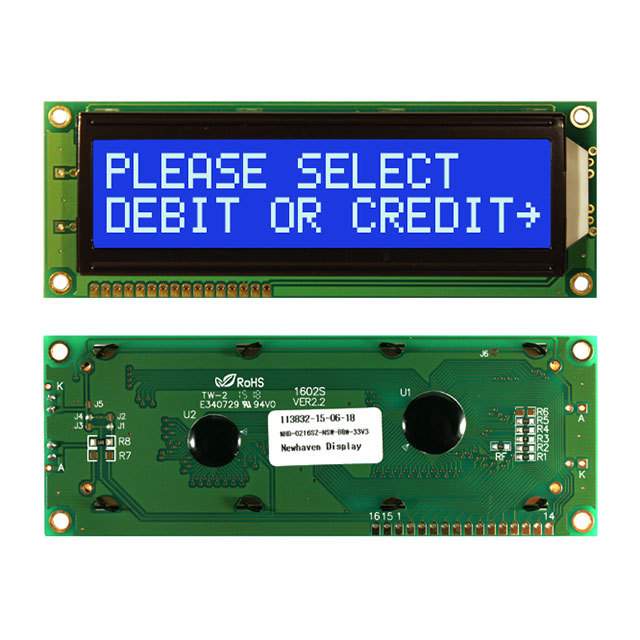

NHD-0216SZ-NSW-BBW-33V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 9.55mm H x 5.20mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.50mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - White
Voltage - Supply : 3.3 V ~ 5.5 V
Dot Size : 1.00mm W x 1.15mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : White
Background Color : Blue

309 in stock

NHD-0216SZ-NSW-BBW-3V

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 7 Dots w/Cursor
Display Type : STN - Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 8.06mm H x 4.84mm W
Outline L x W x H : 126.00mm x 44.00mm x 10.50mm
Viewing Area : 99.50mm L x 36.00mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.92mm W x 1.10mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : White
Background Color : Blue

100 in stock

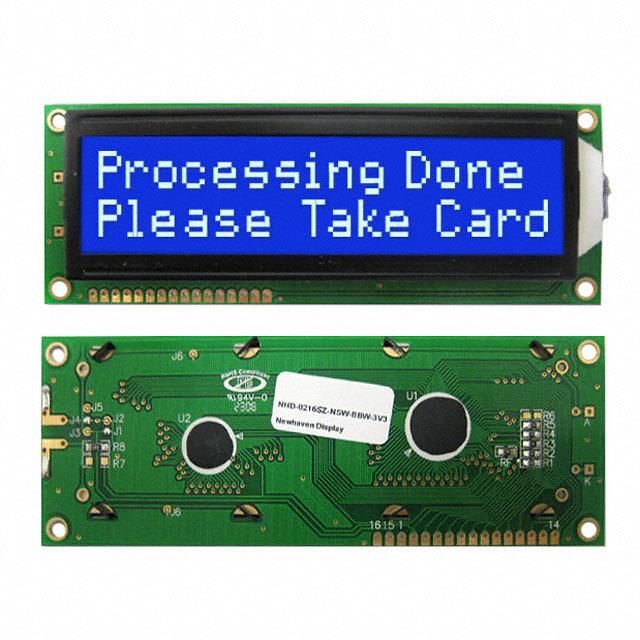

NHD-0216SZ-NSW-BBW-3V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 9.55mm H x 5.20mm W
Outline L x W x H : 122.00mm x 44.00mm x 13.50mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - White
Voltage - Supply : 2.7 V ~ 3.3 V
Dot Size : 1.00mm W x 1.15mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : White
Background Color : Blue

100 in stock

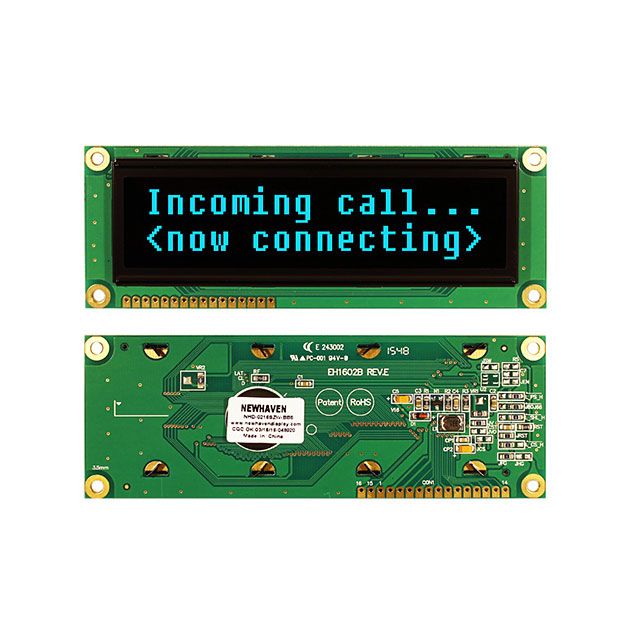

NHD-0216SZW-BB5

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : -
Character Size : 8.90mm H x 4.74mm W
Outline L x W x H : 122.00mm x 44.00mm x 10.00mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : -
Voltage - Supply : 3 V ~ 5.3 V
Dot Size : 0.90mm W x 1.06mm H
Interface : Parallel/Serial
Operating Temperature : -40°C ~ 80°C
Text Color : Blue
Background Color : Black

105 in stock

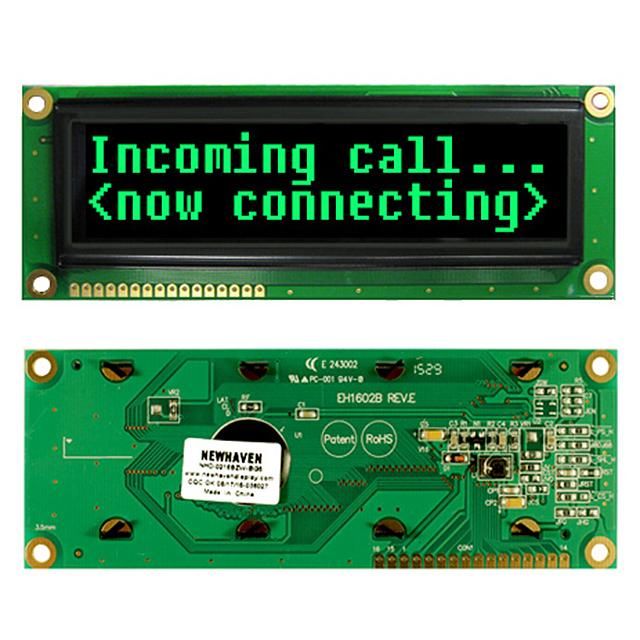

NHD-0216SZW-BG5

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 8.90mm H x 4.74mm W
Outline L x W x H : 122.00mm x 44.00mm x 10.00mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : Without Backlight
Voltage - Supply : 3 V ~ 5.3 V
Dot Size : 0.90mm W x 1.06mm H
Interface : Parallel/Serial
Operating Temperature : -40°C ~ 80°C
Text Color : Green
Background Color : Black

368 in stock
