Newhaven Display, Intl.

- Newhaven Display provides the North American marketplace with cost effective high quality display devices ranging from LCD to VFD. In addition to our vast standard part offerings, we develop custom designs for all industries. We pride ourselves on first-rate customer support and development assistance.

All products are stocked at our Elgin, Illinois USA warehouse. Marketing is done through a nationwide network of independent sales representatives and stocking distributors. All displays are manufactured at our partner factories located in Mainland China and Taiwan locations. These are state-of-the-art facilities with over 12 years of experience with QS-9000, ISO-9001 and ISO-14001 certifications.


Part Number

Manufacturer

Description

Unit Price

In Stock

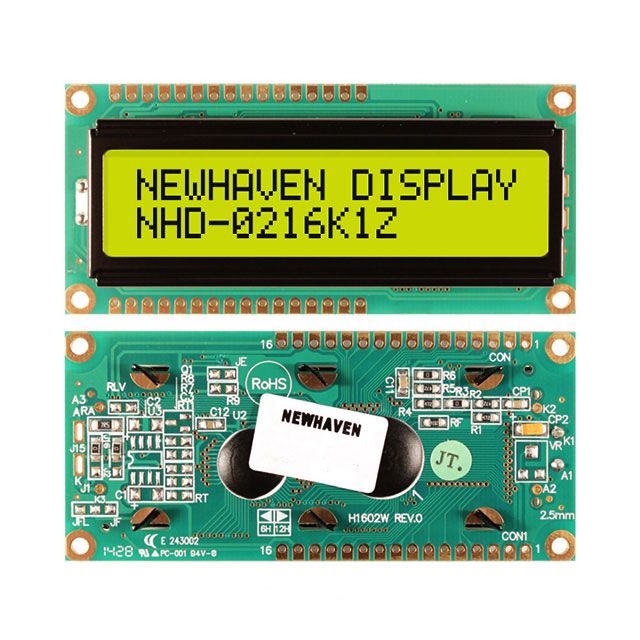

NHD-0216K1Z-FL-GBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

25 in stock

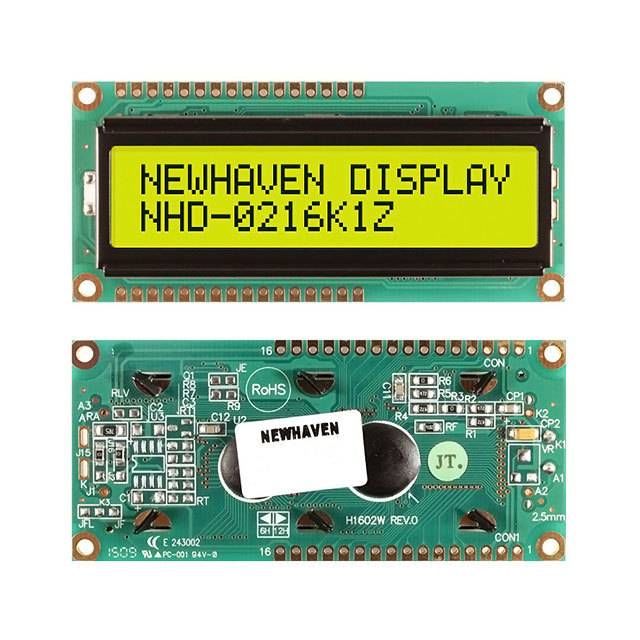

NHD-0216K1Z-FL-YBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.55mm H x 2.95mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.20mm
Viewing Area : 66.00mm L x 16.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.5 V ~ 5.5 V
Dot Size : 0.55mm W x 0.65mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

6904 in stock

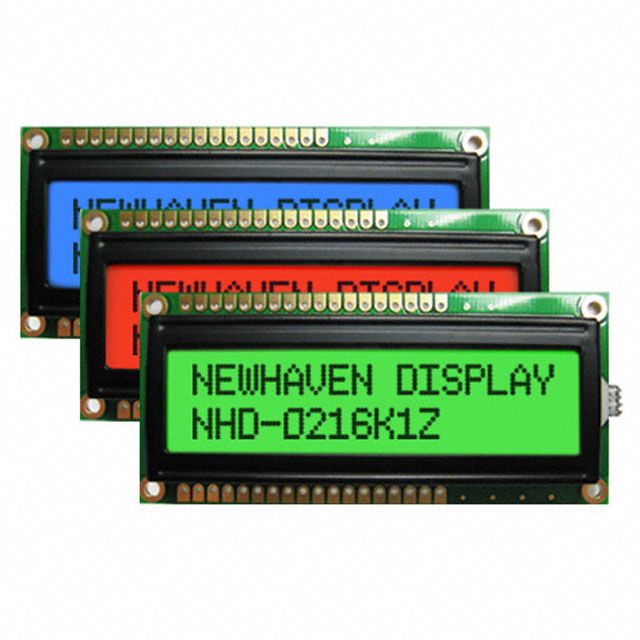

NHD-0216K1Z-FS(RGB)-FBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Red/Green/Blue
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : Red/Green/Blue

100 in stock

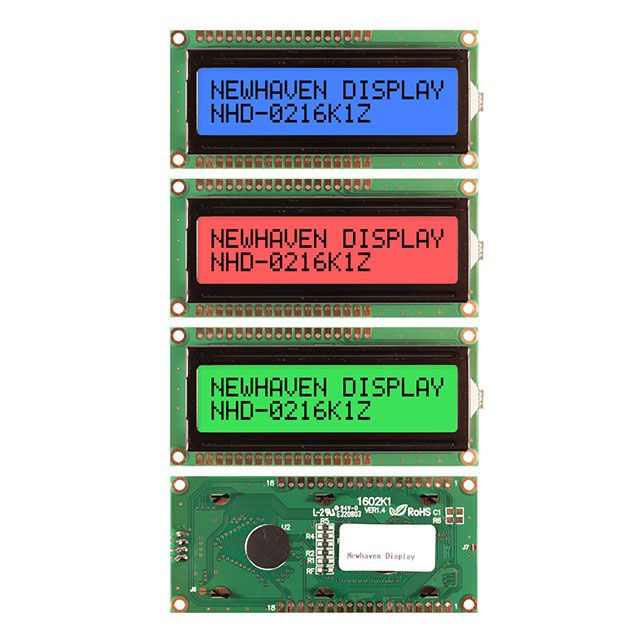

NHD-0216K1Z-FS(RGB)-FBW-REV1

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.00mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Red/Green/Blue
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : Red/Green/Blue

311 in stock

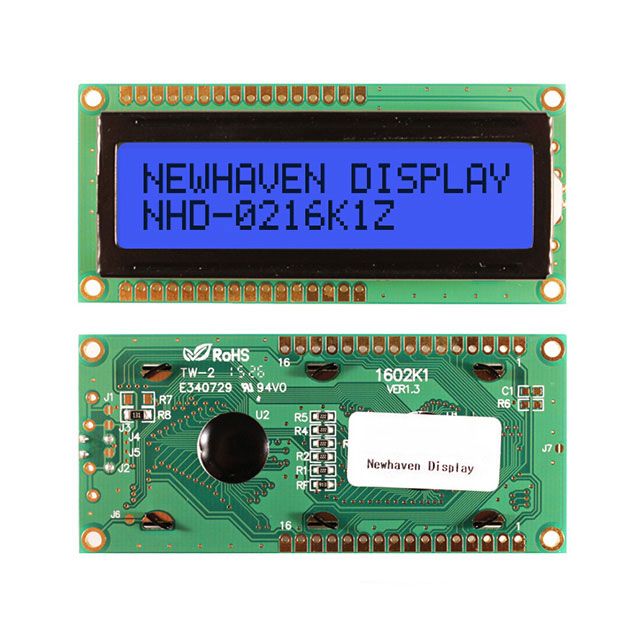

NHD-0216K1Z-FSB-GBW-L

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Blue
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Blue

45 in stock

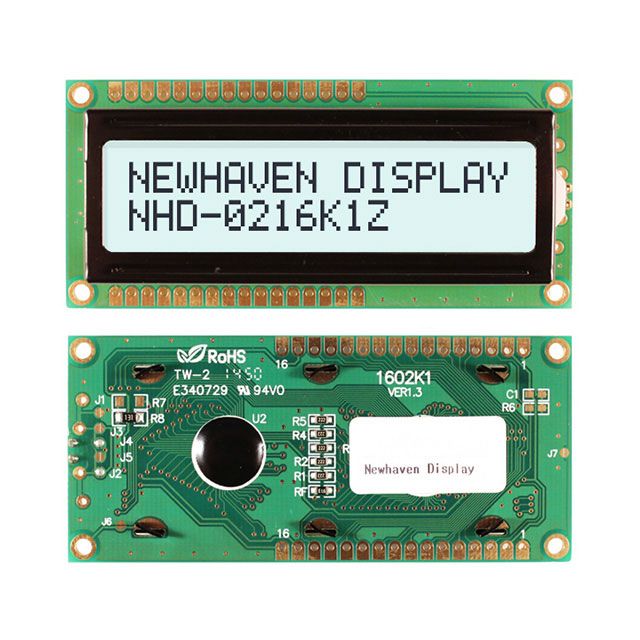

NHD-0216K1Z-FSW-FBW-L

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : White

4055 in stock

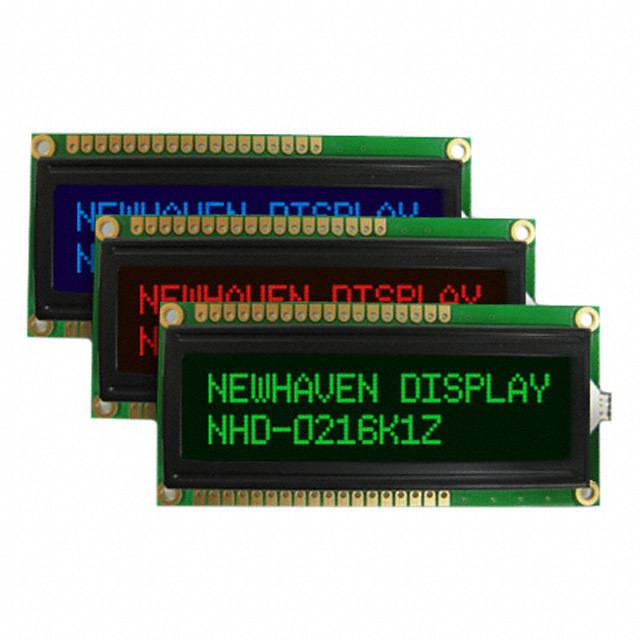

NHD-0216K1Z-NS(RGB)-FBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Red/Green/Blue
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Red/Green/Blue
Background Color : Black

100 in stock

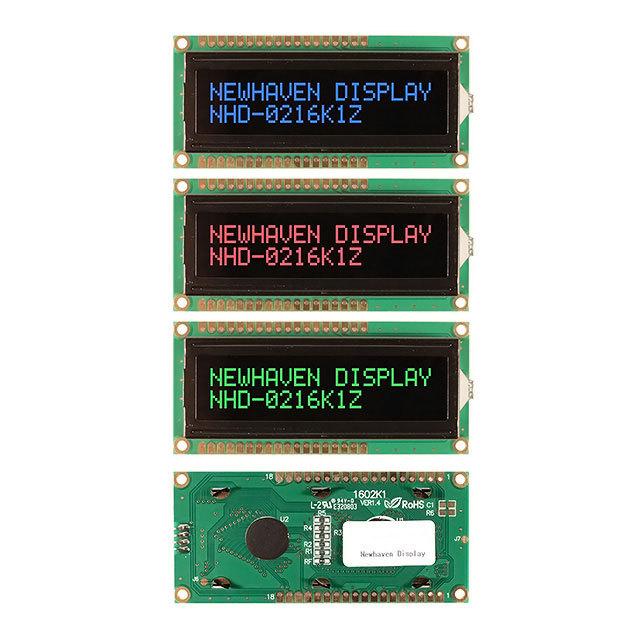

NHD-0216K1Z-NS(RGB)-FBW-REV1

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.00mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Red/Green/Blue
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Red/Green/Blue
Background Color : Black

1654 in stock

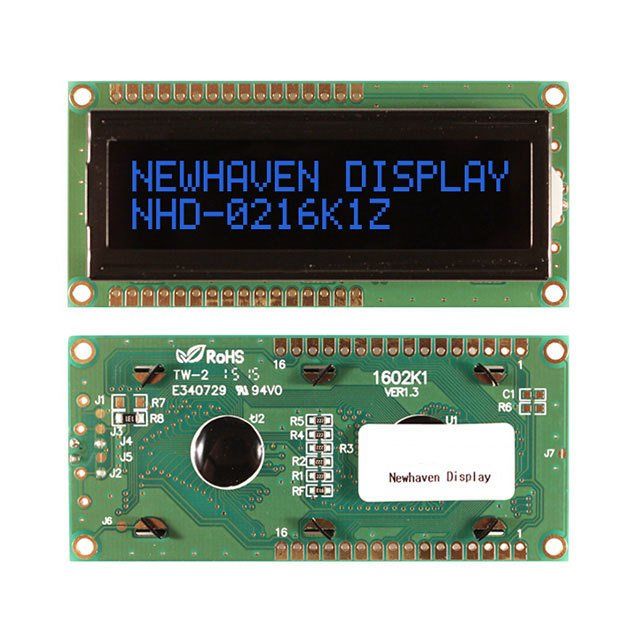

NHD-0216K1Z-NSB-FBW-L

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Blue
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Black

112 in stock

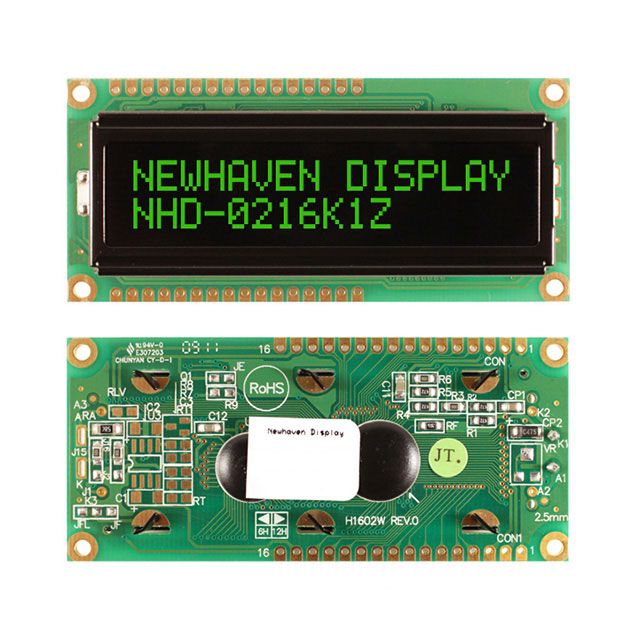

NHD-0216K1Z-NSPG-FBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Green
Background Color : Black

53 in stock

NHD-0216K1Z-NSPG-FBW-L

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : -
Background Color : -

100 in stock

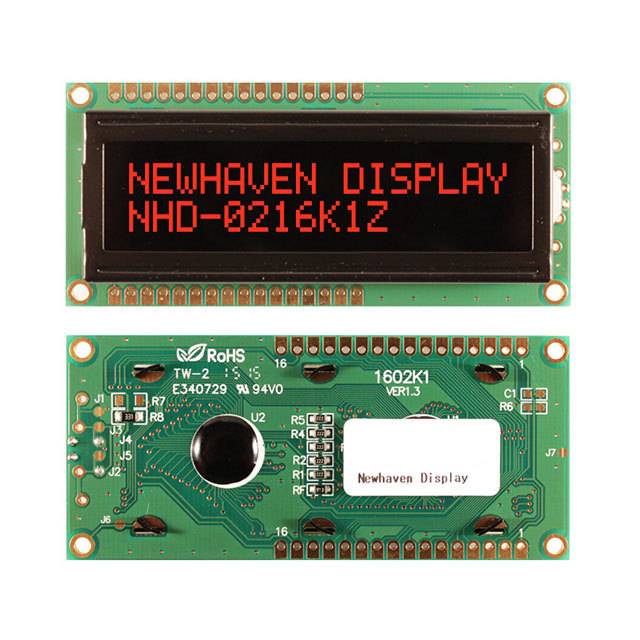

NHD-0216K1Z-NSR-FBW-L

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 80.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Red
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Red
Background Color : Black

123 in stock
