Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock

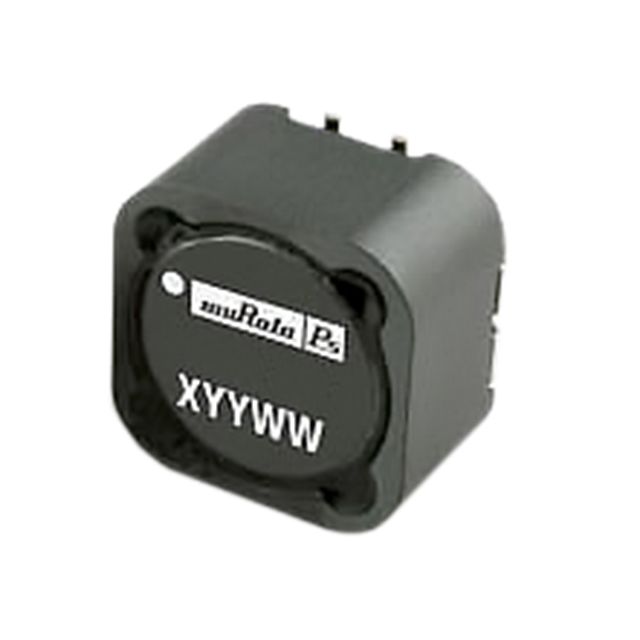

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68µH
Tolerance : -
Current Rating : 1.71A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 233 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 47 @ 1MHz
Frequency - Self Resonant : 7MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

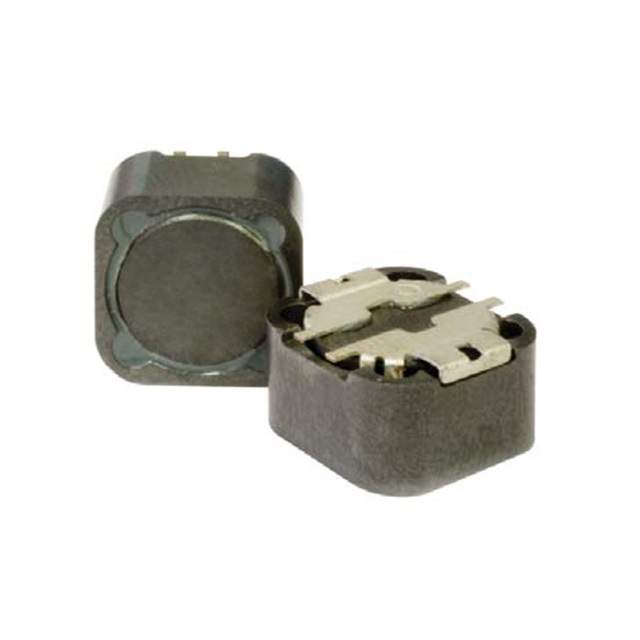

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8µH
Tolerance : ±30%
Current Rating : 6.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 16 mOhm Max
Q @ Freq : 43 @ 1MHz
Frequency - Self Resonant : 24MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

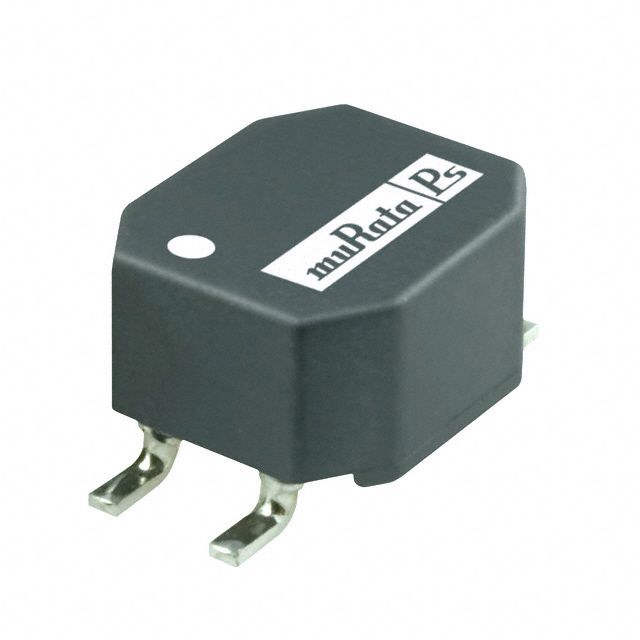

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5000
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 300 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.232" W (9.30mm x 5.90mm)
Height (Max) : 0.183" (4.65mm)
Package / Case : Horizontal, 4 J-Lead
0
31596 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5000
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 100kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 400 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.232" W (9.30mm x 5.90mm)
Height (Max) : 0.183" (4.65mm)
Package / Case : Horizontal, 4 J-Lead
0
8605 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5000
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 470µH @ 100kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 300 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.232" W (9.30mm x 5.90mm)
Height (Max) : 0.183" (4.65mm)
Package / Case : Horizontal, 4 J-Lead
0
12137 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5000
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 700 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.232" W (9.30mm x 5.90mm)
Height (Max) : 0.183" (4.65mm)
Package / Case : Horizontal, 4 J-Lead
0
46359 in stock

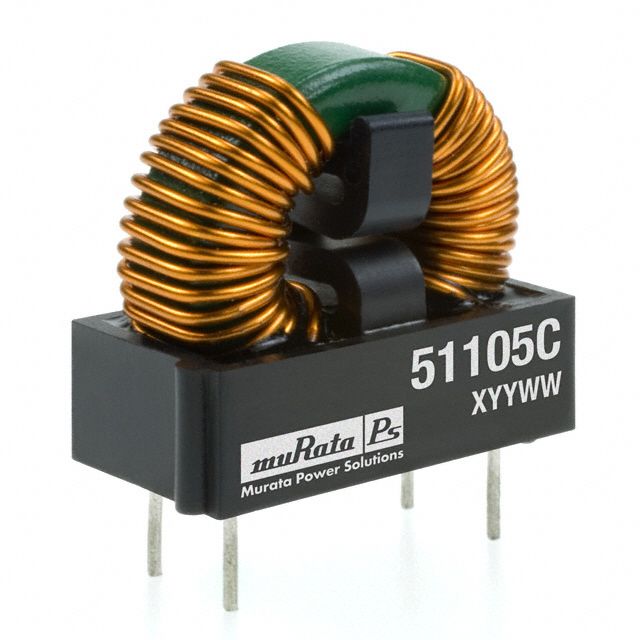

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 5100
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.3A
DC Resistance (DCR) (Max) : 38 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height (Max) : 0.945" (24.00mm)
Package / Case : Vertical, 4 PC Pin
0
4494 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 5100
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.9A
DC Resistance (DCR) (Max) : 97 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height (Max) : 0.945" (24.00mm)
Package / Case : Vertical, 4 PC Pin
0
1470 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 5100
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 4.1A
DC Resistance (DCR) (Max) : 27 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height (Max) : 0.945" (24.00mm)
Package / Case : Vertical, 4 PC Pin
0
546 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 5100
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 197 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height (Max) : 0.945" (24.00mm)
Package / Case : Vertical, 4 PC Pin
0
709 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 5200
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.7A
DC Resistance (DCR) (Max) : 193 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.642" W (24.00mm x 16.30mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
190 in stock
