Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

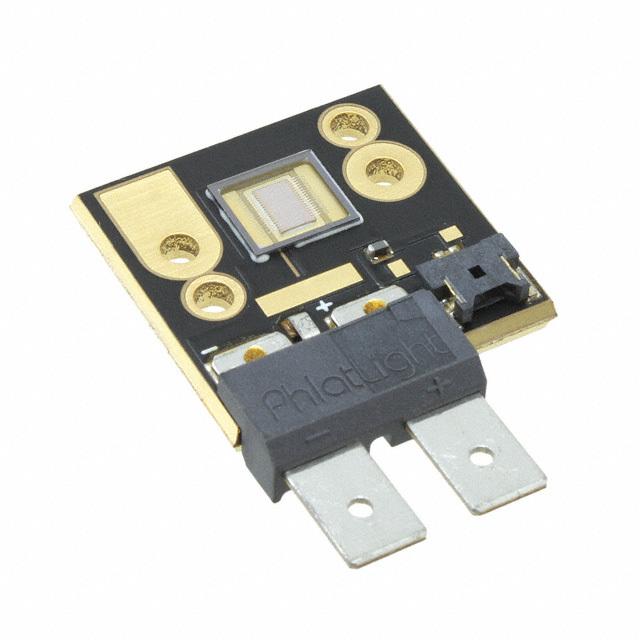

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 382nm
Voltage - Forward (Vf) (Typ) : 3.7V
Viewing Angle : -
Orientation : Top View
Operating Temperature : 150°C (TJ)
Mounting Type : Screw Mount
Package / Case : Module
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 400nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : -
Orientation : Top View
Operating Temperature : 150°C (TJ)
Mounting Type : Screw Mount
Package / Case : Module
0
34 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 400nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : -
Orientation : Top View
Operating Temperature : 150°C (TJ)
Mounting Type : Screw Mount
Package / Case : Module
0
100 in stock

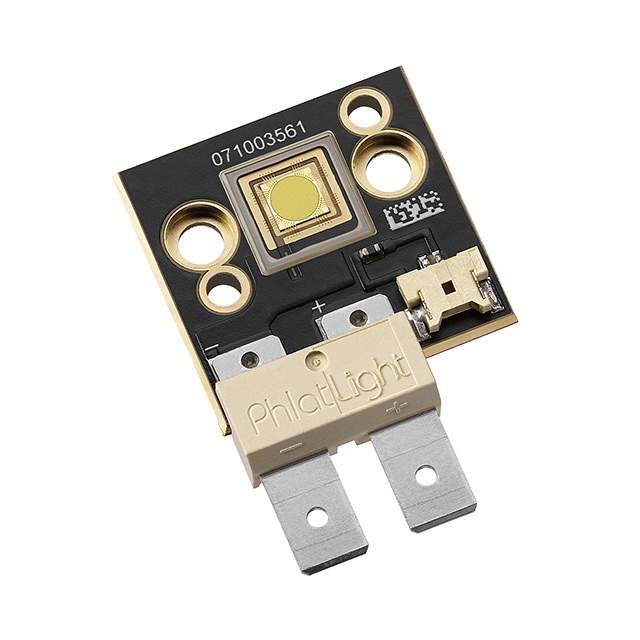

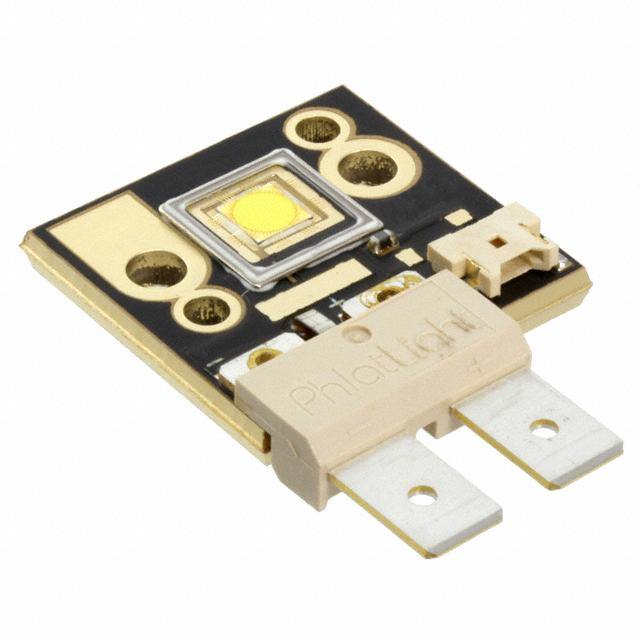

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3320 lm (3200 lm ~ 3440 lm)
Current - Test : 21A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3320 lm (3200 lm ~ 3440 lm)
Current - Test : 21A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3320 lm (3200 lm ~ 3440 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3320 lm (3200 lm ~ 3440 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3560 lm (3440 lm ~ 3680 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3560 lm (3440 lm ~ 3680 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 7040K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3560 lm (3440 lm ~ 3680 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 7040K ~ 8500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3560 lm (3440 lm ~ 3680 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6020K ~ 8500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3560 lm (3440 lm ~ 3680 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
