IXYS Integrated Circuits Division
- IXYS Integrated Circuits Division, formerly Clare, Inc., an IXYS Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS®) for the communication, industrial, power, and consumer markets.
As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division SSR solutions are rapidly replacing older electromechanical devices in many applications and enhancing overall system performance. They continue to develop leadership products that offer higher levels of integration and electrical performance.
Part Number
Manufacturer
Description
Unit Price
In Stock

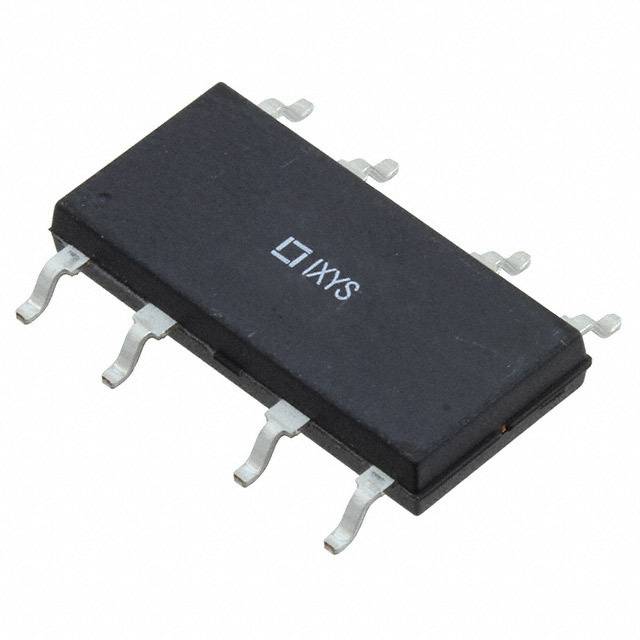

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A) x 2
Output Type : AC, DC
Voltage - Input : 1.2VDC
Voltage - Load : 0V ~ 60V
Load Current : 2A
On-State Resistance (Max) : 150 mOhms
Termination Style : Gull Wing
Package / Case : 8-SOP (0.400", 10.16mm Width)
Supplier Device Package : 8-SOIC
0
487 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 0.7µs, 1µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : -
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.360", 9.14mm)
Supplier Device Package : 8-DIP
Approvals : -
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 0.7µs, 1µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : -
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : -
Approvals : -
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 0.7µs, 1µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : -
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Approvals : -
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 1 Ohm @ 300mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock

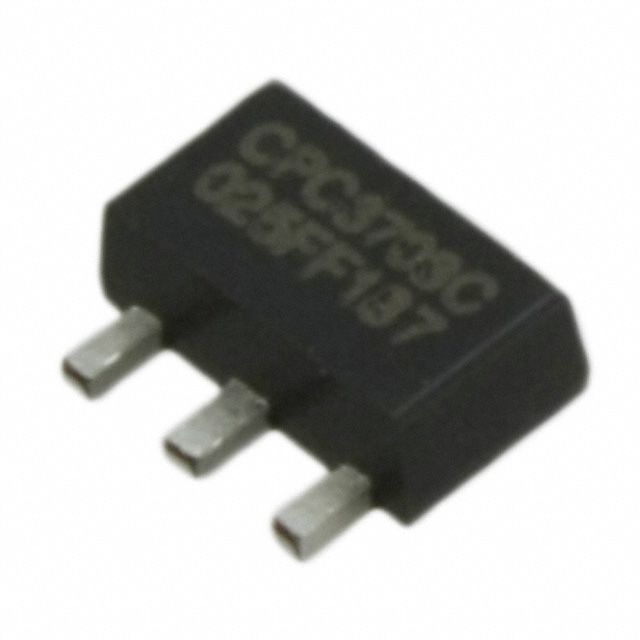

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 4 Ohm @ 200mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.6W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89-3
Package / Case : TO-243AA
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 4 Ohm @ 200mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -55°C ~ 125°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89-3
Package / Case : TO-243AA
0
464 in stock

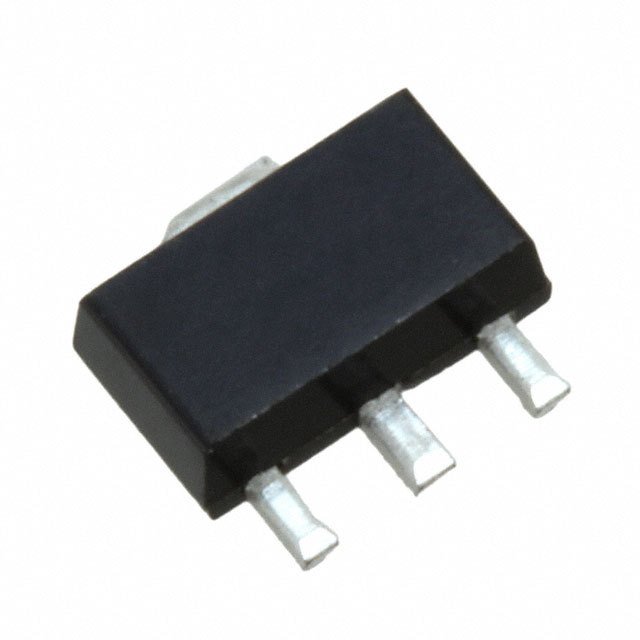

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 350V
Current - Continuous Drain (Id) @ 25°C : 5mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -0.35V
Rds On (Max) @ Id, Vgs : 14 Ohm @ 50mA, 350mV
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -40°C ~ 110°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock

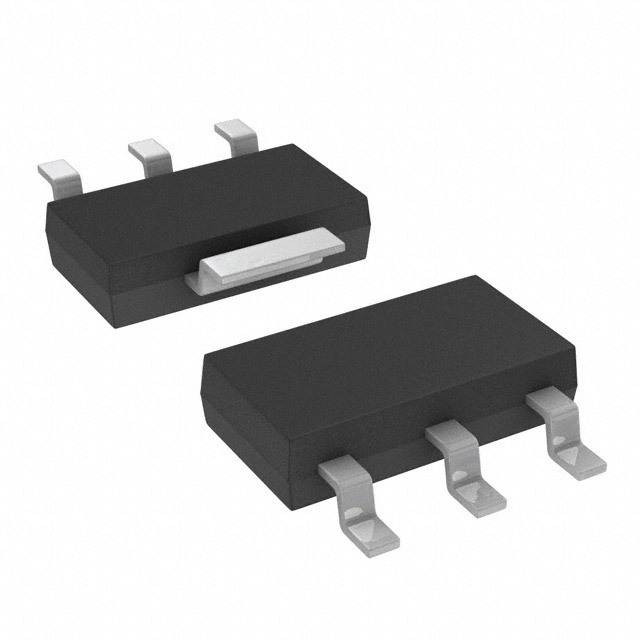

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 350V
Current - Continuous Drain (Id) @ 25°C : 5mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -0.35V
Rds On (Max) @ Id, Vgs : 14 Ohm @ 50mA, 350mV
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : Depletion Mode
Power Dissipation (Max) : 2.5W (Ta)
Operating Temperature : -40°C ~ 110°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 10 Ohm @ 220mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.4W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 350V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 14 Ohm @ 240mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 100pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.4W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 350V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 22 Ohm @ 130mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.4W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock
