IXYS Integrated Circuits Division
- IXYS Integrated Circuits Division, formerly Clare, Inc., an IXYS Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS®) for the communication, industrial, power, and consumer markets.
As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division SSR solutions are rapidly replacing older electromechanical devices in many applications and enhancing overall system performance. They continue to develop leadership products that offer higher levels of integration and electrical performance.
Part Number
Manufacturer
Description
Unit Price
In Stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 350V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 35 Ohm @ 140mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.6W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 2.5 Ohm @ 300mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 230pF @ 20V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.8W (Tc)
Operating Temperature : -55°C ~ 110°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
464 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 400V
Current - Continuous Drain (Id) @ 25°C : 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 9 Ohm @ 300mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : 15V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -40°C ~ 110°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
1406 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 400V
Current - Continuous Drain (Id) @ 25°C : 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 9 Ohm @ 300mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : 15V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : Depletion Mode
Power Dissipation (Max) : 2.5W (Ta)
Operating Temperature : -40°C ~ 110°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
797 in stock

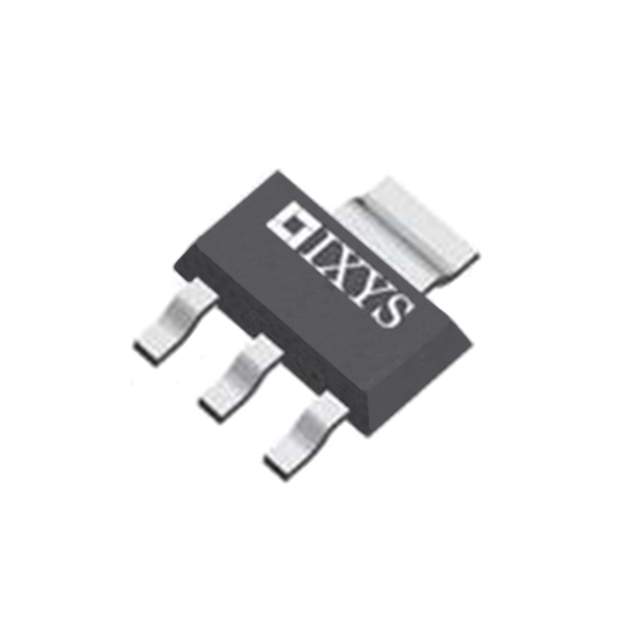

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 600V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 44 Ohm @ 100mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 100pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.8W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
5442 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 800V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 45 Ohm @ 100mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 115pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 1.8W (Ta)
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
4822 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 800V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 0V
Rds On (Max) @ Id, Vgs : 380 Ohm @ 20mA, 0V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 20pF @ 25V
FET Feature : Depletion Mode
Power Dissipation (Max) : 400mW (Ta)
Operating Temperature : -55°C ~ 110°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
5607 in stock

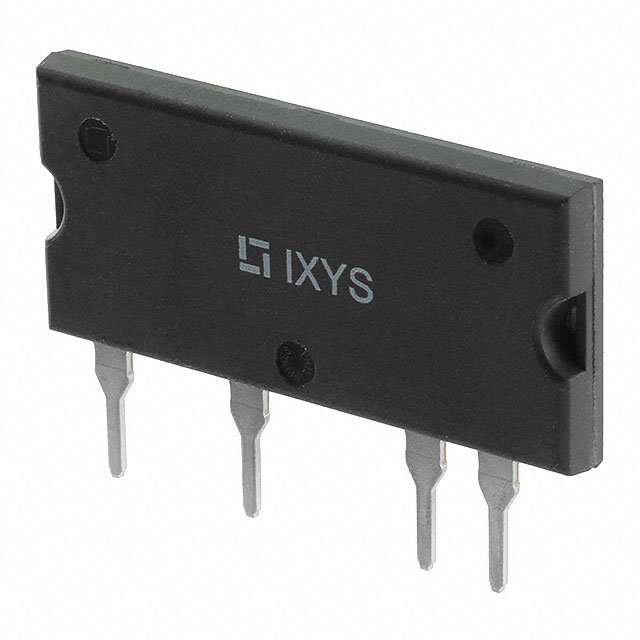

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, Zero Cross
Voltage - Input : 1.2VDC
Voltage - Load : 0V ~ 800V
Load Current : 5A
On-State Resistance (Max) : -
Termination Style : PC Pin
Package / Case : 4-SIP
Supplier Device Package : 4-SIP
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC
Part Status : Obsolete
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, Zero Cross
Voltage - Input : 9 ~ 16VDC
Voltage - Load : 0V ~ 800V
Load Current : 5A
On-State Resistance (Max) : -
Termination Style : PC Pin
Package / Case : 4-SIP
Supplier Device Package : 4-SIP
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : Logic
Output Type : Open Drain
Current - Output / Channel : -
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
441 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : Logic
Output Type : Open Drain
Current - Output / Channel : -
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : -
0
33 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 10mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : -, 15ns
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
3246 in stock
