IXYS Corporation

- IXYS Corporation/Littelfuse has gained a worldwide reputation as a premier power semiconductor manufacturer. Its diversified product base of specialized power semiconductors, integrated circuits and RF power include low on-resistance Power MOSFETs, Ultra Fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs for applications ranging across industrial, transportation, telecommunications, computer, medical, consumer and clean tech markets.

With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.

Part Number
Manufacturer
Description
Unit Price
In Stock

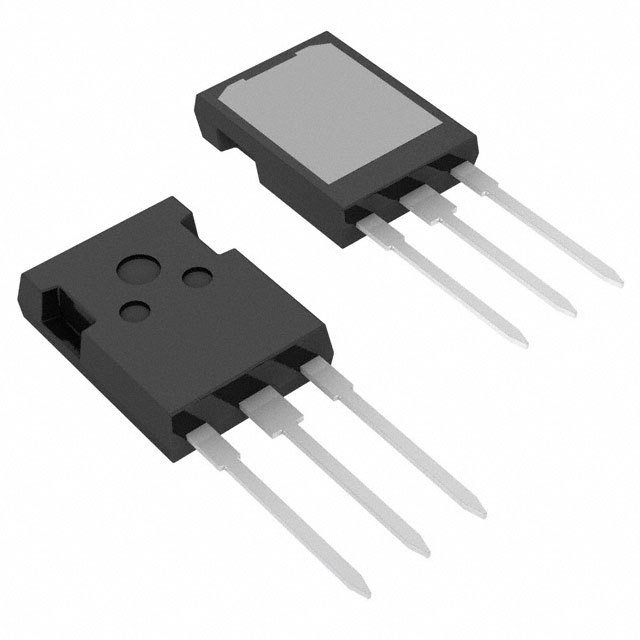

IXBX55N300 IXBX55N300

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 3000V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 600A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 55A
Power - Max : 625W
Switching Energy : -
Input Type : Standard
Gate Charge : 335nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.9µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock

IXC611P1 IXC611P1

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-PDIP
0
100 in stock

IXC611S1 IXC611S1

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock

IXC611S1T/R IXC611S1T/R

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock

IXCP01N90E IXCP01N90E

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 250mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 80 Ohm @ 50mA, 10V
Vgs(th) (Max) @ Id : 5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs : 7.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 133pF @ 25V
FET Feature : -
Power Dissipation (Max) : 40W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220AB
Package / Case : TO-220-3
0
100 in stock

IXCP02M35 IXCP02M35

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 2mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock

IXCP02M35A IXCP02M35A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 2mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock

IXCP02M45 IXCP02M45

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 2mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock

IXCP02M45A IXCP02M45A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 2mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock

IXCP100M35 IXCP100M35

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 100mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock

IXCP100M45 IXCP100M45

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 100mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock

IXCP10M35 IXCP10M35

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : IXC
Part Status : Obsolete
Function : Current Regulator
Sensing Method : -
Accuracy : -
Voltage - Input : -
Current - Output : 10mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
