IXYS Corporation
- IXYS Corporation/Littelfuse has gained a worldwide reputation as a premier power semiconductor manufacturer. Its diversified product base of specialized power semiconductors, integrated circuits and RF power include low on-resistance Power MOSFETs, Ultra Fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs for applications ranging across industrial, transportation, telecommunications, computer, medical, consumer and clean tech markets.
With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.
Part Number
Manufacturer
Description
Unit Price
In Stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : *
Part Status : Active
IGBT Type : -
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Power - Max : -
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : -
NTC Thermistor : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock

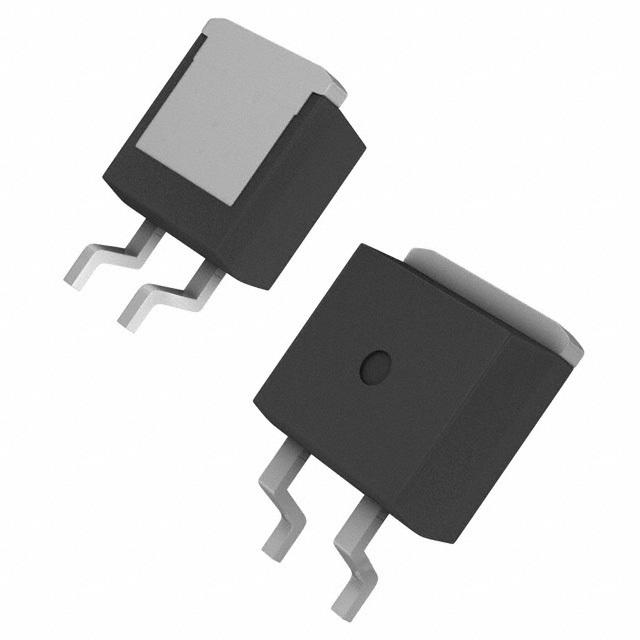

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 3000V
Current - Collector (Ic) (Max) : 38A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 14A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 40ns/166ns
Test Condition : 960V, 14A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 1.4µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263
0
905 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : ISOSMART™
Part Status : Obsolete
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 10 V ~ 20 V
Logic Voltage - VIL, VIH : 1V, 3.65V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 1200V
Rise / Fall Time (Typ) : 15ns, 15ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : ISOSMART™
Part Status : Obsolete
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 10 V ~ 20 V
Logic Voltage - VIL, VIH : 1V, 3.65V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 1200V
Rise / Fall Time (Typ) : 15ns, 15ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : ISOSMART™
Part Status : Obsolete
Driven Configuration : High-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 10 V ~ 20 V
Logic Voltage - VIL, VIH : 1V, 3.65V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 1200V
Rise / Fall Time (Typ) : 15ns, 15ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : ISOSMART™
Part Status : Obsolete
Driven Configuration : High-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 10 V ~ 20 V
Logic Voltage - VIL, VIH : 1V, 3.65V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 1200V
Rise / Fall Time (Typ) : 15ns, 15ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 3000V
Current - Collector (Ic) (Max) : 26A
Current - Collector Pulsed (Icm) : 98A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 12A
Power - Max : 125W
Switching Energy : -
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.4µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5 (3 Leads)
Supplier Device Package : ISOPLUS i4-PAC™
0
50 in stock

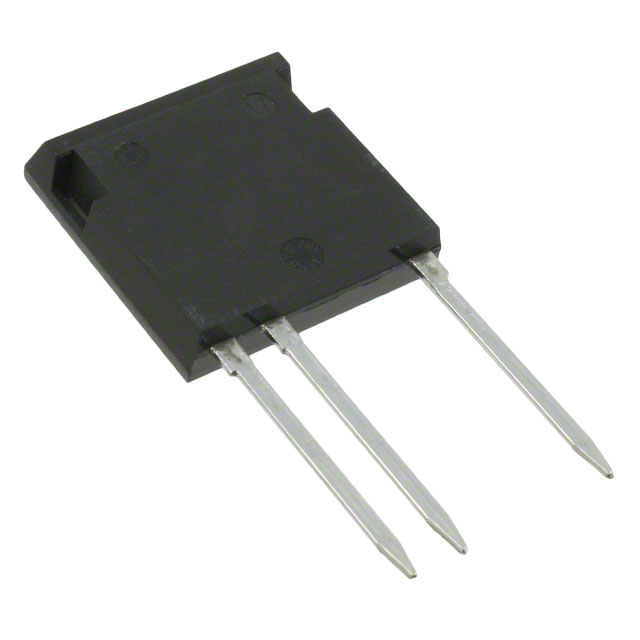

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 3600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 20A
Power - Max : 230W
Switching Energy : 15.5mJ (on), 4.3mJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 18ns/238ns
Test Condition : 1500V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
93 in stock

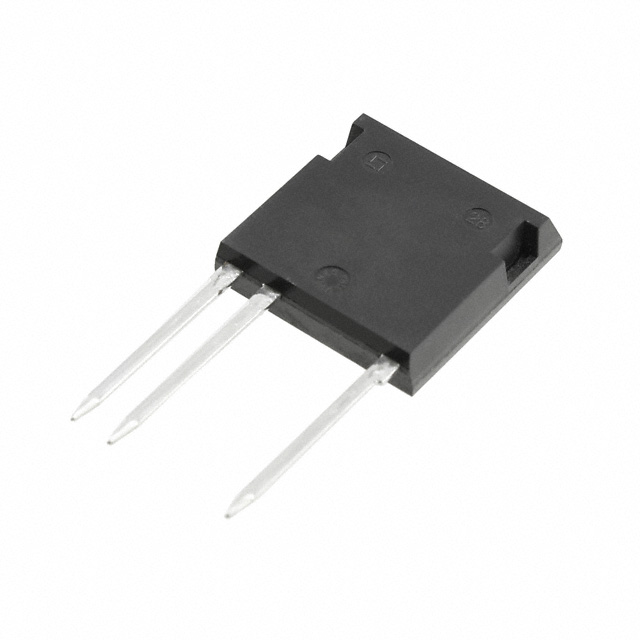

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 3000V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 32A
Power - Max : 160W
Switching Energy : -
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5 (3 Leads)
Supplier Device Package : ISOPLUS i4-PAC™
0
119 in stock

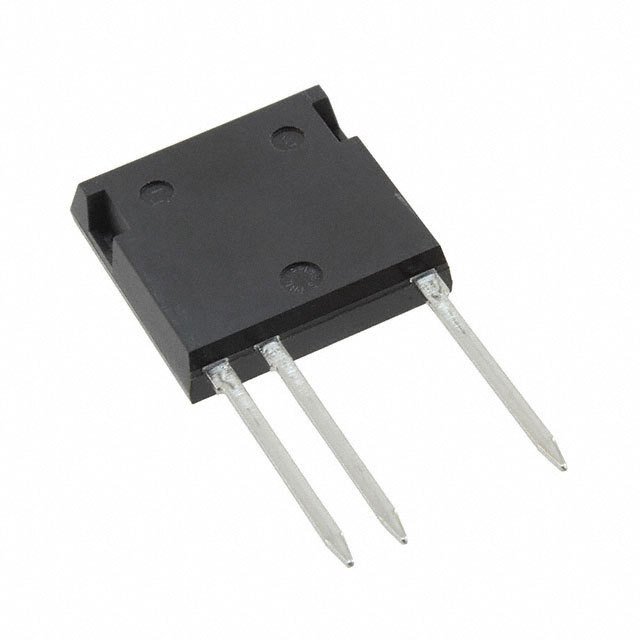

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 3600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 420A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 50A
Power - Max : 290W
Switching Energy : -
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 46ns/205ns
Test Condition : 960V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5 (3 Leads)
Supplier Device Package : ISOPLUS i4-PAC™
0
26 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 3000V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 12A
Power - Max : 160W
Switching Energy : -
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.4µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXBH)
0
187 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : BIMOSFET™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 16A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : 72nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.32µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXBH)
0
275 in stock
