Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

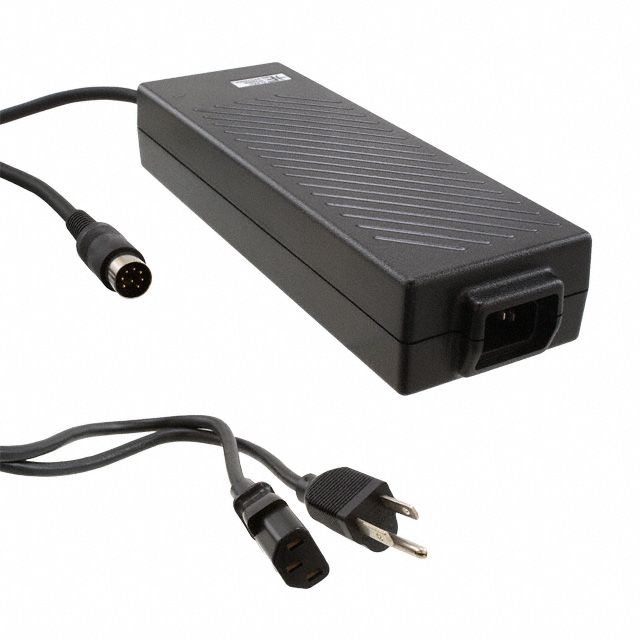

FWA180024B-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA180 (180W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 7.5A
Power (Watts) : 180W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

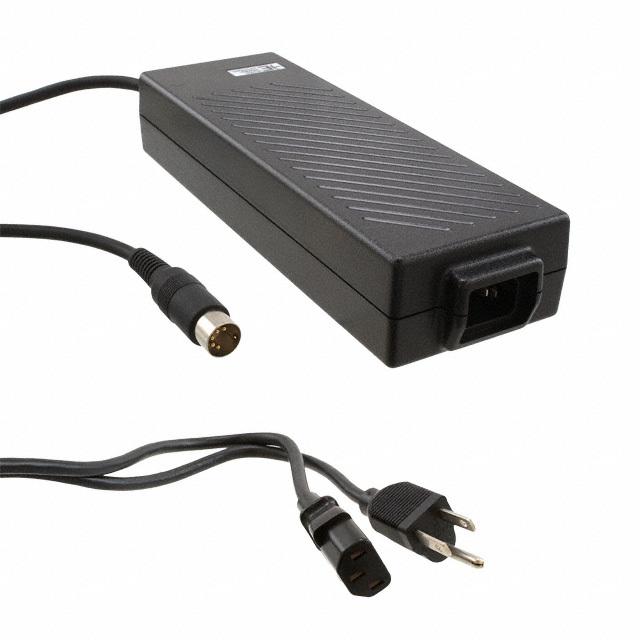

FWA180048A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA180 (180W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 48V
Current - Output (Max) : 3.75A
Power (Watts) : 180W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

11 in stock

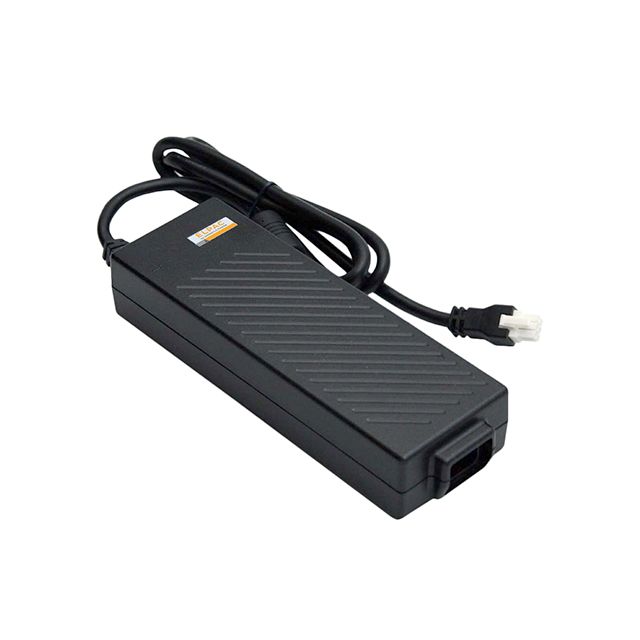

FWA220012A-13A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Discontinued at
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 18.3A
Power (Watts) : 220W
No Load Power Consumption : 210mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Rectangular, 6 Position
Size / Dimension : 8.52" L x 2.88" W x 1.56" H (216.4mm x 73.1mm x 39.5mm)
Approvals : CB, CE, GS, TUV

100 in stock

FWA220012A-13B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Discontinued at
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 18.3A
Power (Watts) : 220W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Rectangular, 6 Position
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

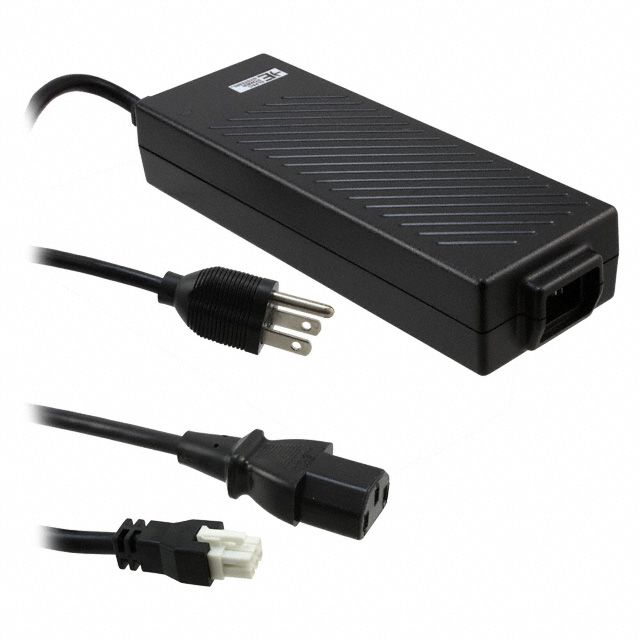

FWA220018A-13B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Discontinued at
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 12.2A
Power (Watts) : 220W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Rectangular, 6 Position
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

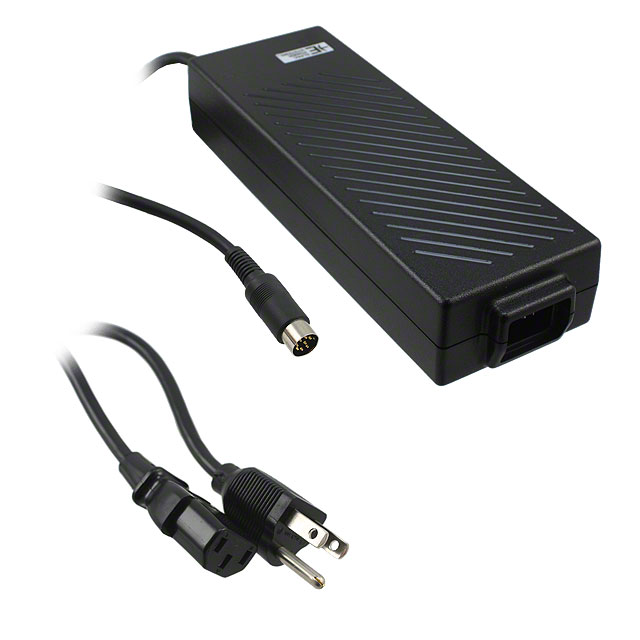

FWA220024A-12A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Discontinued at
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 9.2A
Power (Watts) : 221W
No Load Power Consumption : 210mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 8.52" L x 2.88" W x 1.56" H (216.4mm x 73.1mm x 39.5mm)
Approvals : CB, CE, GS, TUV

100 in stock

FWA220024A-12B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Discontinued at
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 9.2A
Power (Watts) : 221W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

FWA220048A-11A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Discontinued at
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 48V
Current - Output (Max) : 4.6A
Power (Watts) : 221W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

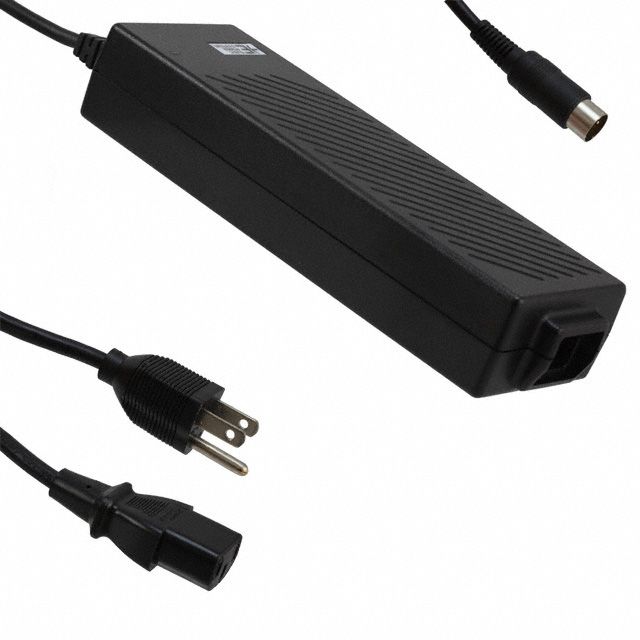

FWA220048A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA220 (220W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 48V
Current - Output (Max) : 4.6A
Power (Watts) : 221W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm)
Approvals : CB, CE, cTUVus

100 in stock

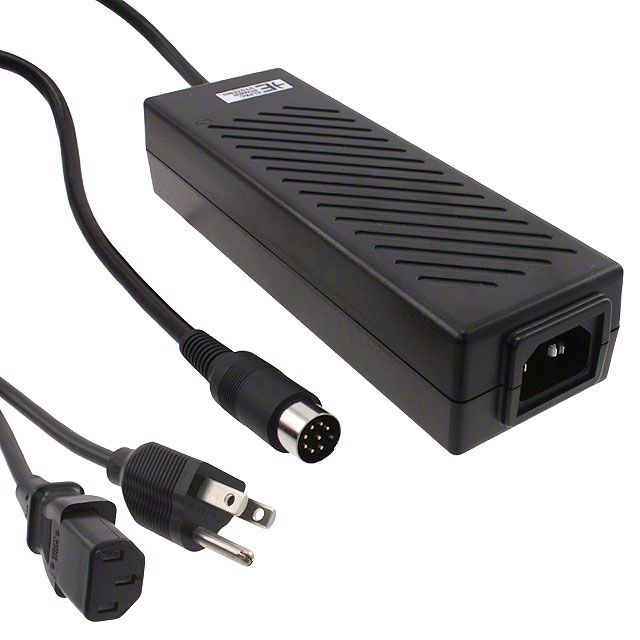

FWB100012A-12B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWB100 (100W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 8.3A
Power (Watts) : 100W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 8 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, cTUVus, UL

100 in stock

FWB100018A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWB100 (100W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 5.5A
Power (Watts) : 99W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, cTUVus, UL

59 in stock

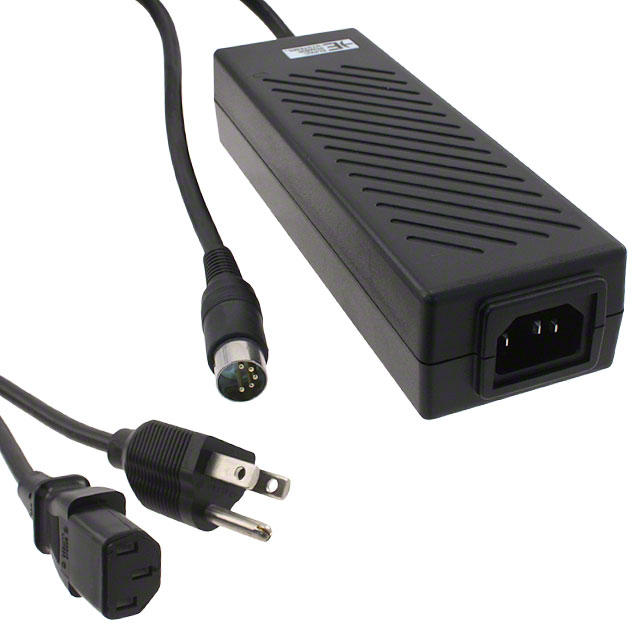

FWB100024A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWB100 (100W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 4.1A
Power (Watts) : 98W
No Load Power Consumption : 500mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, cTUVus, UL

100 in stock
