Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

FWC100018A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : ELPAC FWC100 (100W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 5.5A
Power (Watts) : 99W
No Load Power Consumption : 200mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, CE, cTUVus

100 in stock

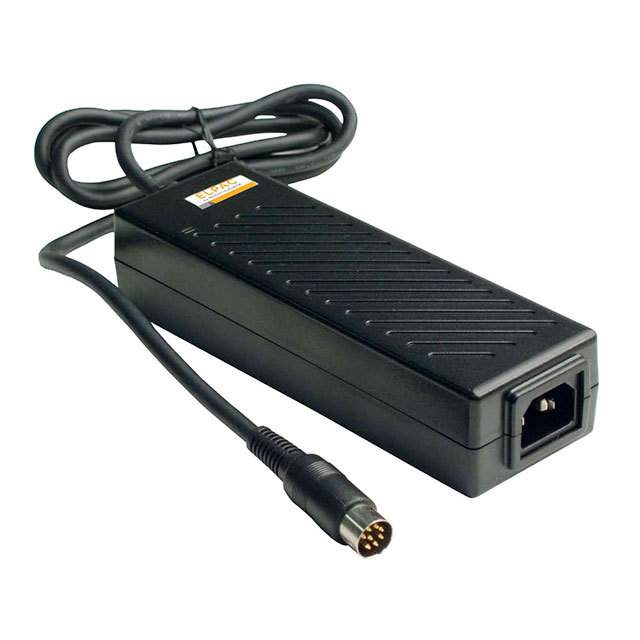

FWC100024A-11A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : ELPAC FWC100 (100W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 4.1A
Power (Watts) : 98W
No Load Power Consumption : 200mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, CE, cTUVus

129 in stock

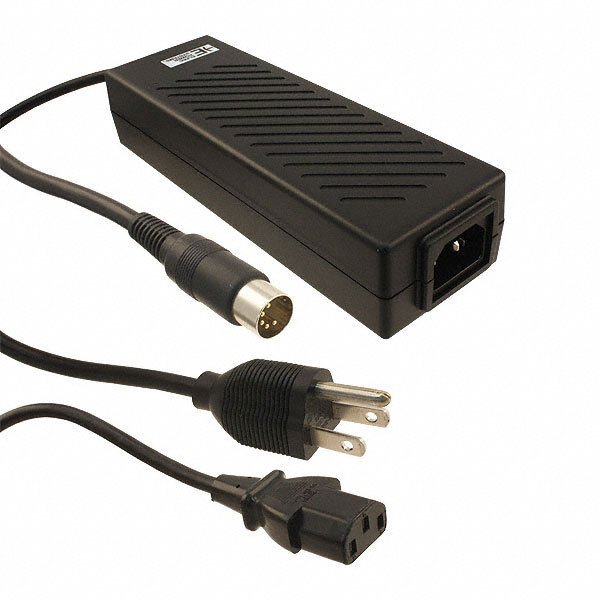

FWC100024A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : ELPAC FWC100 (100W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 4.1A
Power (Watts) : 98W
No Load Power Consumption : 200mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, CE, cTUVus

100 in stock

FWC100048A-11B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : ELPAC FWC100 (100W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 48V
Current - Output (Max) : 2A
Power (Watts) : 96W
No Load Power Consumption : 200mW (Max)
Polarization : -
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : DIN, 5 Pin
Size / Dimension : 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm)
Approvals : CB, CE, cTUVus

100 in stock

FWC1805-760F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 3.6A
Power (Watts) : 18W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock

FWC1805-760F-NC

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 3.6A
Power (Watts) : 18W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock

FWC1812-760F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.5A
Power (Watts) : 18W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock

FWC1812-760F-NC

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.5A
Power (Watts) : 18W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock

FWC1818-760F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 1A
Power (Watts) : 18W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

51 in stock

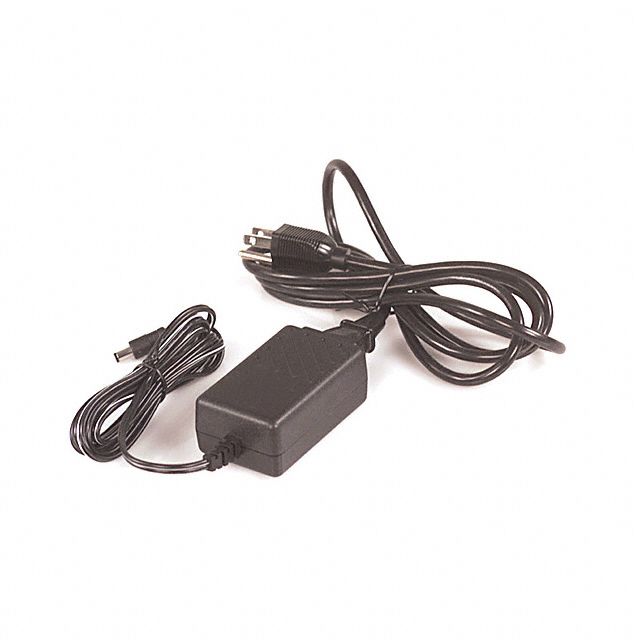

FWC1818-760F-NC

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 1A
Power (Watts) : 18W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock

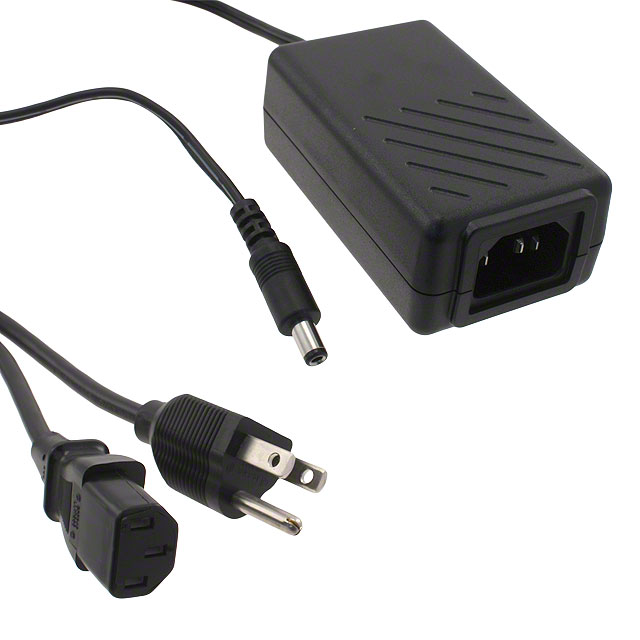

FWC1824-760F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 800mA
Power (Watts) : 19W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock

FWC1824-760F-NC

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWC18 (18W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 800mA
Power (Watts) : 19W
No Load Power Consumption : 500mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm)
Approvals : CB, CE, cTUVus, UL

100 in stock
