- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

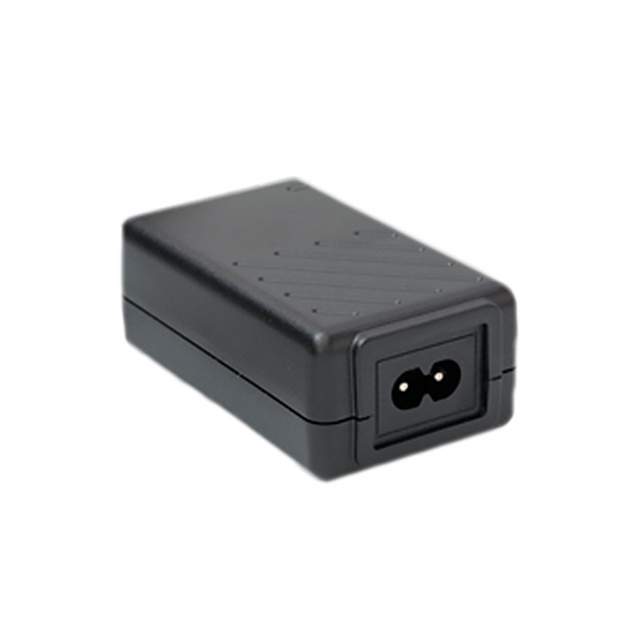

FWA020005A-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Discontinued at
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 4A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, GS, TUV

100 in stock

FWA020005A-10B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 4A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

FWA020005B-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 4A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

FWA020005B-10B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class II)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 4A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

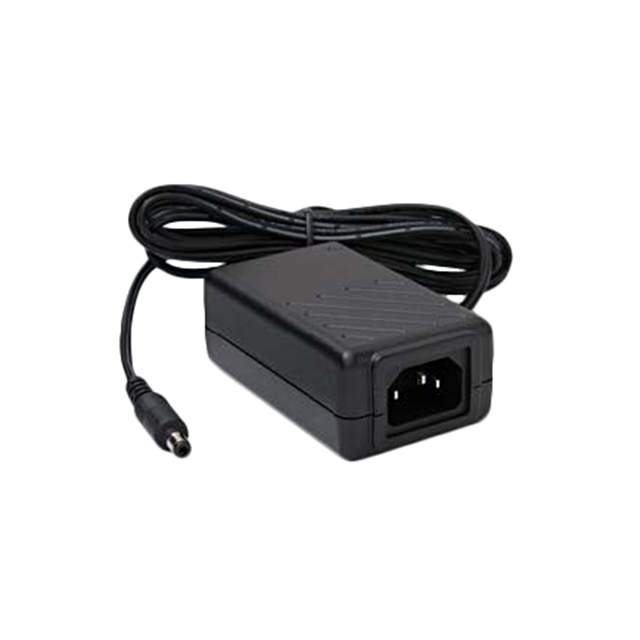

FWA020009A-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Preliminary
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 2.22A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

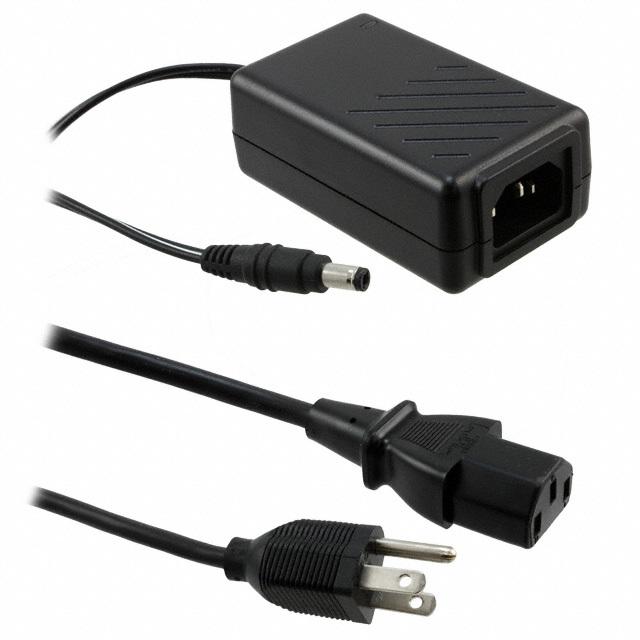

FWA020009A-10B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 2.22A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

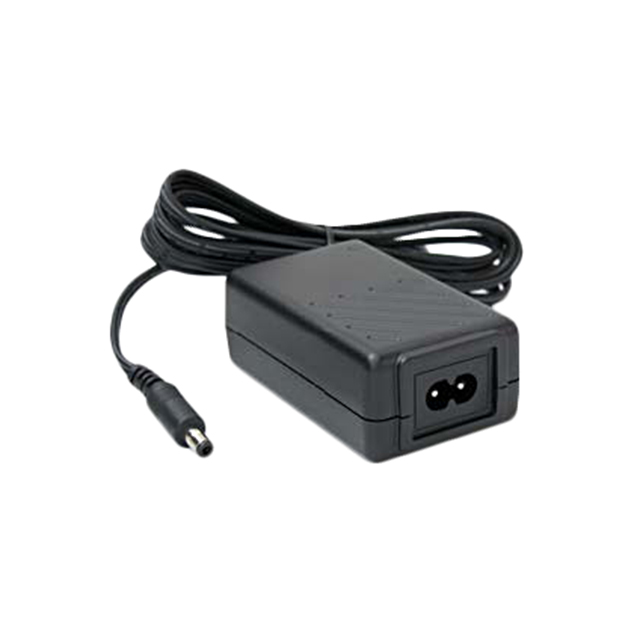

FWA020009B-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Preliminary
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 2.22A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

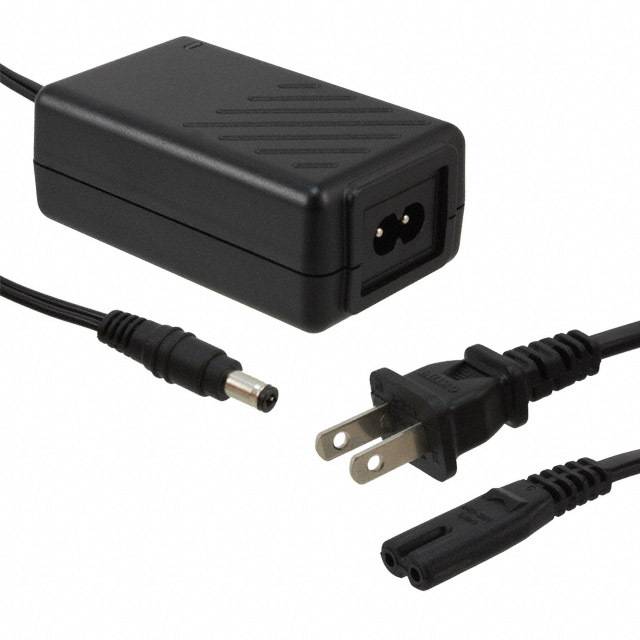

FWA020009B-10B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class II)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 2.22A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

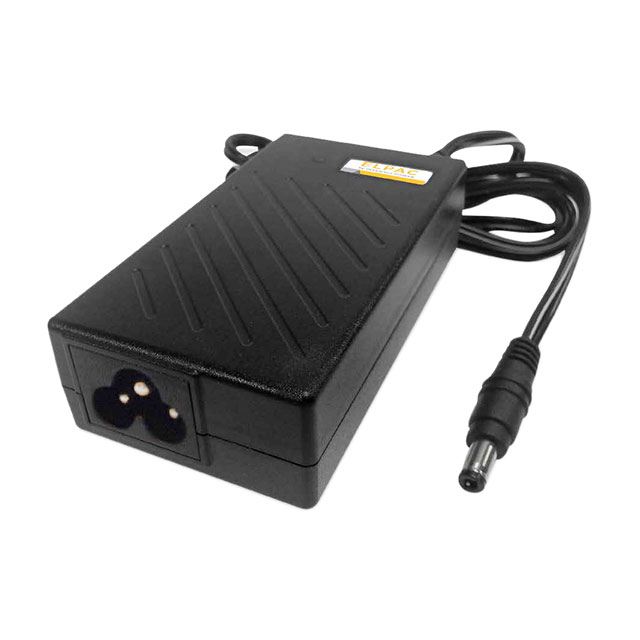

FWA020012A-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, GS, TUV

165 in stock

FWA020012A-10B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock

FWA020012B-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

104 in stock

FWA020012B-10B

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FWA020 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class II)
Input Type : Cord
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

100 in stock
