Delta Electronics
- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.
Part Number
Manufacturer
Description
Unit Price
In Stock

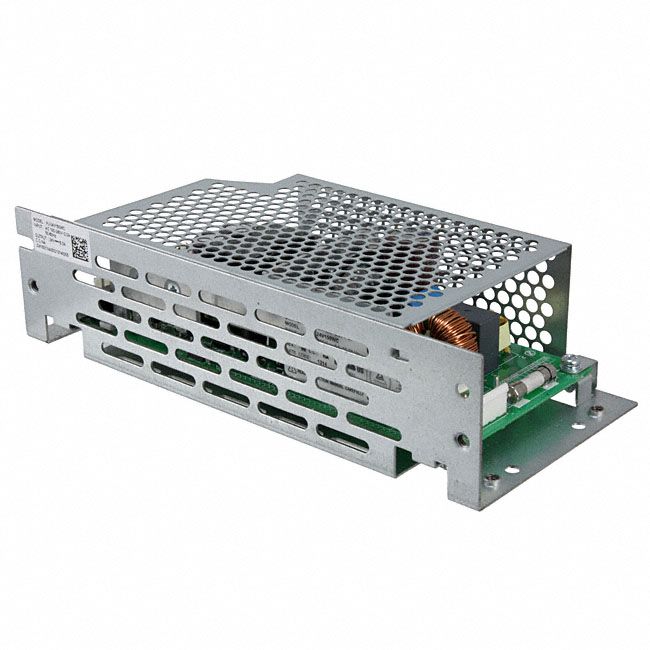

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (150W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.3A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 91%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm)
0
9 in stock

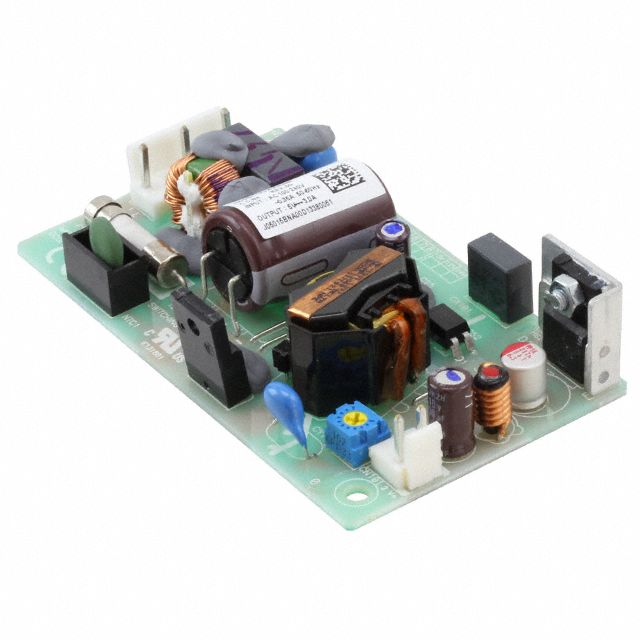

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (15W)
Part Status : Active
Type : Open Frame, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : 15W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 79.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.44" L x 1.97" W x 0.87" H (87.5mm x 50.0mm x 22.0mm)
0
733 in stock

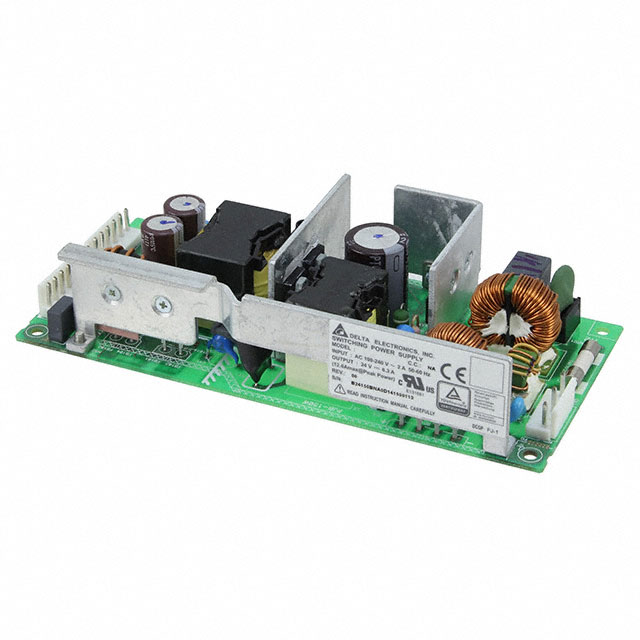

Delta Electronics
Manufacturer : Delta Electronics
Series : PJB (151W)
Part Status : Active
Type : Open Frame, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.3A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 90.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm)
0
15 in stock

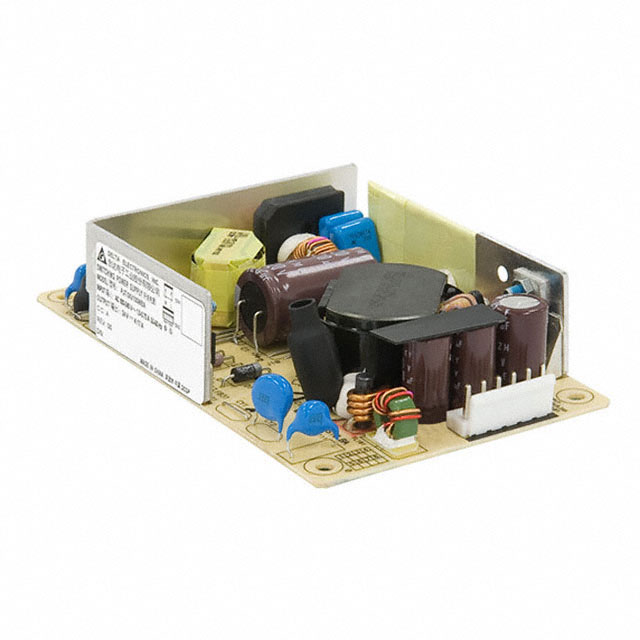

Delta Electronics
Manufacturer : Delta Electronics
Series : PJT (100W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.33A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.0mm)
0
53 in stock

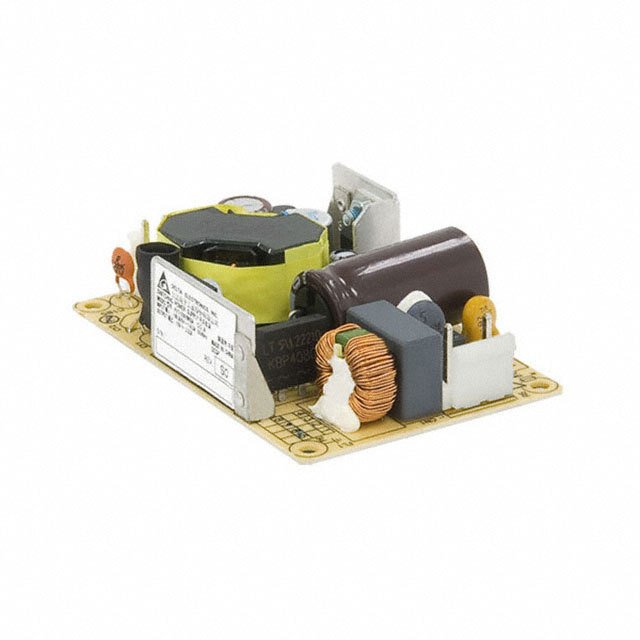

Delta Electronics
Manufacturer : Delta Electronics
Series : PJT (40W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.33A
Power (Watts) : 40W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.00" L x 2.00" W x 0.90" H (76.2mm x 50.8mm x 22.9mm)
0
561 in stock

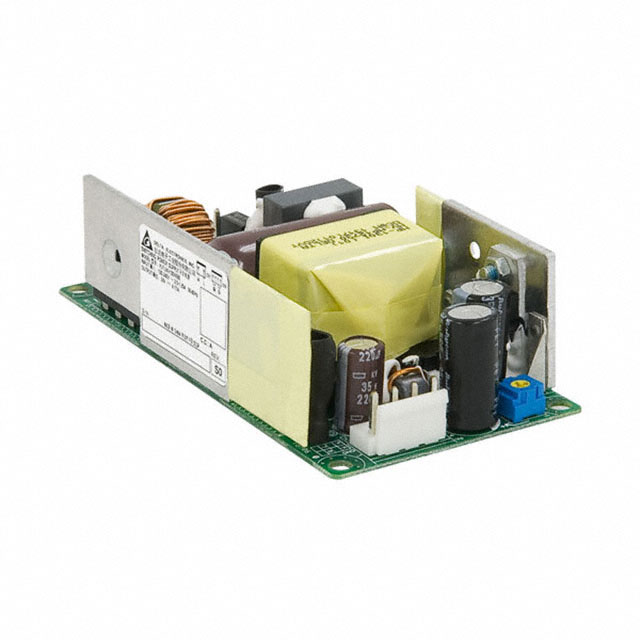

Delta Electronics
Manufacturer : Delta Electronics
Series : PJT (100W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.33A
Power (Watts) : 80W (100W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 89%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm)
0
1749 in stock

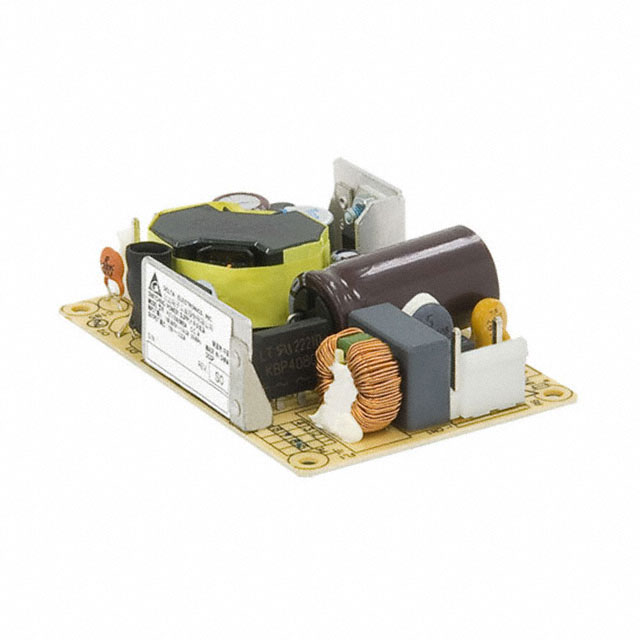

Delta Electronics
Manufacturer : Delta Electronics
Series : PJT (40W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.66A
Power (Watts) : 40W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.00" L x 2.00" W x 0.90" H (76.2mm x 50.8mm x 22.9mm)
0
36 in stock

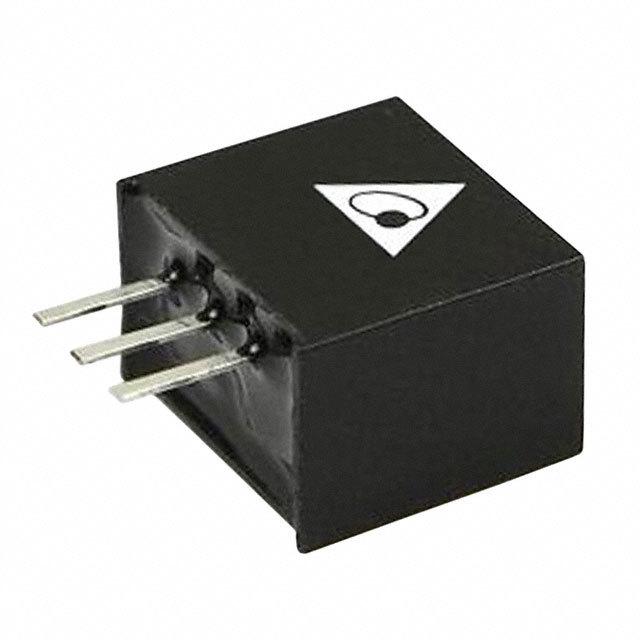

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PM05S
Part Status : Active
Type : Linear Regulator Replacement
Number of Outputs : 1
Voltage - Input (Min) : 4.75V
Voltage - Input (Max) : 32V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 2W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP
Operating Temperature : -40°C ~ 90°C
Efficiency : 91%
Mounting Type : Through Hole
Package / Case : 3-SIP Module
Size / Dimension : 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package : -
Control Features : -
0
2148 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PM05S
Part Status : Active
Type : Linear Regulator Replacement
Number of Outputs : 1
Voltage - Input (Min) : 6.5V
Voltage - Input (Max) : 32V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 3W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP
Operating Temperature : -40°C ~ 90°C
Efficiency : 94%
Mounting Type : Through Hole
Package / Case : 3-SIP Module
Size / Dimension : 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package : -
Control Features : -
0
1074 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PM05S
Part Status : Active
Type : Linear Regulator Replacement
Number of Outputs : 1
Voltage - Input (Min) : 8V
Voltage - Input (Max) : 32V
Voltage - Output 1 : 6.5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 3W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP
Operating Temperature : -40°C ~ 90°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 3-SIP Module
Size / Dimension : 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package : -
Control Features : -
0
1451 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PM05S
Part Status : Active
Type : Linear Regulator Replacement
Number of Outputs : 1
Voltage - Input (Min) : 11V
Voltage - Input (Max) : 32V
Voltage - Output 1 : 9V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 5W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP
Operating Temperature : -40°C ~ 90°C
Efficiency : 96%
Mounting Type : Through Hole
Package / Case : 3-SIP Module
Size / Dimension : 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package : -
Control Features : -
0
1864 in stock
Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PM05S
Part Status : Active
Type : Linear Regulator Replacement
Number of Outputs : 1
Voltage - Input (Min) : 15V
Voltage - Input (Max) : 32V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 6W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP
Operating Temperature : -40°C ~ 90°C
Efficiency : 97%
Mounting Type : Through Hole
Package / Case : 3-SIP Module
Size / Dimension : 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package : -
Control Features : -
0
1699 in stock
