Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

PH02S4803A PH02S4803A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PH02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : Remote On/Off, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 70%
Mounting Type : Through Hole
Package / Case : 9-SIP Module, 7 Leads
Size / Dimension : 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
93 in stock

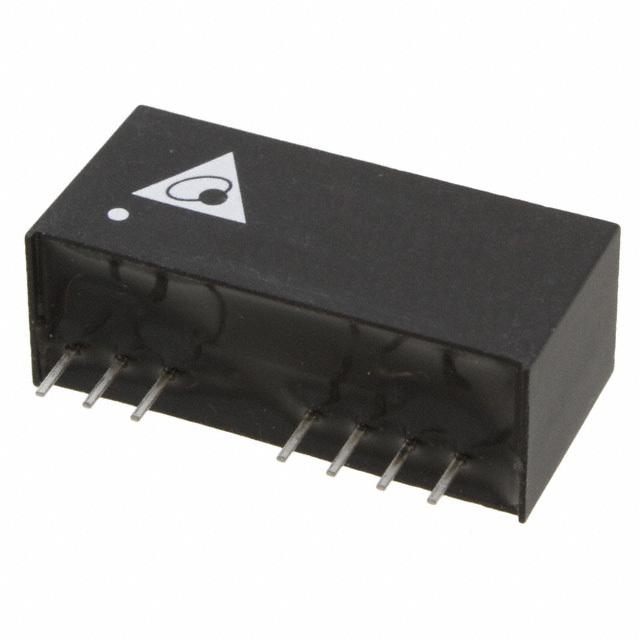

PH02S4805A PH02S4805A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PH02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : Remote On/Off, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 72%
Mounting Type : Through Hole
Package / Case : 9-SIP Module, 7 Leads
Size / Dimension : 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
416 in stock

PH02S4812A PH02S4812A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PH02S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 75V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 167mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : Medical
Features : Remote On/Off, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 9-SIP Module, 7 Leads
Size / Dimension : 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm)
Supplier Device Package : -
Control Features : Enable, Active Low
0
128 in stock

PI01D0515A PI01D0515A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PI01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 35mA, 35mA
Power (Watts) : 1W
Voltage - Isolation : 6kV
Applications : Medical
Features : SCP
Operating Temperature : -25°C ~ 85°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 7-SIP Module, 5 Leads
Size / Dimension : 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Supplier Device Package : -
Control Features : -
0
109 in stock

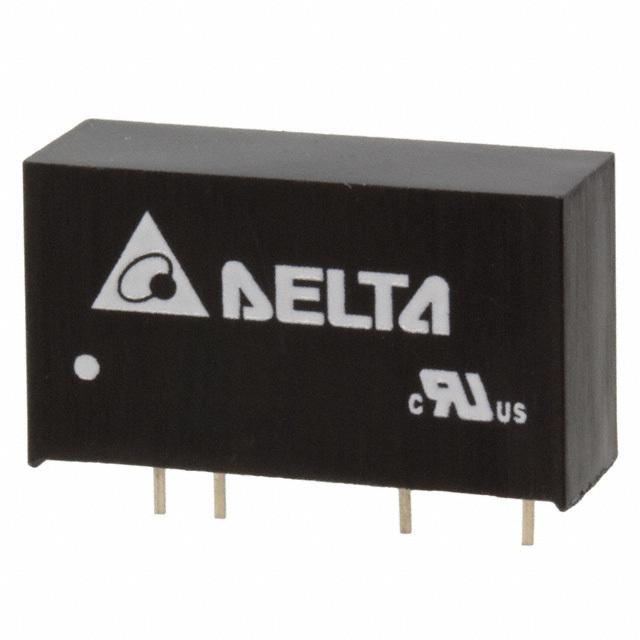

PI01D1212A PI01D1212A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PI01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 10.8V
Voltage - Input (Max) : 13.2V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40mA, 40mA
Power (Watts) : 1W
Voltage - Isolation : 6kV
Applications : Medical
Features : SCP
Operating Temperature : -25°C ~ 85°C
Efficiency : 74%
Mounting Type : Through Hole
Package / Case : 7-SIP Module, 5 Leads
Size / Dimension : 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Supplier Device Package : -
Control Features : -
0
62 in stock

PI01S0505A PI01S0505A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PI01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 200mA
Power (Watts) : 1W
Voltage - Isolation : 6kV
Applications : Medical
Features : SCP
Operating Temperature : -25°C ~ 85°C
Efficiency : 66%
Mounting Type : Through Hole
Package / Case : 7-SIP Module, 5 Leads
Size / Dimension : 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Supplier Device Package : -
Control Features : -
0
2895 in stock

PI01S1215A PI01S1215A

Delta Electronics
Manufacturer : Delta Electronics
Packaging : Tube
Series : PI01S/D
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 10.8V
Voltage - Input (Max) : 13.2V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 65mA
Power (Watts) : 1W
Voltage - Isolation : 6kV
Applications : Medical
Features : SCP
Operating Temperature : -25°C ~ 85°C
Efficiency : 66%
Mounting Type : Through Hole
Package / Case : 7-SIP Module, 5 Leads
Size / Dimension : 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Supplier Device Package : -
Control Features : -
0
25 in stock

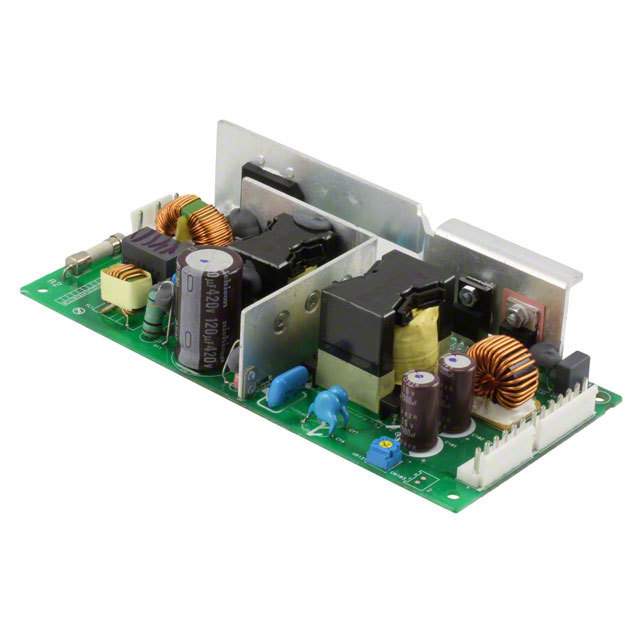

PJ-12V150WBNA PJ-12V150WBNA

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (150W)
Part Status : Active
Type : Open Frame, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12.5A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 91%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm)
0
7 in stock

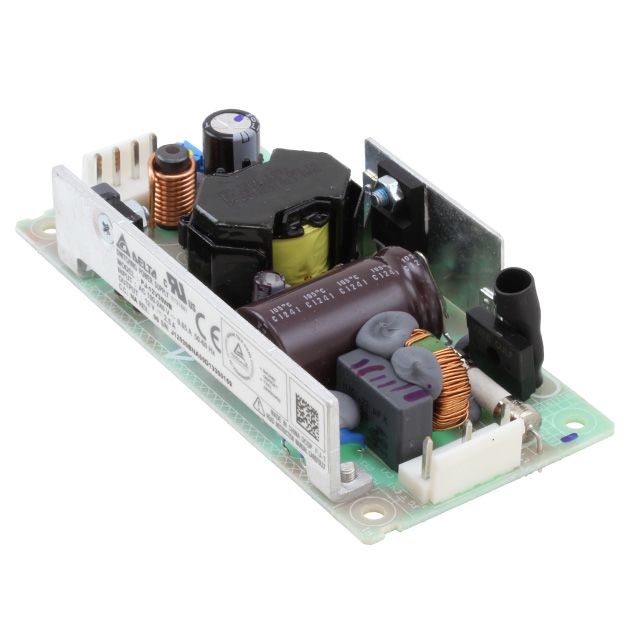

PJ-12V30WBNA PJ-12V30WBNA

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (30W)
Part Status : Active
Type : Open Frame, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 30W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 85%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.13" L x 1.97" W x 1.01" H (105.0mm x 50.0mm x 25.6mm)
0
608 in stock

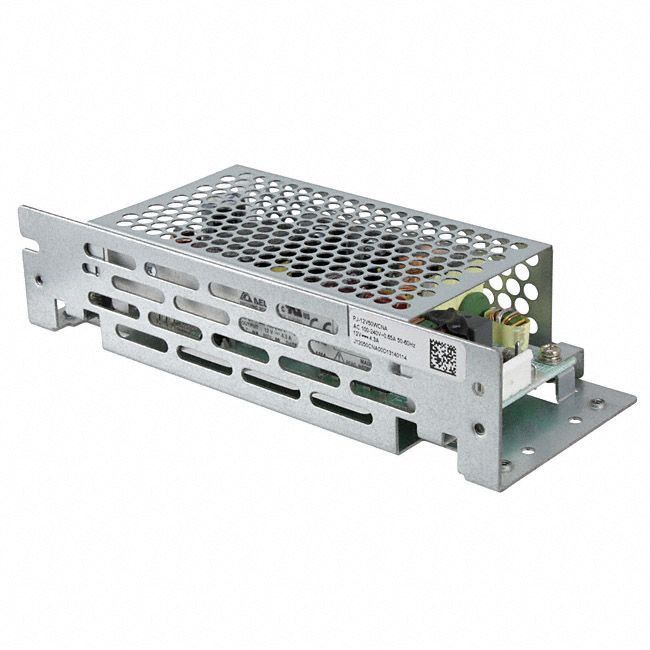

PJ-12V50WCNA PJ-12V50WCNA

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (50W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4.3A
Power (Watts) : 50W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 85%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.38" L x 2.36" W x 1.42" H (162.0mm x 60.0mm x 36.0mm)
0
60 in stock

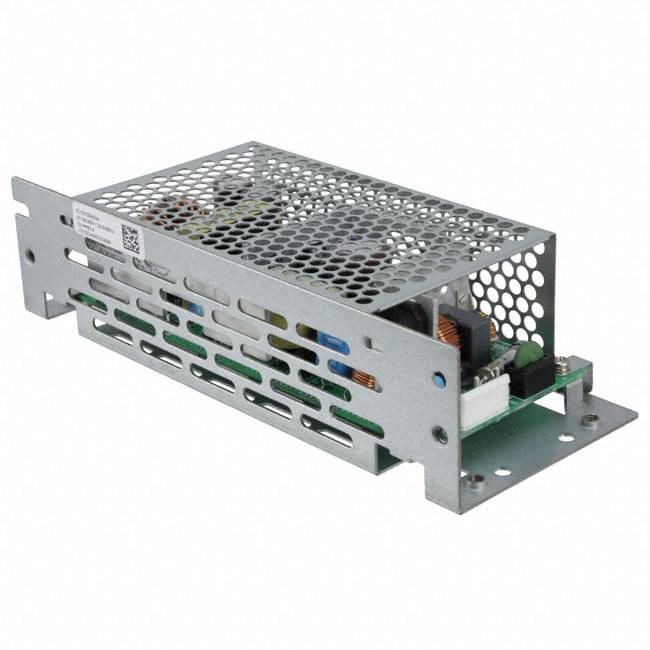

PJ-24V100WCNA PJ-24V100WCNA

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (100W)
Part Status : Active
Type : Enclosed, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4.3A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 89%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.28" L x 2.83" W x 1.65" H (185.0mm x 72.0mm x 45.0mm)
0
19 in stock

PJ-24V150WBNA PJ-24V150WBNA

Delta Electronics
Manufacturer : Delta Electronics
Series : PJ (150W)
Part Status : Active
Type : Open Frame, Conformal Coated
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.3A
Power (Watts) : 150W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 91%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm)
0
261 in stock
