Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

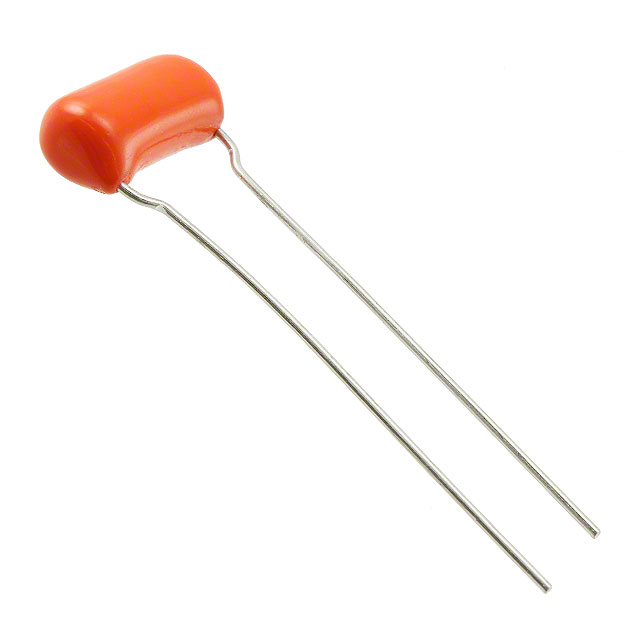

715P22352JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±5%
Voltage Rating - AC : 155V
Voltage Rating - DC : 200V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.311" Dia x 0.701" L (7.90mm x 17.80mm)
Height - Seated (Max) : 0.622" (15.80mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

16212 in stock

715P22354KD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.331" Dia x 0.902" L (8.40mm x 22.90mm)
Height - Seated (Max) : 0.642" (16.30mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

985 in stock

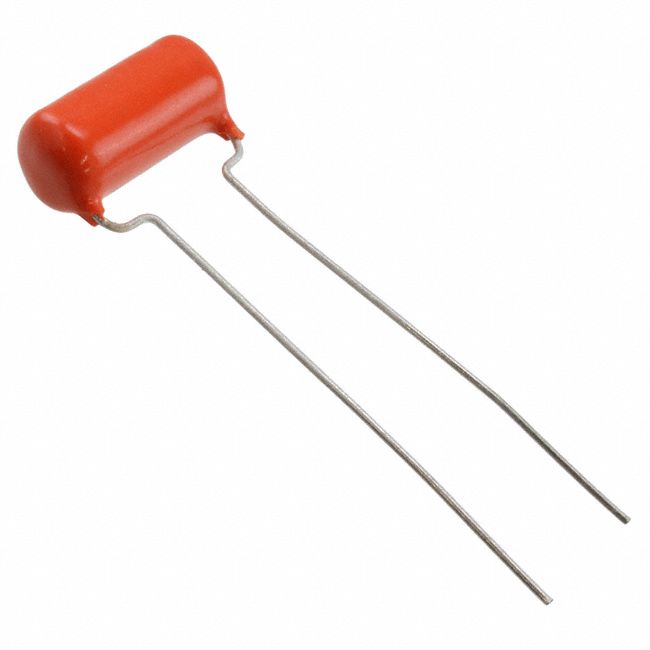

715P22356KD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.480" Dia x 0.902" L (12.20mm x 22.90mm)
Height - Seated (Max) : 0.772" (19.60mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

2410 in stock

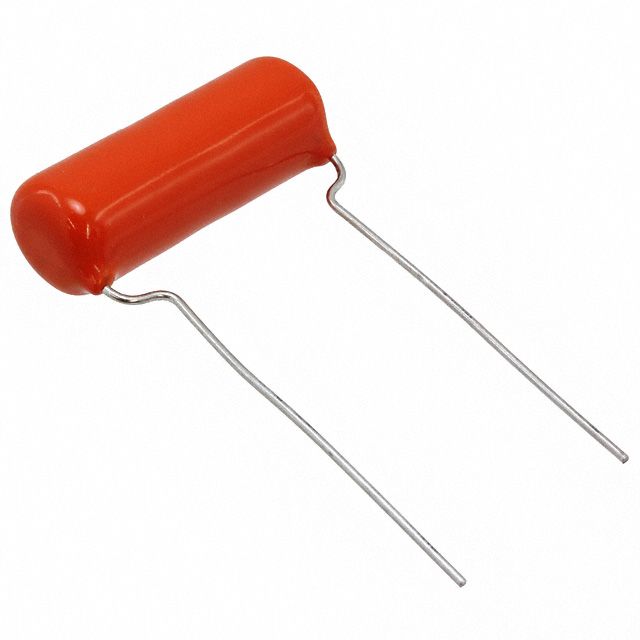

715P22358LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±5%
Voltage Rating - AC : 450V
Voltage Rating - DC : 800V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.441" Dia x 1.252" L (11.20mm x 31.80mm)
Height - Seated (Max) : 0.752" (19.10mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

516 in stock

715P22396KA2

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.480" Dia x 0.902" L (12.20mm x 22.90mm)
Height - Seated (Max) : 0.772" (19.60mm)
Termination : PC Pins
Lead Spacing : 0.689" (17.50mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

912 in stock

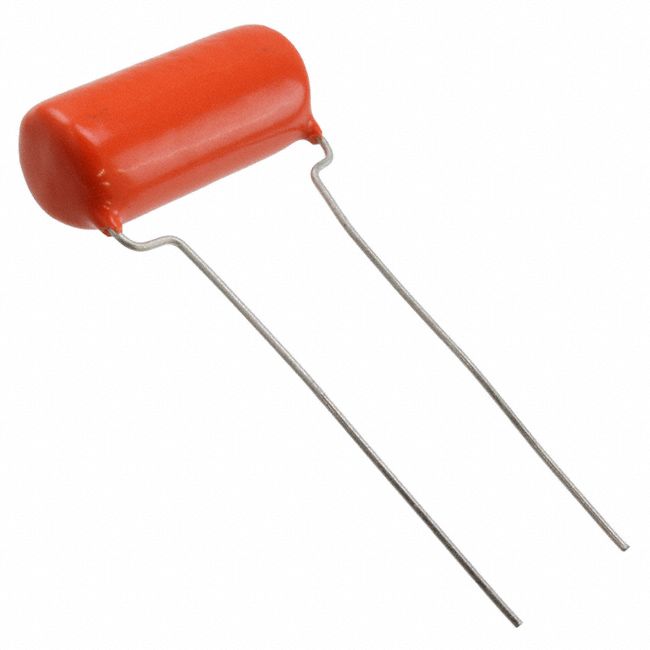

715P22452LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±5%
Voltage Rating - AC : 155V
Voltage Rating - DC : 200V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" Dia x 1.252" L (13.00mm x 31.80mm)
Height - Seated (Max) : 0.823" (20.90mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1439 in stock

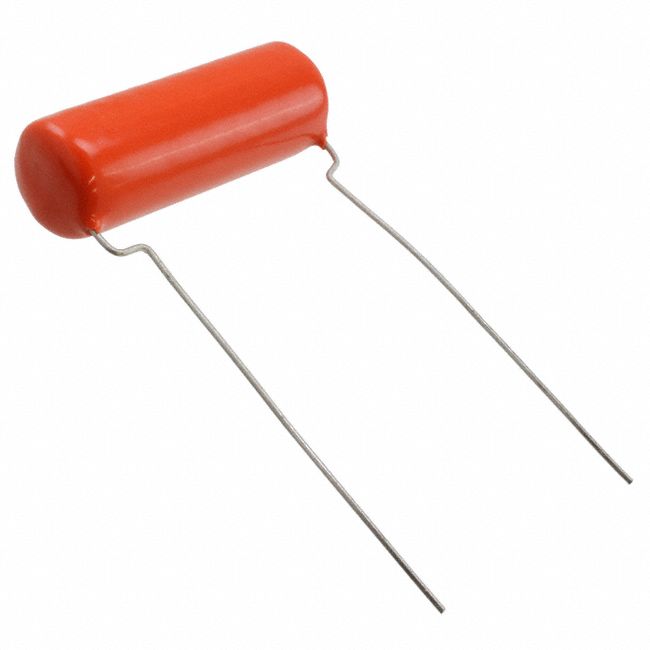

715P22454MD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.579" Dia x 1.650" L (14.70mm x 41.90mm)
Height - Seated (Max) : 0.894" (22.70mm)
Termination : PC Pins
Lead Spacing : 1.094" (27.80mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

933 in stock

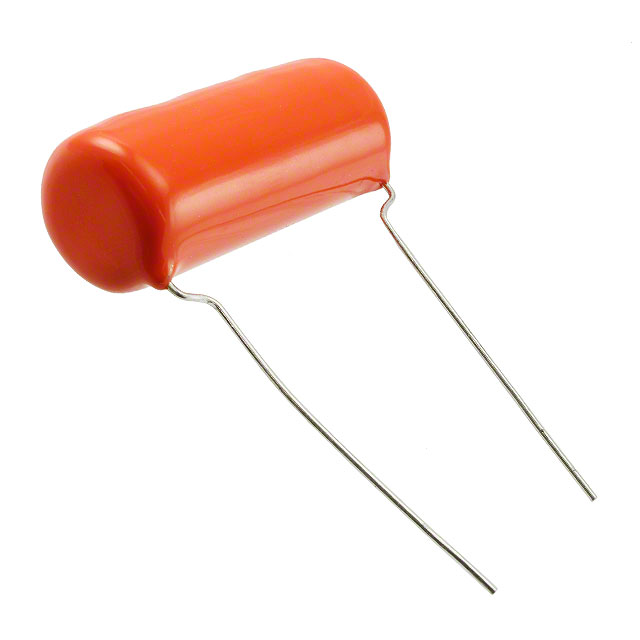

715P22456MD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.831" Dia x 1.650" L (21.10mm x 41.90mm)
Height - Seated (Max) : 1.102" (28.00mm)
Termination : PC Pins
Lead Spacing : 1.094" (27.80mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

956 in stock

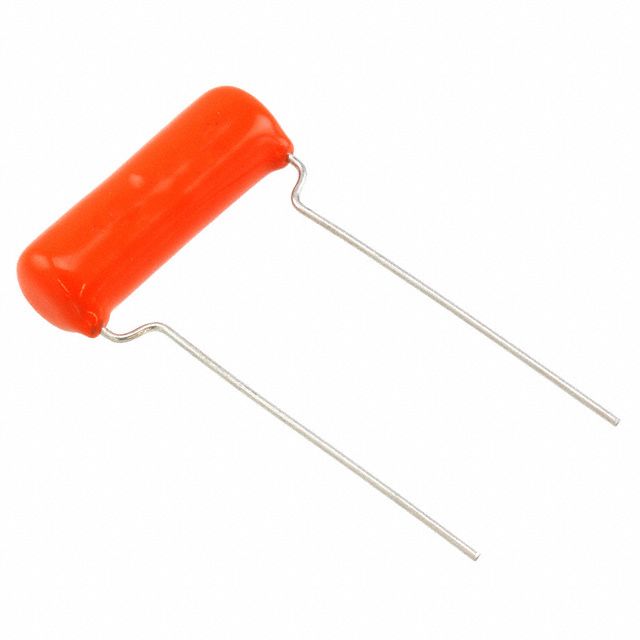

715P332516LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 3300pF
Tolerance : ±5%
Voltage Rating - AC : 500V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.402" Dia x 1.252" L (10.20mm x 31.80mm)
Height - Seated (Max) : 0.693" (17.60mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

2114 in stock

715P33256JA3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 3300pF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.319" Dia x 0.701" L (8.10mm x 17.80mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.500" (12.70mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

992 in stock

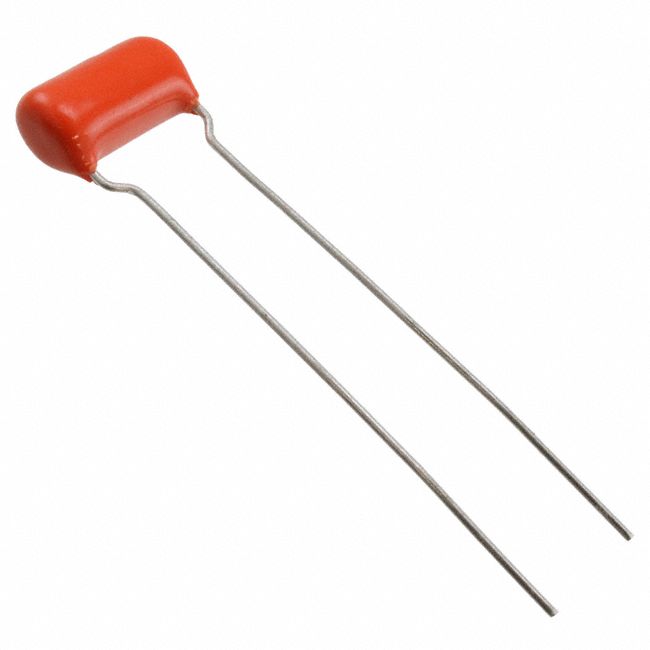

715P33256JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 3300pF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.319" Dia x 0.701" L (8.10mm x 17.80mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1449 in stock

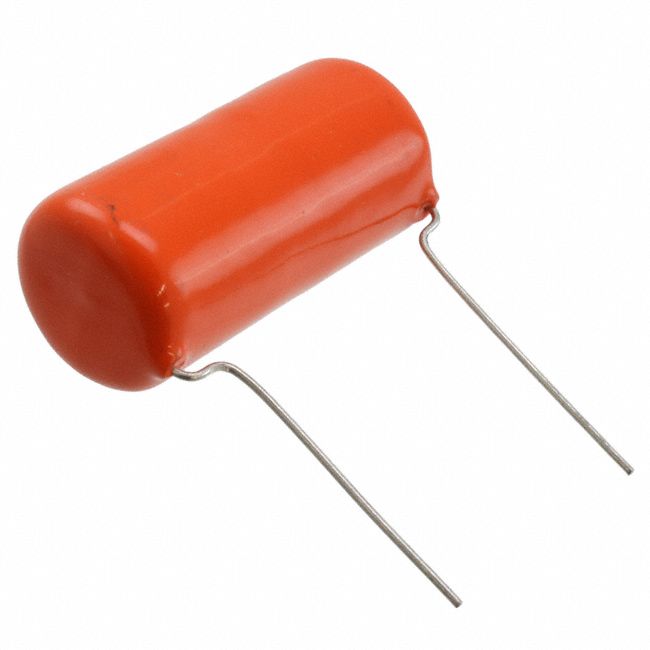

715P333516MD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.033µF
Tolerance : ±5%
Voltage Rating - AC : 500V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.811" Dia x 1.650" L (20.60mm x 41.90mm)
Height - Seated (Max) : 1.102" (28.00mm)
Termination : PC Pins
Lead Spacing : 1.094" (27.80mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1989 in stock
