Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

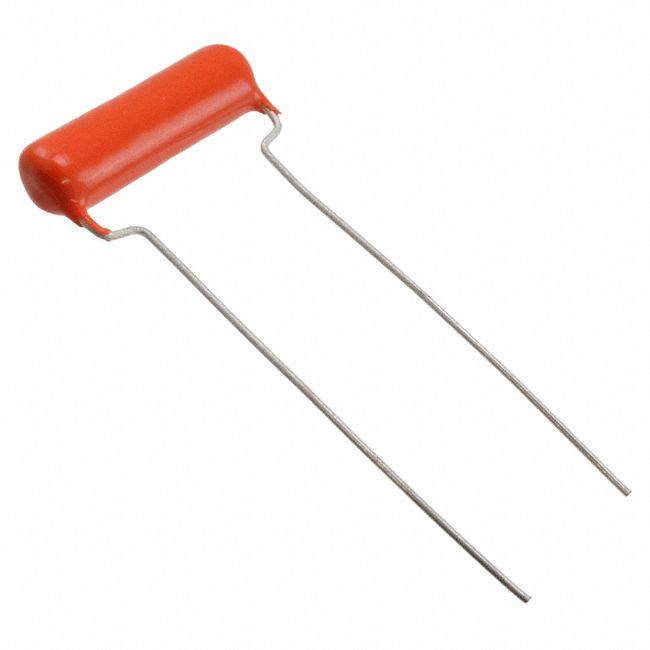

715P152516LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 1500pF
Tolerance : ±5%
Voltage Rating - AC : 500V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.319" Dia x 1.252" L (8.10mm x 31.80mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1415 in stock

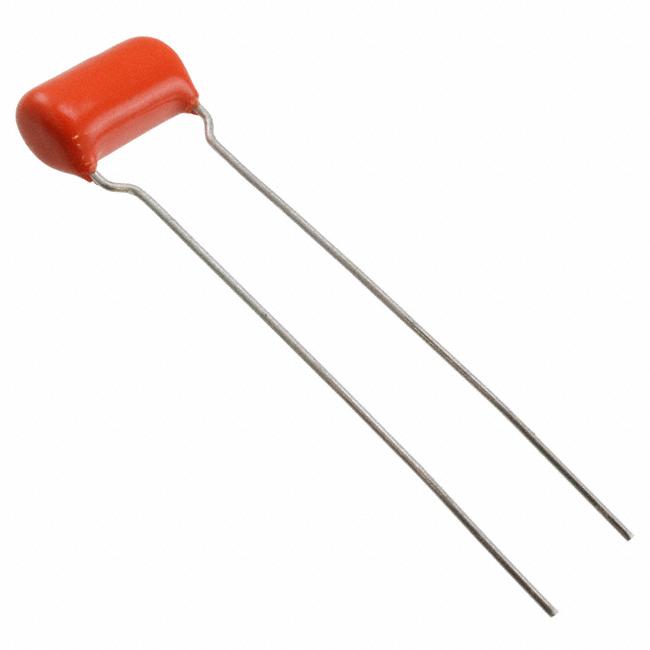

715P15256JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 1500pF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.319" Dia x 0.701" L (8.10mm x 17.80mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

975 in stock

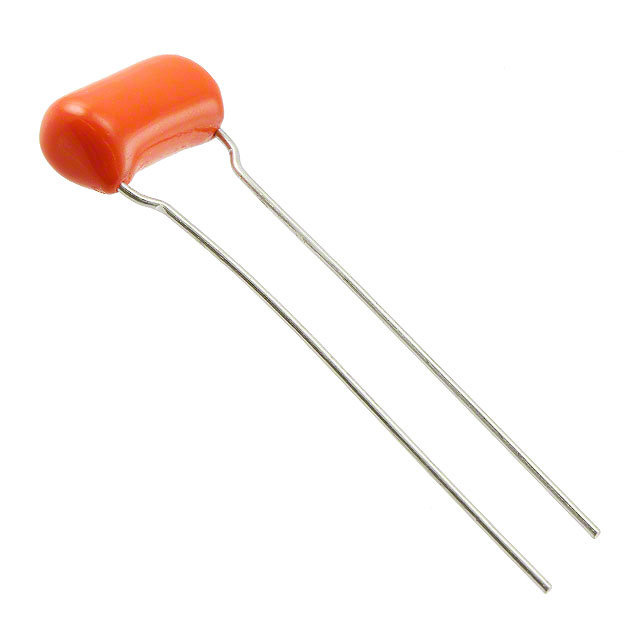

715P15352JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.015µF
Tolerance : ±5%
Voltage Rating - AC : 155V
Voltage Rating - DC : 200V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.280" Dia x 0.701" L (7.10mm x 17.80mm)
Height - Seated (Max) : 0.591" (15.00mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1659 in stock

715P15354JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.015µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.339" Dia x 0.701" L (8.60mm x 17.80mm)
Height - Seated (Max) : 0.654" (16.60mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

996 in stock

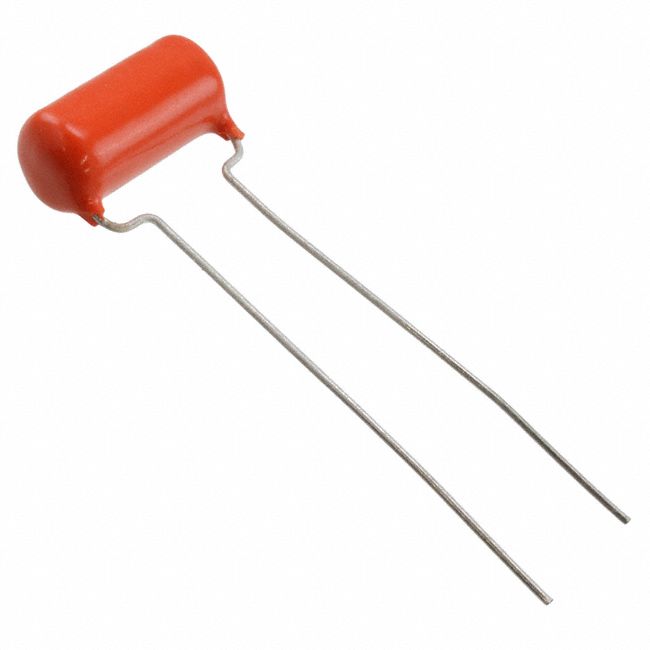

715P15356KD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.015µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.421" Dia x 0.902" L (10.70mm x 22.90mm)
Height - Seated (Max) : 0.713" (18.10mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

436 in stock

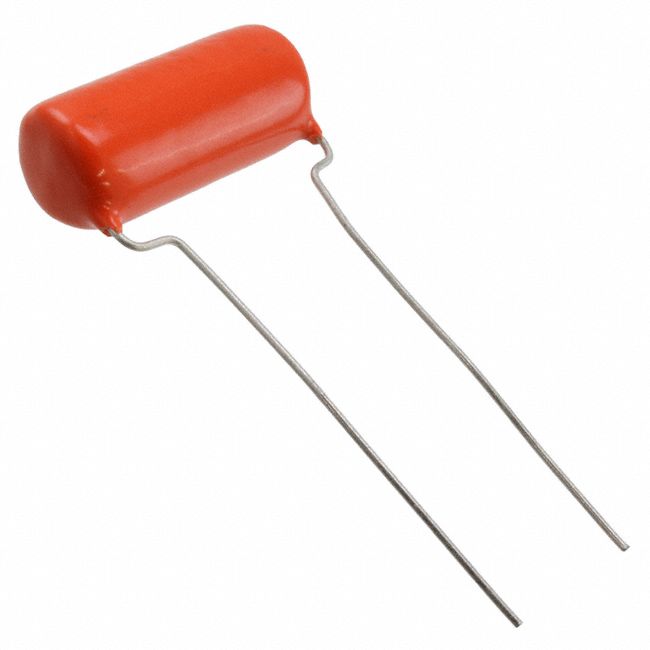

715P15452LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.15µF
Tolerance : ±5%
Voltage Rating - AC : 155V
Voltage Rating - DC : 200V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.441" Dia x 1.252" L (11.20mm x 31.80mm)
Height - Seated (Max) : 0.752" (19.10mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

548 in stock

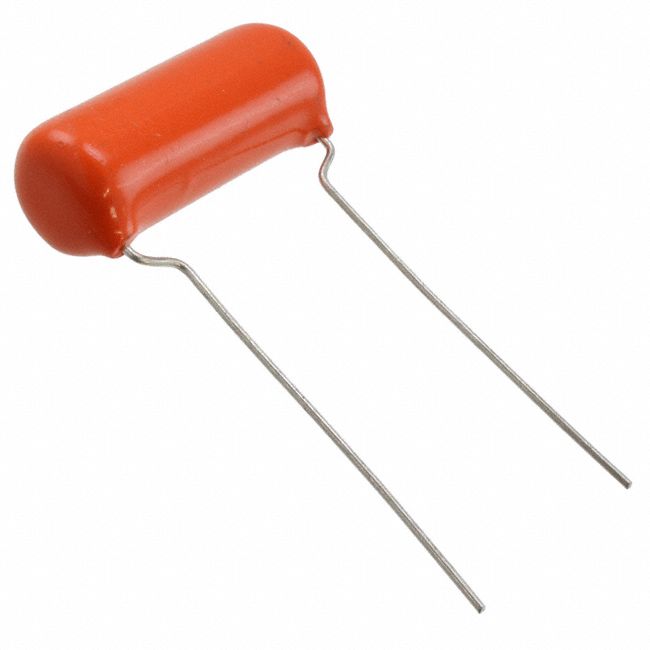

715P15454LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.15µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.559" Dia x 1.252" L (14.20mm x 31.80mm)
Height - Seated (Max) : 0.870" (22.10mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

799 in stock

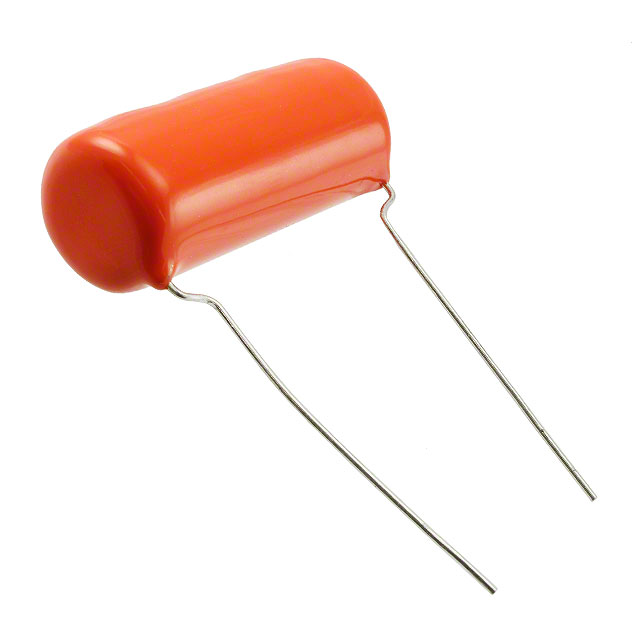

715P15456MD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.15µF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" Dia x 1.650" L (18.00mm x 41.90mm)
Height - Seated (Max) : 1.004" (25.50mm)
Termination : PC Pins
Lead Spacing : 1.094" (27.80mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1747 in stock

715P222516LD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 2200pF
Tolerance : ±5%
Voltage Rating - AC : 500V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.350" Dia x 1.252" L (8.90mm x 31.80mm)
Height - Seated (Max) : 0.642" (16.30mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1678 in stock

715P22256JD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 2200pF
Tolerance : ±5%
Voltage Rating - AC : 200V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.331" Dia x 0.701" L (8.40mm x 17.80mm)
Height - Seated (Max) : 0.622" (15.80mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

1376 in stock

715P22311NA3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±1%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.331" Dia x 0.571" L (8.40mm x 14.50mm)
Height - Seated (Max) : 0.642" (16.30mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

911 in stock

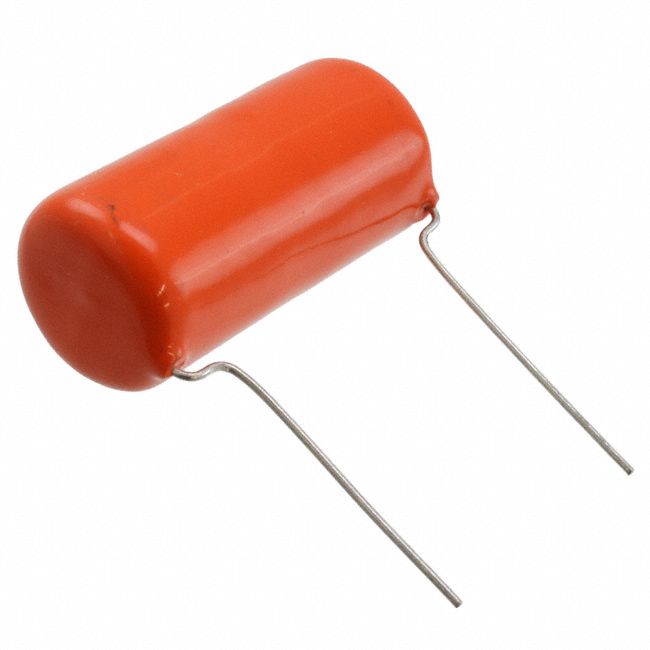

715P223516MD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 715P
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±5%
Voltage Rating - AC : 500V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.689" Dia x 1.650" L (17.50mm x 41.90mm)
Height - Seated (Max) : 0.980" (24.90mm)
Termination : PC Pins
Lead Spacing : 1.094" (27.80mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

820 in stock
