Connor-Winfield

- For over 45 years, The Connor-Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor-Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the market.


Part Number

Manufacturer

Description

Unit Price

In Stock

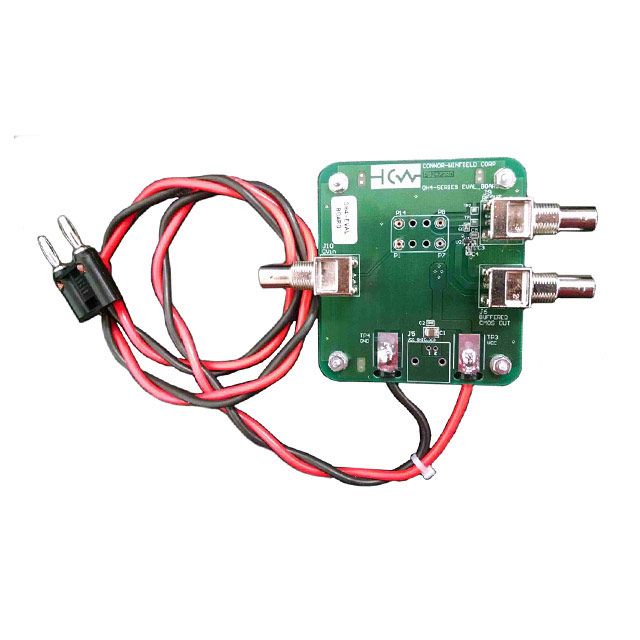

OH4-EVAL BOARD

Connor-Winfield

Manufacturer : Connor-Winfield
Series : -
Part Status : Active
Type : Timing
Function : Clock Oscillation
Embedded : -
Utilized IC / Part : OH4
Primary Attributes : -
Supplied Contents : Board(s)

5 in stock

OHSM100-60803CF-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Strip
Series : OHSM100-60803CF
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 10MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±8ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead, 5 Leads
Size / Dimension : 1.000" L x 1.000" W (25.40mm x 25.40mm)
Height - Seated (Max) : 0.613" (15.57mm)

25 in stock

OHSM100-60803CF-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Digi-Reel®
Alternate Packaging
Series : OHSM100-60803CF
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±8ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead, 5 Leads
Size / Dimension : 1.000" L x 1.000" W (25.40mm x 25.40mm)
Height - Seated (Max) : 0.613" (15.57mm)

100 in stock

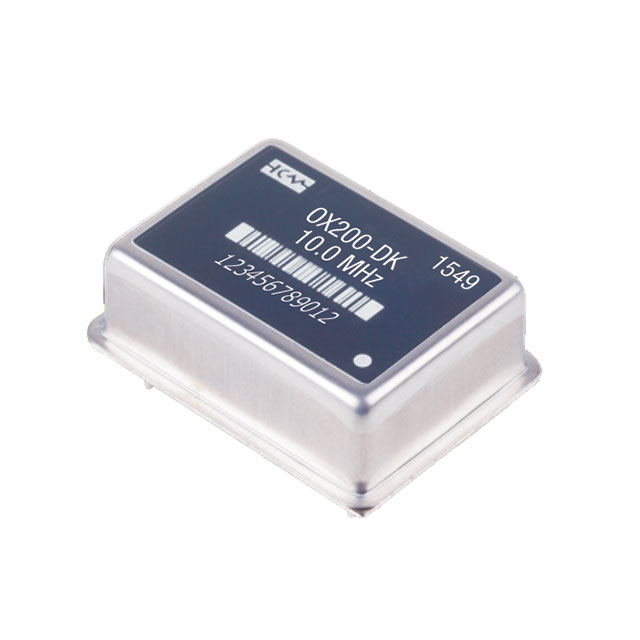

OX200-DK-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Tray
Series : OX200-DK
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 10MHz
Function : -
Output : LVCMOS
Voltage - Supply : 12V
Frequency Stability : ±5ppb
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 6-DIP (0.701", 17.80mm), 5 Leads
Size / Dimension : 1.417" L x 1.063" W (36.00mm x 27.00mm)
Height - Seated (Max) : 0.530" (13.46mm)

23 in stock

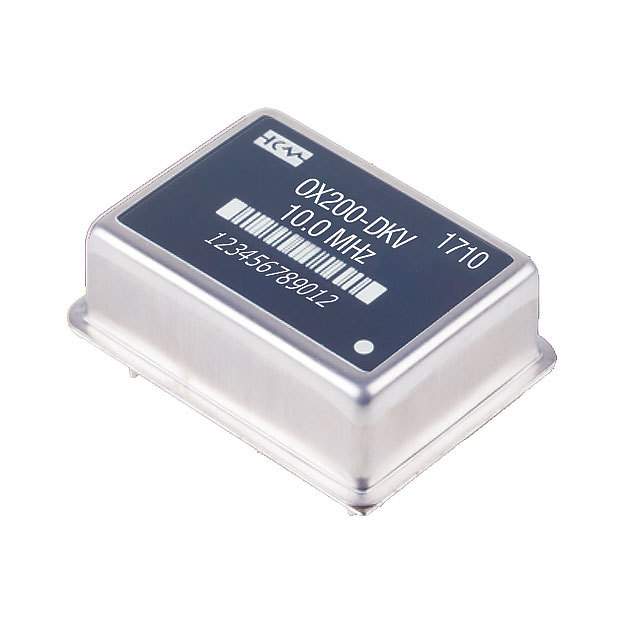

OX200-DKV-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Tray
Series : OX200-DKV
Part Status : Active
Base Resonator : Crystal
Type : VCOCXO
Frequency : 10MHz
Function : -
Output : LVCMOS
Voltage - Supply : 12V
Frequency Stability : ±5ppb
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 6-DIP (0.701", 17.80mm), 5 Leads
Size / Dimension : 1.417" L x 1.063" W (36.00mm x 27.00mm)
Height - Seated (Max) : 0.530" (13.46mm)

24 in stock

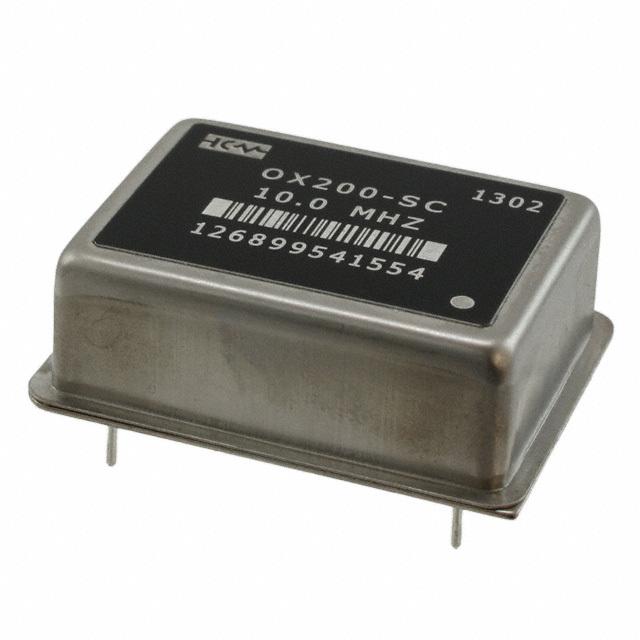

OX200-SC-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Tray
Series : OX200-SC
Part Status : Active
Base Resonator : Crystal
Type : VCOCXO
Frequency : 10MHz
Function : -
Output : LVCMOS
Voltage - Supply : 12V
Frequency Stability : ±1.5ppb
Absolute Pull Range (APR) : -
Operating Temperature : 0°C ~ 70°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 1.417" L x 1.063" W (36.00mm x 27.00mm)
Height - Seated (Max) : 0.530" (13.46mm)

57 in stock

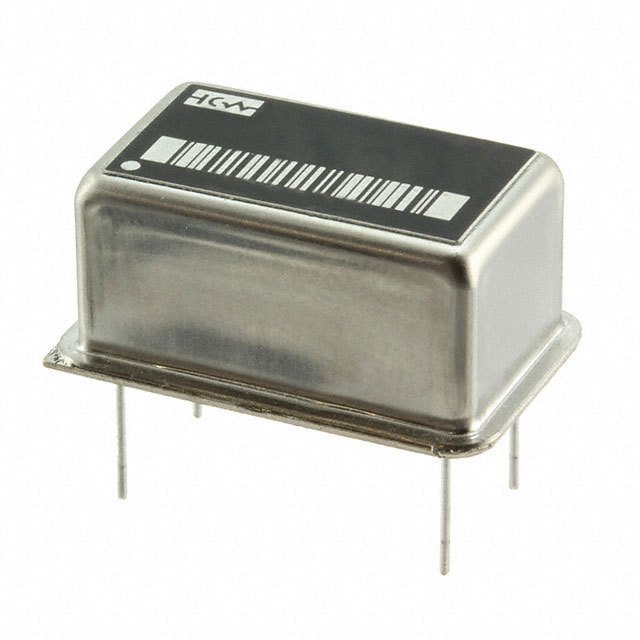

OX400-620LF-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Tube
Series : OX400-620LF
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 20MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±20ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 14-DIP Module, 4 Leads
Size / Dimension : 0.800" L x 0.500" W (20.32mm x 12.70mm)
Height - Seated (Max) : 0.400" (10.16mm)

38 in stock

OX400-620LF-024.576M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Tube
Series : OX400-620LF
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 24.576MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±20ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 14-DIP Module, 4 Leads
Size / Dimension : 0.800" L x 0.500" W (20.32mm x 12.70mm)
Height - Seated (Max) : 0.400" (10.16mm)

11 in stock

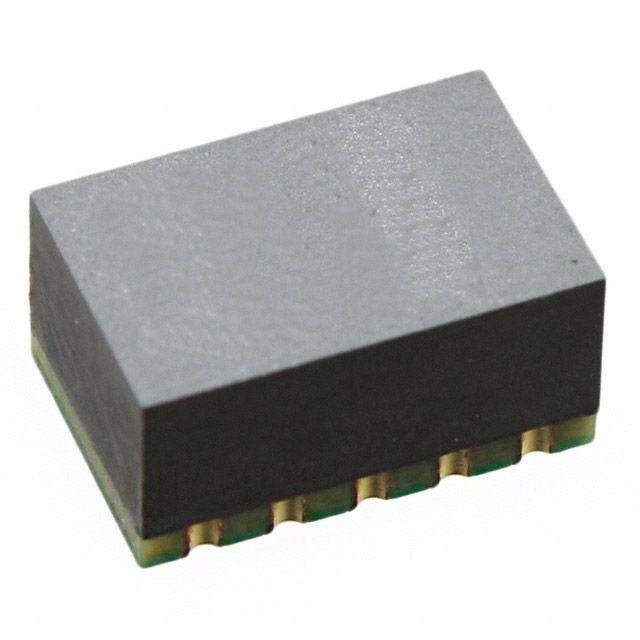

OX9140S3-012.8M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OX914xS3
Part Status : Discontinued at
Base Resonator : Crystal
Type : OCXO
Frequency : 12.8MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±140ppb
Absolute Pull Range (APR) : -
Operating Temperature : 0°C ~ 70°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.556" L x 0.358" W (14.10mm x 9.10mm)
Height - Seated (Max) : 0.312" (7.92mm)

34 in stock

OX9143S3-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OX914xS3
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 10MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±140ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.556" L x 0.358" W (14.10mm x 9.10mm)
Height - Seated (Max) : -

4 in stock

OX9143S3-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OX914xS3
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 20MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±140ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.556" L x 0.358" W (14.10mm x 9.10mm)
Height - Seated (Max) : -

96 in stock

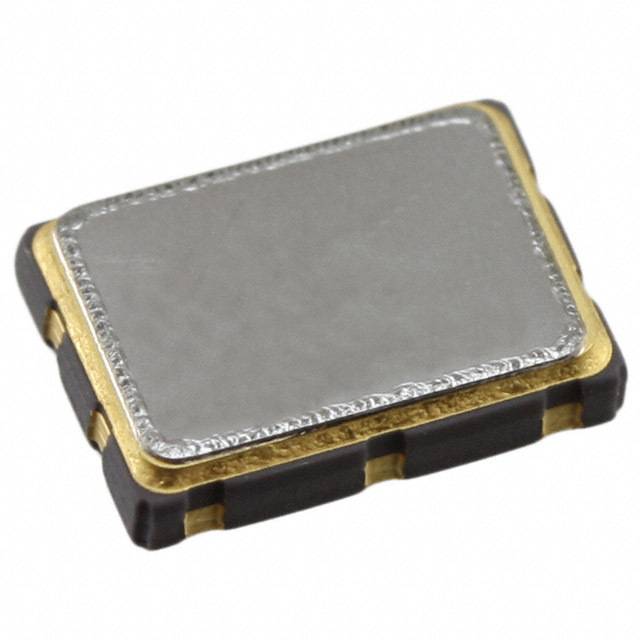

P122-100.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Strip
Series : P
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 100MHz
Function : Enable/Disable
Output : LVPECL
Voltage - Supply : 2.5V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : 0°C ~ 70°C
Current - Supply (Max) : 90mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.079" (2.00mm)

183 in stock
