Connor-Winfield

- For over 45 years, The Connor-Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor-Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the market.


Part Number

Manufacturer

Description

Unit Price

In Stock

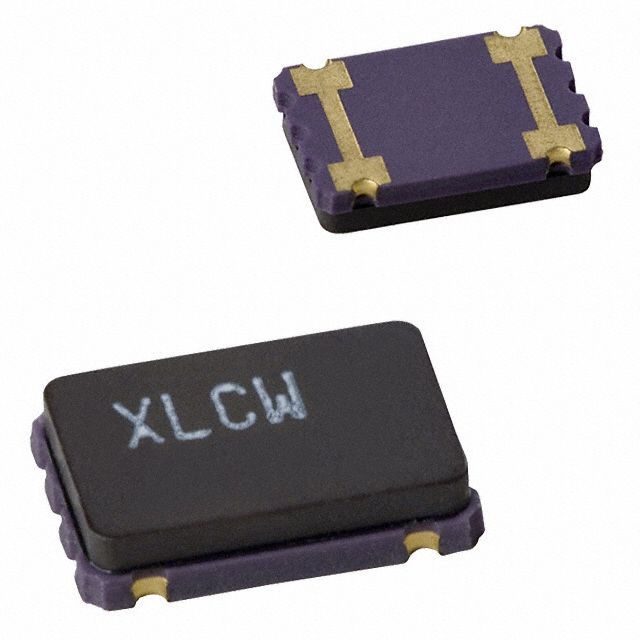

XL-1C-012.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XL-1C
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Max) : 0.070" (1.77mm)

3759 in stock

XL-1C-016.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XL-1C
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Max) : 0.070" (1.77mm)

657 in stock

XL-1C-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XL-1C
Part Status : Active
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Max) : 0.070" (1.77mm)

1726 in stock

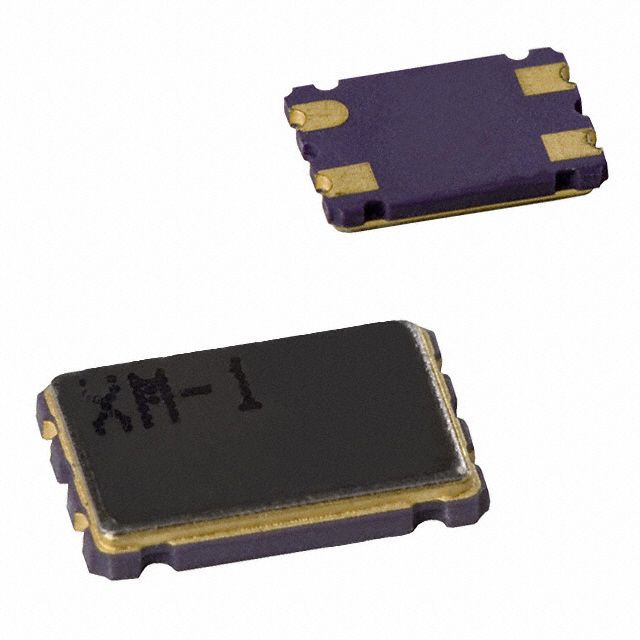

XM-1-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XM-1
Part Status : Active
Type : MHz Crystal
Frequency : 10MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.295" L x 0.197" W (7.50mm x 5.00mm)
Height - Seated (Max) : 0.051" (1.30mm)

165 in stock

XM-1-012.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XM-1
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.295" L x 0.197" W (7.50mm x 5.00mm)
Height - Seated (Max) : 0.051" (1.30mm)

4079 in stock

XM-1-016.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XM-1
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.295" L x 0.197" W (7.50mm x 5.00mm)
Height - Seated (Max) : 0.051" (1.30mm)

498 in stock
