Connor-Winfield

- For over 45 years, The Connor-Winfield Corporation has designed and manufactured quartz based timing circuits and oscillators. As a leading US manufacturer of oscillators and timing products, Connor-Winfield continually innovates to bring new crystal and non-crystal based oscillator products to the market.


Part Number

Manufacturer

Description

Unit Price

In Stock

M100V-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M100
Part Status : Active
Base Resonator : Crystal
Type : VCTCXO
Frequency : 20MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±100ppb
Absolute Pull Range (APR) : -
Operating Temperature : 0°C ~ 70°C
Current - Supply (Max) : 3.3mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

400 in stock

M200F-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M200
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±200ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.3mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

65 in stock

M200F-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M200
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±200ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.3mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

183 in stock

M200F-024.576M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M200
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 24.576MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±200ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.3mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

43 in stock

M200F-040.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M200
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 40MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±200ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 3.3mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

259 in stock

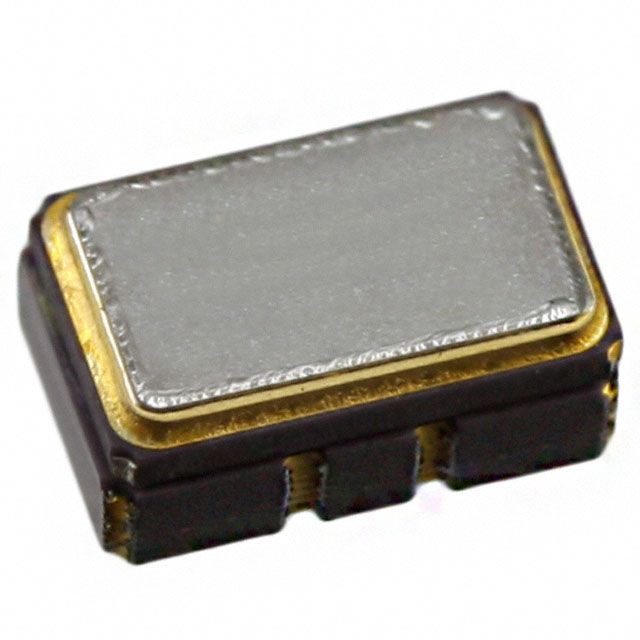

M602-025.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M602
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 25MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

366 in stock

M602-040.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 40MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 10mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.098" (2.50mm)

171 in stock

M602-049.152M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M602
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 49.152MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±280ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

153 in stock

ML602-020.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ML602
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±140ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.083" (2.10mm)

335 in stock

ML602-024.576M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ML602
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 24.576MHz
Function : -
Output : LVCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±140ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.098" (2.50mm)

90 in stock

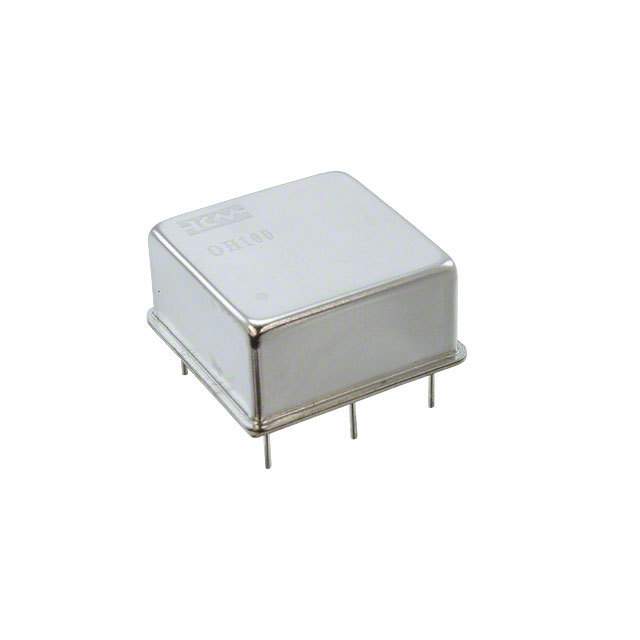

OH100-50503CF-010.0M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Bulk
Series : OH100
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 10MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±5ppb
Absolute Pull Range (APR) : -
Operating Temperature : 0°C ~ 70°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 6-DIP (0.750", 19.05mm), 5 Leads
Size / Dimension : 1.000" L x 1.000" W (25.40mm x 25.40mm)
Height - Seated (Max) : 0.500" (12.70mm)

45 in stock

OH100-50503CF-012.8M

Connor-Winfield

Manufacturer : Connor-Winfield
Packaging : Bulk
Series : OH100
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 12.8MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±5ppb
Absolute Pull Range (APR) : -
Operating Temperature : 0°C ~ 70°C
Current - Supply (Max) : -
Ratings : -
Mounting Type : Through Hole
Package / Case : 6-DIP (0.750", 19.05mm), 5 Leads
Size / Dimension : 1.000" L x 1.000" W (25.40mm x 25.40mm)
Height - Seated (Max) : 0.500" (12.70mm)

9 in stock
