Comair Rotron

Since its beginning in 1947, Comair Rotron has been the leading supplier of standard and value-added fans and blowers for a broad range of markets including electronics, computers, telecommunications and HVAC. In December of 2014, Ammon & Rizos a manufacturers rep company purchased Comair Rotron from Gentherm. Ammon & Rizos has represented Comair since 1954 and has offices in the US, Mexico and Brazil. Our Comair Rotron Shanghai operation is a state of the art fan and blower manufacturing facility.

Comair Rotron Shanghai is currently producing a wide range of DC fans and blowers with a standard range of 5 to 48 volts DC and 115 or 230 volts AC, supplying 5 to 1070+ cfm and sizes from 40 mm to 281 mm.

Comair Rotron has developed many new Air Moving solutions and is always open to new challenges and opportunities.

Part Number
Manufacturer
Description
Unit Price
In Stock

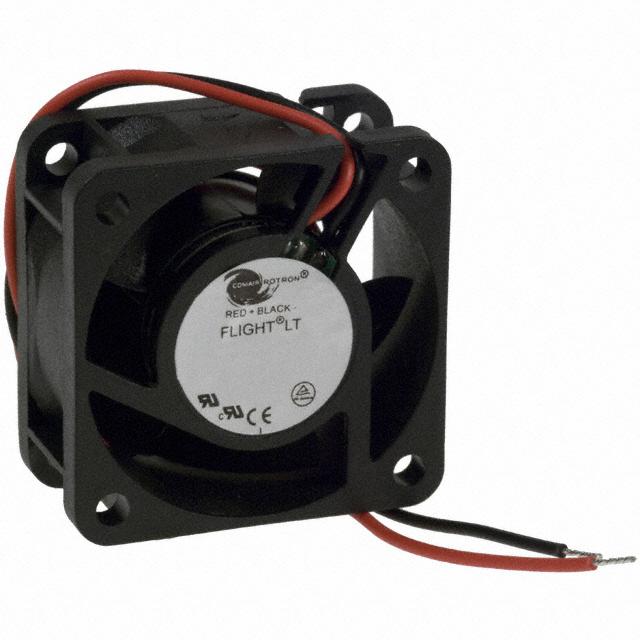

19032628A 19032628A

Comair Rotron
Manufacturer : Comair Rotron
Series : Flight LT 40
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.0 CFM (0.280m鲁/min)
Static Pressure : 0.256 in H2O (63.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.9 dB(A)
Power (Watts) : 2.20W
RPM : 7800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.075 lb (34.02g)
0
128 in stock

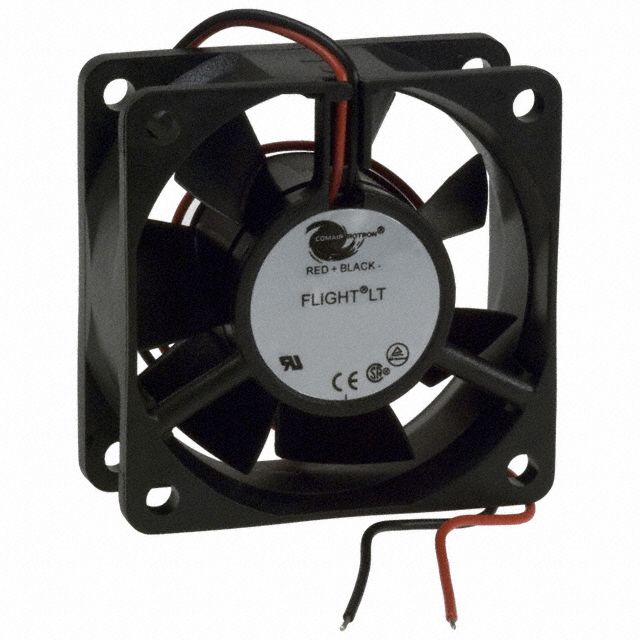

19032704A 19032704A

Comair Rotron
Manufacturer : Comair Rotron
Series : Flight LT 60
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.185 in H2O (46.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.3 dB(A)
Power (Watts) : 2.80W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.15 lb (68.04g)
0
112 in stock

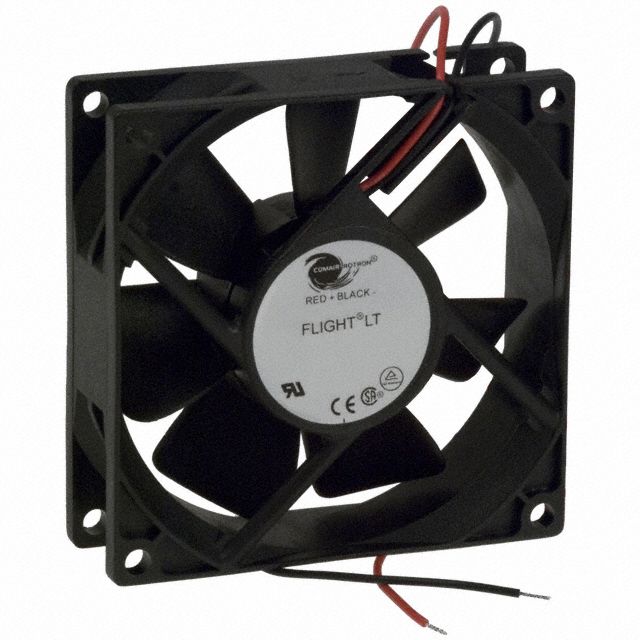

19032736A 19032736A

Comair Rotron
Manufacturer : Comair Rotron
Series : Flight LT 80
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 38.0 CFM (1.06m鲁/min)
Static Pressure : 0.157 in H2O (39.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.4 dB(A)
Power (Watts) : 3.00W
RPM : 3010 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UR
Weight : 0.19 lb (86.18g)
0
161 in stock

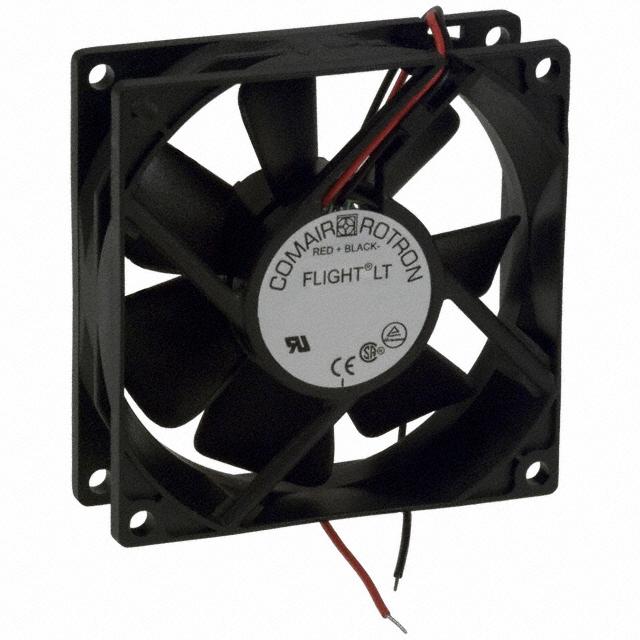

19032744A 19032744A

Comair Rotron
Manufacturer : Comair Rotron
Series : Flight LT 80
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.2 CFM (1.04m鲁/min)
Static Pressure : 0.157 in H2O (39.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.8 dB(A)
Power (Watts) : 2.40W
RPM : 3010 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.19 lb (86.18g)
0
262 in stock

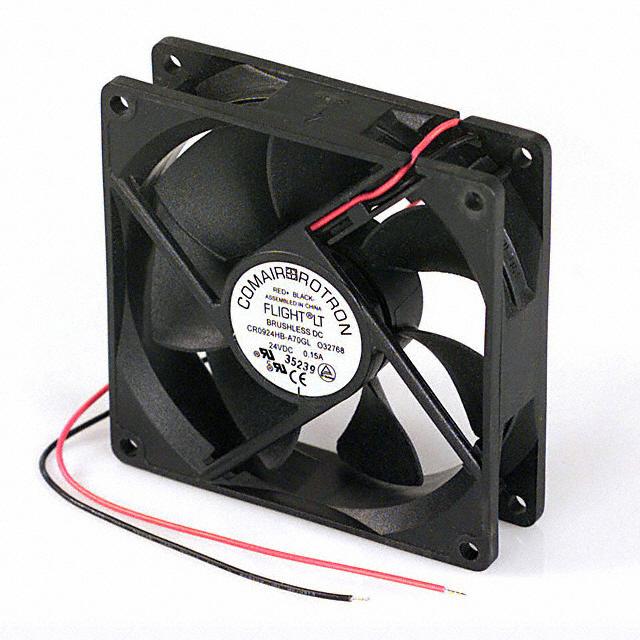

19032768A 19032768A

Comair Rotron
Manufacturer : Comair Rotron
Series : Flight LT 90
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.125 in H2O (31.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 3.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CSA, UL
Weight : 0.222 lb (100.7g)
0
202 in stock

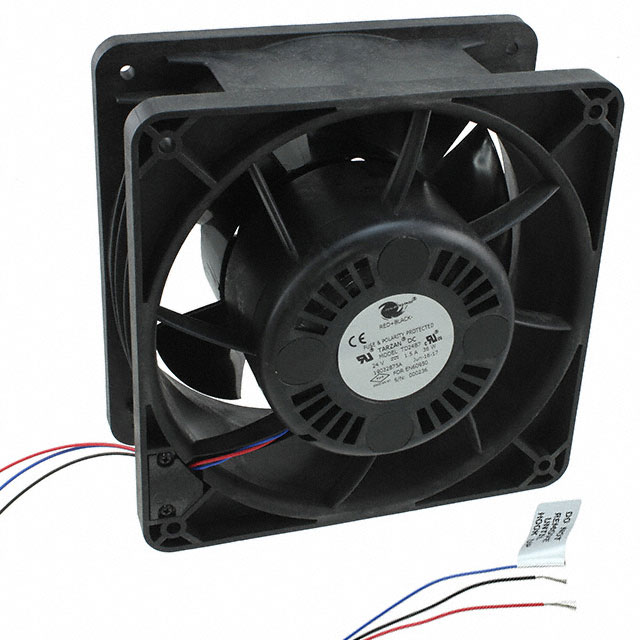

19032875A 19032875A

Comair Rotron
Manufacturer : Comair Rotron
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 175.5mm L x 175.5mm H
Width : 107.2mm
Air Flow : 155.0 CFM (4.34m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 65.2 dB(A)
Power (Watts) : 36.00W
RPM : 3250 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, UL
Weight : -
0
99 in stock

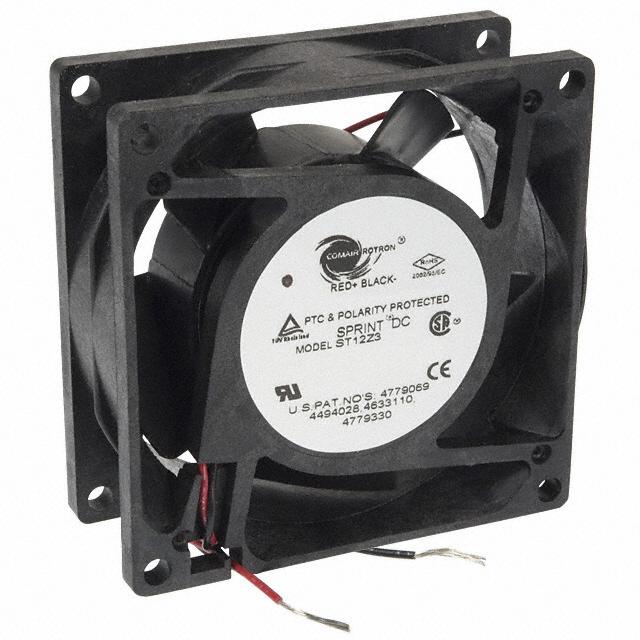

19039067A 19039067A

Comair Rotron
Manufacturer : Comair Rotron
Series : Sprint
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : 0.372 in H2O (92.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.5 dB(A)
Power (Watts) : 6.20W
RPM : 4700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 0.397 lb (180.08g)
0
152 in stock

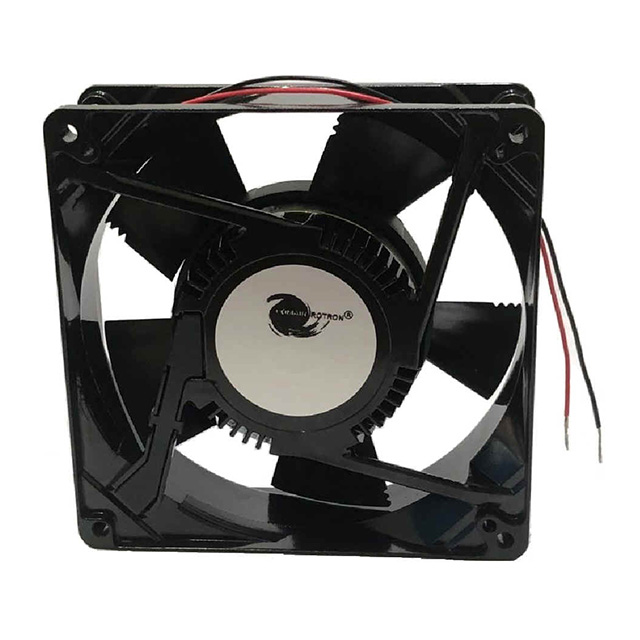

19039193A 19039193A

Comair Rotron
Manufacturer : Comair Rotron
Series : Galaxy
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.10mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.9 dB(A)
Power (Watts) : 23.90W
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cUL, UL
Weight : 1.4 lbs (635g)
0
100 in stock

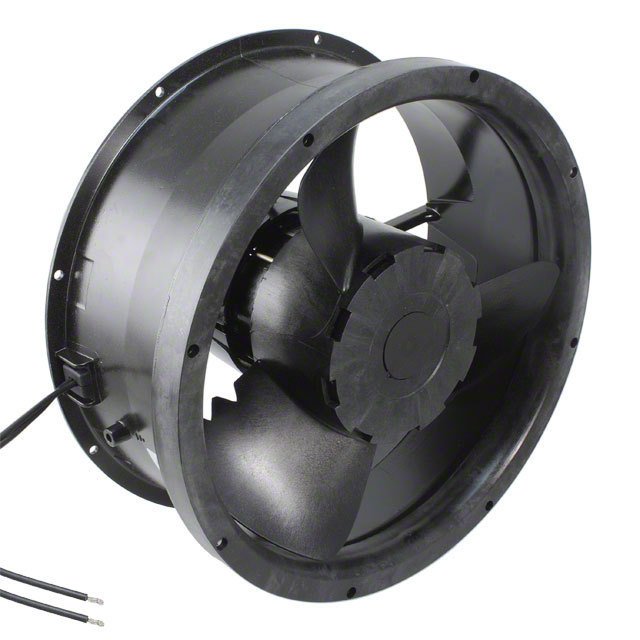

19039202A 19039202A

Comair Rotron
Manufacturer : Comair Rotron
Series : Caravel XL AC
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 868.0 CFM (24.30m鲁/min)
Static Pressure : 0.487 in H2O (121.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 115W
RPM : 2400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : -
0
274 in stock

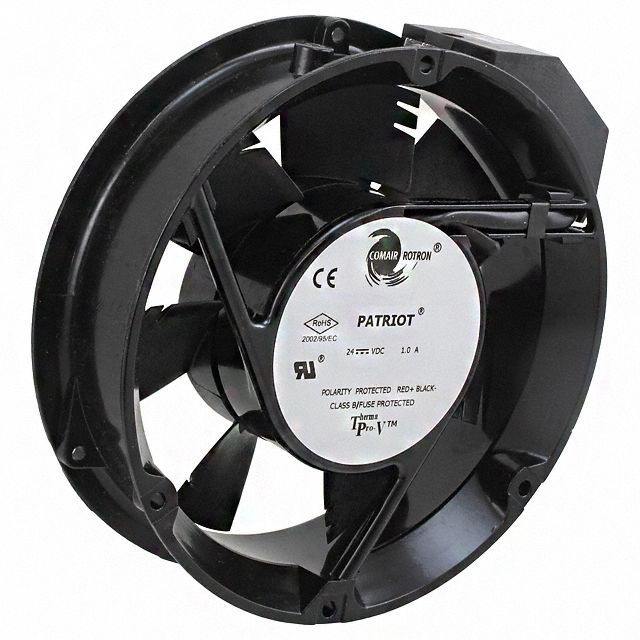

19039299A 19039299A

Comair Rotron
Manufacturer : Comair Rotron
Series : Patriot
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 172.7mm Dia
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.769 in H2O (191.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Temperature Dependent Speed Control
Noise : 51.2 dB(A)
Power (Watts) : 20.30W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL
Weight : 1.9 lbs (861.8g)
0
96 in stock

19039305A 19039305A

Comair Rotron
Manufacturer : Comair Rotron
Series : Caravel XL AC
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 868.0 CFM (24.30m鲁/min)
Static Pressure : 0.487 in H2O (121.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 60.0 dB(A)
Power (Watts) : 115W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cUL, UL
Weight : 4.4 lbs (2kg)
0
338 in stock

19039306A 19039306A

Comair Rotron
Manufacturer : Comair Rotron
Series : Caravel XL AC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 107.0mm
Air Flow : 868.0 CFM (24.30m鲁/min)
Static Pressure : 0.487 in H2O (121.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 110W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 4.4 lbs (2kg)
0
273 in stock
