Comair Rotron

Since its beginning in 1947, Comair Rotron has been the leading supplier of standard and value-added fans and blowers for a broad range of markets including electronics, computers, telecommunications and HVAC. In December of 2014, Ammon & Rizos a manufacturers rep company purchased Comair Rotron from Gentherm. Ammon & Rizos has represented Comair since 1954 and has offices in the US, Mexico and Brazil. Our Comair Rotron Shanghai operation is a state of the art fan and blower manufacturing facility.

Comair Rotron Shanghai is currently producing a wide range of DC fans and blowers with a standard range of 5 to 48 volts DC and 115 or 230 volts AC, supplying 5 to 1070+ cfm and sizes from 40 mm to 281 mm.

Comair Rotron has developed many new Air Moving solutions and is always open to new challenges and opportunities.

Part Number
Manufacturer
Description
Unit Price
In Stock

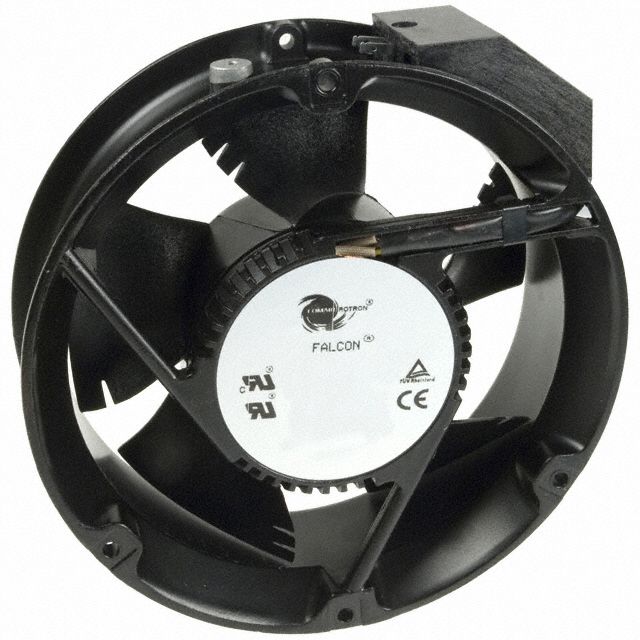

19031660A 19031660A

Comair Rotron
Manufacturer : Comair Rotron
Series : Falcon AC
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 292.0 CFM (8.18m鲁/min)
Static Pressure : 0.858 in H2O (213.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.6 dB(A)
Power (Watts) : 41.40W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 2.8 lbs (1.3kg)
0
100 in stock

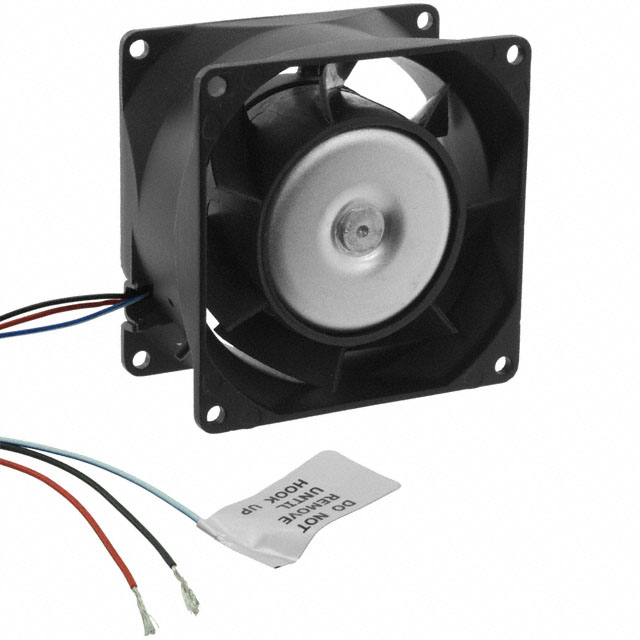

19031706A 19031706A

Comair Rotron
Manufacturer : Comair Rotron
Series : Sprite
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 79.8mm L x 79.8mm H
Width : 41.80mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.256 in H2O (63.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)
Noise : 55.4 dB(A)
Power (Watts) : 5.50W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, UL
Weight : 1.102 lb (500.0g)
0
151 in stock

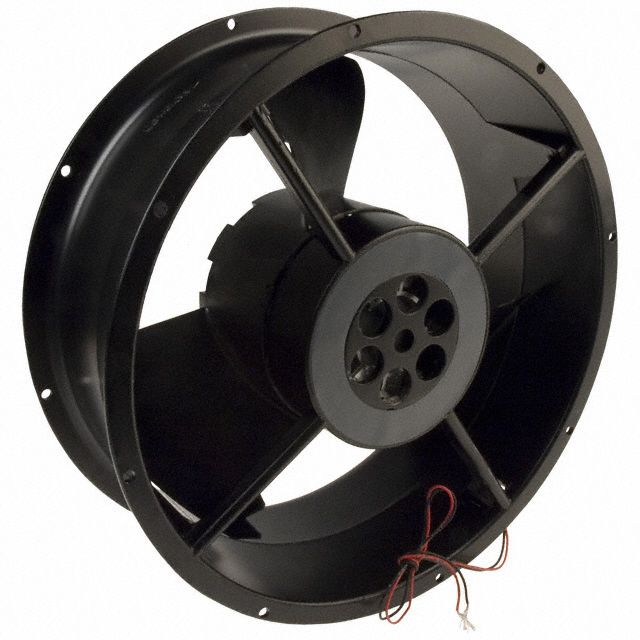

19031767A 19031767A

Comair Rotron
Manufacturer : Comair Rotron
Series : Caravel
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 254mm Dia
Width : 88.90mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 49.1 dB(A)
Power (Watts) : 30.20W
RPM : 1640 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cUL, UL
Weight : 4.4 lbs (2kg)
0
383 in stock

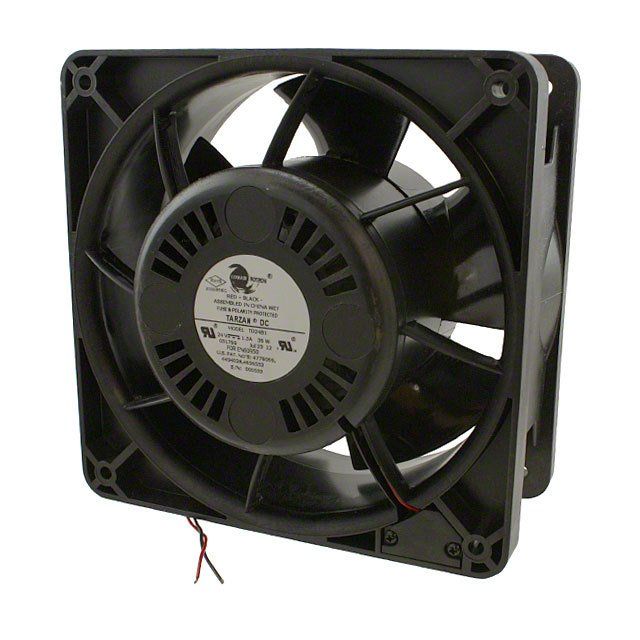

19031769A 19031769A

Comair Rotron
Manufacturer : Comair Rotron
Series : Tarzan
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 175.5mm L x 175.5mm H
Width : 111.8mm
Air Flow : 325.0 CFM (9.10m鲁/min)
Static Pressure : 0.630 in H2O (156.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.2 dB(A)
Power (Watts) : 36.00W
RPM : 3250 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cUL, UL
Weight : 5 lbs (2.3kg)
0
366 in stock

19031842A 19031842A

Comair Rotron
Manufacturer : Comair Rotron
Series : Maltese AC
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.840 in H2O (209.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 41.40W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cUL, UL
Weight : 2.3 lbs (1kg)
0
196 in stock

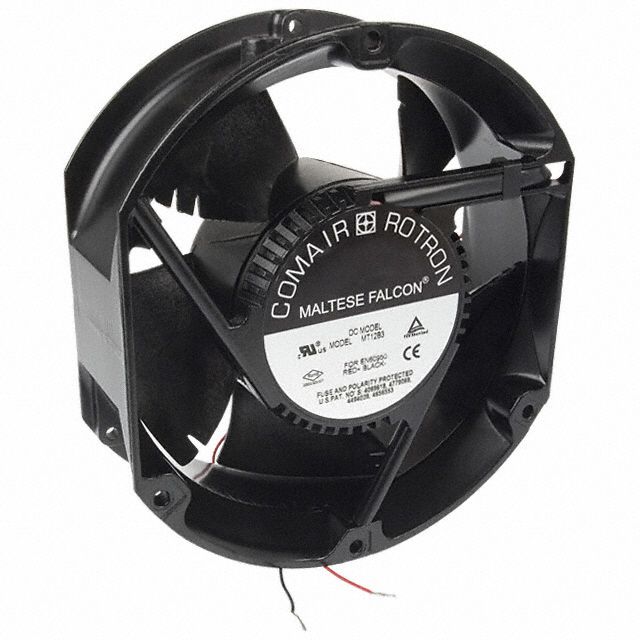

19031843A 19031843A

Comair Rotron
Manufacturer : Comair Rotron
Series : Maltese
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 150.4mm H
Width : 55.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.1 dB(A)
Power (Watts) : 35.50W
RPM : 3450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cURus, UL
Weight : 1.8 lbs (816.5g)
0
191 in stock

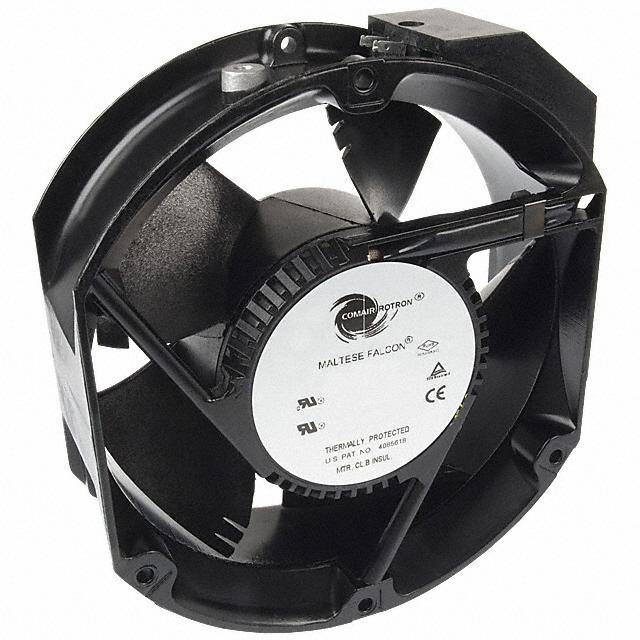

19031844A 19031844A

Comair Rotron
Manufacturer : Comair Rotron
Series : Maltese AC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.840 in H2O (209.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 41.40W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cUL, UL
Weight : 2.3 lbs (1kg)
0
620 in stock

19031856A 19031856A

Comair Rotron
Manufacturer : Comair Rotron
Series : Maltese
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 150.4mm H
Width : 55.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.1 dB(A)
Power (Watts) : 39.60W
RPM : 3430 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : cUL, UL
Weight : 1.8 lbs (816.5g)
0
135 in stock

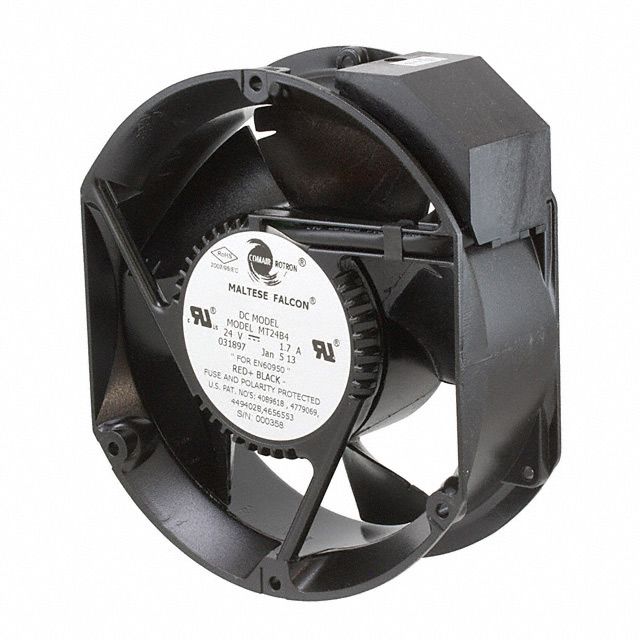

19031897A 19031897A

Comair Rotron
Manufacturer : Comair Rotron
Series : Maltese
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 150.4mm H
Width : 55.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.1 dB(A)
Power (Watts) : 35.50W
RPM : 3450 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : cUL, UL
Weight : 1.8 lbs (816.5g)
0
100 in stock

19032001A 19032001A

Comair Rotron
Manufacturer : Comair Rotron
Series : Sprite
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 79.8mm L x 79.8mm H
Width : 41.80mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.152 in H2O (37.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Protection
Noise : 47.6 dB(A)
Power (Watts) : 3.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, UL
Weight : 1.102 lb (500.0g)
0
259 in stock

19032002A 19032002A

Comair Rotron
Manufacturer : Comair Rotron
Series : Sprite
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 79.8mm L x 79.8mm H
Width : 41.80mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.152 in H2O (37.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Protection
Noise : 47.6 dB(A)
Power (Watts) : 3.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, UL
Weight : 1.102 lb (500.0g)
0
626 in stock

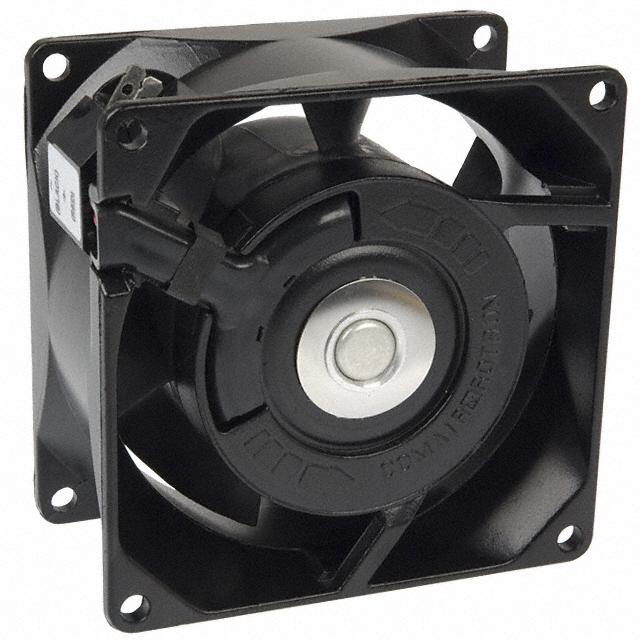

19032003A 19032003A

Comair Rotron
Manufacturer : Comair Rotron
Series : Sprite
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 79.8mm L x 79.8mm H
Width : 41.80mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.152 in H2O (37.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Protection
Noise : 47.6 dB(A)
Power (Watts) : 3.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, UL
Weight : 1.102 lb (500.0g)
0
96 in stock
