Welcome to Weijie Semiconductor

Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

CLU028-1202C4-40AL7K3 CLU028-1202C4-40AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1002 lm (Typ)
Current - Test : 180mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 161 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
54 in stock

CLU028-1202C4-50AL7K3 CLU028-1202C4-50AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1017 lm (Typ)
Current - Test : 180mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 163 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
83 in stock

CLU028-1203C4-273H5K2 CLU028-1203C4-273H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1069 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
54 in stock

CLU028-1203C4-273H7K4 CLU028-1203C4-273H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 976 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
58 in stock

CLU028-1203C4-273M2K1 CLU028-1203C4-273M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1294 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
106 in stock

CLU028-1203C4-303H5K2 CLU028-1203C4-303H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1117 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
119 in stock

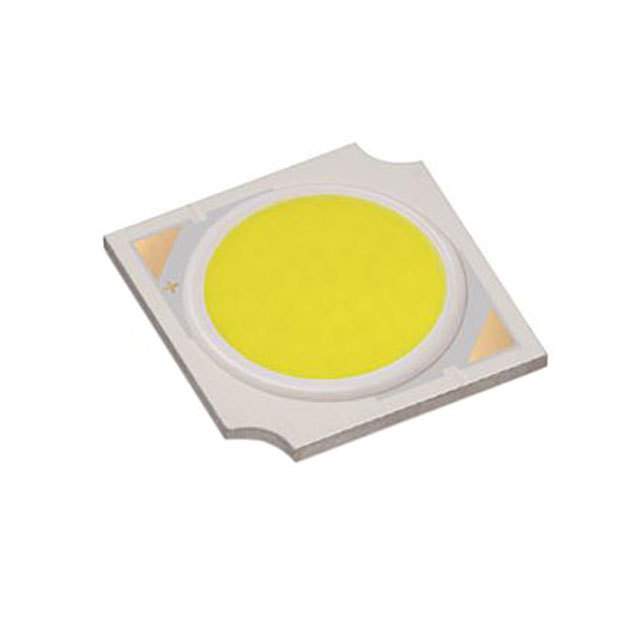

CLU028-1203C4-303H7K4 CLU028-1203C4-303H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1019 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
8 in stock

CLU028-1203C4-303M2K1 CLU028-1203C4-303M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1352 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 145 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
81 in stock

CLU028-1203C4-353H5K2 CLU028-1203C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1137 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
24 in stock

CLU028-1203C4-353M2K1 CLU028-1203C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1378 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
68 in stock

CLU028-1203C4-403H5K2 CLU028-1203C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1151 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
345 in stock

CLU028-1203C4-403H7K4 CLU028-1203C4-403H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1049 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
35 in stock
