Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

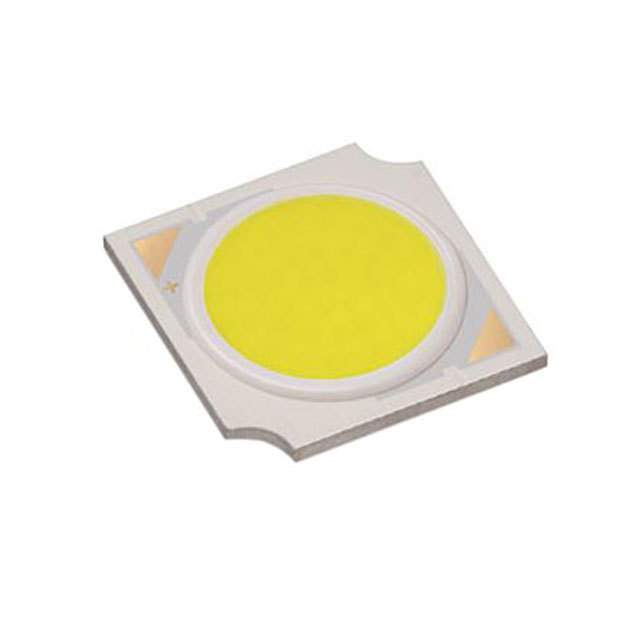

CLU028-1204C4-403H7K4 CLU028-1204C4-403H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1375 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 110 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
26 in stock

CLU028-1204C4-403M2K1 CLU028-1204C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1826 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
191 in stock

CLU028-1204C4-40AL7K3 CLU028-1204C4-40AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1932 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 155 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
83 in stock

CLU028-1204C4-50AL7K3 CLU028-1204C4-50AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU028
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1960 lm (Typ)
Current - Test : 360mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 157 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.40mm
Light Emitting Surface (LES) : 9.80mm Diameter
Lens Type : Flat
0
82 in stock

CLU034-1206B8-32GV1F6 CLU034-1206B8-32GV1F6

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU034
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : -
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1971 lm (Typ)
Current - Test : 540mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.7V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
48 in stock

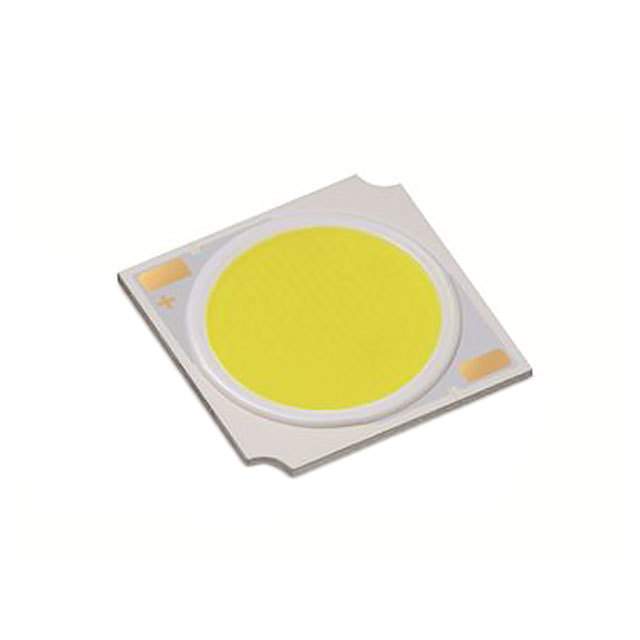

CLU034-1206B8-34GV1F6 CLU034-1206B8-34GV1F6

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU034
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : -
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2011 lm (Typ)
Current - Test : 540mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.7V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
23 in stock

CLU034-1206B8-42GV1F6 CLU034-1206B8-42GV1F6

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU034
Part Status : Active
Type : Chip On Board (COB)
Color : White
CCT (K) : -
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2142 lm (Typ)
Current - Test : 540mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.7V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 1.08A
CRI (Color Rendering Index) : 94 (Typ)
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
39 in stock

CLU034-1208B8-32GV1F6 CLU034-1208B8-32GV1F6

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU034
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : -
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2546 lm (Typ)
Current - Test : 720mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.7V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
43 in stock

CLU034-1208B8-34GV1F6 CLU034-1208B8-34GV1F6

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU034
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : -
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2598 lm (Typ)
Current - Test : 720mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.7V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
43 in stock

CLU034-1208B8-42GV1F6 CLU034-1208B8-42GV1F6

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU034
Part Status : Active
Type : Chip On Board (COB)
Color : White
CCT (K) : -
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2765 lm (Typ)
Current - Test : 720mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.7V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 1.44A
CRI (Color Rendering Index) : 94 (Typ)
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
44 in stock

CLU036-1206C1-273H5G3 CLU036-1206C1-273H5G3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU036
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2055 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 110 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
82 in stock

CLU036-1206C1-303M2G2 CLU036-1206C1-303M2G2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU036
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2592 lm (Typ)
Current - Test : 540mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
40 in stock
