Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

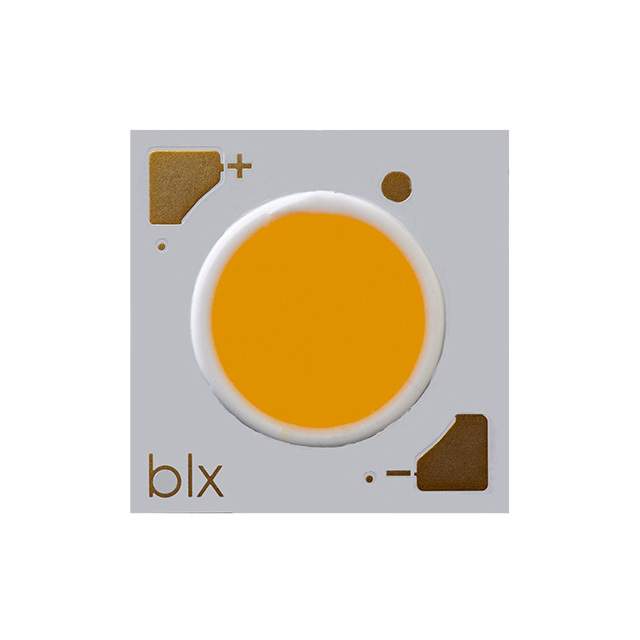

BXRH-40G3000-D-23 BXRH-40G3000-D-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : H9 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2802 lm (Typ)
Current - Test : 1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.1V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 90
Viewing Angle : 112°
Features : -
Size / Dimension : 15.85mm L x 15.85mm W
Height : 1.70mm
Light Emitting Surface (LES) : 9.50mm Diameter
Lens Type : Flat
0
100 in stock

BXRH-40G6000-G-23 BXRH-40G6000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : H12 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K (Typ) 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5636 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 36.6V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 2.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 112°
Features : -
Size / Dimension : 17.85mm L x 17.85mm W
Height : 1.70mm
Light Emitting Surface (LES) : 12.60mm Diameter
Lens Type : Flat
0
100 in stock

BXRH-40G8000-G-23 BXRH-40G8000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

BXRV-DR-1830H-1000-A-13 BXRV-DR-1830H-1000-A-13

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Vesta™
Part Status : Active
Color : White, Warm
CCT (K) : 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 570 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 17V
Lumens/Watt @ Current - Test : 96 lm/W
CRI (Color Rendering Index) : 95
Current - Max : 420mA
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 0.591" L x 0.472" W (15.00mm x 12.00mm)
Height - Seated (Max) : 0.065" (1.66mm)
0
684 in stock

BXRV-DR-1830H-1000-B-13 BXRV-DR-1830H-1000-B-13

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Vesta™
Part Status : Active
Color : White, Warm
CCT (K) : 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1150 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 33.8V
Lumens/Watt @ Current - Test : 97 lm/W
CRI (Color Rendering Index) : 95
Current - Max : 420mA
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 0.591" L x 0.472" W (15.00mm x 12.00mm)
Height - Seated (Max) : 0.065" (1.66mm)
0
100 in stock

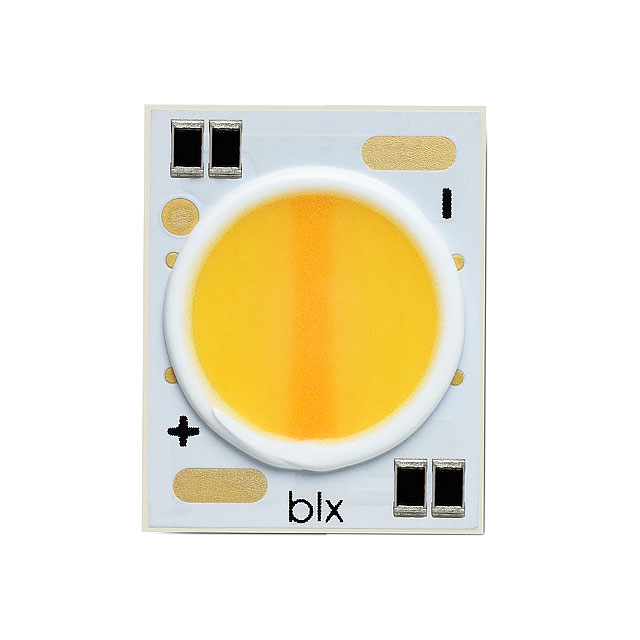

BXRV-DR-1830H-3000-A-13 BXRV-DR-1830H-3000-A-13

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Vesta™
Part Status : Active
Color : White, Warm
CCT (K) : 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 3300 lm (Typ)
Current - Test : 950mA
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 102 lm/W
CRI (Color Rendering Index) : 95
Current - Max : 1.05A
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 0.945" L x 0.787" W (24.00mm x 20.00mm)
Height - Seated (Max) : 0.065" (1.66mm)
0
100 in stock

BXRV-TR-2750G-1000-A-15 BXRV-TR-2750G-1000-A-15

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Vesta™
Part Status : Active
Color : White, Warm
CCT (K) : 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1300 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 18.1V
Lumens/Watt @ Current - Test : 103 lm/W
CRI (Color Rendering Index) : 90
Current - Max : 1.4A
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 0.624" L x 0.624" W (15.85mm x 15.85mm)
Height - Seated (Max) : 0.059" (1.49mm)
0
284 in stock

BXRV-TR-2750G-2000-A-15 BXRV-TR-2750G-2000-A-15

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Vesta™
Part Status : Active
Color : White, Warm
CCT (K) : 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 2600 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 36.3V
Lumens/Watt @ Current - Test : 103 lm/W
CRI (Color Rendering Index) : 90
Current - Max : 1.4A
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 0.740" L x 0.740" W (18.80mm x 18.80mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
100 in stock

OLMA-40C000-A01A-AA000 OLMA-40C000-A01A-AA000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : OLM™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2115 lm (Typ)
Current - Test : 350mA
Temperature - Test : 70°C
Voltage - Forward (Vf) (Typ) : 53V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 164.00mm L x 73.00mm W
Height : 27.00mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

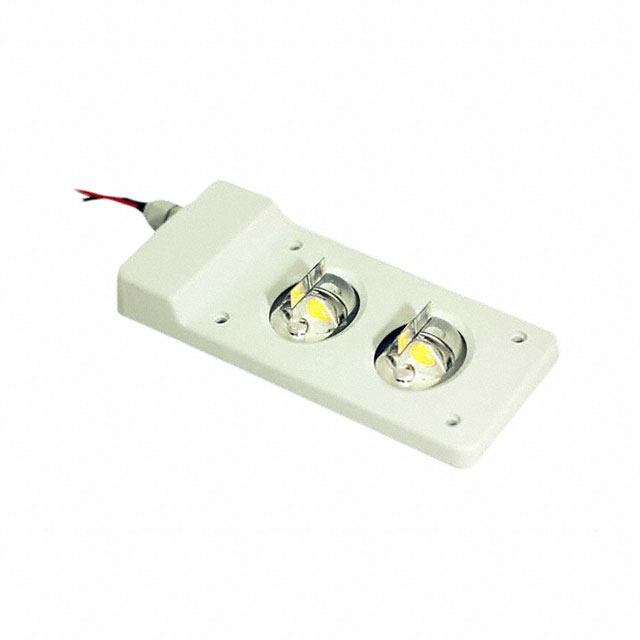

OLMA-40C000-A06A-AA000 OLMA-40C000-A06A-AA000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : OLM™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2115 lm (Typ)
Current - Test : 350mA
Temperature - Test : 70°C
Voltage - Forward (Vf) (Typ) : 53V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 164.00mm L x 73.00mm W
Height : 27.00mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

OLMA-40E000-A01A-AA000 OLMA-40E000-A01A-AA000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : OLM™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2022 lm (Typ)
Current - Test : 350mA
Temperature - Test : 70°C
Voltage - Forward (Vf) (Typ) : 53V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 164.00mm L x 73.00mm W
Height : 27.00mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

OLMA-40E000-A06A-AA000 OLMA-40E000-A06A-AA000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : OLM™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2022 lm (Typ)
Current - Test : 350mA
Temperature - Test : 70°C
Voltage - Forward (Vf) (Typ) : 53V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 164.00mm L x 73.00mm W
Height : 27.00mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
