Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXRH-35G6000-G-23 BXRH-35G6000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : H12 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K (Typ) 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5508 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 36.6V
Lumens/Watt @ Current - Test : 86 lm/W
Current - Max : 2.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 112°
Features : -
Size / Dimension : 17.85mm L x 17.85mm W
Height : 1.70mm
Light Emitting Surface (LES) : 12.60mm Diameter
Lens Type : Flat
0
100 in stock

BXRH-35G8000-G-23 BXRH-35G8000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

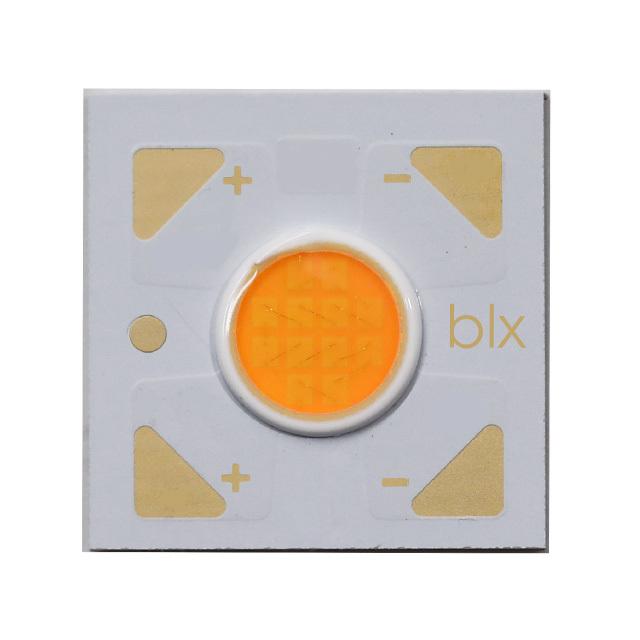

BXRH-40E0600-A-73 BXRH-40E0600-A-73

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Gen 7 V4 HD LED Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 700 lm (Typ)
Current - Test : 175mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.4V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 240mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 12.50mm L x 12.50mm W
Height : 1.63mm
Light Emitting Surface (LES) : 5.20mm Dia
Lens Type : Flat
0
590 in stock

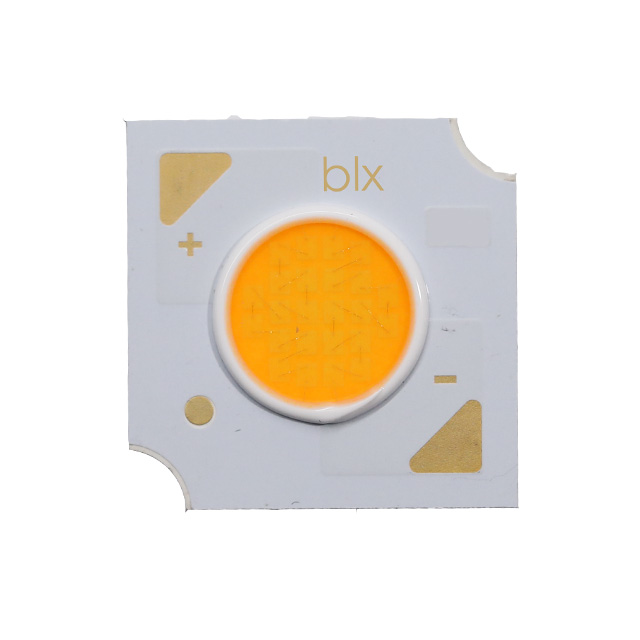

BXRH-40E1000-B-73 BXRH-40E1000-B-73

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Gen 7 V6 HD LED Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1452 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.4V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 480mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : 1.63mm
Light Emitting Surface (LES) : 7.00mm Dia
Lens Type : Flat
0
585 in stock

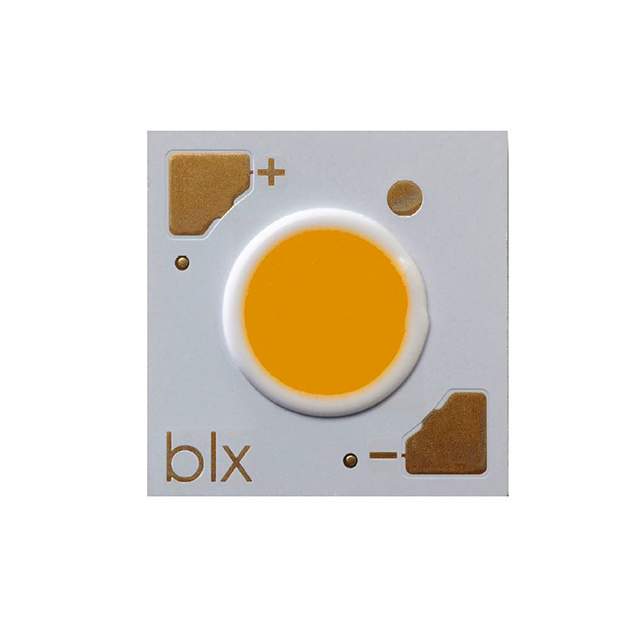

BXRH-40E1000-C-23 BXRH-40E1000-C-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : H Series
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1198 lm (Typ)
Current - Test : 750mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.7V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 80
Viewing Angle : 112°
Features : -
Size / Dimension : 13.35mm L x 13.35mm W
Height : 1.60mm
Light Emitting Surface (LES) : 6.40mm Diameter
Lens Type : Flat
0
120 in stock

BXRH-40E3000-D-23 BXRH-40E3000-D-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : H Series
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3159 lm (Typ)
Current - Test : 1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.1V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 93
Viewing Angle : 112°
Features : -
Size / Dimension : 15.85mm L x 15.85mm W
Height : 1.60mm
Light Emitting Surface (LES) : 9.30mm Diameter
Lens Type : Flat
0
187 in stock

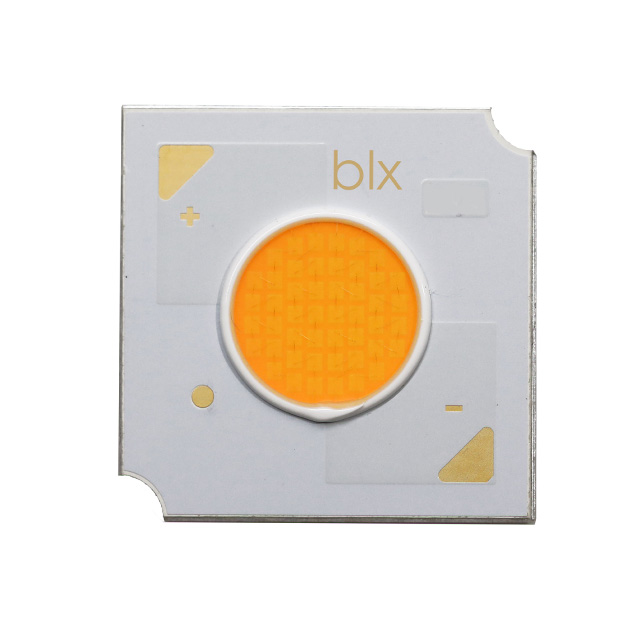

BXRH-40E3000-D-73 BXRH-40E3000-D-73

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : Gen 7 V9 HD Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3127 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.4V
Lumens/Watt @ Current - Test : 126 lm/W
Current - Max : 960mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.63mm
Light Emitting Surface (LES) : 9.20mm Dia
Lens Type : Flat
0
569 in stock

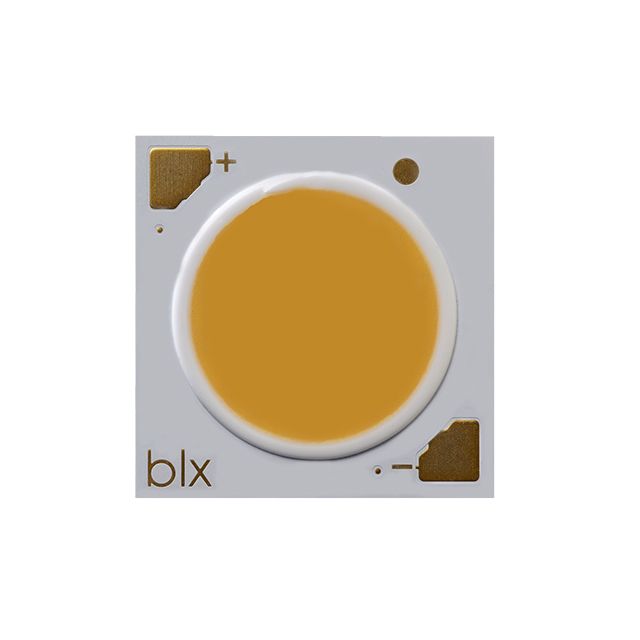

BXRH-40E6000-G-23 BXRH-40E6000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : H Series
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5492 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.9V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 2.45A
CRI (Color Rendering Index) : 80
Viewing Angle : 112°
Features : -
Size / Dimension : 17.85mm L x 17.85mm W
Height : 1.60mm
Light Emitting Surface (LES) : 12.40mm Diameter
Lens Type : Flat
0
100 in stock

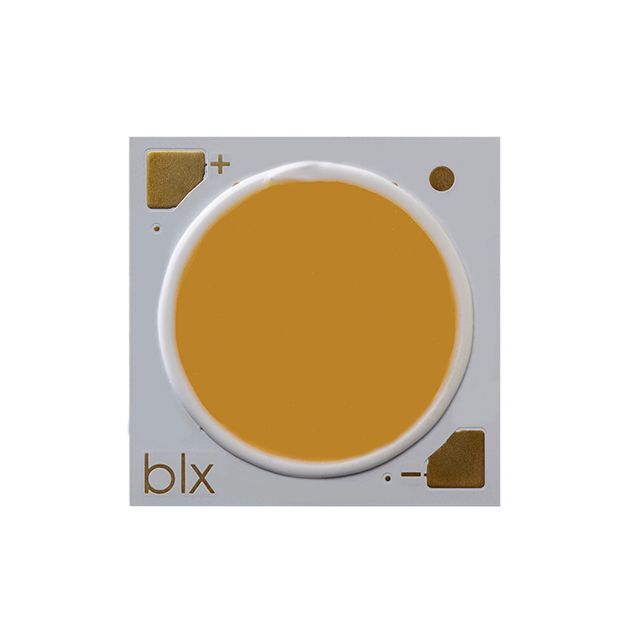

BXRH-40E8000-J-23 BXRH-40E8000-J-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tube
Series : H Series
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7789 lm (Typ)
Current - Test : 2.5A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.1V
Lumens/Watt @ Current - Test : 89 lm/W
Current - Max : 3.5A
CRI (Color Rendering Index) : 80
Viewing Angle : 112°
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.60mm
Light Emitting Surface (LES) : 14.90mm Diameter
Lens Type : Flat
0
100 in stock

BXRH-40EG6000-G-23 BXRH-40EG6000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

BXRH-40EG8000-G-23 BXRH-40EG8000-G-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

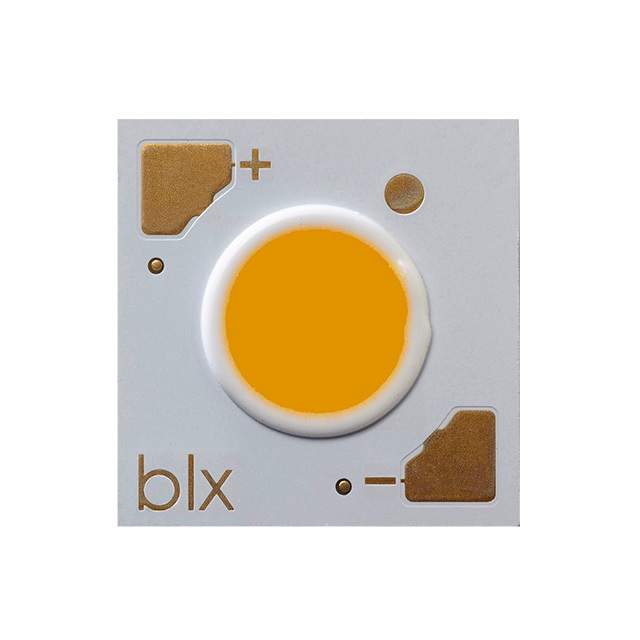

BXRH-40G1000-C-23 BXRH-40G1000-C-23

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : H6 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1051 lm (Typ)
Current - Test : 750mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 17.5V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 90
Viewing Angle : 112°
Features : -
Size / Dimension : 13.35mm L x 13.35mm W
Height : 1.70mm
Light Emitting Surface (LES) : 6.60mm Diameter
Lens Type : Flat
0
100 in stock
