- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXEB-L0280Z-30E1000-C-A3 BXEB-L0280Z-30E1000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1205 lm (Typ)
Current - Test : 350mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L0280Z-35E1000-C-A3 BXEB-L0280Z-35E1000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1205 lm (Typ)
Current - Test : 350mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
132 in stock

BXEB-L0280Z-35E1000-C-B3 BXEB-L0280Z-35E1000-C-B3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™Gen 2
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1195 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 19.5V
Lumens/Watt @ Current - Test : 175 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

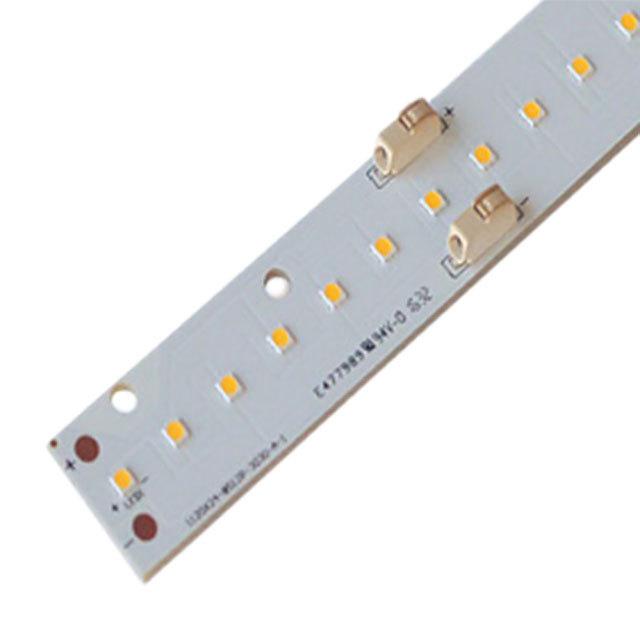

BXEB-L0280Z-40E1000-C-A3 BXEB-L0280Z-40E1000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1230 lm (Typ)
Current - Test : 350mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
10 in stock

BXEB-L0280Z-50E1000-C-A3 BXEB-L0280Z-50E1000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1230 lm (Typ)
Current - Test : 350mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L0280Z-50E1000-C-B3 BXEB-L0280Z-50E1000-C-B3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™Gen 2
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1230 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 19.5V
Lumens/Watt @ Current - Test : 180 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
335 in stock

BXEB-L0280Z-57E1000-C-A3 BXEB-L0280Z-57E1000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1230 lm (Typ)
Current - Test : 350mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 280.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L0560Z-30E2000-C-A3 BXEB-L0560Z-30E2000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2410 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L0560Z-35E2000-C-A3 BXEB-L0560Z-35E2000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2410 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L0560Z-35E2000-C-B3 BXEB-L0560Z-35E2000-C-B3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™Gen 2
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2390 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 19.5V
Lumens/Watt @ Current - Test : 175 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
762 in stock

BXEB-L0560Z-40E2000-C-A3 BXEB-L0560Z-40E2000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2460 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L0560Z-50E2000-C-A3 BXEB-L0560Z-50E2000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2460 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
