Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXEB-L0560Z-50E2000-C-B3 BXEB-L0560Z-50E2000-C-B3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™Gen 2
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2460 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 19.5V
Lumens/Watt @ Current - Test : 180 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
286 in stock

BXEB-L0560Z-57E2000-C-A3 BXEB-L0560Z-57E2000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2460 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.1V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 560.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

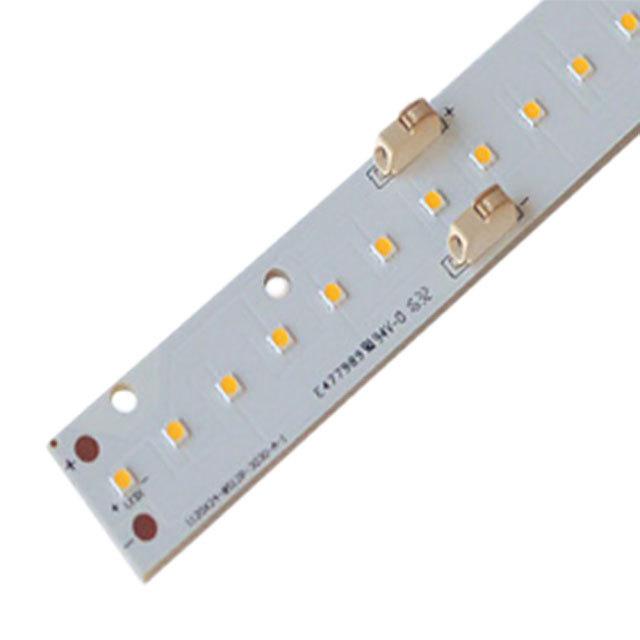

BXEB-L1120Z-30E4000-C-A3 BXEB-L1120Z-30E4000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4820 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 44.2V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L1120Z-35E4000-C-A3 BXEB-L1120Z-35E4000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4820 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 44.2V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L1120Z-35E4000-C-B3 BXEB-L1120Z-35E4000-C-B3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™Gen 2
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4780 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 39V
Lumens/Watt @ Current - Test : 175 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
87 in stock

BXEB-L1120Z-40E4000-C-A3 BXEB-L1120Z-40E4000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4920 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 44.2V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L1120Z-50E4000-C-A3 BXEB-L1120Z-50E4000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4920 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 44.2V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-L1120Z-50E4000-C-B3 BXEB-L1120Z-50E4000-C-B3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™Gen 2
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4920 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 39V
Lumens/Watt @ Current - Test : 180 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
59 in stock

BXEB-L1120Z-57E4000-C-A3 BXEB-L1120Z-57E4000-C-A3

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : EB Series™
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 4920 lm (Typ)
Current - Test : 700mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 44.2V
Lumens/Watt @ Current - Test : 159 lm/W
Current - Max : 1.4A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1120.00mm L x 24.00mm W
Height : 6.1mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

BXEB-TL-2750G-1000-A-13 BXEB-TL-2750G-1000-A-13

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vesta™
Part Status : Active
Type : LED Module
Color : White, Warm / White, Cool
CCT (K) : 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1596 lm (Typ), 1676 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 129 lm/W, 135 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 280.00mm L x 31.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
381 in stock

BXEB-TL-2750G-3000-A-13 BXEB-TL-2750G-3000-A-13

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vesta™
Part Status : Active
Type : LED Module
Color : White, Warm / White, Cool
CCT (K) : 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 3192 lm (Typ), 3352 lm (Typ)
Current - Test : 1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 129 lm/W, 135 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 560.00mm L x 31.00mm W
Height : 6.10mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
453 in stock

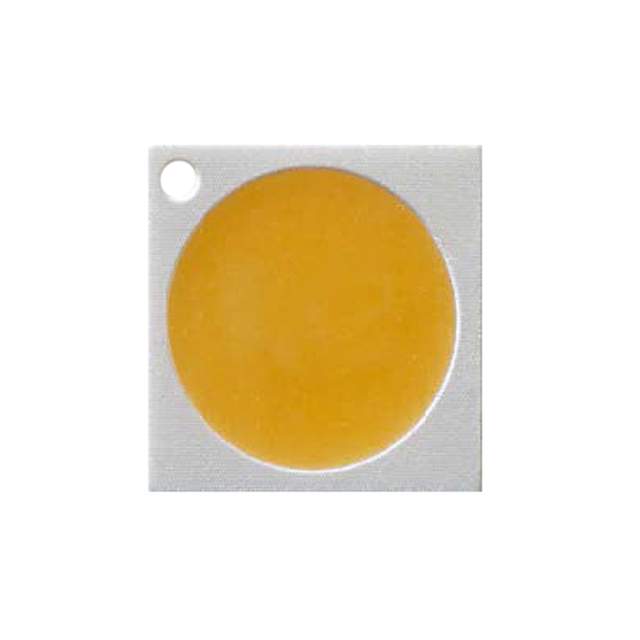

BXEM-27E0000-0-000 BXEM-27E0000-0-000

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3030
Part Status : Active
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : 99 lm (Typ)
Flux @ 25°C, Current - Test : -
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 6V
Lumens/Watt @ Current - Test : 110 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 240mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : 3030
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.024" (0.62mm)
0
4942 in stock
