Alpha Wire

- Alpha Wire designs and manufactures wire, cable, tubing, and accessories for a broad range of applications and markets to help customers solve critical production and manufacturing challenges. Combining the highest quality with legendary customer service, Alpha products mean peace of mind. Alpha Wire’s flagship line of Xtra-Guard® High-Performance cables offer superior performance in demanding environments, while the new EcoGen™ product line offers an environmentally friendly alternative to traditional PVC wire and cable. Alpha FIT® line of heat-shrink tubing and wire management offers reliable ways to seal and protect electrical and electronic wiring. With 12 product families encompassing more than 50,000 products available worldwide, Alpha is dedicated to providing the right product for every application.

Part Number
Manufacturer
Description
Unit Price
In Stock

2930 GR005  2930 GR005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 30 AWG
Conductor Strand : 7/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.020" (0.51mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Green
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
22 in stock

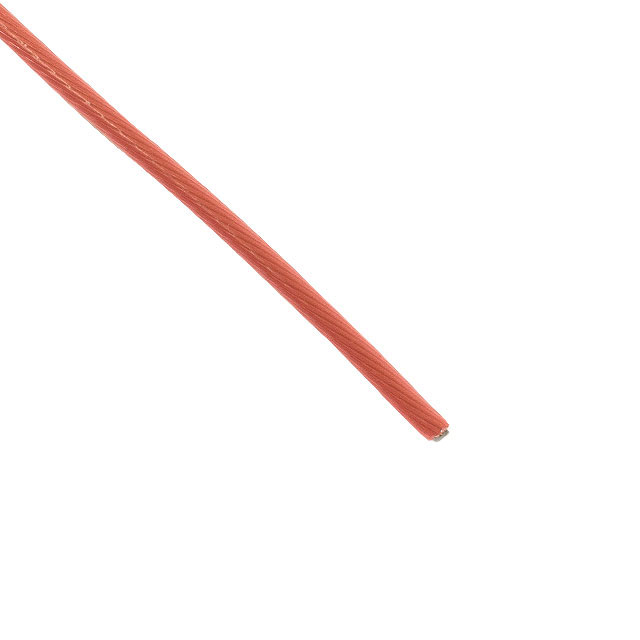

2930 RD005  2930 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 30 AWG
Conductor Strand : 7/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.020" (0.51mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Red
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
45 in stock

2930 WH005  2930 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 30 AWG
Conductor Strand : 7/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.020" (0.51mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : White
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
20 in stock

2932 BK005  2932 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 32 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.016" (0.41mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Black
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
32 in stock

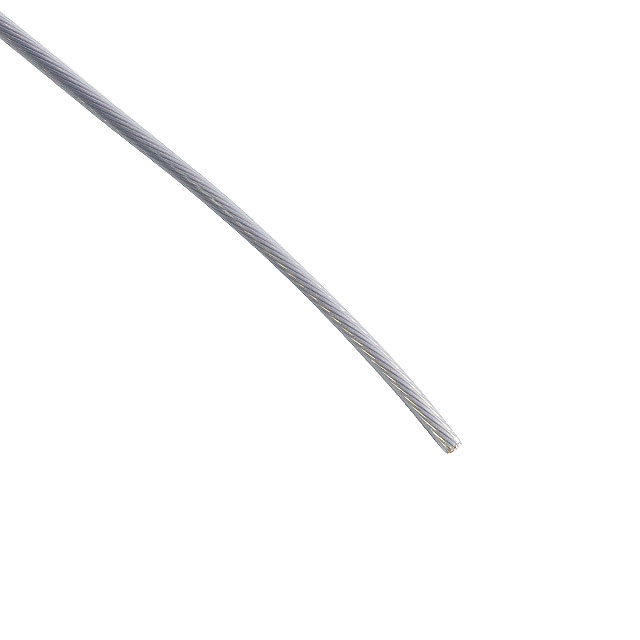

2932 BL005  2932 BL005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 32 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.016" (0.41mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Blue
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
23 in stock

2932 GR005  2932 GR005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 32 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.016" (0.41mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Green
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
31 in stock

2932 RD005  2932 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 32 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.016" (0.41mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Red
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
24 in stock

2932 WH005  2932 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 32 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.016" (0.41mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : White
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
29 in stock

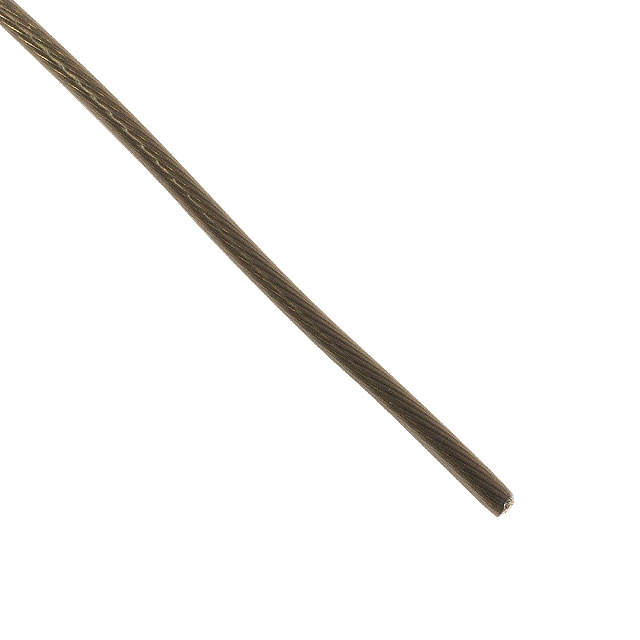

2934 BK005  2934 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 34 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.014" (0.36mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Black
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
26 in stock

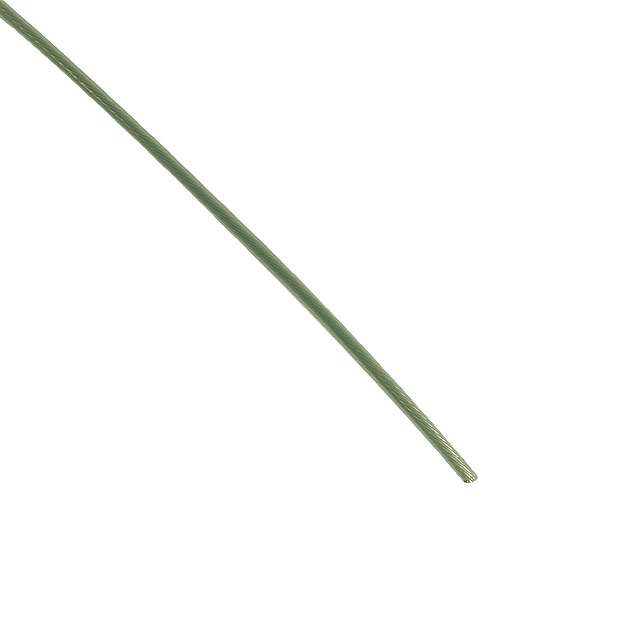

2934 GR005  2934 GR005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 34 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.014" (0.36mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Green
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
13 in stock

2934 RD005  2934 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 34 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.014" (0.36mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Red
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
48 in stock

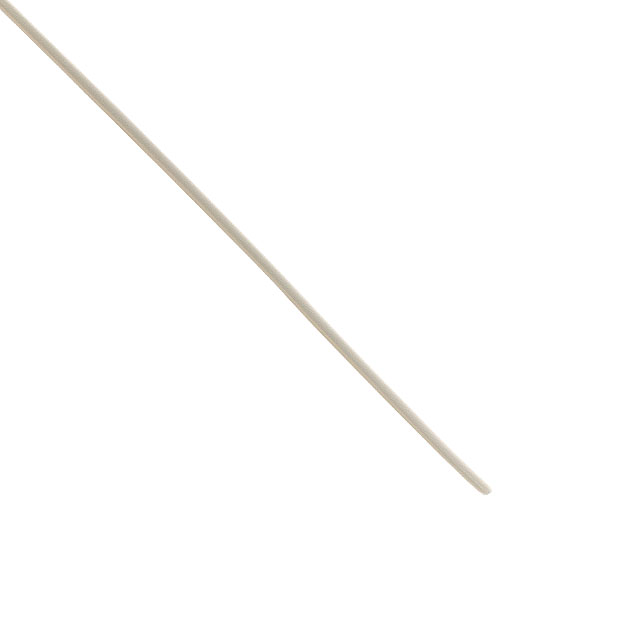

2934 WH005  2934 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 34 AWG
Conductor Strand : Solid
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.014" (0.36mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : White
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
24 in stock
