Alpha Wire

- Alpha Wire designs and manufactures wire, cable, tubing, and accessories for a broad range of applications and markets to help customers solve critical production and manufacturing challenges. Combining the highest quality with legendary customer service, Alpha products mean peace of mind. Alpha Wire’s flagship line of Xtra-Guard® High-Performance cables offer superior performance in demanding environments, while the new EcoGen™ product line offers an environmentally friendly alternative to traditional PVC wire and cable. Alpha FIT® line of heat-shrink tubing and wire management offers reliable ways to seal and protect electrical and electronic wiring. With 12 product families encompassing more than 50,000 products available worldwide, Alpha is dedicated to providing the right product for every application.

Part Number
Manufacturer
Description
Unit Price
In Stock

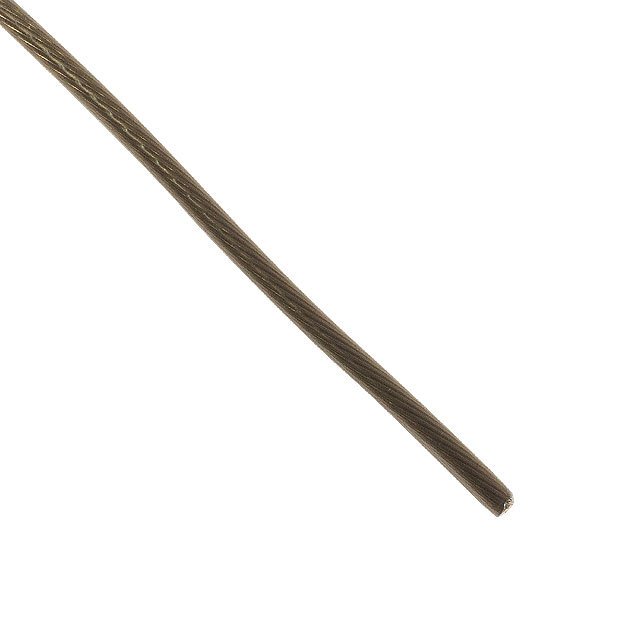

2924 BK005  2924 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 24 AWG
Conductor Strand : 19/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.035" (0.89mm)
Jacket (Insulation) Thickness : 0.006" (0.15mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Black
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
23 in stock

2924 RD005  2924 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 24 AWG
Conductor Strand : 19/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.035" (0.89mm)
Jacket (Insulation) Thickness : 0.006" (0.15mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Red
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
33 in stock

2926 BK005  2926 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 19/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.030" (0.76mm)
Jacket (Insulation) Thickness : 0.006" (0.15mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Black
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
14 in stock

2926 WH005  2926 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 19/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.030" (0.76mm)
Jacket (Insulation) Thickness : 0.006" (0.15mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : White
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
31 in stock

2928 BK005  2928 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.023" (0.58mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Black
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
29 in stock

2928 BL005  2928 BL005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.023" (0.58mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Blue
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
25 in stock

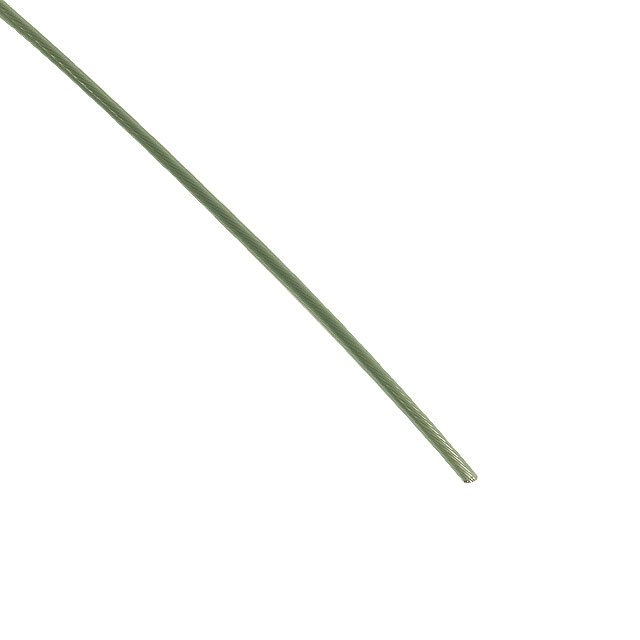

2928 GR005  2928 GR005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.023" (0.58mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Green
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
30 in stock

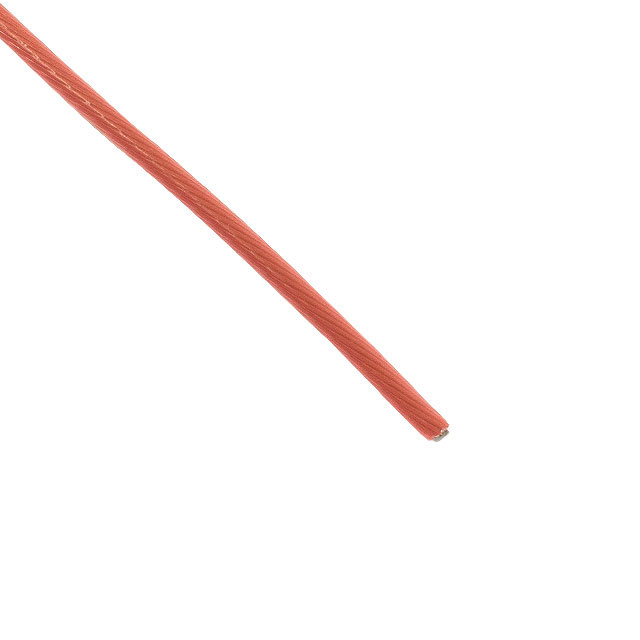

2928 RD005  2928 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.023" (0.58mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Red
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
33 in stock

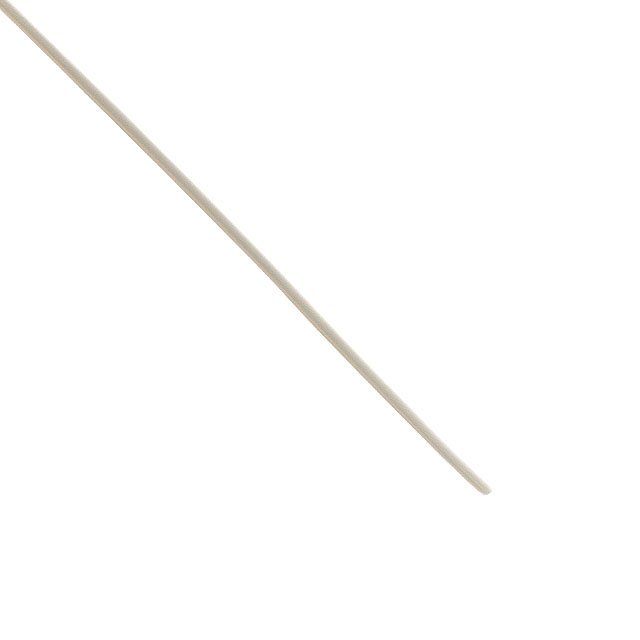

2928 WH005  2928 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.023" (0.58mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : White
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
49 in stock

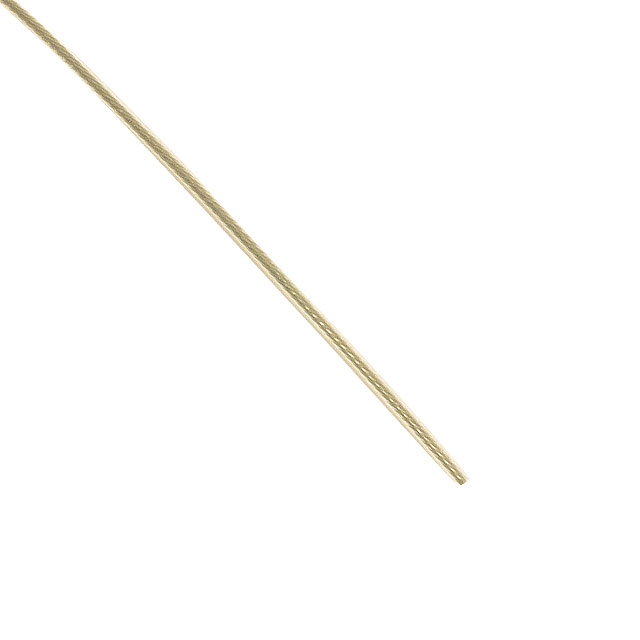

2928 YL005  2928 YL005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.023" (0.58mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Yellow
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
34 in stock

2930 BK005  2930 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 30 AWG
Conductor Strand : 7/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.020" (0.51mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Black
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
71 in stock

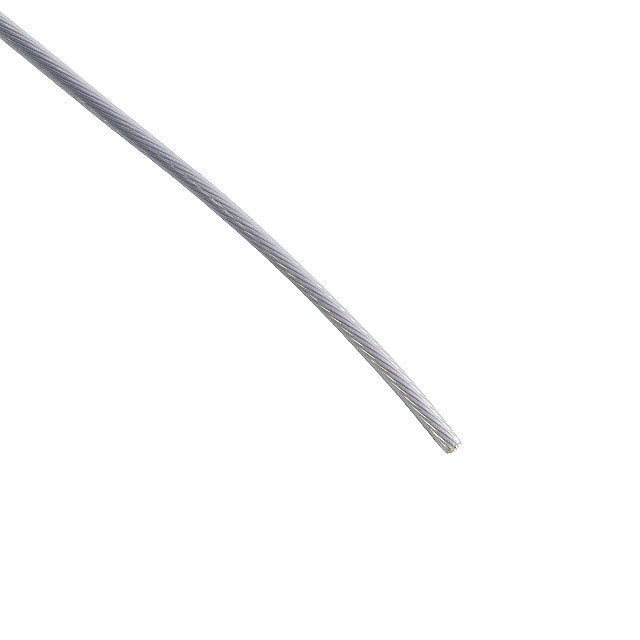

2930 BL005  2930 BL005

Alpha Wire
Manufacturer : Alpha Wire
Series : ThermoThin
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 30 AWG
Conductor Strand : 7/38
Conductor Material : Copper, Nickel Coated
Jacket (Insulation) Material : Fluoropolymer
Jacket (Insulation) Diameter : 0.020" (0.51mm)
Jacket (Insulation) Thickness : 0.004" (0.09mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -150°C ~ 300°C
Jacket Color : Blue
Ratings : UL Style 11540
Features : Chemical Resistant, High Temperature, UV Resistant
0
19 in stock
