Alarms, Buzzers, and Sirens Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

AT-3311-TF-LW110-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 30V
Frequency : 1.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 10cm
Current - Supply : 5mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.358" Dia (34.50mm)
Height - Seated (Max) : 0.374" (9.50mm)

100 in stock

AT-3320-TT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 3 ~ 24V
Frequency : 2kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 8mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.200" Dia (30.50mm)
Height - Seated (Max) : 0.315" (8.00mm)

100 in stock

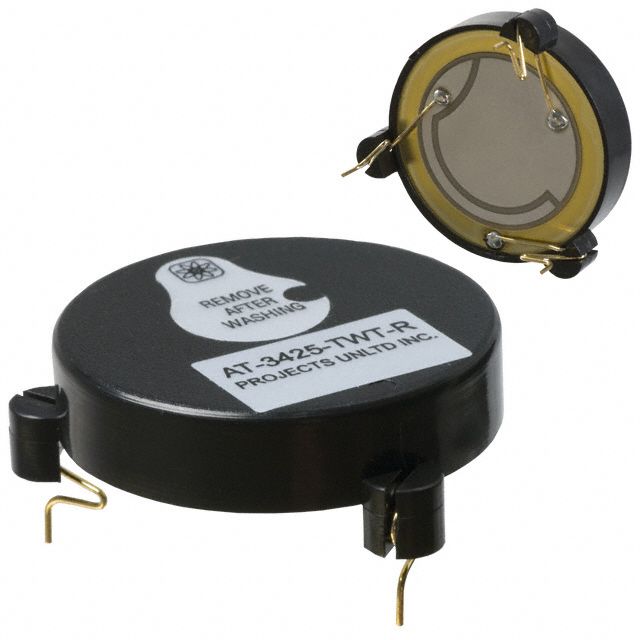

AT-3425-TWT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 3 ~ 28V
Frequency : 2.5kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 7mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.323" Dia (33.60mm)
Height - Seated (Max) : 0.606" (15.40mm)

955 in stock

AT-3934-TT-CS-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 9V
Voltage Range : 6 ~ 18V
Frequency : 3.4kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 92dB @ 9V, 10cm
Current - Supply : 20mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.535" Dia (39.00mm)
Height - Seated (Max) : 0.807" (20.50mm)

100 in stock

AT-4032-TT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : -
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 1 ~ 60V
Frequency : 3.25kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 100dB @ 12V, 10cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 80°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 0.433" (11.00mm)

75 in stock

AT-4228-TF-LW145

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.646" Dia (41.80mm)
Height - Seated (Max) : 0.630" (16.00mm)

100 in stock

AT-4228-TF-LW145-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 30V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 5V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.646" Dia (41.80mm)
Height - Seated (Max) : 0.650" (16.50mm)

100 in stock

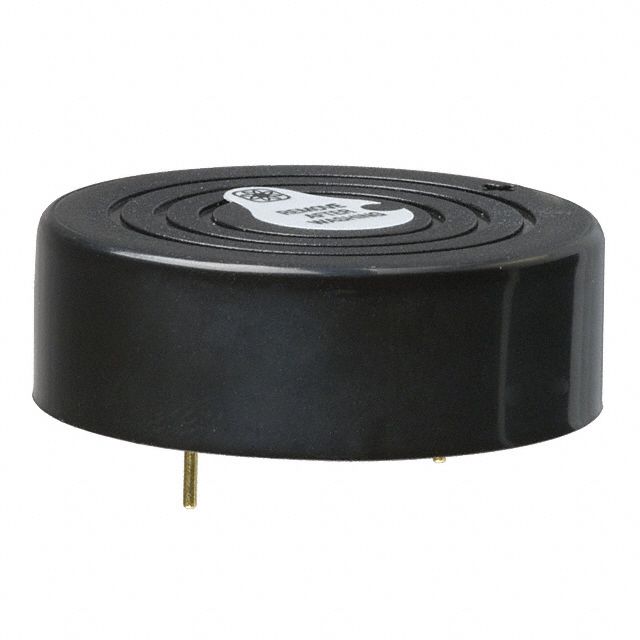

AT-4228-TWT-F-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 3 ~ 28V
Frequency : 2.8kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 92dB @ 12V, 10cm
Current - Supply : 7mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.571" (14.50mm)

6750 in stock

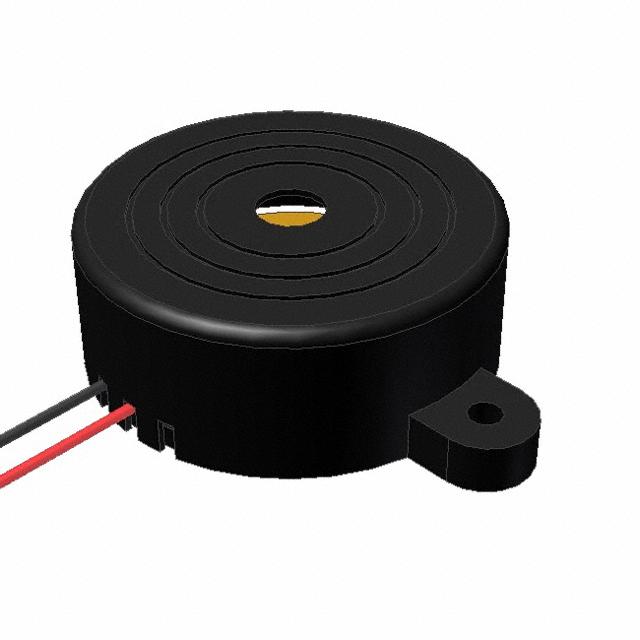

AT-4230-TF-LW135-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 1 ~ 30V
Frequency : 3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 96dB @ 10V, 10cm
Current - Supply : 9mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.646" Dia (41.80mm)
Height - Seated (Max) : 0.650" (16.50mm)

3017 in stock

AT-4328-P-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 1 ~ 20V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.693" Dia (43.00mm)
Height - Seated (Max) : 1.319" (33.50mm)

100 in stock

AT-5010

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 1kHz
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

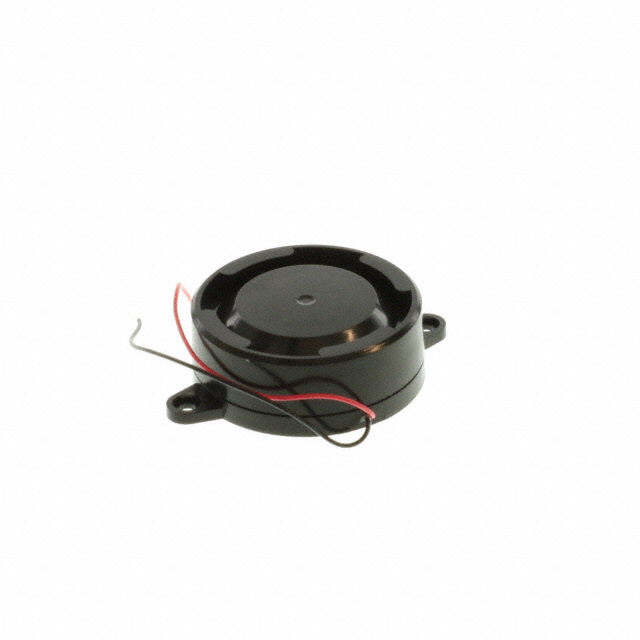

AT-5030-TF-2-LW100-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : -
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 24V
Voltage Range : -
Frequency : 3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 106dB @ 24V, 30cm
Current - Supply : 12mA
Port Location : Top
Operating Temperature : -20°C ~ 80°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.709" (18.00mm)

47 in stock
