Alarms, Buzzers, and Sirens Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

AT-2510-TWT-2-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : -
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 8 ~ 14V
Frequency : 1kHz ~ 1.5kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 55mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 0.492" (12.50mm)

90 in stock

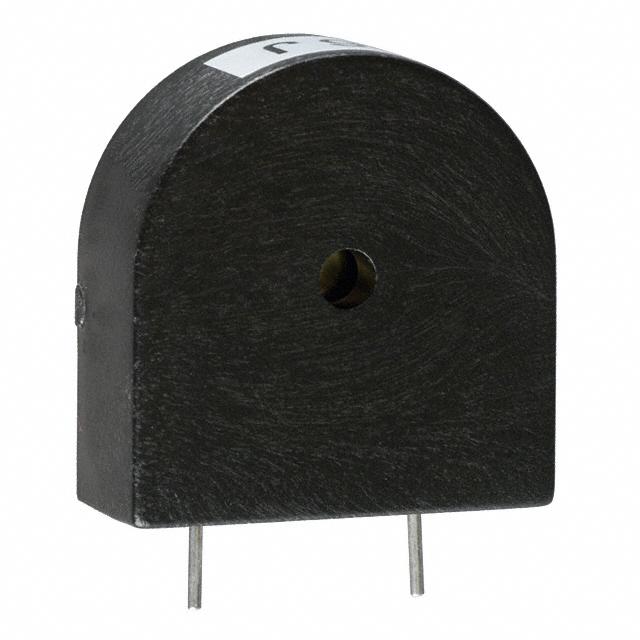

AT-2532-ST-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 5 ~ 24V
Frequency : 3.2kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 10V, 10cm
Current - Supply : 10mA
Port Location : Side
Operating Temperature : -30°C ~ 115°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.945" L x 0.394" W (24.00mm x 10.00mm)
Height - Seated (Max) : 1.004" (25.50mm)

100 in stock

AT-2720-ST-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 25V
Frequency : 2kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 1mA
Port Location : Side
Operating Temperature : -40°C ~ 125°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.866" L x 0.276" W (22.00mm x 7.00mm)
Height - Seated (Max) : 1.063" (27.00mm)

100 in stock

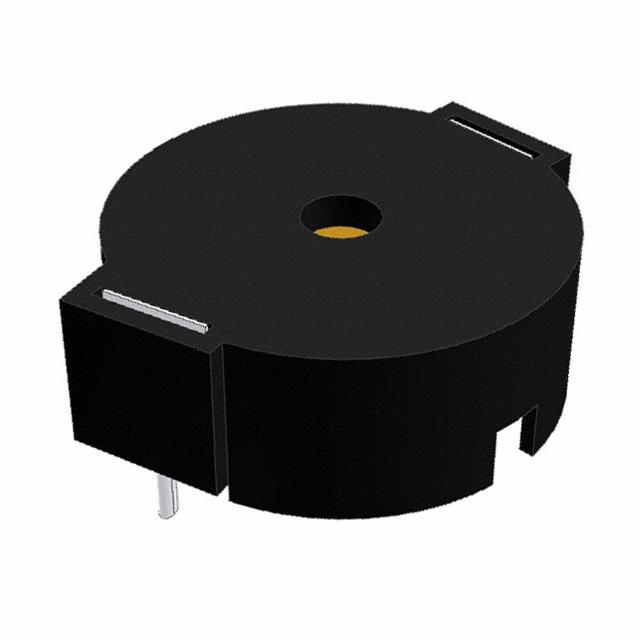

AT-2720-TT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 1 ~ 30V
Frequency : 2.048kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 88dB @ 10V, 10cm
Current - Supply : 3.5mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.043" L x 0.906" W (26.50mm x 23.00mm)
Height - Seated (Max) : 0.374" (9.50mm)

3547 in stock

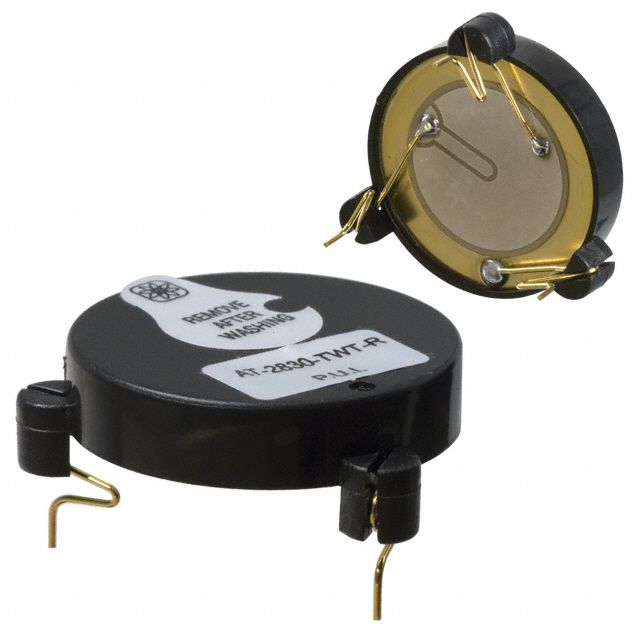

AT-2830-TWT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 3 ~ 28V
Frequency : 3kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 93dB @ 12V, 10cm
Current - Supply : 8mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.122" Dia (28.50mm)
Height - Seated (Max) : 0.520" (13.20mm)

6135 in stock

AT-3035

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : -
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

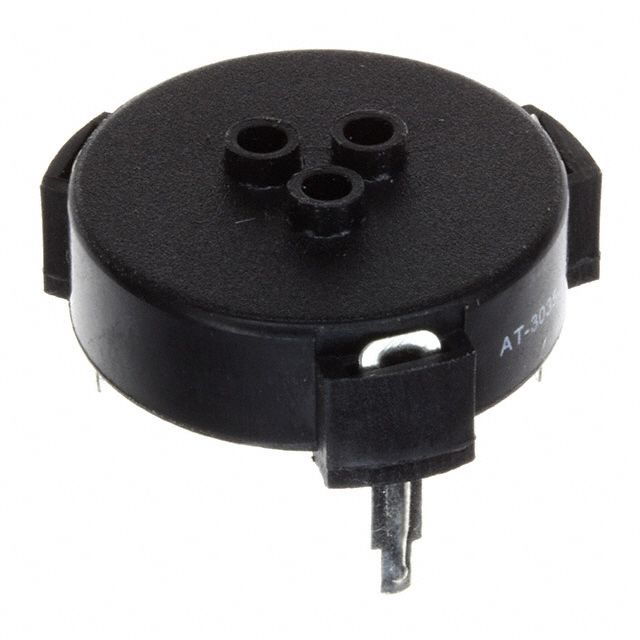

AT-3035-TT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : -
Frequency : 3.5kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 12V, 10cm
Current - Supply : 12mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.492" (12.50mm)

100 in stock

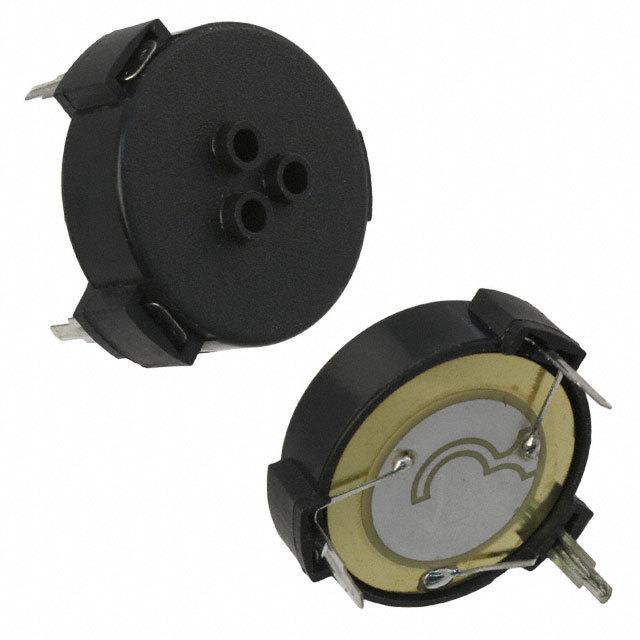

AT-3037-TT-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 3 ~ 18V
Frequency : 3.7kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 12V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.417" (10.60mm)

100 in stock

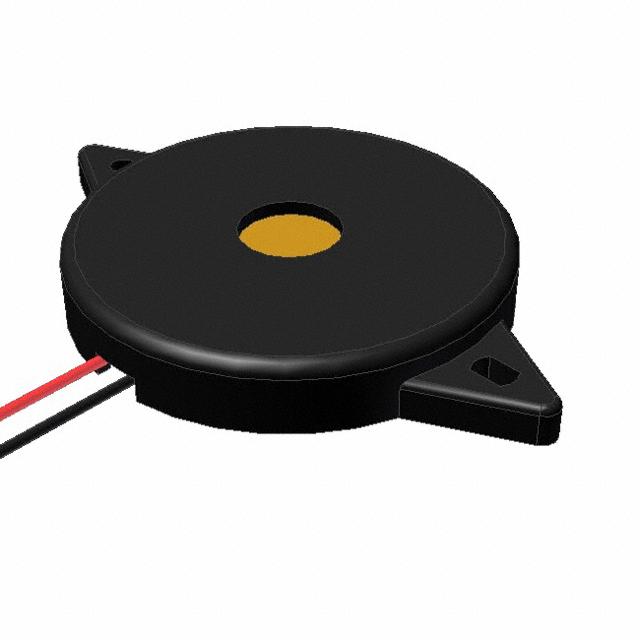

AT-3045-TF-LW110-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 1 ~ 50V
Frequency : 4.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 97dB @ 10V, 10cm
Current - Supply : 11mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.220" (5.60mm)

5222 in stock

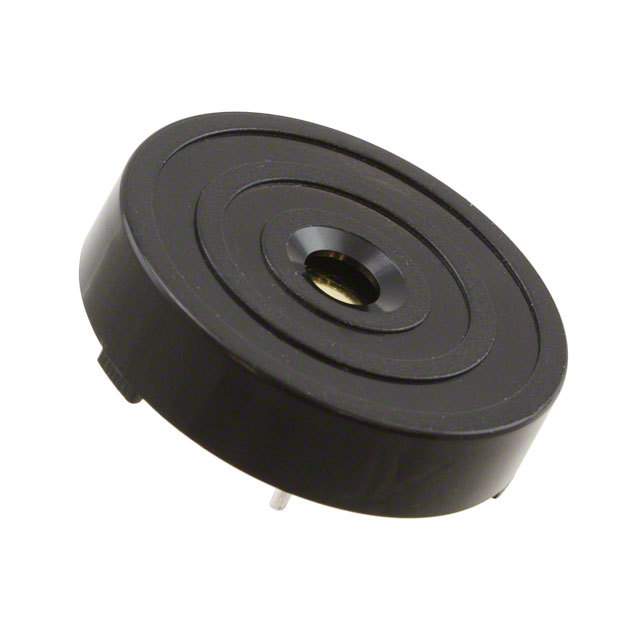

AT-3046-TWT-2-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 10V
Voltage Range : 1 ~ 30V
Frequency : 4.6kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 10V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.315" (8.00mm)

100 in stock

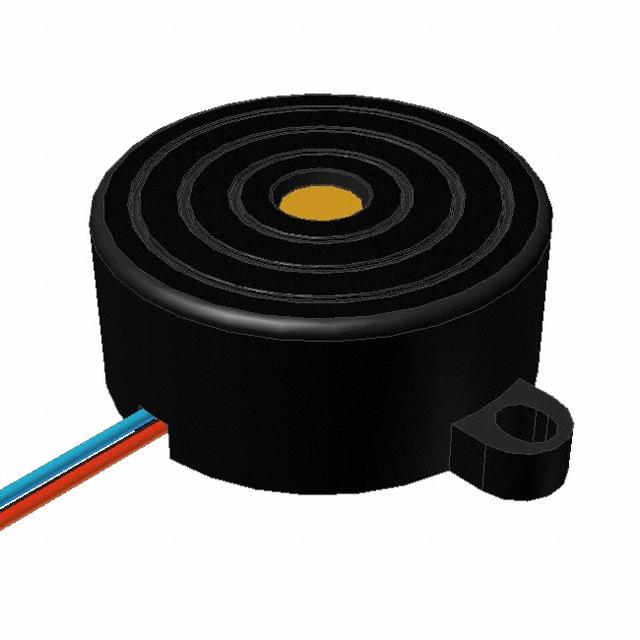

AT-3237-TF-LW140-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 3 ~ 28V
Frequency : 3.7kHz
Technology : Piezo (with Feedback)
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 98dB @ 12V, 10cm
Current - Supply : 7mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" Dia (32.00mm)
Height - Seated (Max) : 0.551" (14.00mm)

162 in stock

AT-33

PUI Audio, Inc.

100 in stock
