Part Number

Manufacturer

Description

Unit Price

In Stock

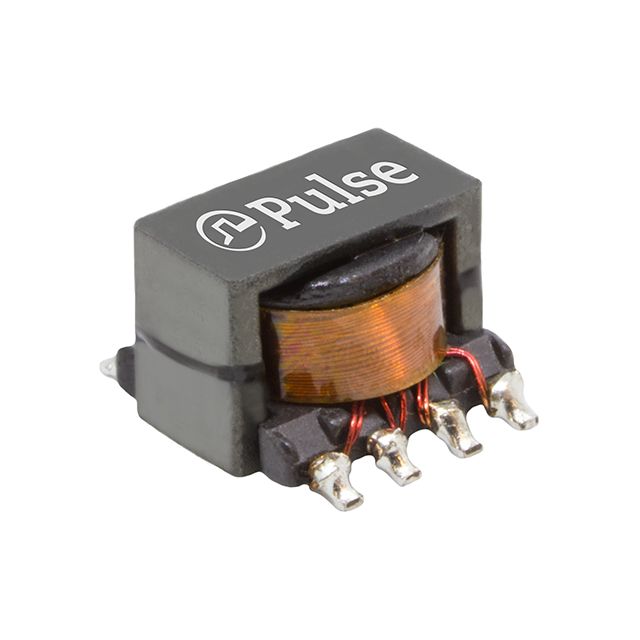

PA4470.005NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : 10V @ 50mA
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : 200kHz
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.236" (6.00mm)
Footprint : 0.315" L x 0.374" W (8.00mm x 9.50mm)
Style : -

100 in stock

PCA11/5ER-U01S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 193µH @ 10kHz, Series 6.9mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U02S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 85.8µH @ 10kHz, Series 3.1mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U03S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 27.4µH @ 10kHz, Series 985µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U04S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 12.2µH @ 10kHz, Series 438µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U05S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 14.7µH @ 10kHz, Series 529µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U06S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 6.5µH @ 10kHz, Series 235µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U07S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 10.9µH @ 10kHz, Series 394µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

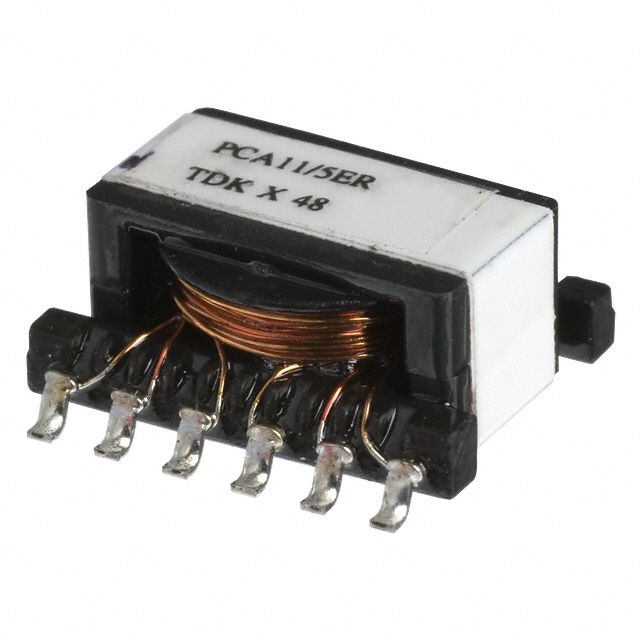

PCA11/5ER-U08S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 4.9µH @ 10kHz, Series 175µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

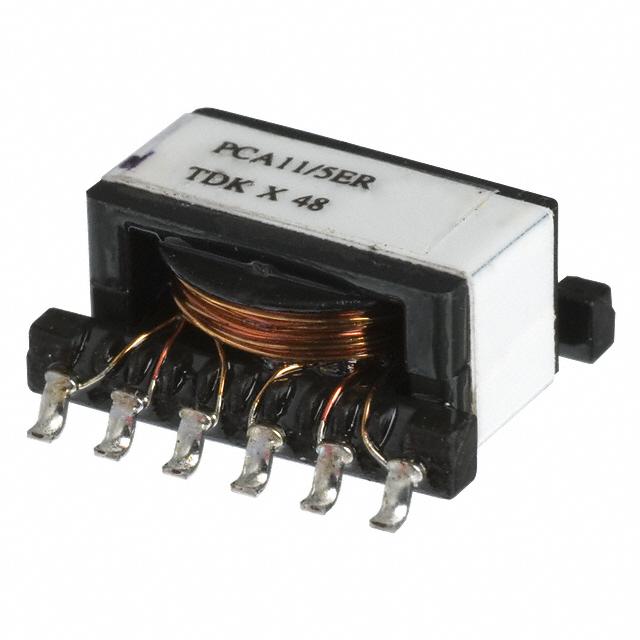

PCA11/5ER-U09S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 8.5µH @ 10kHz, Series 306µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

PCA11/5ER-U10S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA11/5ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 3.8µH @ 10kHz, Series 136µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.535" L x 0.362" W (13.60mm x 9.20mm)
Height - Seated (Max) : 0.256" (6.50mm)
Footprint : 0.535" L x 0.512" W (13.60mm x 13.00mm)
Style : -

100 in stock

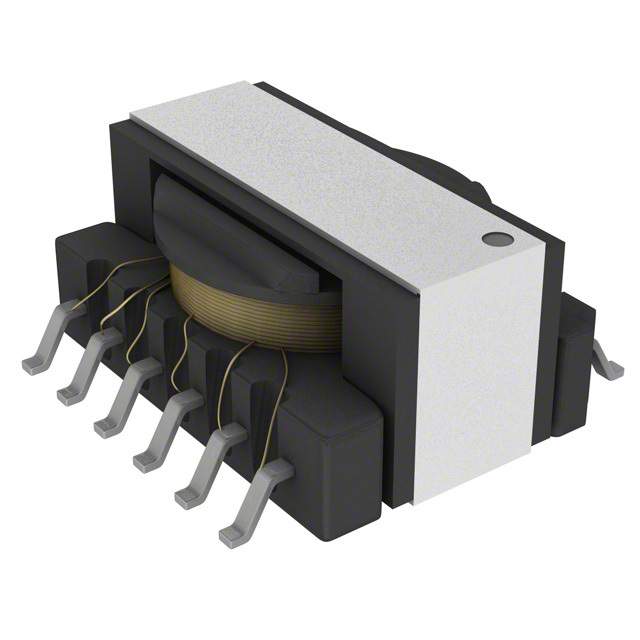

PCA14.5/6ER-U01S002

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Tray
Series : PCA14.5/6ER
Part Status : Obsolete
Type : Configurable (For DC/DC)
Applications : Capacitor Charger
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : Parallel 160µH @ 10kHz, Series 5.8mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.642" L x 0.472" W (16.30mm x 12.00mm)
Height - Seated (Max) : 0.307" (7.80mm)
Footprint : 0.642" L x 0.661" W (16.30mm x 16.80mm)
Style : -

100 in stock
