Part Number

Manufacturer

Description

Unit Price

In Stock

760895731

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-LLCR
Part Status : Active
Type : For AC/DC Converters
Applications : Resonant Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 360 ~ 400V
Voltage - Auxiliary : -
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 475µH @ 100kHz
Frequency : 70 ~ 120kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.811" L x 1.890" W (46.00mm x 48.00mm)
Height - Seated (Max) : 1.083" (27.50mm)
Footprint : 1.811" L x 1.890" W (46.00mm x 48.00mm)
Style : -

0

100 in stock

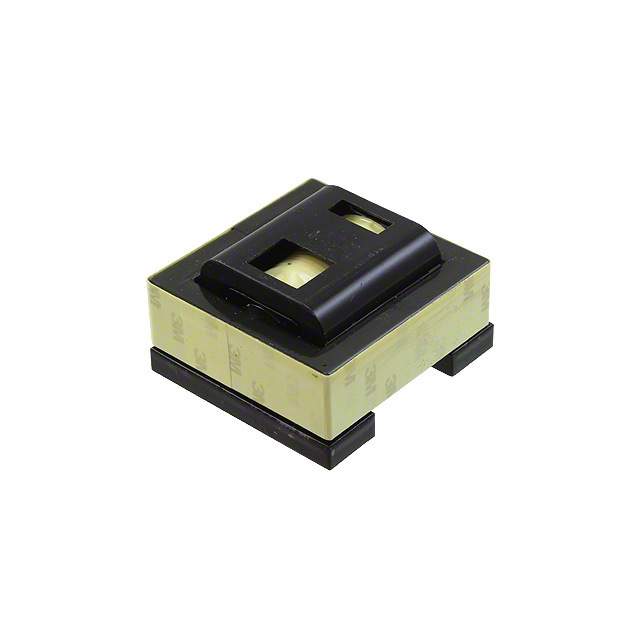

760895751

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-LLCR
Part Status : Active
Type : For AC/DC Converters
Applications : Resonant Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 360 ~ 400V
Voltage - Auxiliary : -
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 400µH @ 100kHz
Frequency : 70 ~ 120kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.811" L x 1.890" W (46.00mm x 48.00mm)
Height - Seated (Max) : 1.083" (27.50mm)
Footprint : 1.811" L x 1.890" W (46.00mm x 48.00mm)
Style : -

0

24 in stock

B78304B1031A003

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B78304B
Part Status : Active
Type : For DC/DC Converters
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : 1mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.315" L x 0.276" W (8.00mm x 7.00mm)
Height - Seated (Max) : 0.224" (5.70mm)
Footprint : 0.315" L x 0.374" W (8.00mm x 9.50mm)
Style : -

0

754 in stock

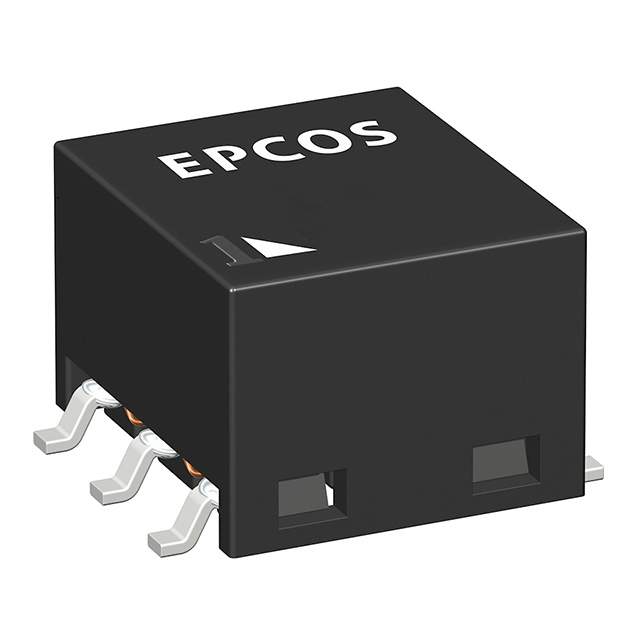

B78304B1032A003

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B78304B
Part Status : Active
Type : For DC/DC Converters
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : 10mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.315" L x 0.276" W (8.00mm x 7.00mm)
Height - Seated (Max) : 0.224" (5.70mm)
Footprint : 0.315" L x 0.374" W (8.00mm x 9.50mm)
Style : -

0

1452 in stock

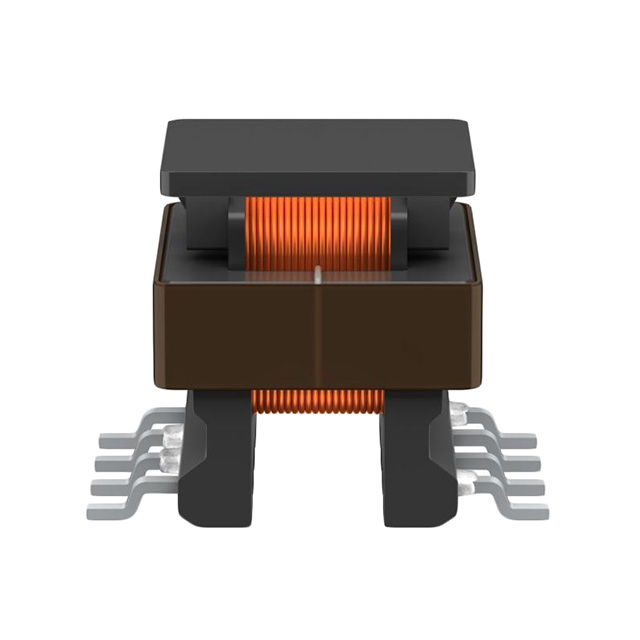

B78307A2276A003

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : 100µH @ 50kHz
Frequency : 100 ~ 400kHz
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -

0

559 in stock

B78334B1033A003

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -

0

600 in stock

B78334B1034A003

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : For DC/DC Converters
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 1000Vrms
Inductance @ Frequency : 1.08mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.535" W (12.00mm x 13.60mm)
Height - Seated (Max) : 0.252" (6.40mm)
Footprint : 0.480" L x 0.535" W (12.20mm x 13.60mm)
Style : -

0

497 in stock

B82802A0012A215

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B82802A
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 36 ~ 60V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 100µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.650" L x 0.681" W (16.50mm x 17.30mm)
Height - Seated (Max) : 0.341" (8.65mm)
Footprint : 0.650" L x 0.902" W (16.50mm x 22.90mm)
Style : -

0

1671 in stock

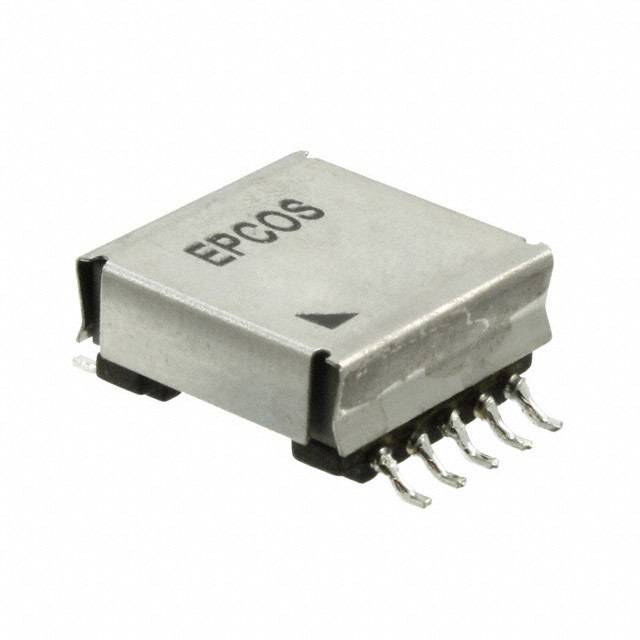

B82802A0012A315

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B82802A
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 36 ~ 60V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 100µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.650" L x 0.681" W (16.50mm x 17.30mm)
Height - Seated (Max) : 0.341" (8.65mm)
Footprint : 0.650" L x 0.902" W (16.50mm x 22.90mm)
Style : -

0

486 in stock

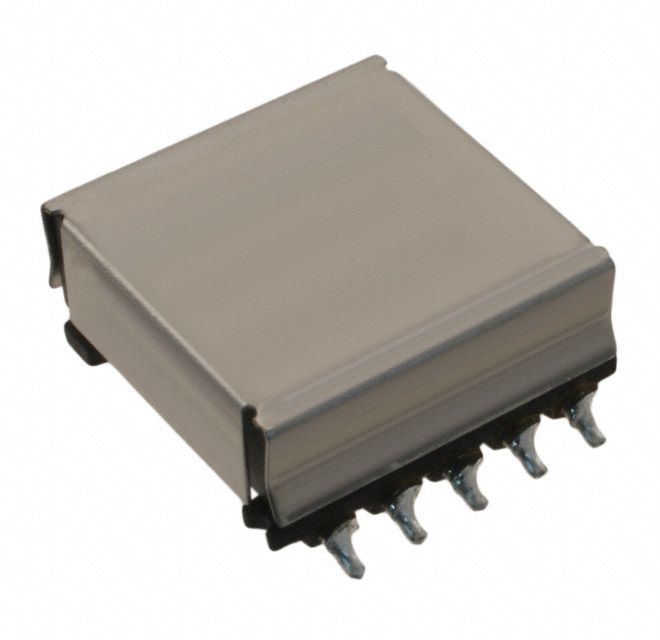

B82802A0030A220

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B82802A
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 36 ~ 60V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 40µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.866" L x 0.878" W (22.00mm x 22.30mm)
Height - Seated (Max) : 0.421" (10.70mm)
Footprint : 0.866" L x 1.035" W (22.00mm x 26.30mm)
Style : -

0

100 in stock

B82802A0030A320

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B82802A
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 36 ~ 60V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 40µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.866" L x 0.878" W (22.00mm x 22.30mm)
Height - Seated (Max) : 0.421" (10.70mm)
Footprint : 0.866" L x 1.035" W (22.00mm x 26.30mm)
Style : -

0

100 in stock

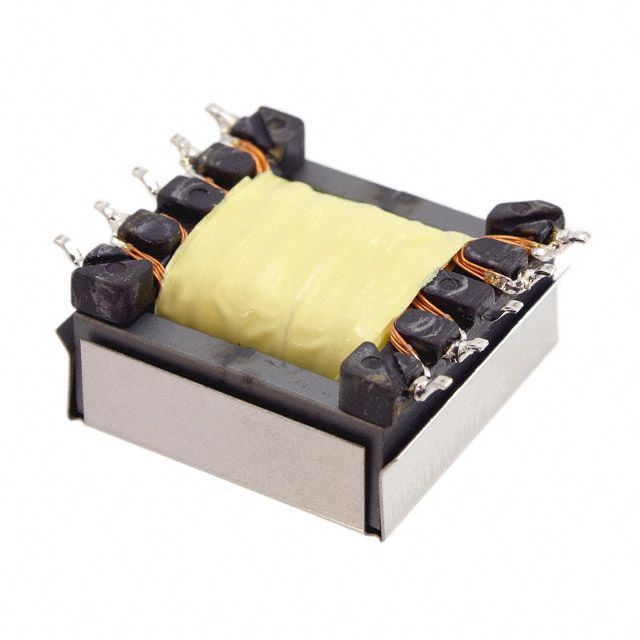

B82802A0055A225

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : B82802A
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 36 ~ 60V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 22µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.583" (14.80mm)
Footprint : 1.063" L x 1.283" W (27.00mm x 32.60mm)
Style : -

0

100 in stock
