- Transformers
- Switching Converter, SMPS Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock

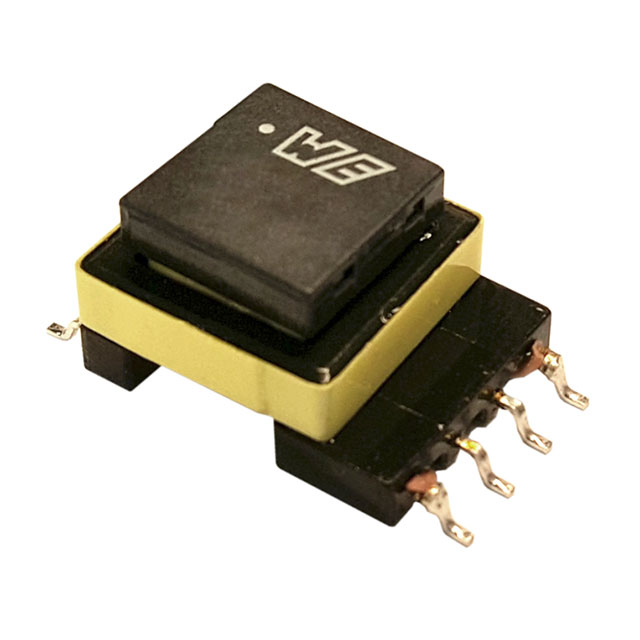

7508170313
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-UNIT, MID-OLEE
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 78 ~ 375V
Voltage - Auxiliary : 16V @ 50mA
Voltage - Isolation : 3000Vrms
Inductance @ Frequency : 592µH @ 10kHz
Frequency : 150kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.438" (11.13mm)
Footprint : 0.543" L x 0.941" W (13.80mm x 23.90mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-UNIT, MID-OLEE
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 78 ~ 375V
Voltage - Auxiliary : 16V @ 50mA
Voltage - Isolation : 3000Vrms
Inductance @ Frequency : 592µH @ 10kHz
Frequency : 150kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.438" (11.13mm)
Footprint : 0.543" L x 0.941" W (13.80mm x 23.90mm)
Style : -
0
100 in stock

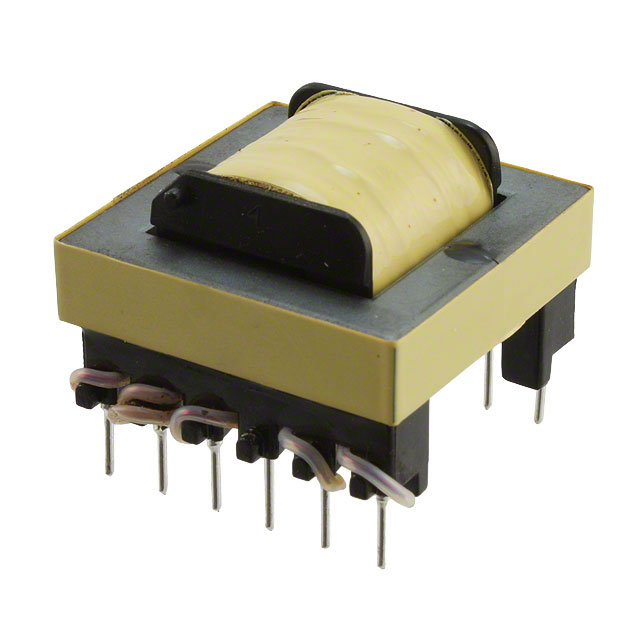

750845240
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE UNIT, MID-OLIFX
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : BCR450, TDA4863
Chipset Manufacturer : Infineon Technologies
Voltage - Primary : 280 ~ 380V
Voltage - Auxiliary : 15V @ 20mA
Voltage - Isolation : 3600Vrms
Inductance @ Frequency : 2.6mH @ 10kHz
Frequency : 47kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 1.386" W (31.50mm x 35.20mm)
Height - Seated (Max) : 0.950" (24.13mm)
Footprint : 1.240" L x 1.386" W (31.50mm x 35.20mm)
Style : -
Packaging : Tray
Series : WE UNIT, MID-OLIFX
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : BCR450, TDA4863
Chipset Manufacturer : Infineon Technologies
Voltage - Primary : 280 ~ 380V
Voltage - Auxiliary : 15V @ 20mA
Voltage - Isolation : 3600Vrms
Inductance @ Frequency : 2.6mH @ 10kHz
Frequency : 47kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 1.386" W (31.50mm x 35.20mm)
Height - Seated (Max) : 0.950" (24.13mm)
Footprint : 1.240" L x 1.386" W (31.50mm x 35.20mm)
Style : -
0
48 in stock

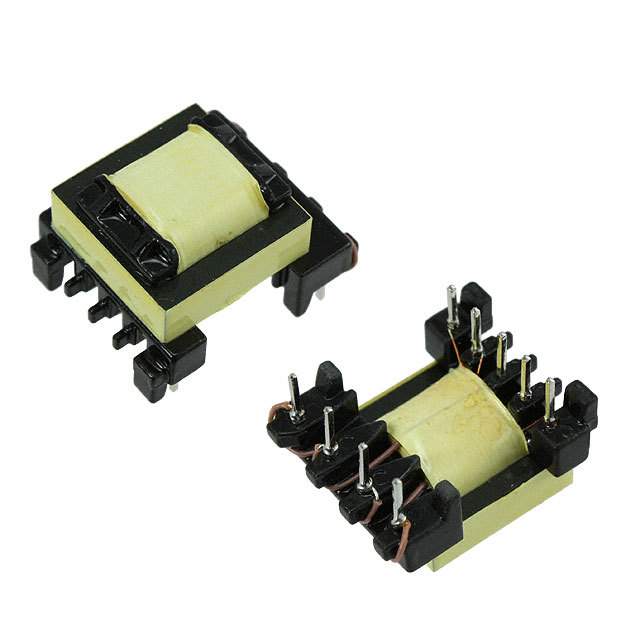

750871010
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER17L
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 3.3mH @ 10kHz
Frequency : 60kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.787" L x 0.975" W (20.00mm x 24.00mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER17L
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 3.3mH @ 10kHz
Frequency : 60kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.787" L x 0.975" W (20.00mm x 24.00mm)
Style : -
0
91 in stock
750871030
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER17L
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 2.38mH @ 10kHz
Frequency : 60kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.787" L x 0.975" W (20.00mm x 24.00mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER17L
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 2.38mH @ 10kHz
Frequency : 60kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.787" L x 0.975" W (20.00mm x 24.00mm)
Style : -
0
5997 in stock

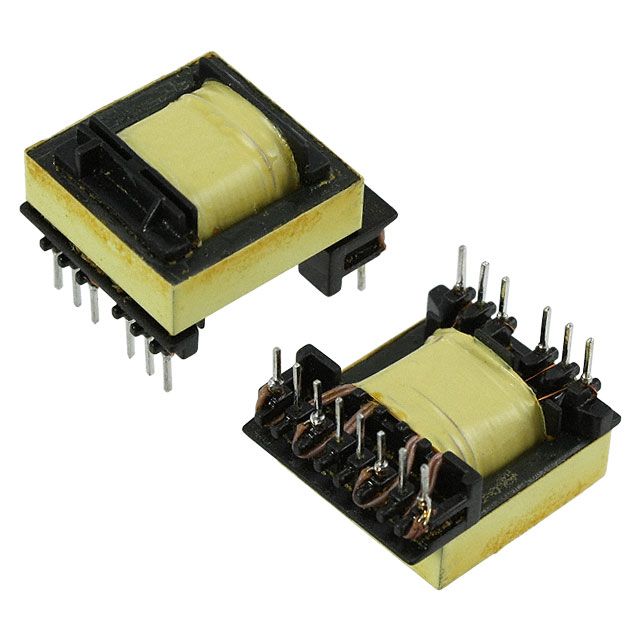

750871110
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER28
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 10V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 1.6mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER28
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 10V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 1.6mH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Style : -
0
117 in stock

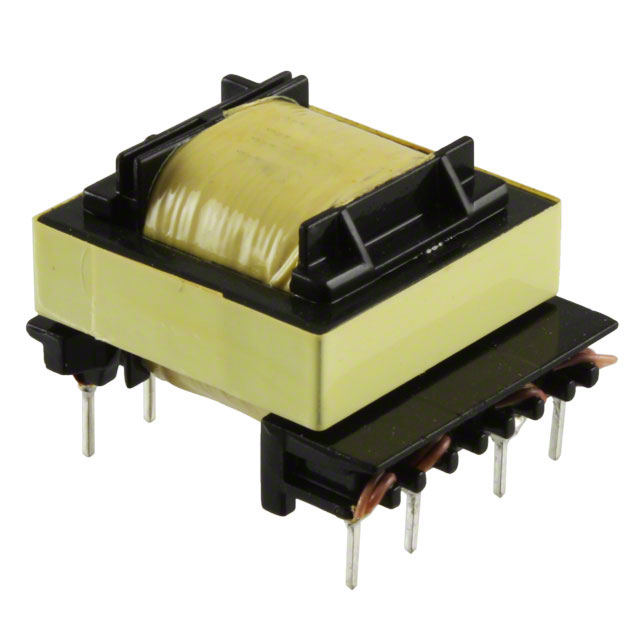

750871111
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER27L
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 1.7mH @ 10kHz
Frequency : 60kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLSTM
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : VIPER27L
Chipset Manufacturer : STMicroelectronics
Voltage - Primary : 120 ~ 385V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 1.7mH @ 10kHz
Frequency : 60kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.827" L x 0.984" W (21.00mm x 25.00mm)
Style : -
0
88 in stock

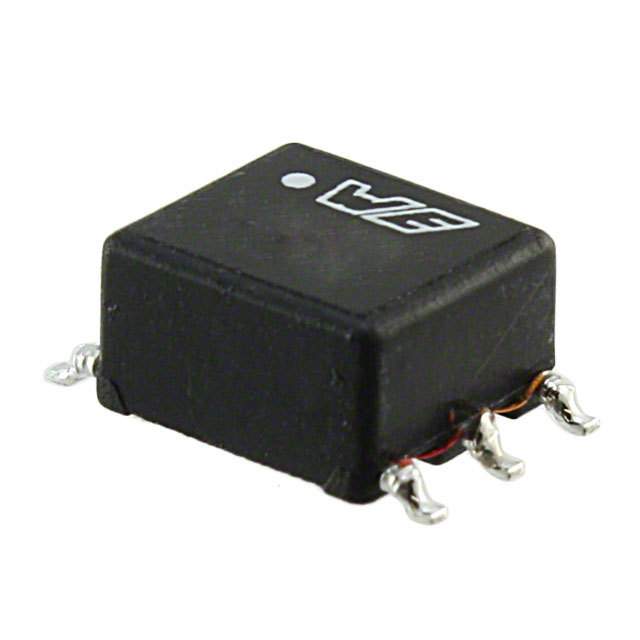

760390011
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 1mH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 1mH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
0
3061 in stock
760390012
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
0
31338 in stock
760390013
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
0
1031 in stock
760390014
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
0
61250 in stock
760390015
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PP, MID-PPTI
Part Status : Active
Type : For DC/DC Converters
Applications : Forward, Push-Pull Converters
Intended Chipset : SN6501
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 3125Vrms
Inductance @ Frequency : 475µH @ 10kHz
Frequency : 10kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) : 0.170" (4.32mm)
Footprint : 0.265" L x 0.395" W (6.73mm x 10.05mm)
Style : -
0
762 in stock
760871038
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : WE-UNIT, MID-OLNXP
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : NXP Semiconductors
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 6000Vrms
Inductance @ Frequency : 1.85mH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.620" W (15.00mm x 15.75mm)
Height - Seated (Max) : 0.728" (18.50mm)
Footprint : -
Style : -
Packaging : -
Series : WE-UNIT, MID-OLNXP
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : NXP Semiconductors
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 6000Vrms
Inductance @ Frequency : 1.85mH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.620" W (15.00mm x 15.75mm)
Height - Seated (Max) : 0.728" (18.50mm)
Footprint : -
Style : -
0
20 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
