Part Number
Manufacturer
Description
Unit Price
In Stock

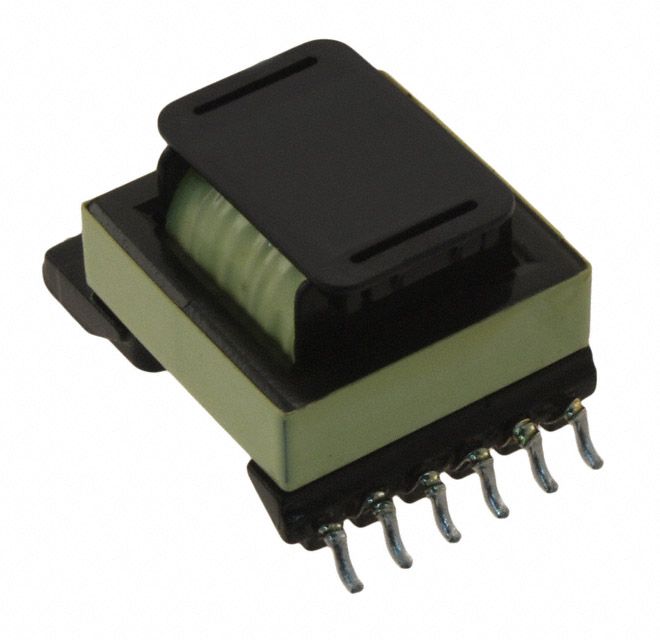

750811137
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-UNIT, MID-OLEE
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 85 ~ 265V
Voltage - Auxiliary : -
Voltage - Isolation : 3000Vrms
Inductance @ Frequency : 1.39mH @ 10kHz
Frequency : 80 ~ 200kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.548" (13.92mm)
Footprint : 0.700" L x 1.028" W (17.78mm x 26.10mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-UNIT, MID-OLEE
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 85 ~ 265V
Voltage - Auxiliary : -
Voltage - Isolation : 3000Vrms
Inductance @ Frequency : 1.39mH @ 10kHz
Frequency : 80 ~ 200kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.548" (13.92mm)
Footprint : 0.700" L x 1.028" W (17.78mm x 26.10mm)
Style : -
0
100 in stock

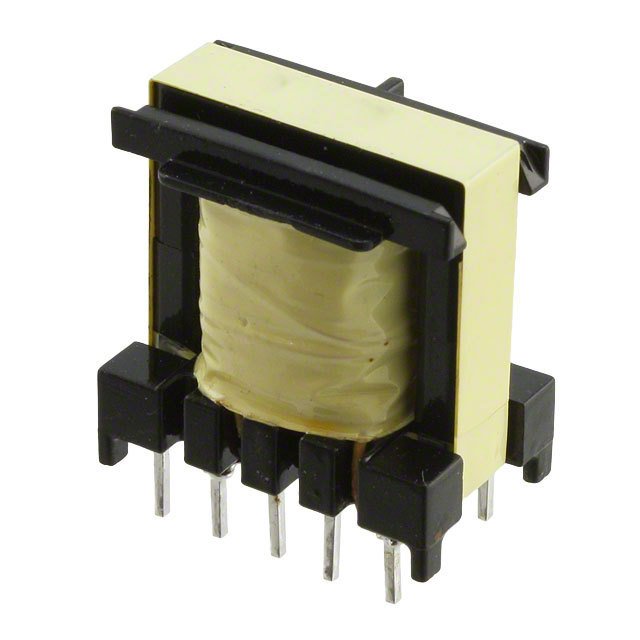

750811145
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : TPS92210DR
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 88 ~ 269V
Voltage - Auxiliary : -
Voltage - Isolation : 3750VDC
Inductance @ Frequency : 1.2mH @ 65kHz
Frequency : 130kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.876" L x 0.567" W (22.88mm x 14.40mm)
Height - Seated (Max) : 0.878" (22.30mm)
Footprint : 0.876" L x 0.567" W (22.25mm x 14.40mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : TPS92210DR
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 88 ~ 269V
Voltage - Auxiliary : -
Voltage - Isolation : 3750VDC
Inductance @ Frequency : 1.2mH @ 65kHz
Frequency : 130kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.876" L x 0.567" W (22.88mm x 14.40mm)
Height - Seated (Max) : 0.878" (22.30mm)
Footprint : 0.876" L x 0.567" W (22.25mm x 14.40mm)
Style : -
0
24 in stock

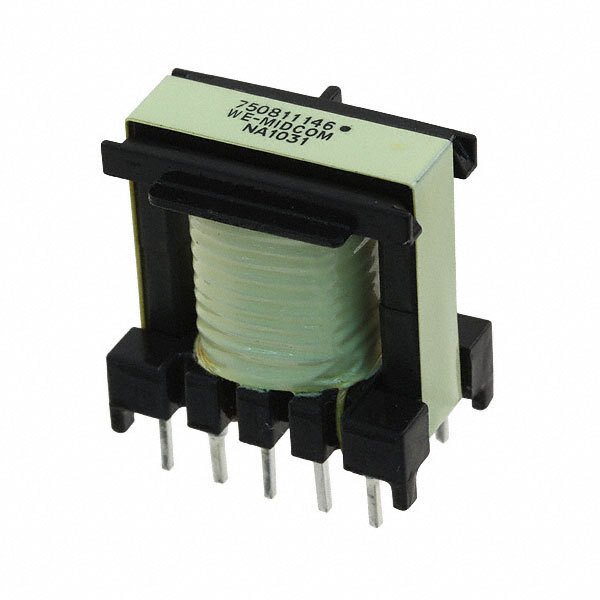

750811146
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : PMP6001, TPS92210
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 88 ~ 269V
Voltage - Auxiliary : -
Voltage - Isolation : 3750Vrms
Inductance @ Frequency : 430µH @ 65kHz
Frequency : 130kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.876" L x 0.567" W (22.88mm x 14.40mm)
Height - Seated (Max) : 0.878" (22.30mm)
Footprint : 0.876" L x 0.567" W (22.25mm x 14.40mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : PMP6001, TPS92210
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 88 ~ 269V
Voltage - Auxiliary : -
Voltage - Isolation : 3750Vrms
Inductance @ Frequency : 430µH @ 65kHz
Frequency : 130kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.876" L x 0.567" W (22.88mm x 14.40mm)
Height - Seated (Max) : 0.878" (22.30mm)
Footprint : 0.876" L x 0.567" W (22.25mm x 14.40mm)
Style : -
0
74 in stock
7508112110
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : *
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 16V @ 50mA
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
Packaging : -
Series : *
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 16V @ 50mA
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
0
17 in stock

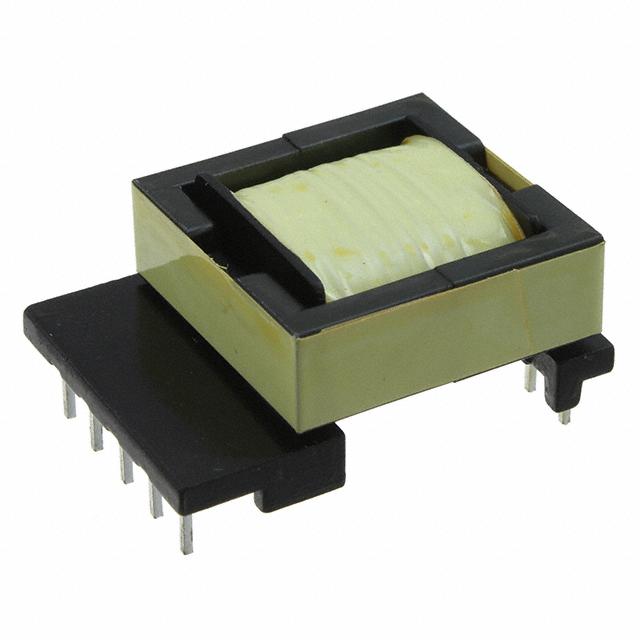

7508112330
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLEDF
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 800µH @ 10kHz
Frequency : 68 ~ 130kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.846" L x 1.142" W (21.50mm x 29.00mm)
Height - Seated (Max) : 0.477" (12.12mm)
Footprint : 0.846" L x 1.142" W (21.50mm x 29.00mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLEDF
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 800µH @ 10kHz
Frequency : 68 ~ 130kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.846" L x 1.142" W (21.50mm x 29.00mm)
Height - Seated (Max) : 0.477" (12.12mm)
Footprint : 0.846" L x 1.142" W (21.50mm x 29.00mm)
Style : -
0
44 in stock
7508112334
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : MID-OLEFD
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : -
Frequency : 68 ~ 110kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.551" (14.00mm)
Footprint : -
Style : -
Packaging : -
Series : MID-OLEFD
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : -
Frequency : 68 ~ 110kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.551" (14.00mm)
Footprint : -
Style : -
0
20 in stock

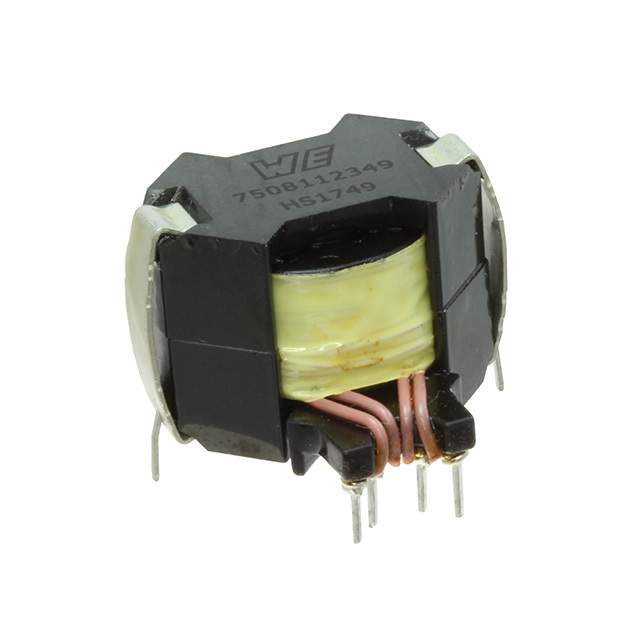

7508112349
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : *
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 16V @ 50mA
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
Packaging : -
Series : *
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 16V @ 50mA
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
0
20 in stock

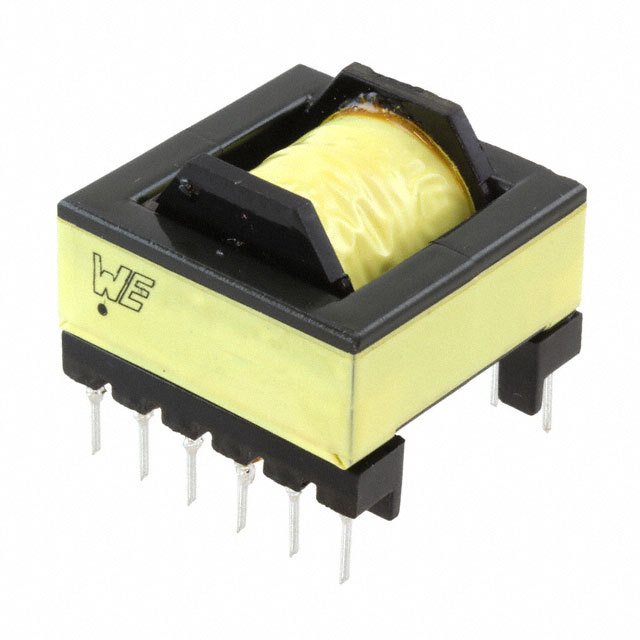

750811248
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLLT
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 24V @ 20mA
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 60 ~ 400kHz
Operating Temperature : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 1.220" W (31.00mm x 31.00mm)
Height - Seated (Max) : 0.989" (25.12mm)
Footprint : 1.220" L x 1.220" W (31.00mm x 31.00mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLLT
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 24V @ 20mA
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 60 ~ 400kHz
Operating Temperature : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 1.220" W (31.00mm x 31.00mm)
Height - Seated (Max) : 0.989" (25.12mm)
Footprint : 1.220" L x 1.220" W (31.00mm x 31.00mm)
Style : -
0
1039 in stock

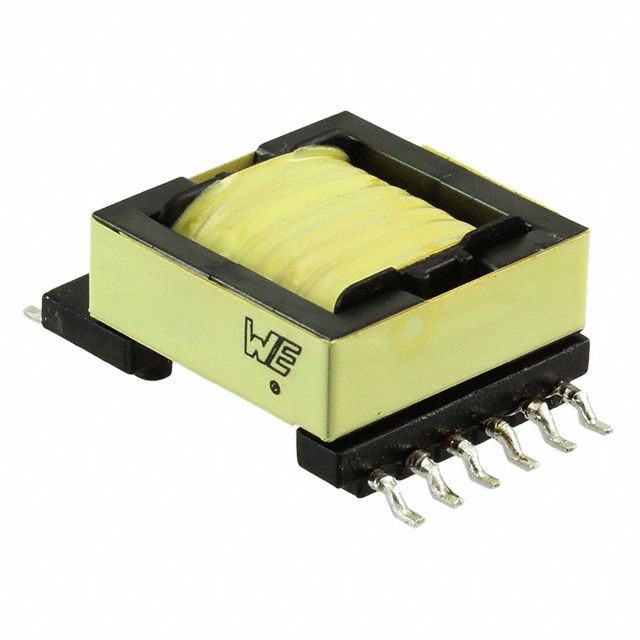

7508112510
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MID-OLEFD
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 800µH @ 10kHz
Frequency : 68 ~ 120kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.477" (12.12mm)
Footprint : 0.846" L x 1.331" W (21.50mm x 33.80mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MID-OLEFD
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 800µH @ 10kHz
Frequency : 68 ~ 120kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.477" (12.12mm)
Footprint : 0.846" L x 1.331" W (21.50mm x 33.80mm)
Style : -
0
100 in stock
7508112511
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MID-OLEFD
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 800µH @ 10kHz
Frequency : 68 ~ 120kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.477" (12.12mm)
Footprint : 0.846" L x 1.331" W (21.50mm x 33.80mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MID-OLEFD
Part Status : Discontinued at
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 800µH @ 10kHz
Frequency : 68 ~ 120kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.477" (12.12mm)
Footprint : 0.846" L x 1.331" W (21.50mm x 33.80mm)
Style : -
0
100 in stock
7508112514
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : MID-OLEFD
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 460µH @ 10kHz
Frequency : 68 ~ 110kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.551" (14.00mm)
Footprint : -
Style : -
Packaging : -
Series : MID-OLEFD
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 460µH @ 10kHz
Frequency : 68 ~ 110kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.551" (14.00mm)
Footprint : -
Style : -
0
17 in stock
7508112515
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : MID-OLEFD
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 500µH @ 10kHz
Frequency : 68 ~ 150kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.551" (14.00mm)
Footprint : -
Style : -
Packaging : -
Series : MID-OLEFD
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 20V
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 500µH @ 10kHz
Frequency : 68 ~ 150kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.551" (14.00mm)
Footprint : -
Style : -
0
20 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
